DS-25 Twin Drum Sander Variable Conveyor Feed Speeds 635 x 127mm (W x H) Material Capacity

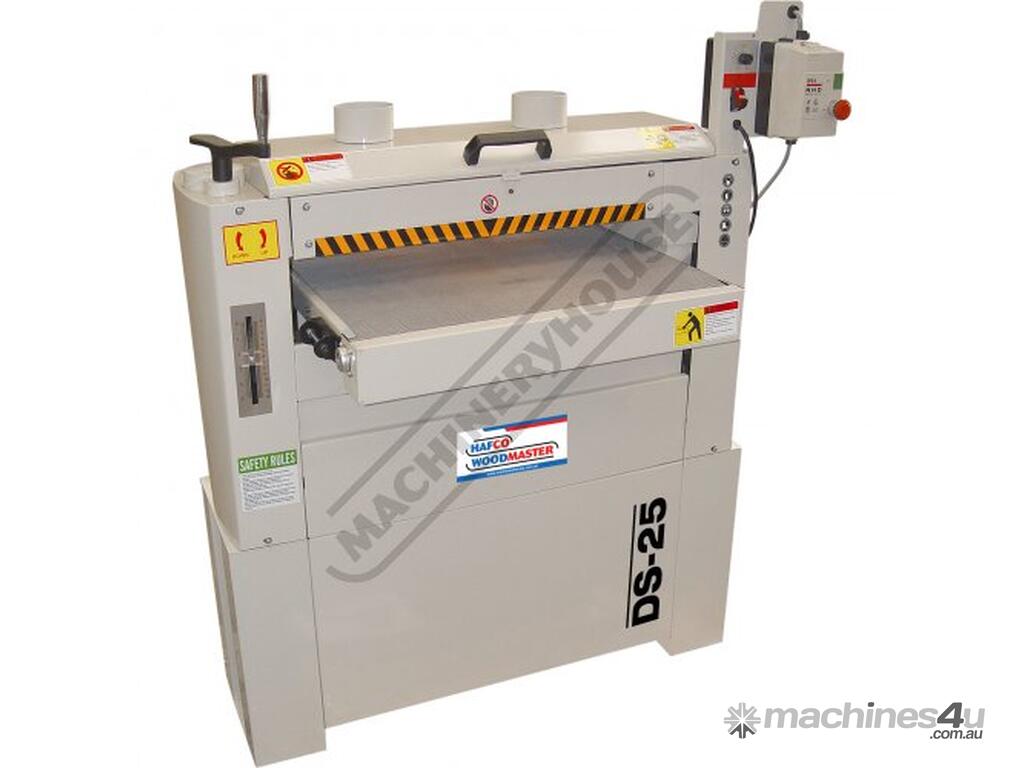

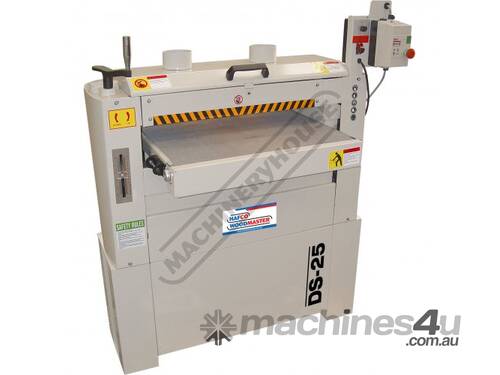

HAFCO-WOODMASTER DS-25 Twin Drum Sander Variable Conveyor Feed Speeds 635 x 127mm (W x H) Material Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L129

Manufactured in Taiwan

Features:
635mm (25") sanding width capacity

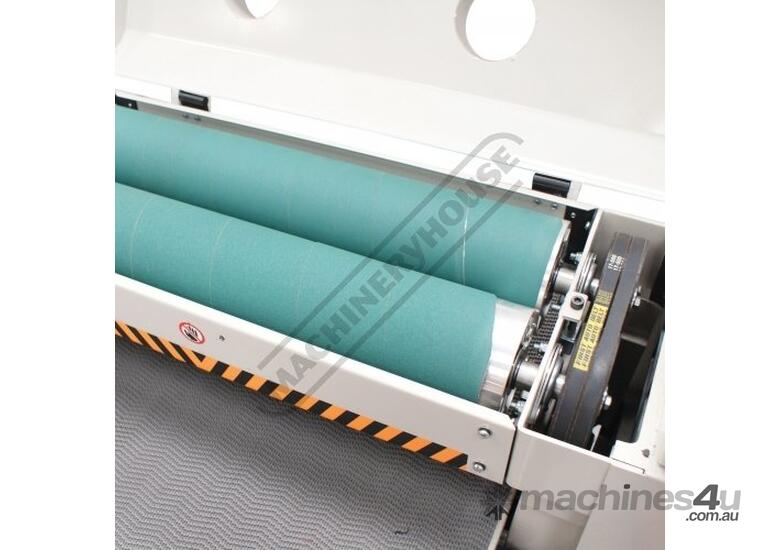

Twin dynamically balanced 127mm drums ensure smooth sanding (1 coarse & 1 fine)
High quality conveyor belt easy to track for smooth feeding

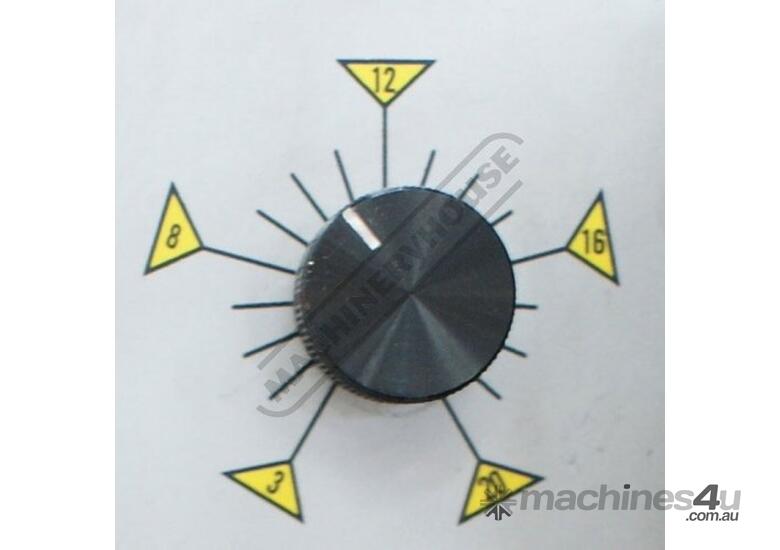

Variable speed conveyor drive giving 1.1 m/min to 5.7 m/min
Sanding workpiece thickness Min/Max (6 - 127mm)
2.2kW / 3hp Induction 240V motor
Twin Ø100mm (4") dust ports for efficient dust extraction
DOL starter switch with overload protection and raised red stop

Includes:
- Two abrasive belts (80 grit and 120 grit)



Specifications:
ORDER CODE: L129
MODEL: DS-25
Variable Table Feed Speed (m/min): 0.9 - 6
Sanding Drum Speed (rpm): 1600
Belt Size (mm): 2790 x 100
Drum Diameter (mm): 127
Maximum Material Width (mm): 635
Maximum Material Thickness (mm): 127
Minimum Material Thickness (mm): 6
Dust Collector Port Diameter (Qty x mm): 2 x Ø100

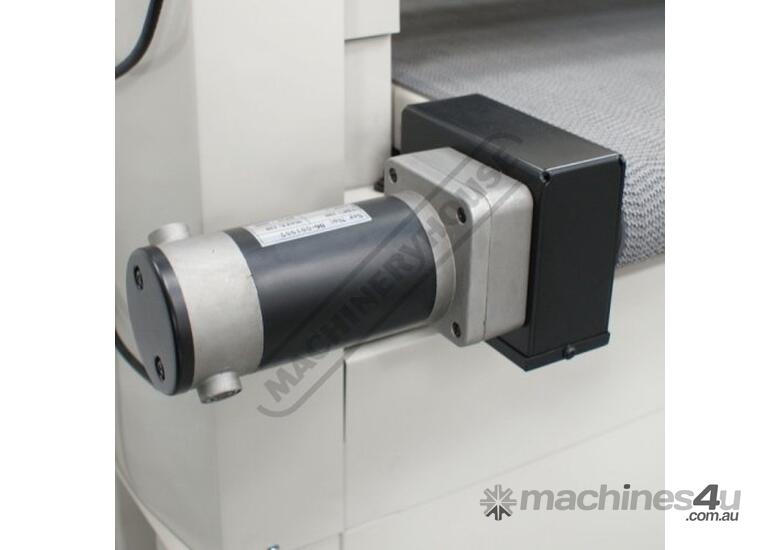

Feed Motor Power (hp): 1/8
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 240 / 15
Floor Space (W x D x H) (mm): 1130 x 780 x 1360
Nett Weight (kg): 225
