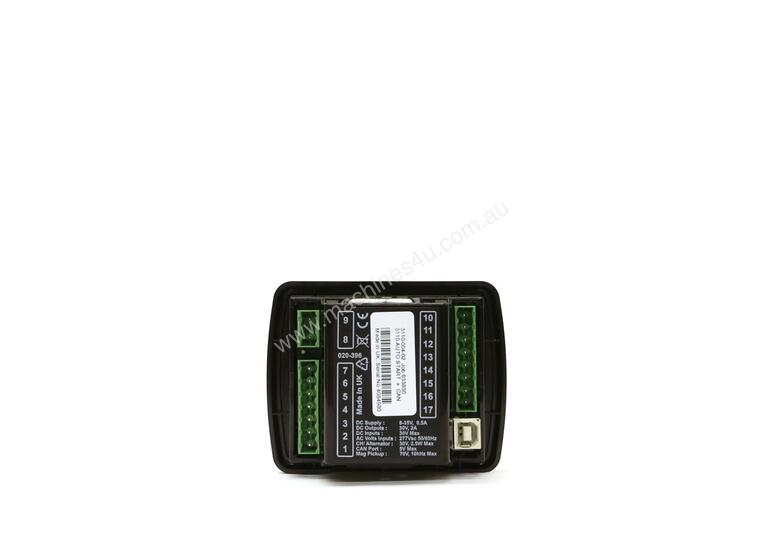

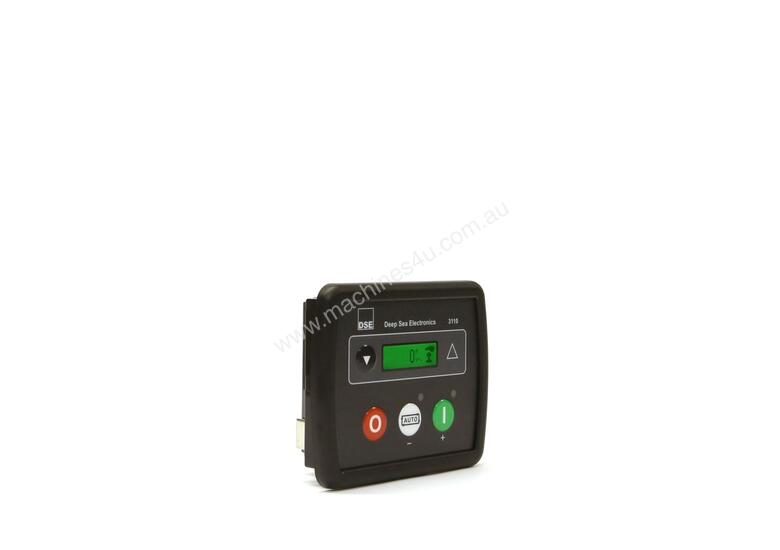

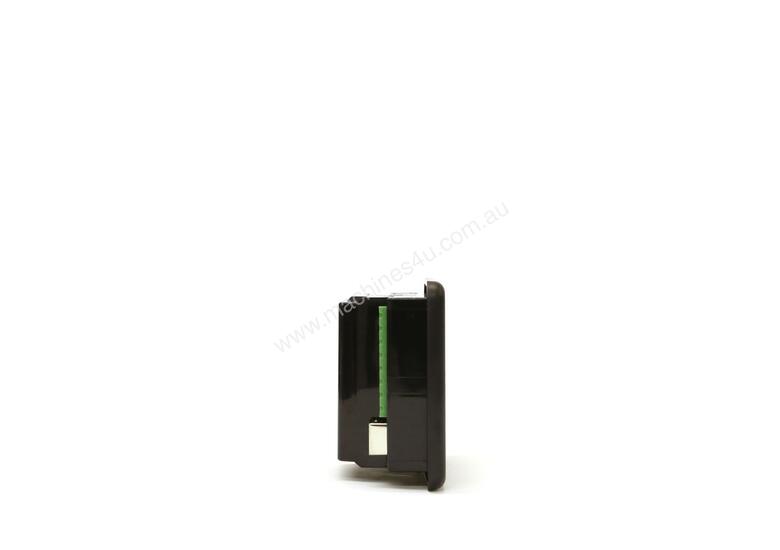

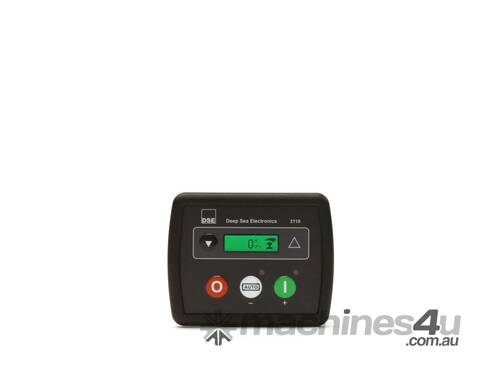

DSE3110 Manual & Auto Start Control Module

The DSE3110 is an outstanding compact control module that provides a comprehensive range of features for single-set applications. The controller can be used in manual or auto start mode.

OVERALL SIZE
98 mm x 79 mm x 40 mm (3.9” x 3.1” x 1.6”)
PANEL CUTOUT SIZE
80 mm x 68 mm (3.1 ” x 2.7?)
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.16kg
PRODUCT VARIANTS
3110-02 – Manual & Auto Start Control Module (Can)
3110-01 – Manual & Auto Start Control Module (Mpu)

DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries

CHARGE FAIL/ EXCITATION
8 V to 35 V fixed power source 2.5 W

NOMINAL STANDBY CURRENT
23 mA at 12 V, 18 mA at 24 V

MAXIMUM OPERATING CURRENT
35 mA at 12 V, 30 mA at 24 V

OUTPUTSOUTPUT A (FUEL)
2 A DC at supply voltageOUTPUT B (START)
2 A DC at supply voltage
AUXILIARY OUTPUTS C & D
2 A DC at supply voltage

GENERATOR
VOLTAGE RANGE
15 V – 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz

MAGNETIC PICK-UP
VOLTAGE RANGE
+/- 0.5 V to 70 V

FREQUENCY RANGE
10,000 Hz (max)
