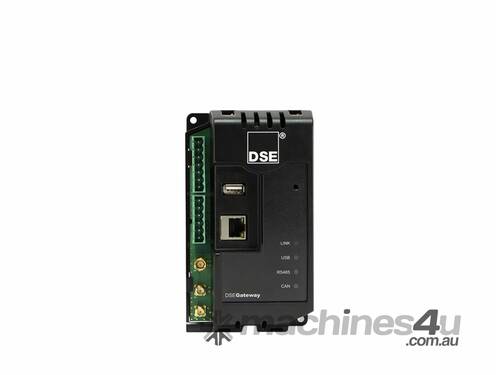

DSE890 MKII Webnet Gateway

The DSE890 MKII is an Ethernet/4G gateway device that enables compatible DSE controllers to be monitored remotely via DSEWebNet®.

OVERALL SIZE
85 mm x 149 mm x 51 mm (3.4” x 5.9” x 2.0”)
WEIGHT
0.23kg
PRODUCT VARIANTS
0890-04 – 890 DSEWebnet® Gateway – 4G GSM/Ethernet

DC SUPPLY
CONTINUOUS VOLTAGE RATING
8 V to 36 V continuous

CRANKING DROPOUTS
Able to survive 0 V for 100 mS, providing supply was at least 8 V before dropout and supply recovers to 8 V. This is achieved without the need for internal batteries

MAXIMUM OPERATING CURRENT
GSM 755 mA at 12 V
376 mA at 24 V
GSM & GPS 755 mA at 12 V
376 mA at 24 V


MAXIMUM STANDBY CURRENT
GSM 207 mA at 12 V
113 mA at 24 V
GSM & GPS 207 mA at 12 V
113 mA at 24 V

COMMUNICATIONS
USB?(Single DSE Controller)
RS485 (Multiple DSE?Controllers)
Ethernet (Multiple DSE?Controllers)
CAN* (Single DSE Controller)
