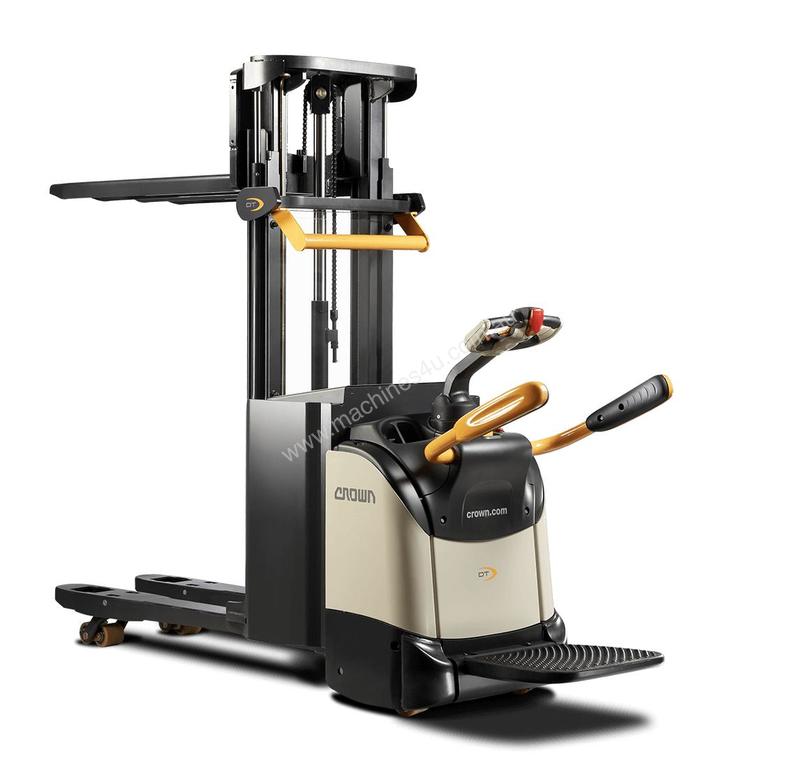

DT Series-Fixed Platform Rear Entry

The DT double stacker with rear-entry fixed platform is ideal for high traffic areas or long runs. The rear entry creates a secure, comfortable compartment for the operator.

Load Capacity
2000 kg

Max Lift Height
1670 mm

Power
24 V / 375 Ah

Head Length
1472 mm

Width Overall
744 mm

Fork Length
1150 mm

Pick up the Pace
Crown’s double stacker is an ideal forklift for high density, stock-to-stock applications – combining the capability of a heavy-duty stacker, the flexibility of a pallet truck, and the capability to transport two 1000 kg pallets.


Delivering Results
The DT Series is designed to deliver performance so operators can be as productive as possible all shift long.

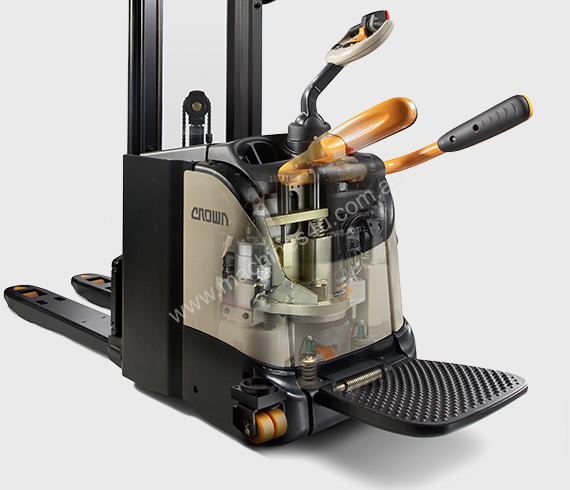

Crown’s Active Traction is the key. It continually varies pressure on the drive tyre depending on speed, steering angle, fork height, load distribution, acceleration and braking.

Long-Lasting Value
Crown forklifts are built to withstand the constant challenges of warehouse environments – so they can deliver the reliability and uptime you count on.

Sturdy nested I-beam mast, a cast-steel reinforced chassis, 10 mm thick protective skirt, 5 mm wrap-around covers, die-cast aluminum handle and the toughest side restraints available.

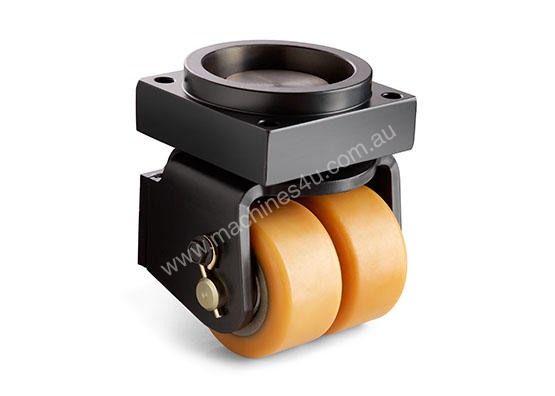

Spring-loaded drive unit with heavy-duty castors makes a critical difference in durability and traction control.


Accomplish More
It’s a fact: operators who are comfortable and confident are more productive than those who are not. That’s the motivation behind Crown’s commitment to forklift design and ergonomics.

Take the patented weight-adjustable, folding FlexRide option for example. It provides ultimate rider comfort by tuning the suspension for the operator’s body weight.

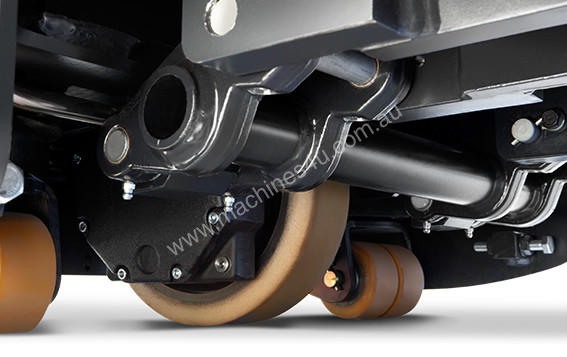

Crown’s advanced suspension significantly reduces shock to the chassis, platform, and other truck components. In addition, the hydraulic system responds instantly and proportionally to operator for fast, precise positioning of forks and loads.


Flexibility Pays
The Crown DT Series far exceeds typical expectations for double stacker pallet trucks in terms of productivity control, durability and versatility.

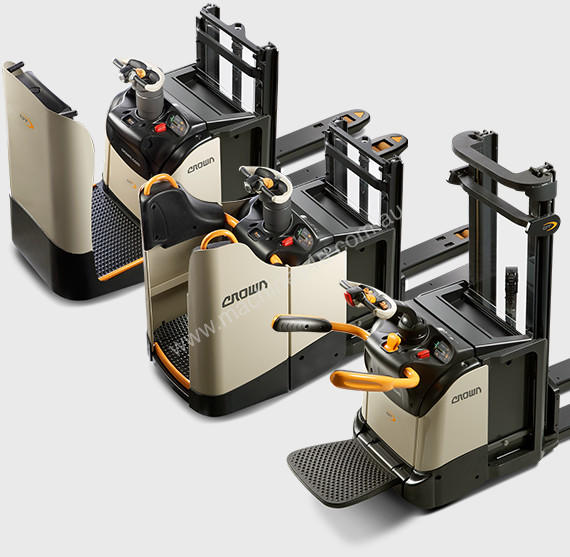

The double stacker series is available in four configurations offering travel speeds of up to 12.5 km/h.

The folding platform with Quick-Exit side restraints offers the flexibility to switch between rider and pedestrian mode.
The fixed platform with side entry and backrest is especially useful for transport picking.

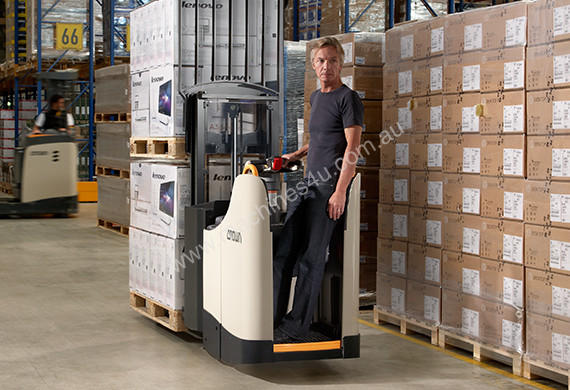

The fixed platform with rear entry features a secure, comfortable operator compartment for high traffic areas.
For dedicated pedestrian use, the double stacker can be configured without the platform.

Count on Uptime
Crown builds long-term value into all of its lift trucks and the DT Series double stacker is no exception.

With Crown’s unique vertically integrated manufacturing and aftermarket services, total cost of ownership can be substantially lower over time.

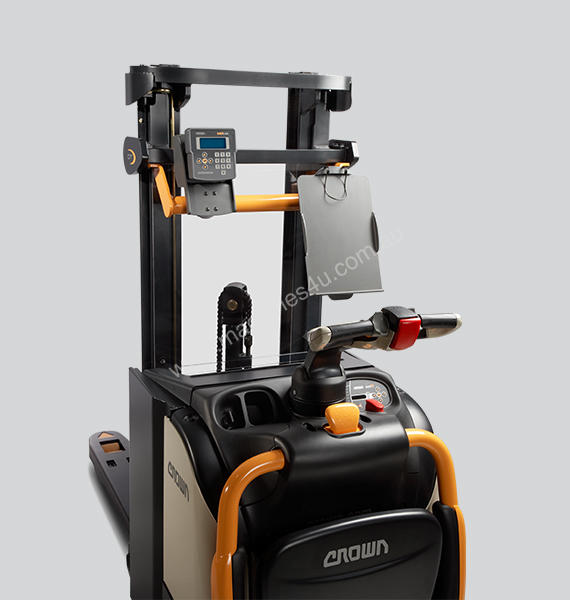

Work Assist accessories support operator comfort and productivity.
