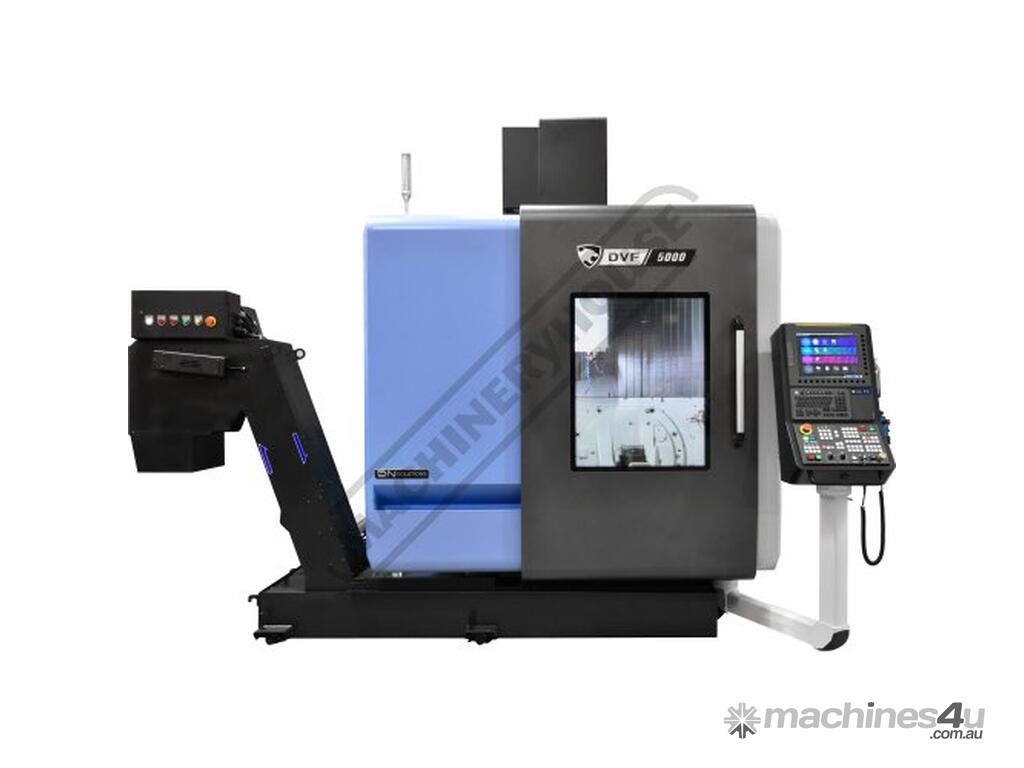

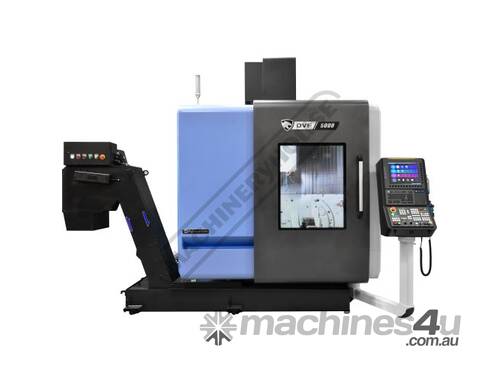

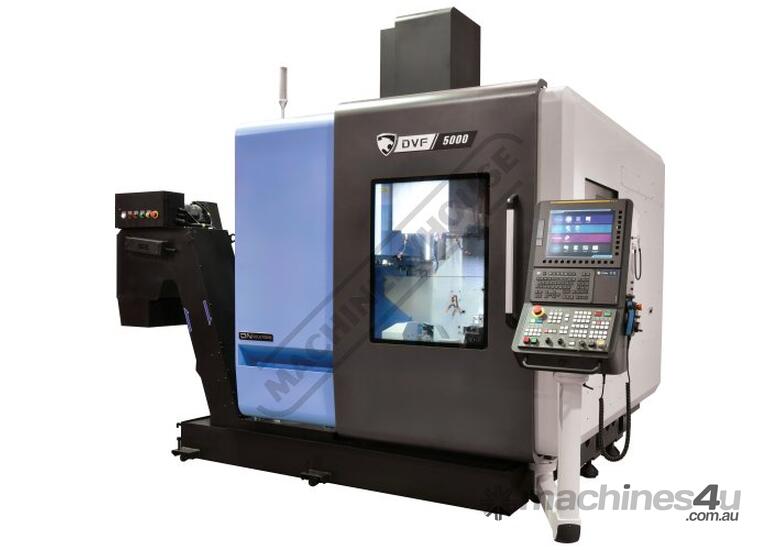

DVF5000 CNC 5 Axis Machining Centre 15,000rpm built-in spindle

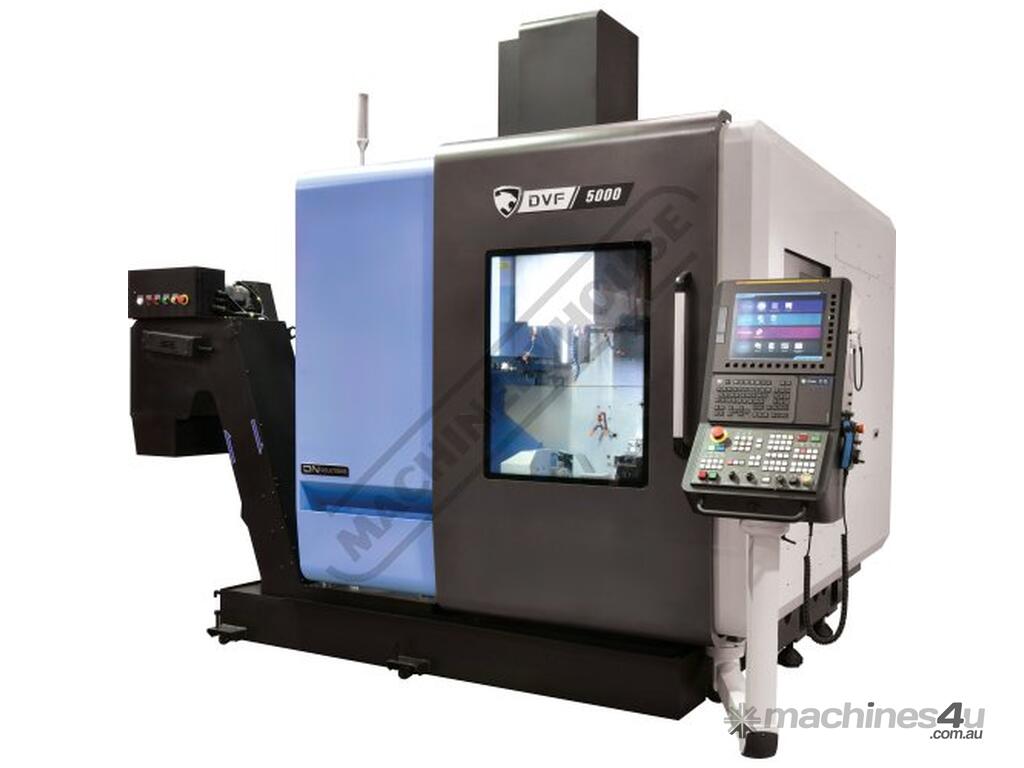

DOOSAN MACHINE TOOLS DVF5000 CNC 5 Axis Machining Centre 15,000rpm built-in spindle
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M8407

Specifications
• 620, 450, 400mm X, Y, Z Travels

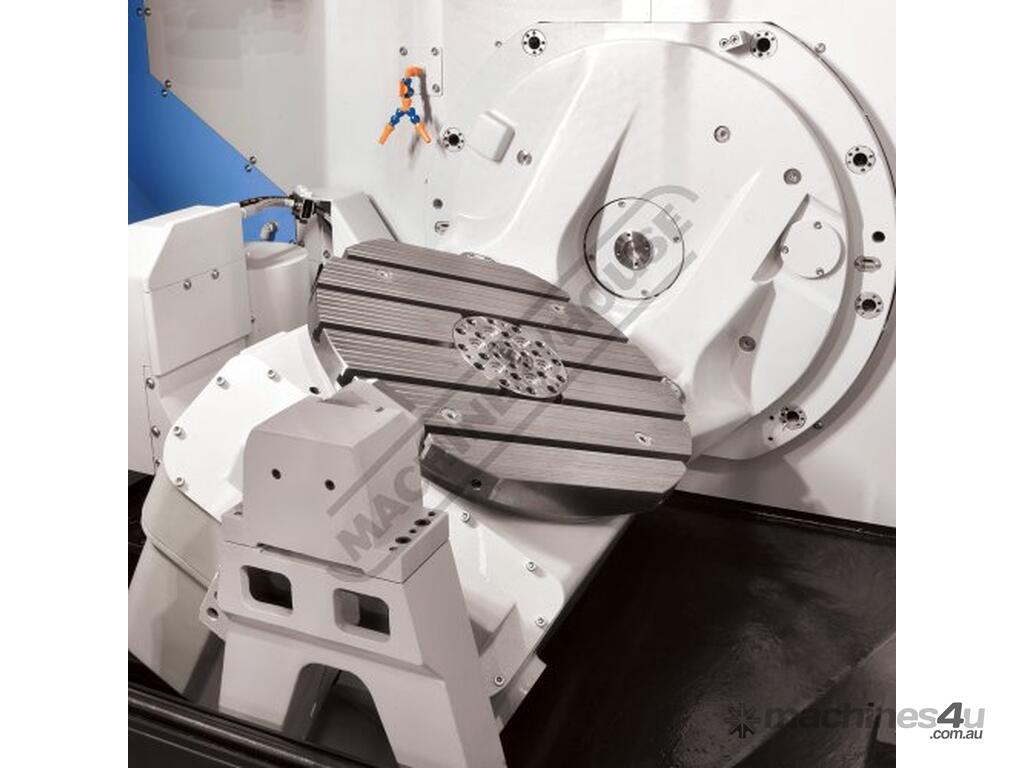

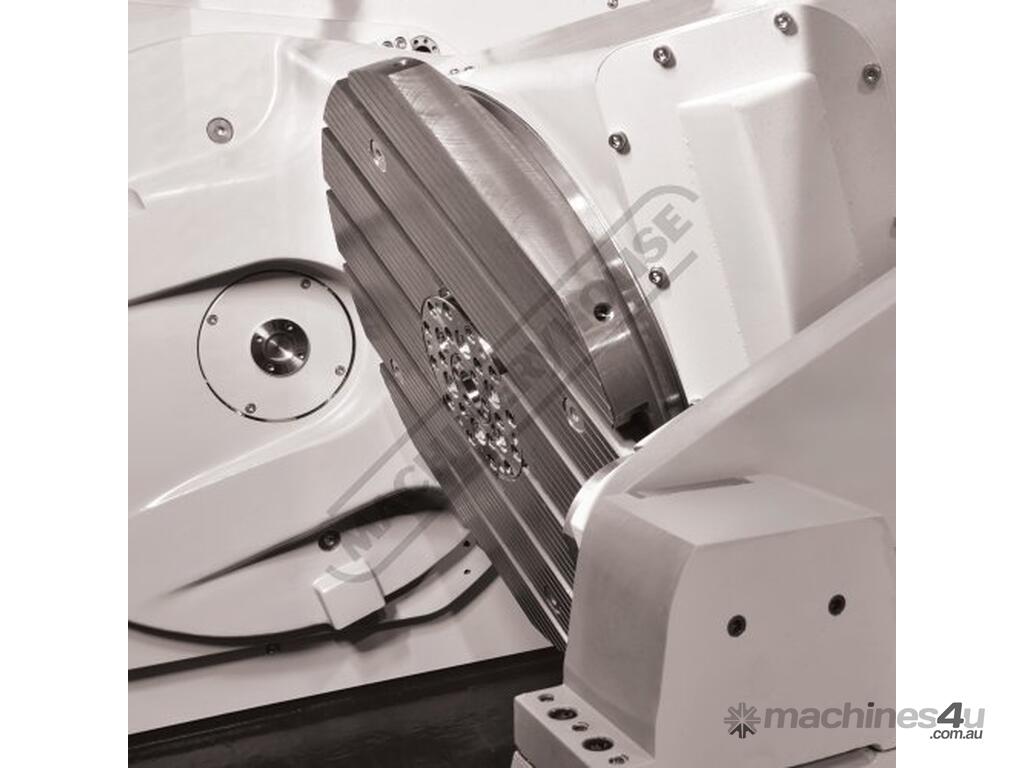

• 1400 (-30 ~ +1100) A Axis tilting table
• 3600 C Axis Rotary table

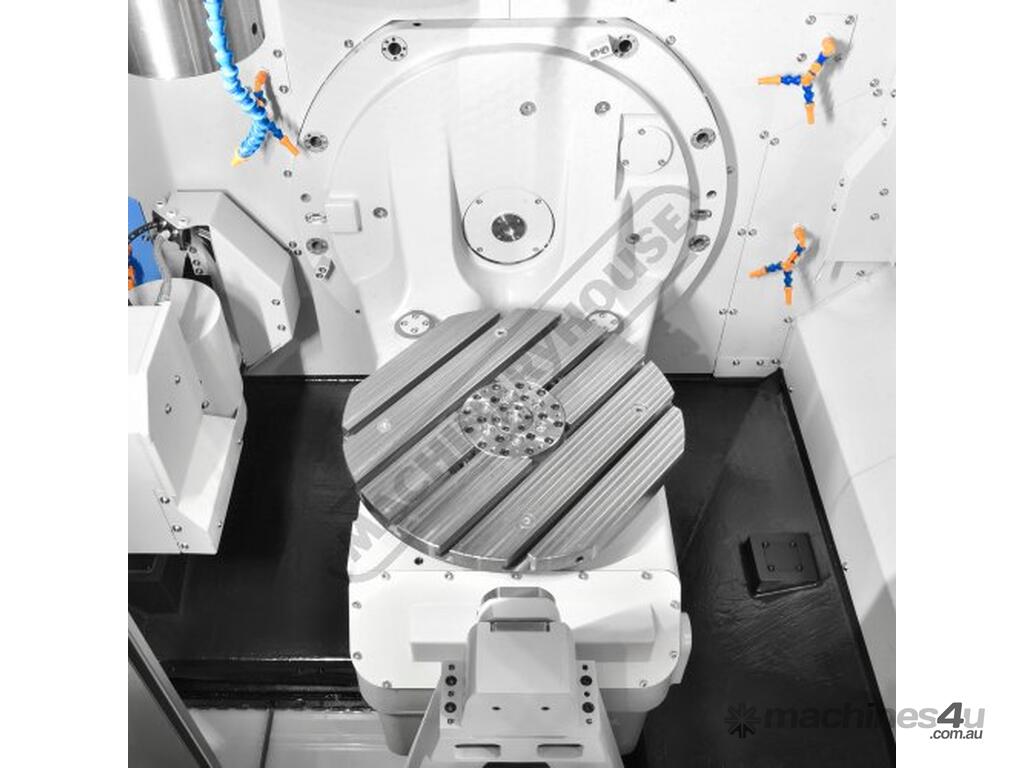

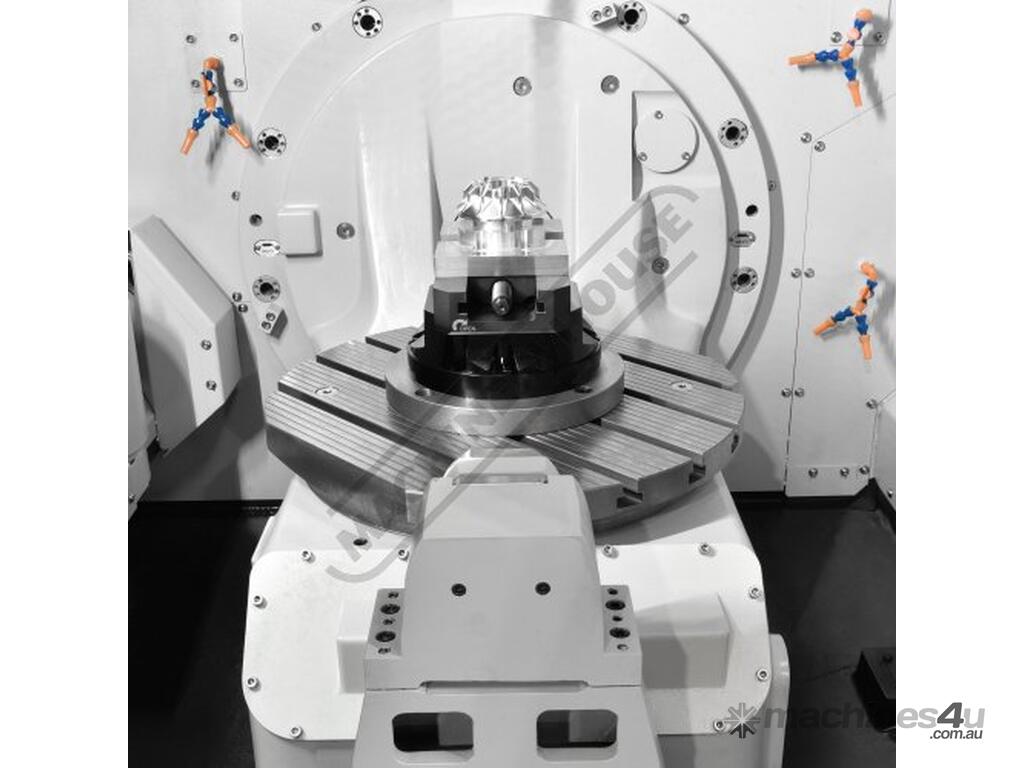

• Ø500mm x 450mm table size
• Ø550mm x 450mm high workpiece capacity (see brochure for working envelope)
• 150 – 550mm spindle to table (A-00)
• 400kg table load capacity
• 40m/min X, Y & Z rapid feed rates
• 20rpm A & C Axis rapid feed rates
• 15,000 rpm spindle speed
• 18.5kW spindle power
• 118Nm spindle torque
• BT40 Dual contact (Big Plus) spindle
• 7,500kg machine weight
• CE Regulation Specification

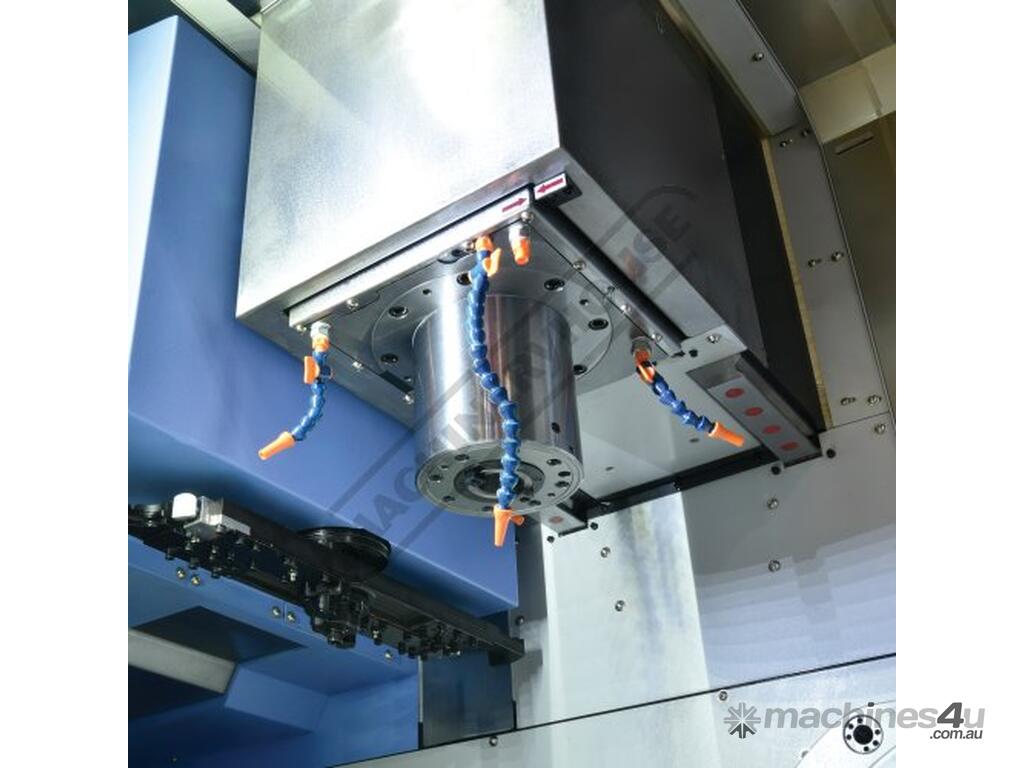

Main Spindle
• 15,000 rpm heavy duty spindle
• BT40 “Big Plus” dual contact spindle nose
• 18.5kW direct coupled Fanuc spindle motor
• Air blast through spindle
• Spindle side air blower
• Spindle oil cooler
• Spindle air curtain

CNC Control
• Fanuc 31i-B5 Series CNC Controller

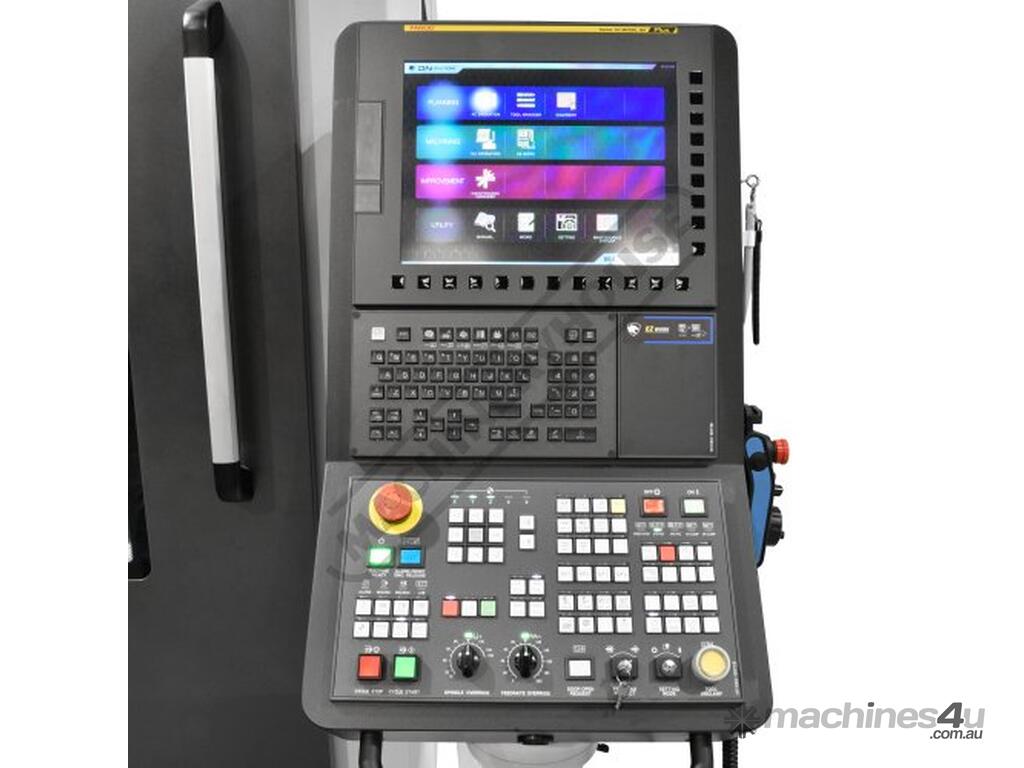

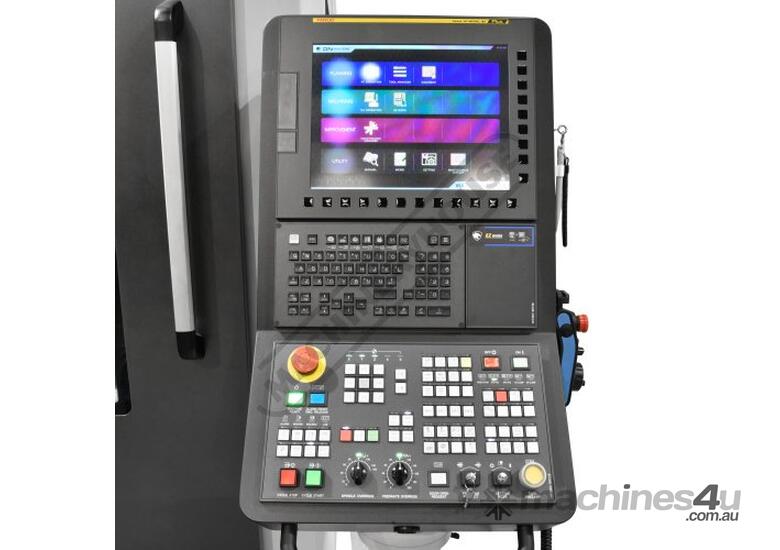

• Fanuc 15” Colour LCD with iHMi
• 5 Axis Simultaneous Machining
• Intelligent Kinematic Compensation
• Rigid-synchronised tapping
• Helical interpolation
• Nano Interpolation
• Large capacity Memory 2GB
• 1000 Block Look ahead
• Machine Condition Selection Function
• Custom Macro B
• USB & PCMCIA Card Slot
• Ethernet Interface & RS232 Interface
• Easy operation package including:
o Graphical tool table
o Self diagnostics
o Onboard G & M code assistance

Axis Motors & Drives
• Fanuc servo drive amplifiers
• Fanuc high torque direct coupled ac digital servo motors
• Fanuc absolute position encoders (no axes limit switches required)
• Highly rigid, precision, wide span roller guideways
• Large diameter pretensioned precision reciprocating ballscrews
• Automatic grease lubrication equipment
• Linear Scales X, Y & Z

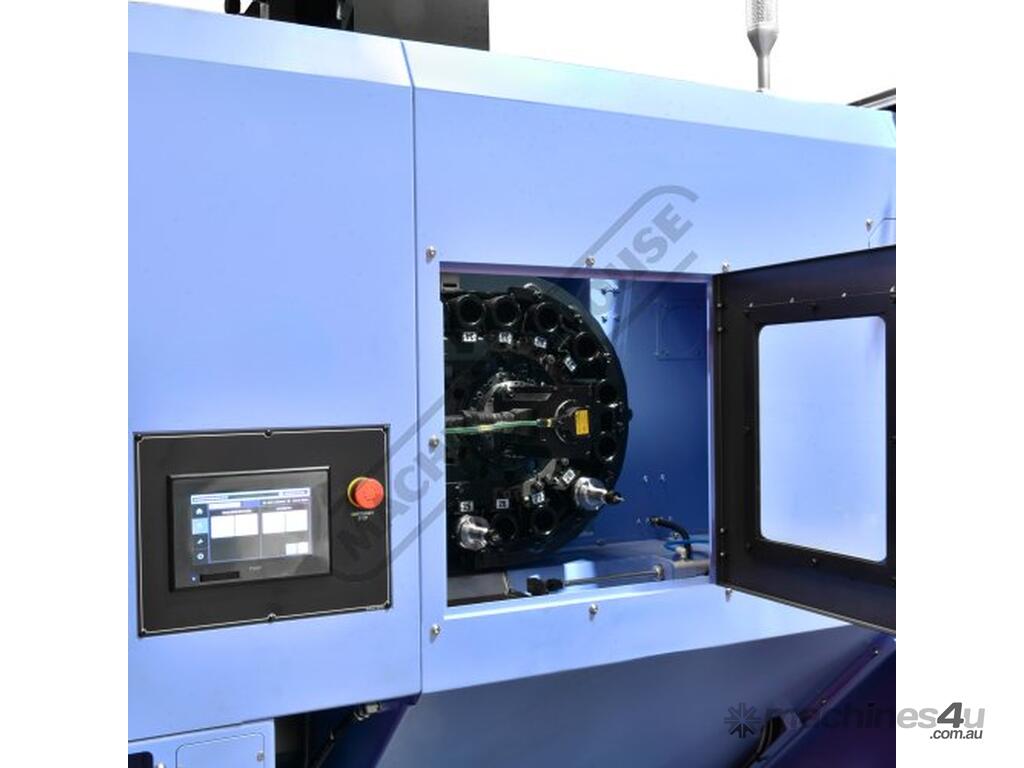

Tool Changer
• High-speed arm type automatic tool changer 1.5 second tool to tool

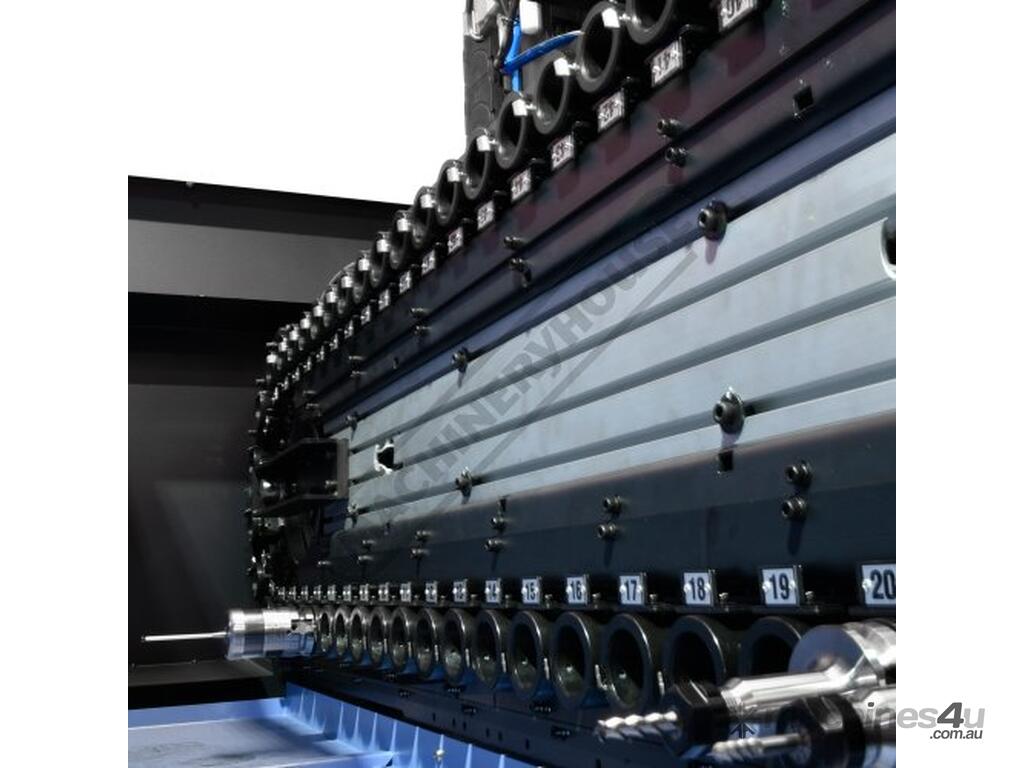

• 60 tool chain type bi-directional side mounted magazine
• LCD Control screen

Coolant System
• Flood coolant
• Box type screen filter
• Fully enclosed chip & coolant shield
• 410L coolant tank & chip pan
• 30 Bar Through Spindle Coolant 3.7kW & 29L/min

Electrical
• Door safety interlock switch
• Heat exchanger for electrical cabinet
• Line filter
• Transformer
• Auto power off
• Operators panel with symbols and text

Swarf Removal
• Hinged belt type chip conveyor (scraper type all in one)

Included Features
• Renishaw TS27 Swivel type Tool Setter
• Renishaw RMP60 Spindle Probe
• Operator Lamp (Green, Amber, Red)

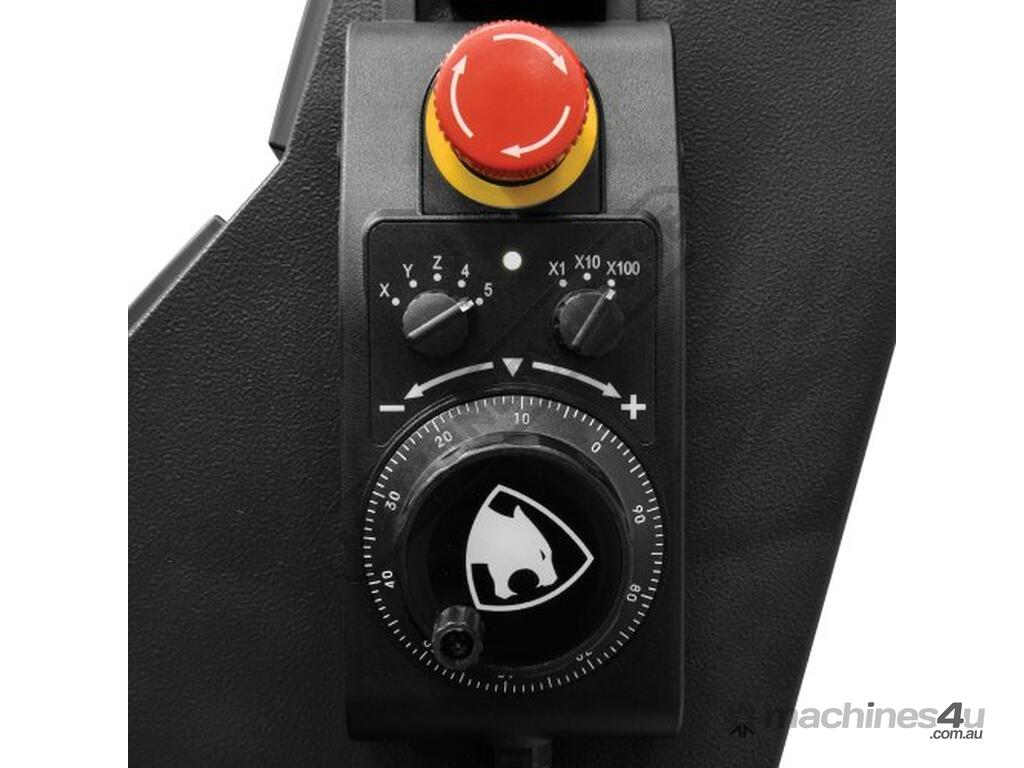

• Remote MPG (Portable Hand Wheel)
• Control panel with > 90° swivel
• LED Work light
• Z axis heat displacement control device
• Operating & maintenance manuals
• Electrical schematics
• Tool box
• Datum ball & Master Tool

Support and Service
• In house specialised applications engineers.
• In house service and support technicians.
• Ongoing phone support for the life of the machine.

Specifications:
ORDER CODE: M8407
MODEL: DVF5000
X Travel (mm): 625
Y Travel (mm): 450
Z Travel (mm): 400
A Travel (deg): ~
B Travel (deg): 140 (-30 / +110)
C Travel (deg): 360
Table Size (mm): Ø500 x 450
MAX Workpiece Height (mm): 450
Table Capacity (kg): 400
Spindle - Table (mm): 150-550
Spindle - Table (mm): ~
Spindle - Table (mm): ~
Spindle Taper: BT40 - BigPlus
Spindle Speed (rpm): 15,000
Spindle Motor (kW): 18.5
Rapid Traverse (m/min): 40
Guideways: LMG
Tool Change: 60 Tool
Control: Fanuc 31iMB5
Control: ~
Control: ~
Control: ~
Control: 5 Axis Simultaneous
