Deburring and Edge Rounding Machine

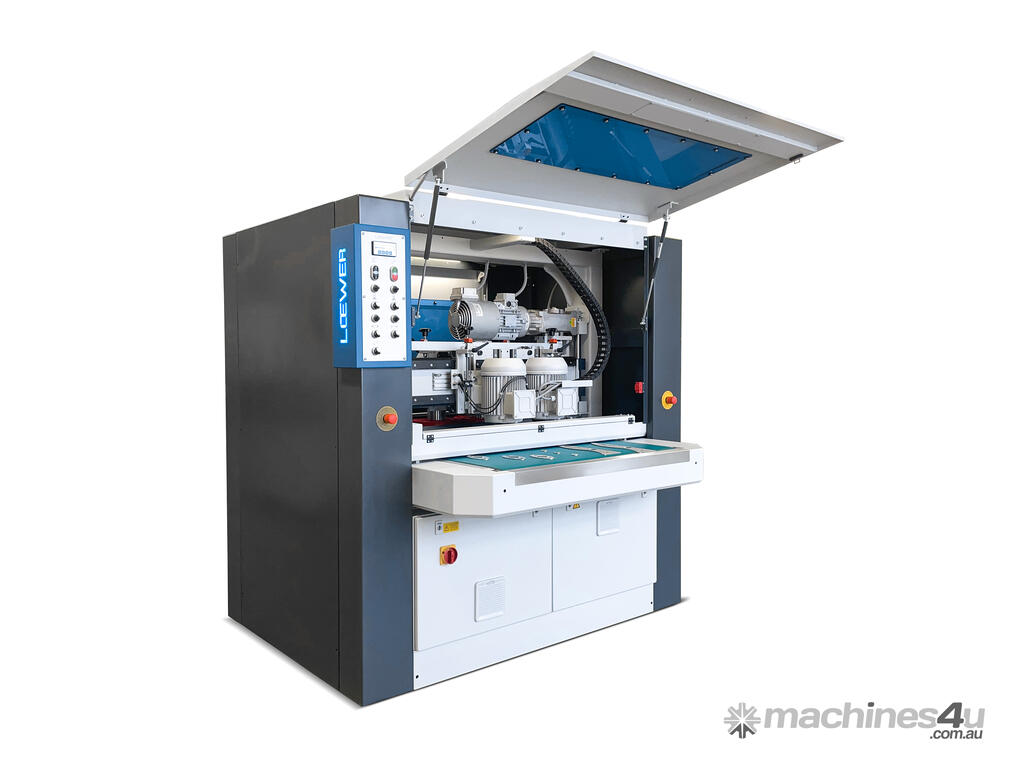

The Loewer DisMaster 4TD is the most popular model in the Loewer DiscMaster range of deburring and edge rounding machines for laser cut parts.
Available in 1,000mm, 1500mm and even 2,000mm widths, it caters for the largest sheet metal applications.

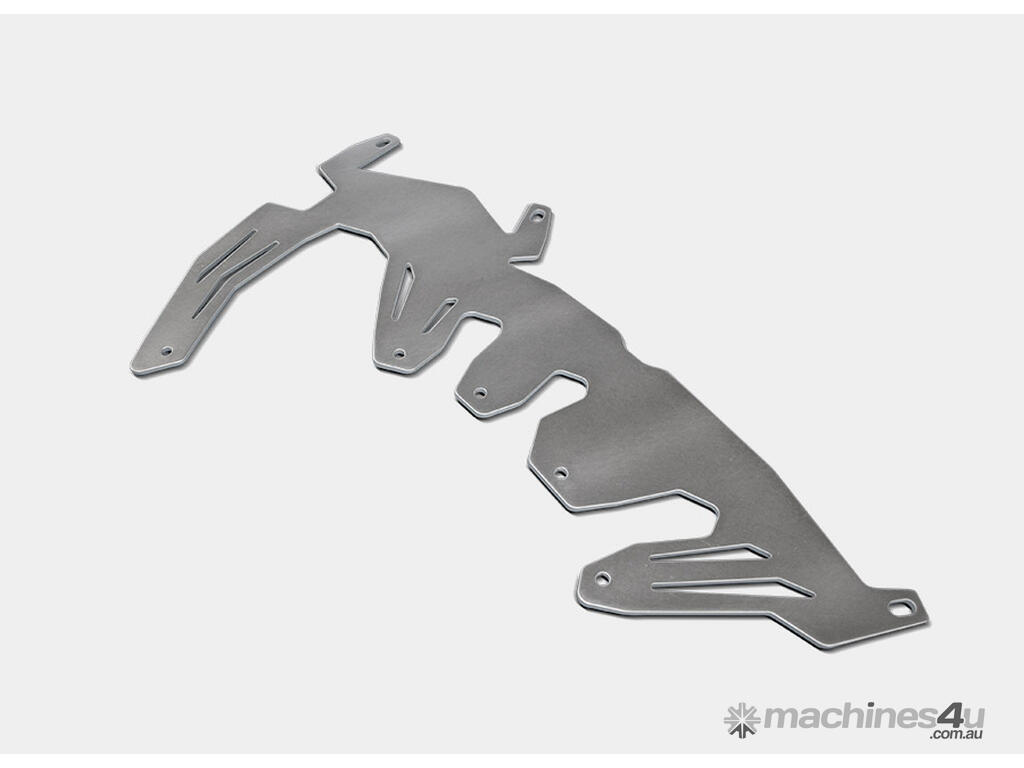

As in all DiscMaster models, the 4TD can process parts even as small as 20mm x 20mm.
Disc technology has many advantages over wide belt processing, including even wear of all abrasives regardless the workpiece size, shape or position on the conveyor.

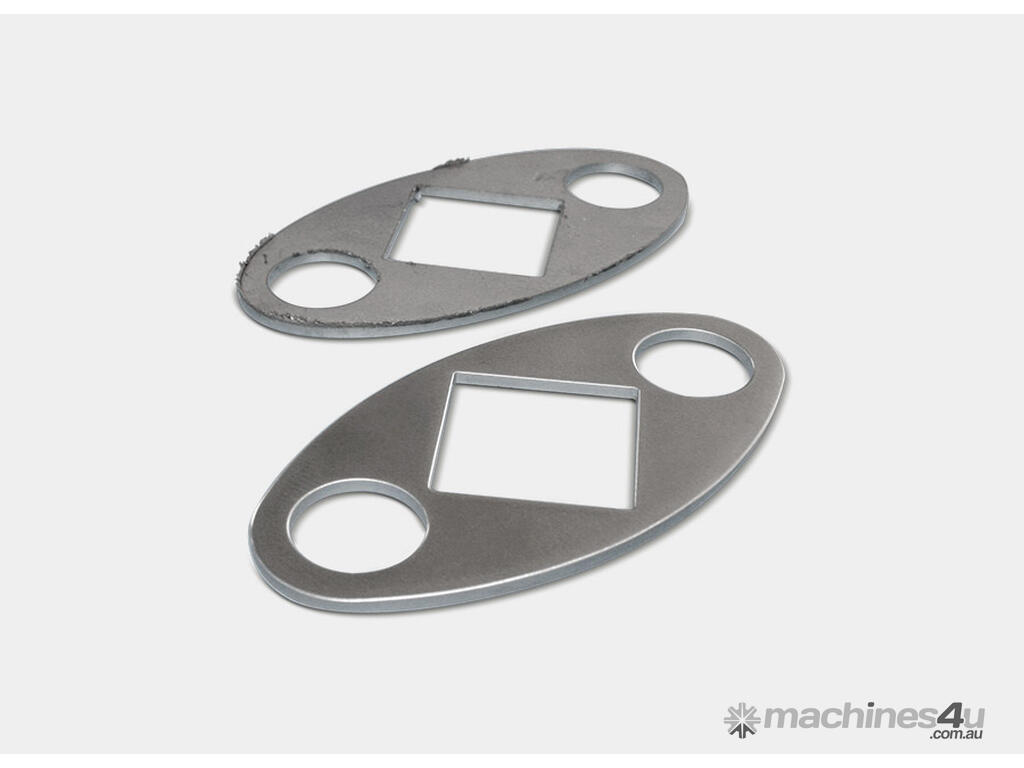

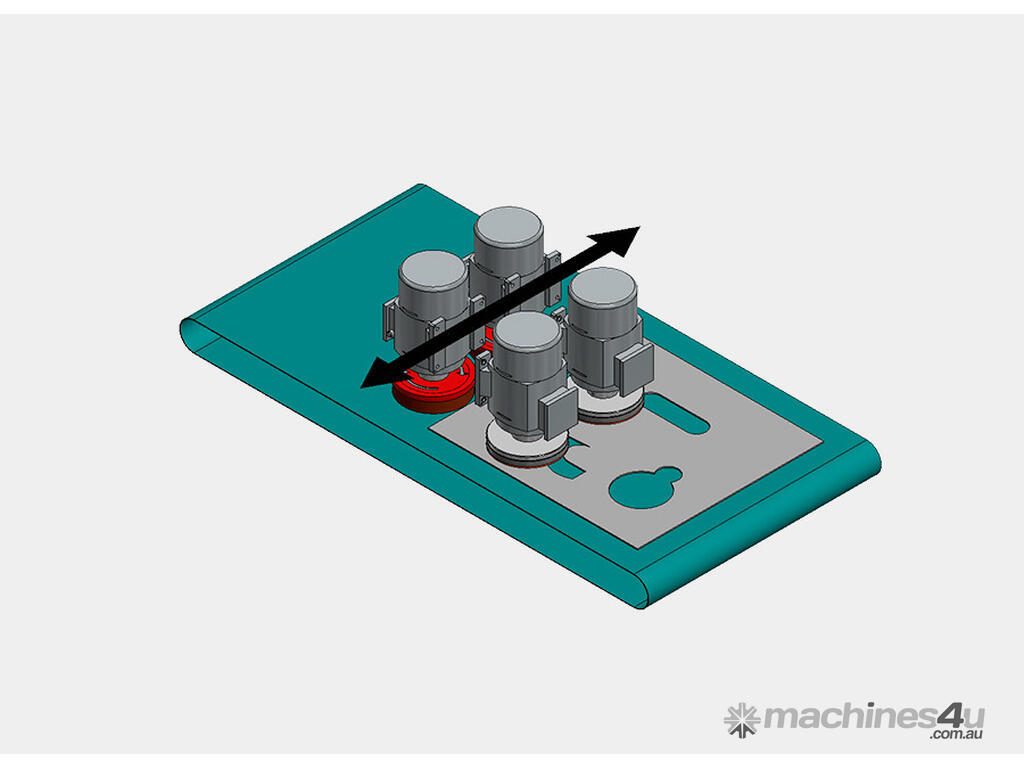

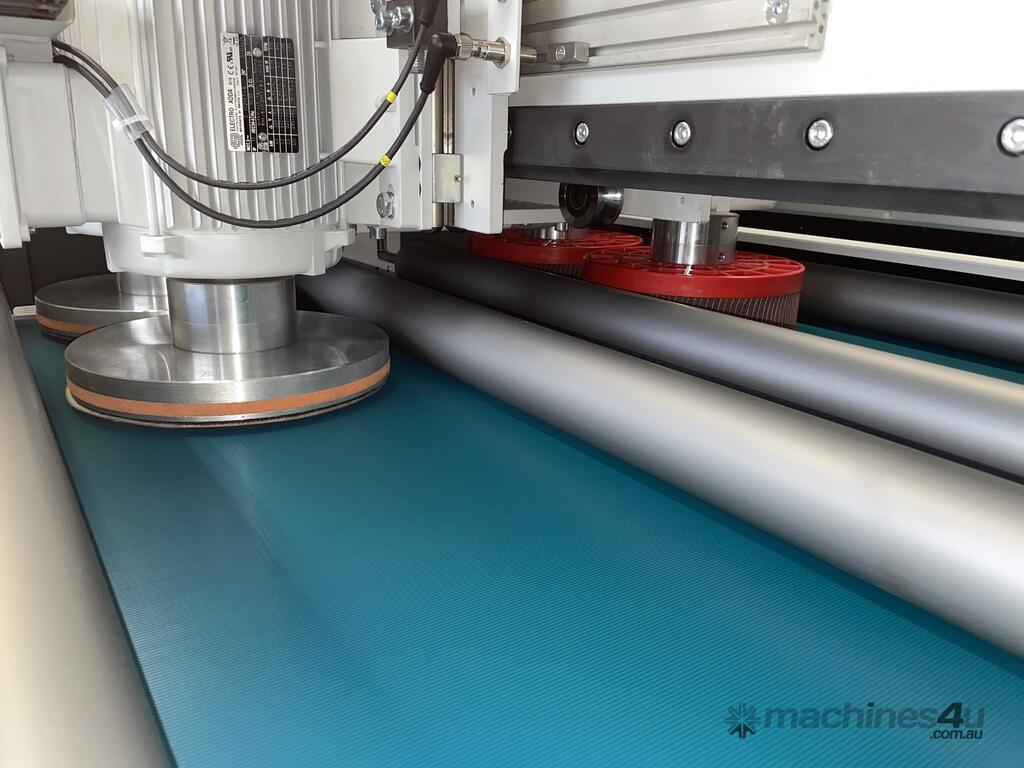

With 2 rows of 2 discs crisscrossing the width of the feed conveyor while rotating, all primary burrs are removed completely with the first row of 2 discs, while any secondary burrs and edges are processed from all directions, thereby providing perfect edge rounding results with the second row of 2 discs.

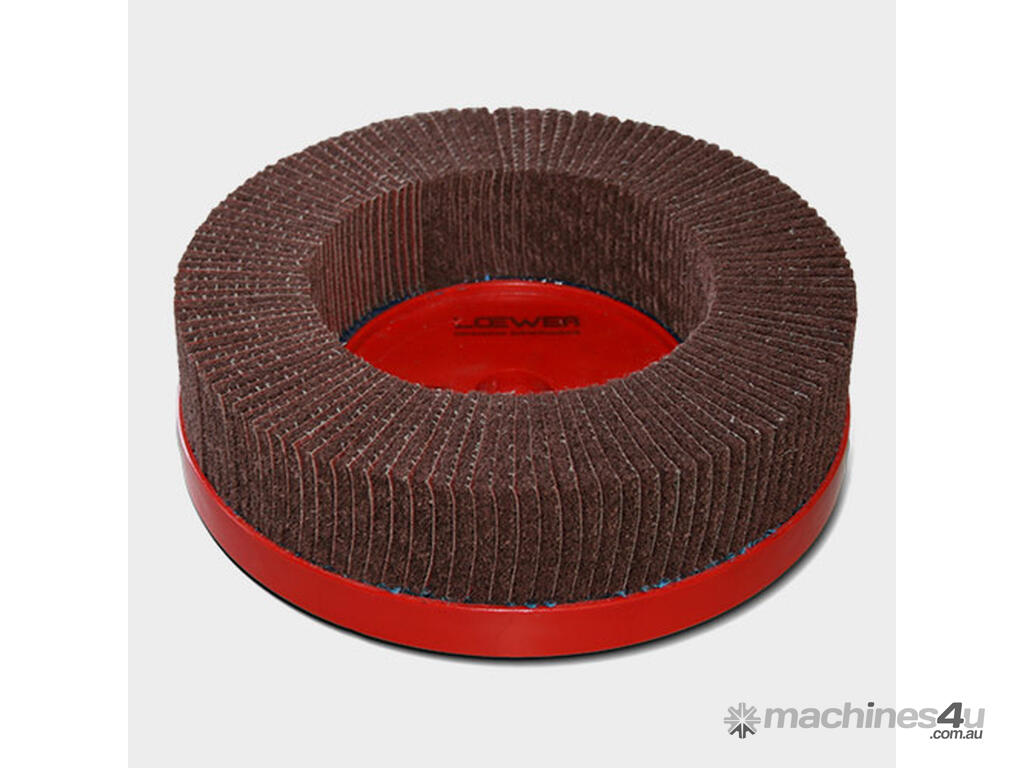

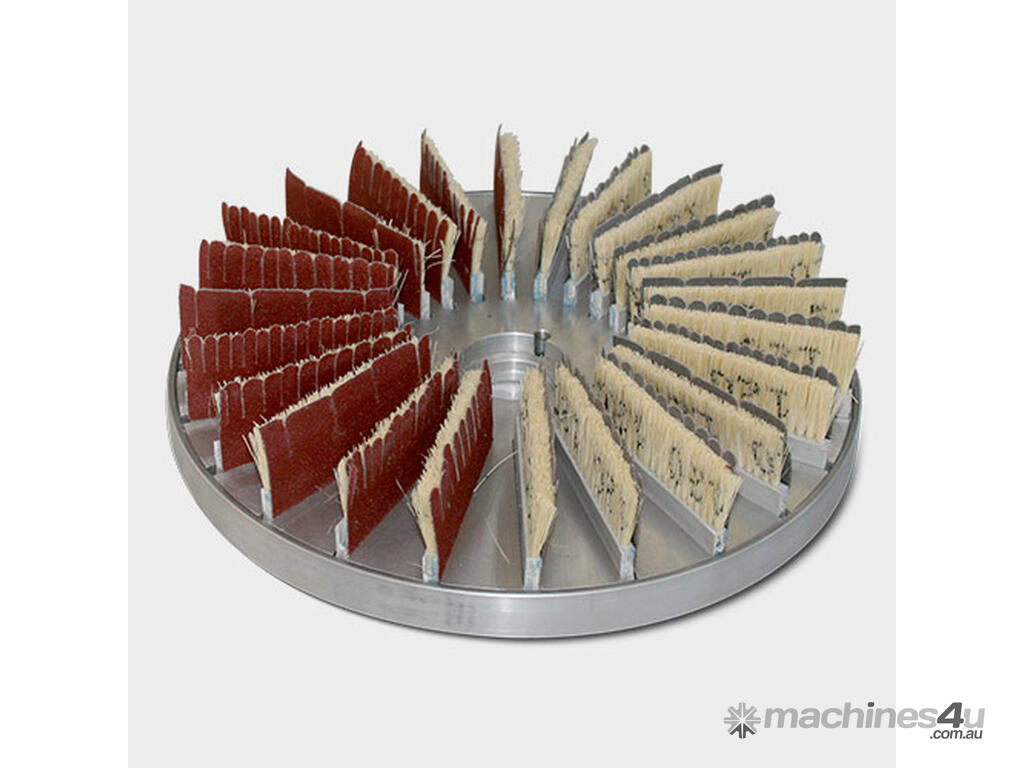

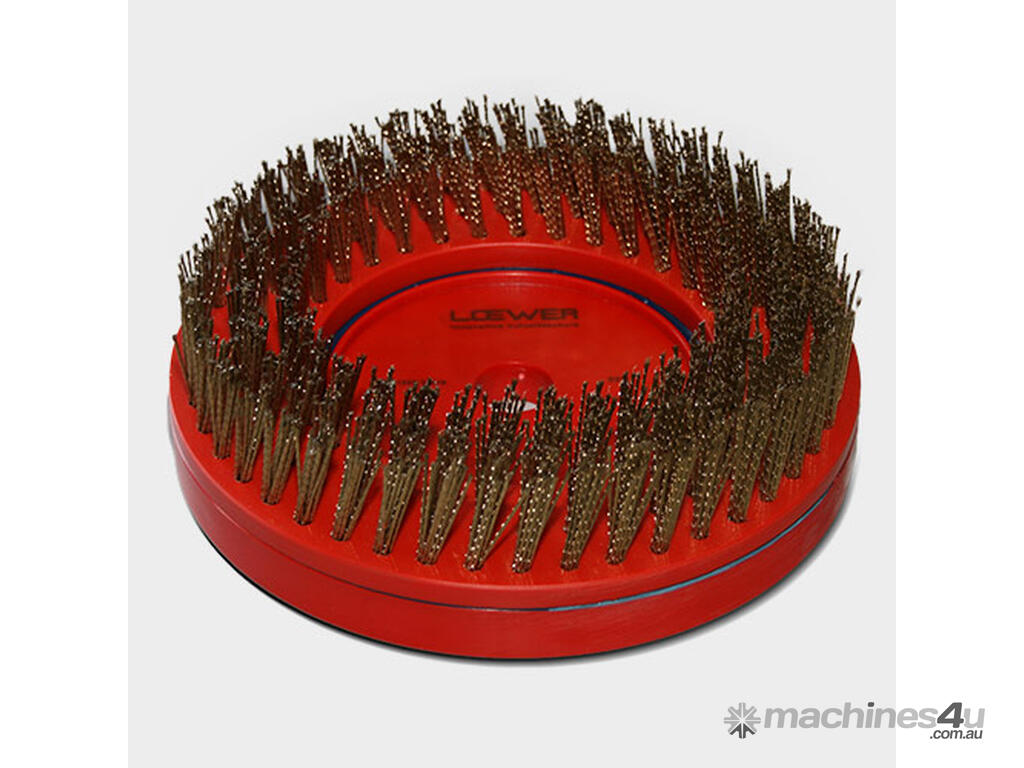

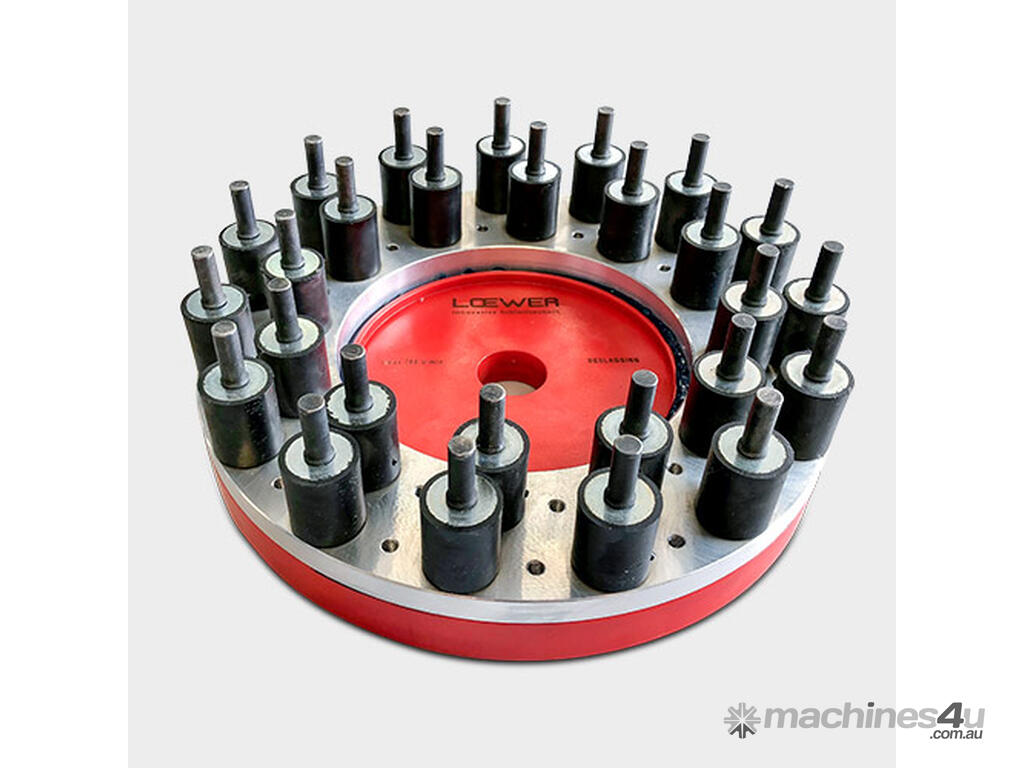

Each disc is adjustable individually to cater for any variances in the abrasives.
Disc technology provides the longest most useful life for abrasives in deburring applications.
Big feature of the DiscMaster series is the conveyor height is fixed, thereby allowing for support conveyors, tables etc to be matched always to the machine. No adjustment ever.

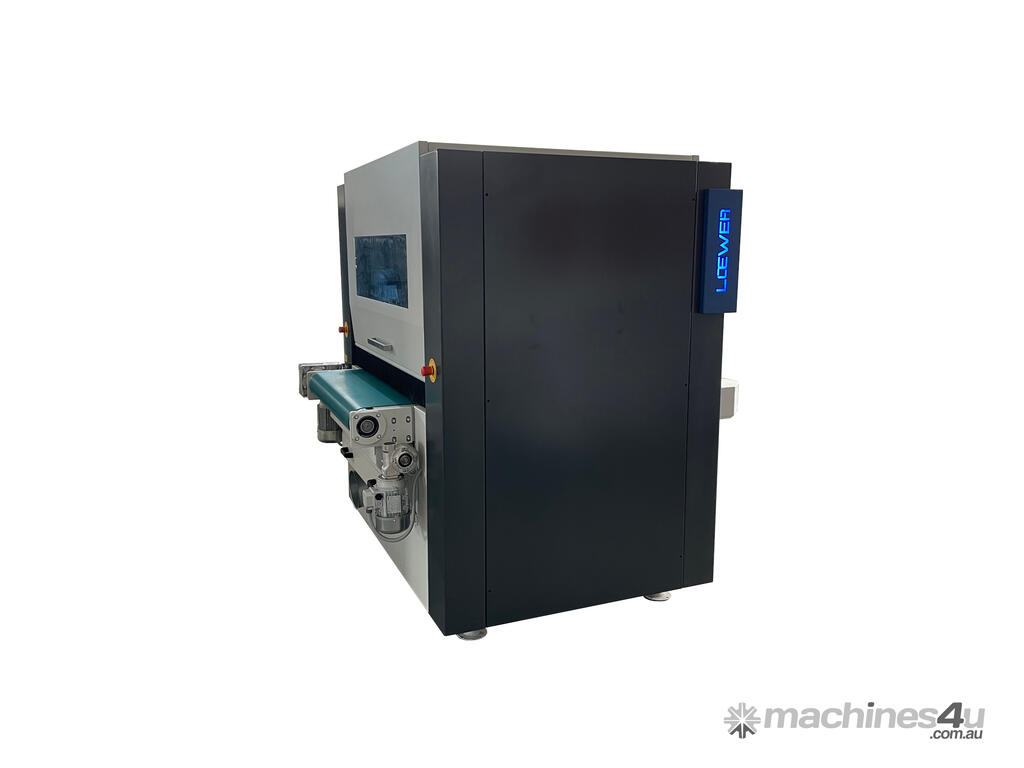

Compact in size, the 4TD can fit into even the most limited spaces, and is very fast to setup and to change between different materials.
Loewer celebrated 160 years as a company in 2021, and produced their first sanding machine in 1960.
20,000 Loewer machines are now found throughout the world, and all machines are designed and manufactured in Germany to the highest standards.
The DiscMaster series was designed and produced to be affordable for all size shops.
Samples and no obligation advice is available.
