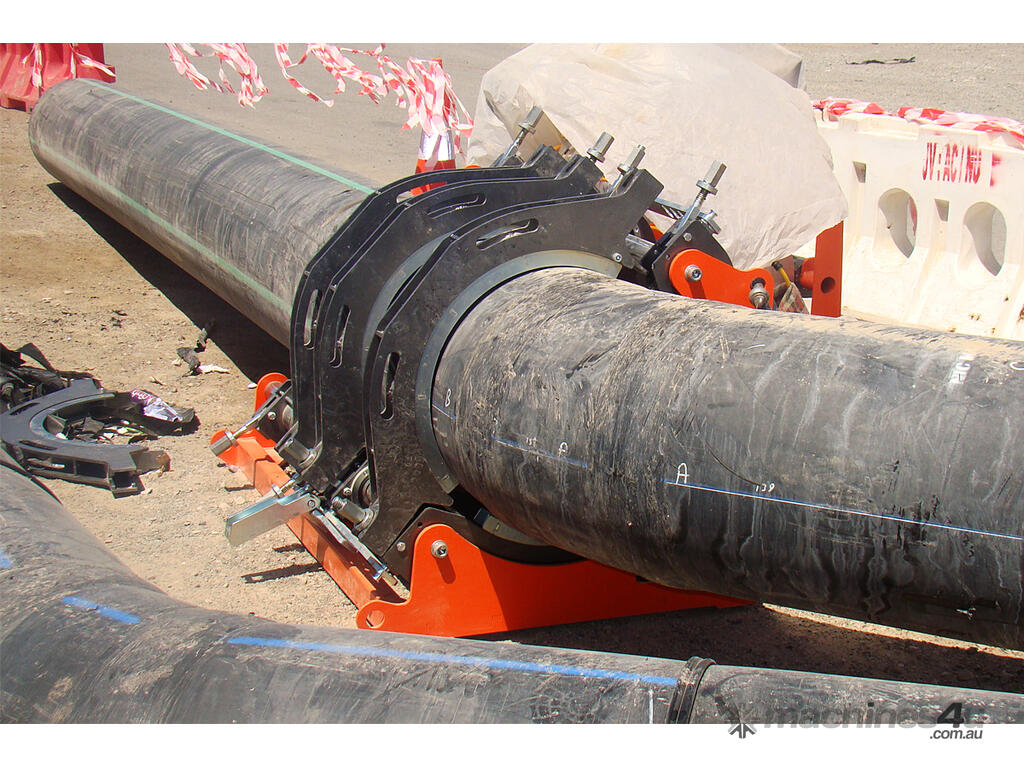

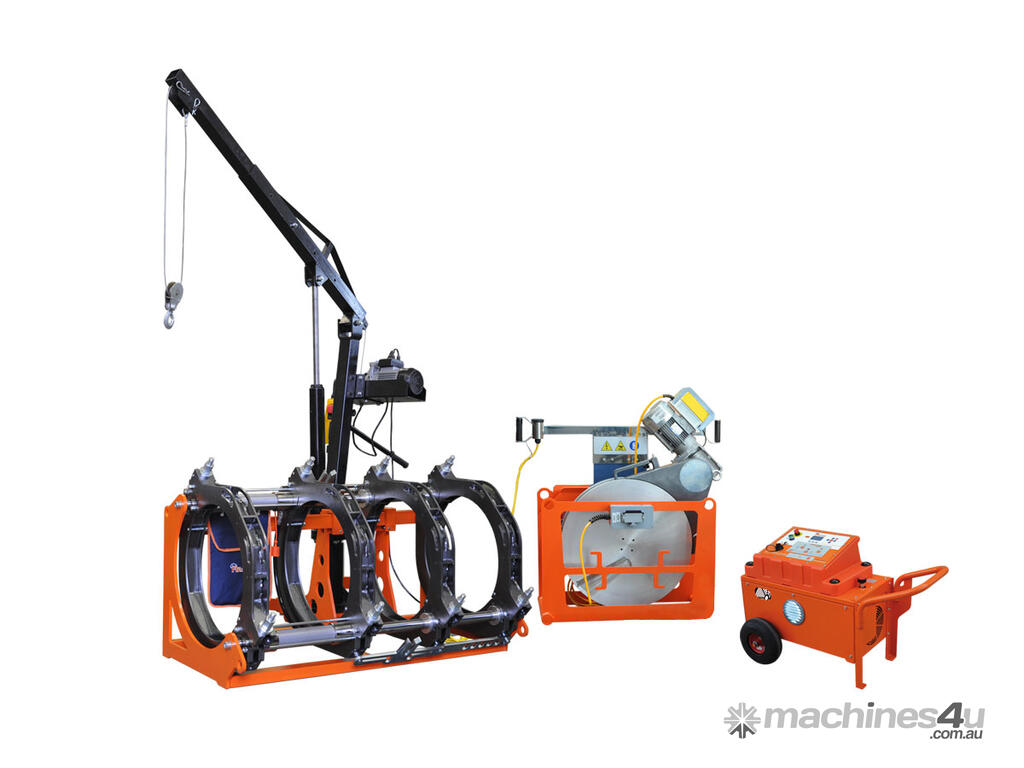

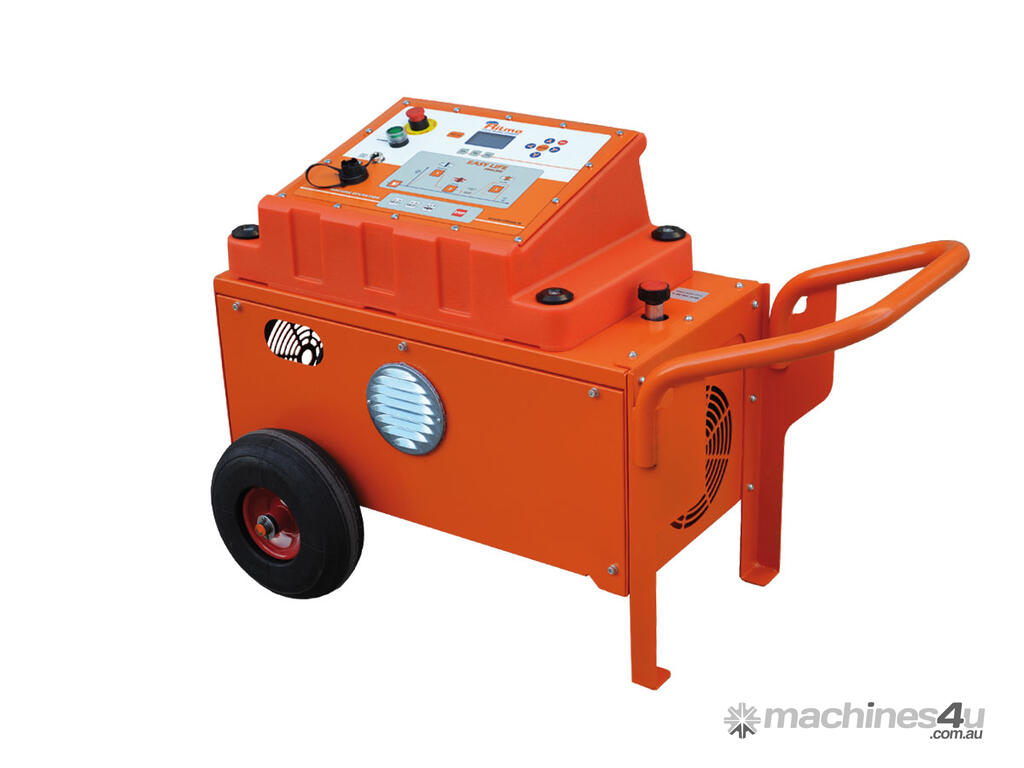

Thanks to a special gearcase the DELTA 630 EASY LIFE is able to manage the welding process in a semi-automatic way from OD 280 to 630 mm.
Materials
HDPE/PP/PB/PVDF
Working range
Ø 280 ÷ 630 mm
Power supply
230 Three phase 50/60 Hz: 400 V Three phase 50/60 Hz
Total absorbed power
12350 W
Absorbed power gearcase
1500 W
Memory
4000 reports
Working temperature
180° ÷ 280° C
Pressure working range
0 ÷ 150 bar
Weight only body machine
415 Kg
Weight gearcase
50 Kg

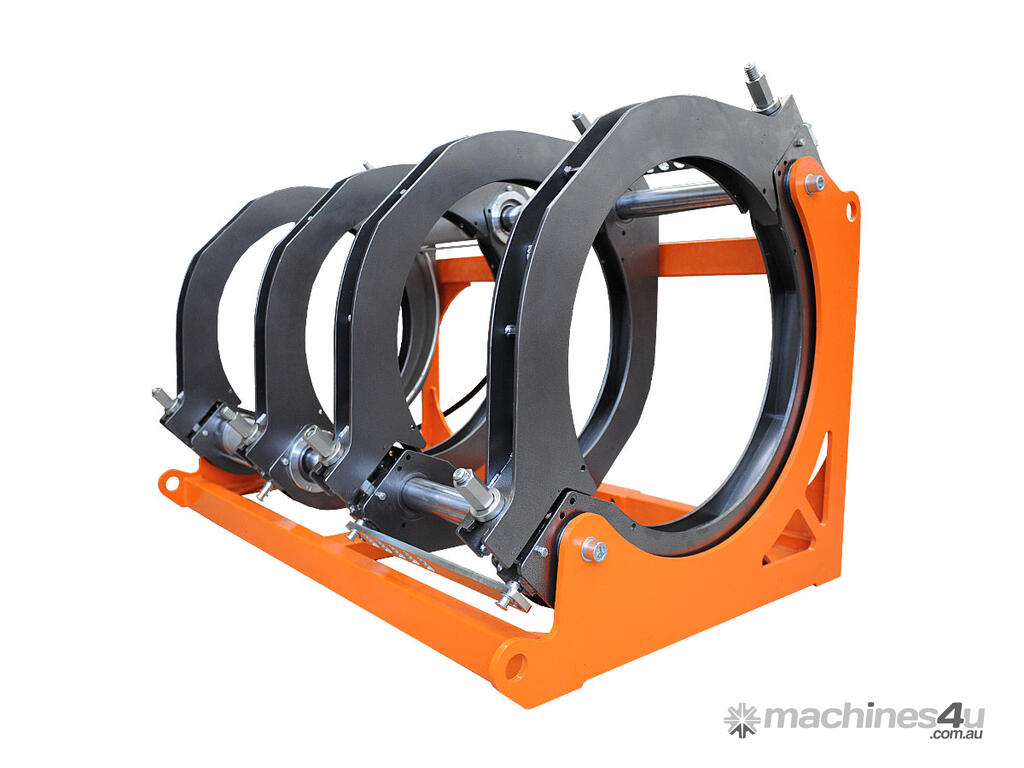

Dimension body machine
1550x1010x1000 mm
Dimension gearcase
1000x580x680 mm
