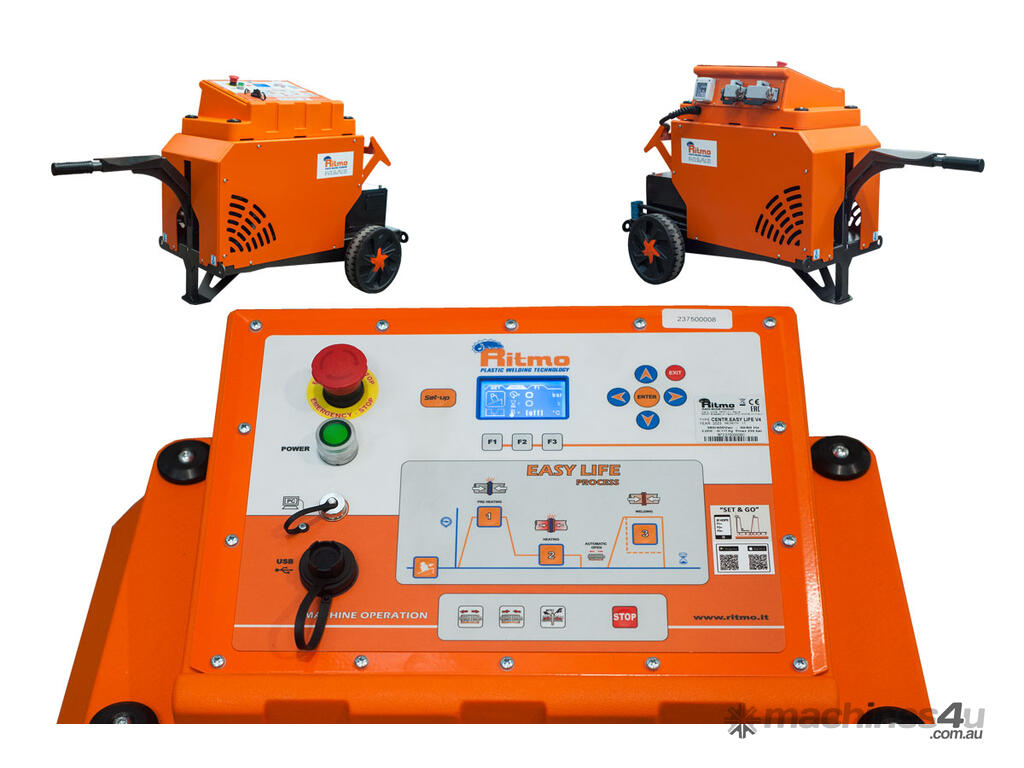

The electronic system guarantees the continuous repeat of the welding cycles and automatic control of the preset parameters, therefore the operator needs only to validate the welding phases. The user-friendly graphic display allows a quick setting of the desired parameters.
Materials
HDPE/PP
Working range
Ø 500 ÷ 800 mm;
20” IPS - 30” IPS
Power supply
400 Three phase 50/60 Hz:
Total absorbed power
17200 W
Memory
4000 reports
Working temperature
180° ÷ 280° C
Pressure working range
0 ÷ 250 bar
Weight
only body machine
821 Kg
Dimension
2100 x 1350 x 1300 mm
