Deratech Press Brake with Sheet Followers - DOUBLE Screen

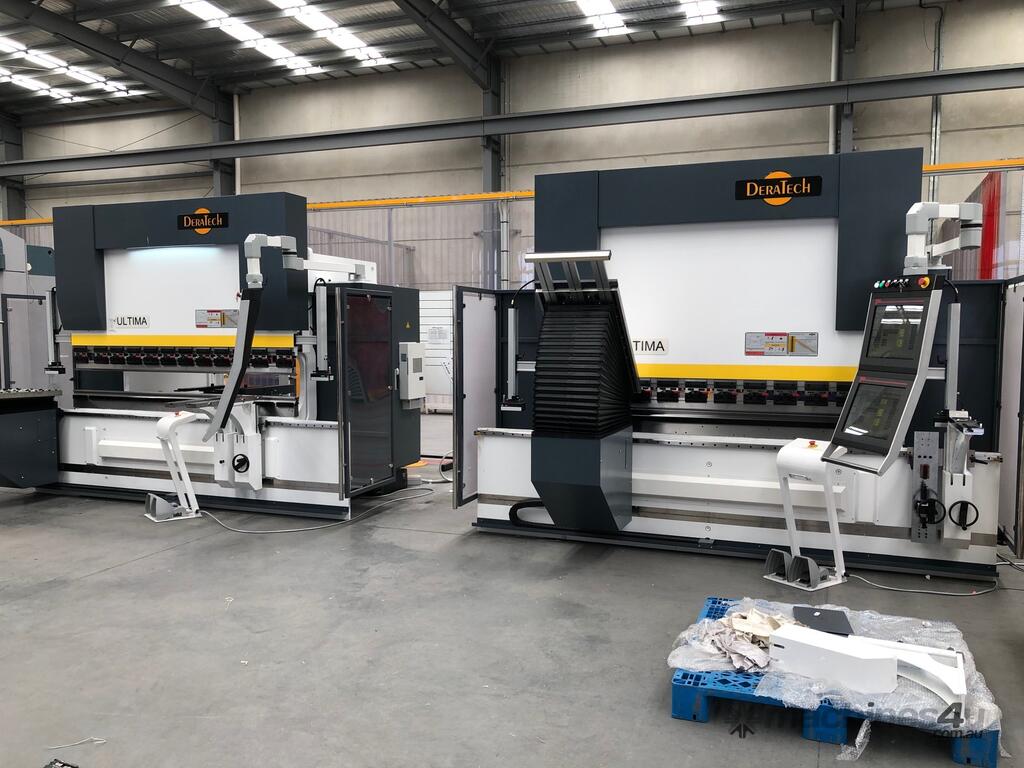

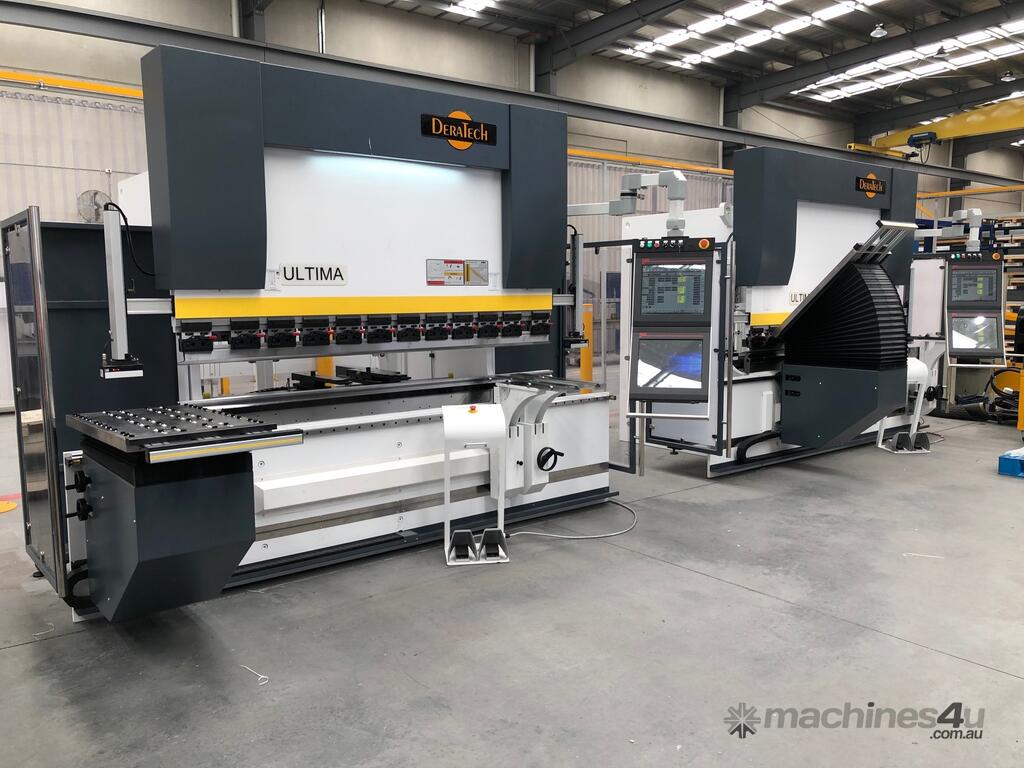

Customer was after a small footprint of 2500mm and tonnage of 100 t - we provided two machines for double operation. Also upgraded to twin screens for easy of use for the operator.

Let us configure our machine to your production requirements.

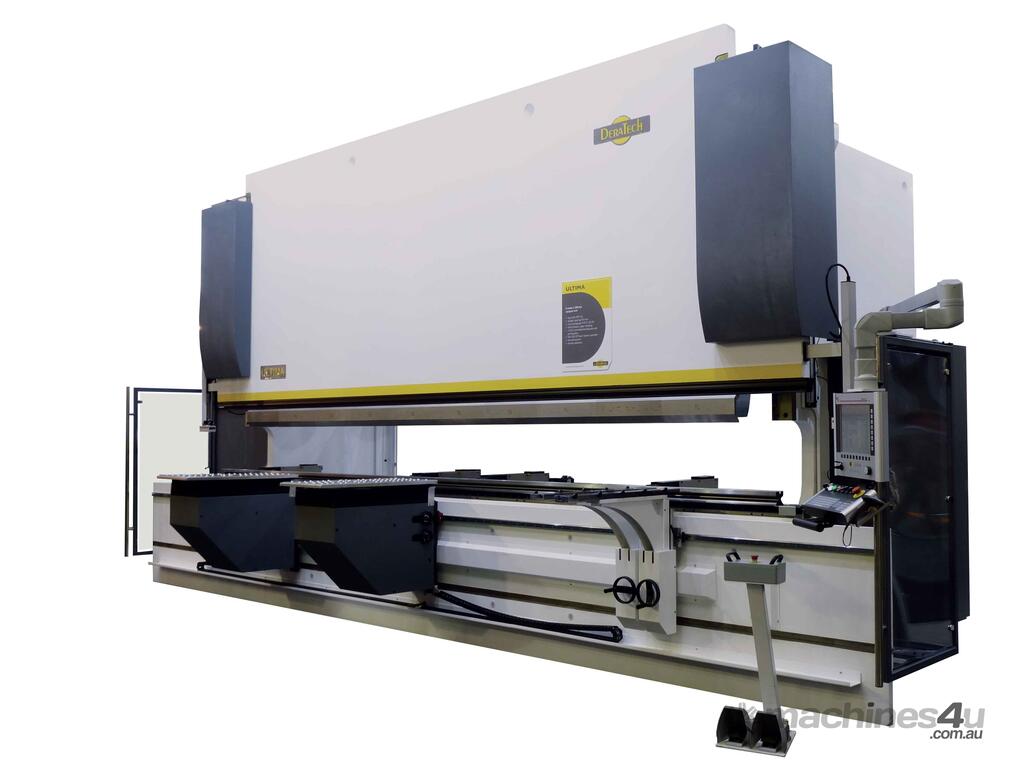

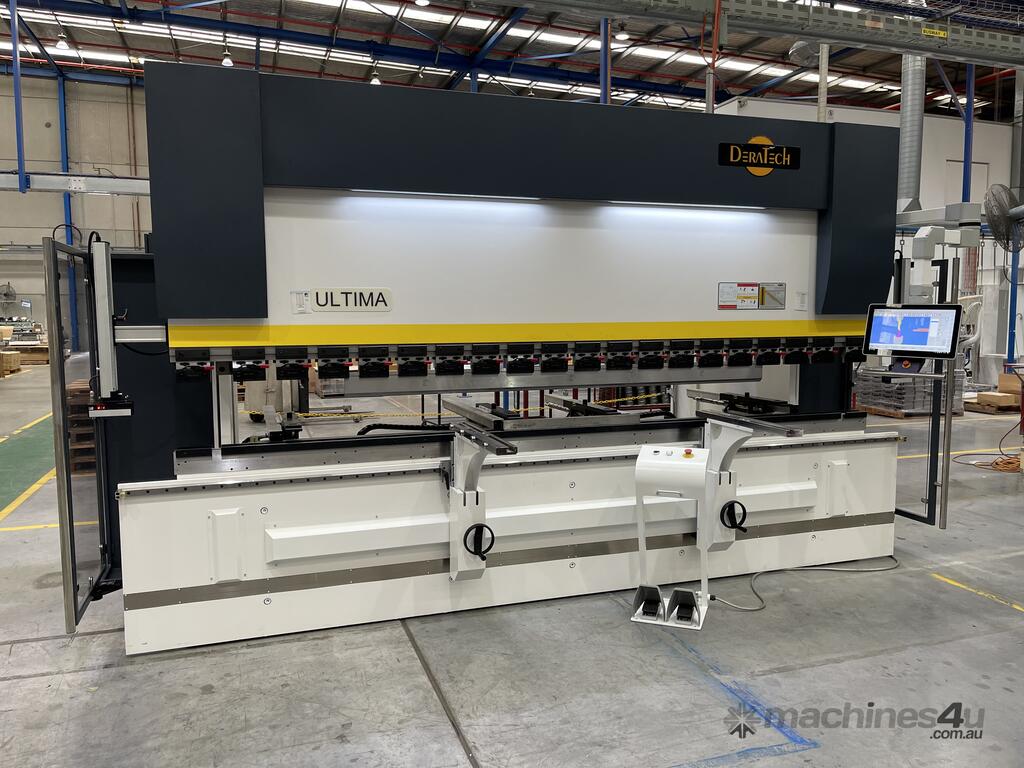

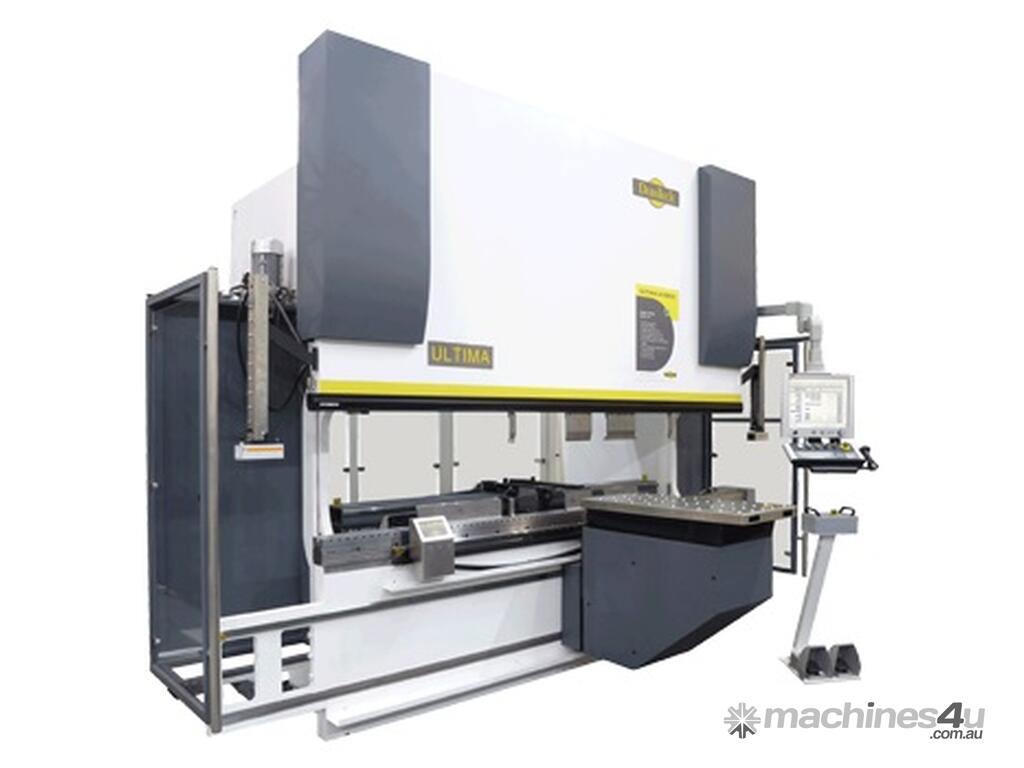

ULTIMA 100/2500 S – 7 Axis

CNC Controlled Hydraulic Pressbrake
• ESA 650 PC 15” Touch 2D graphic controller
• Y1-Y2, X, R and V
• Backgauge X / R on Ball Screws + Linear Bearing Guides (400mm/s)
• CNC controlled Hydraulic Crowning Device
• 1 Set Tooling Euro Style – Multi V die, 60x60mm, with V=16mm,22mm,35mm & 50mm x 85deg, in pieces of 835mm + rest.
• Gooseneck Punch 85deg, hardened and ground in pieces of 835mm + rest
• Euro Style top and Bottom Clamping
• Offline Software 2D
• Safety light Guard LazerSafe with PCSS CE Certified
• Moveable Control Panel
• Electrical Cabinet Air-conditioner


Options
• Slim Table (width 60mm) with clamping for Euro Style & Single V Dies Included

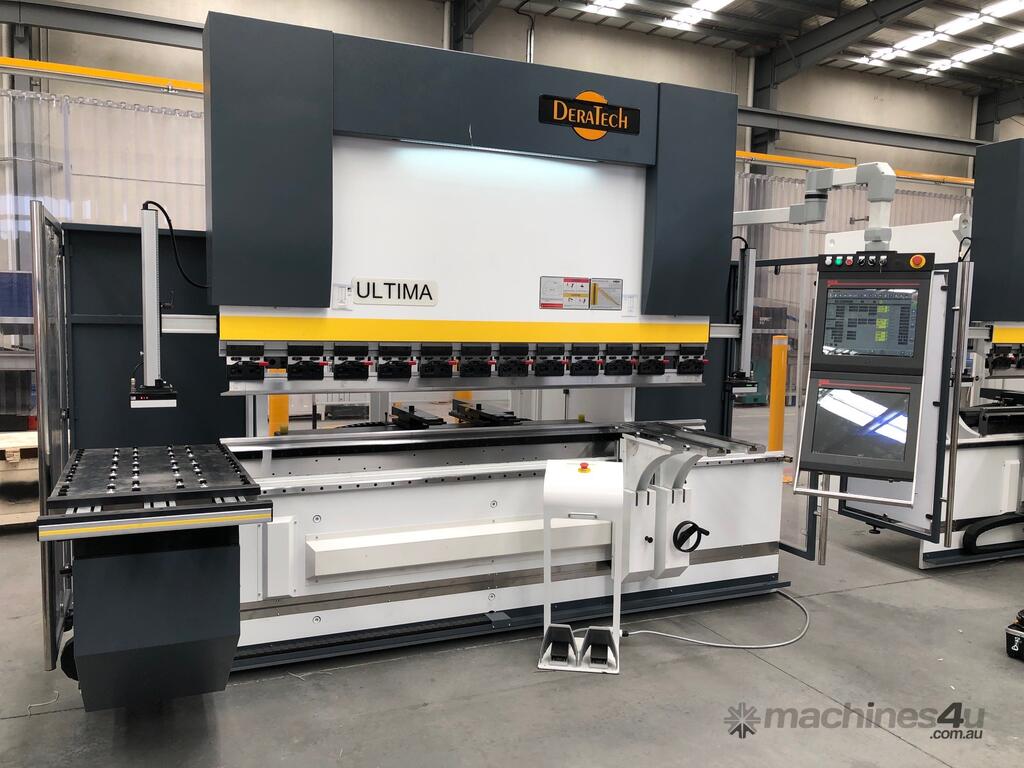

• Heavy Duty Sheet support with parking on left side Included
• Z1 – Z2 Backgauge Included
• Delta X- X2 Backgauge Finger 150mm travel (+75mm -75mm) Included
• Beam stroke 600mm and daylight 1000mm instead of standard execution Included

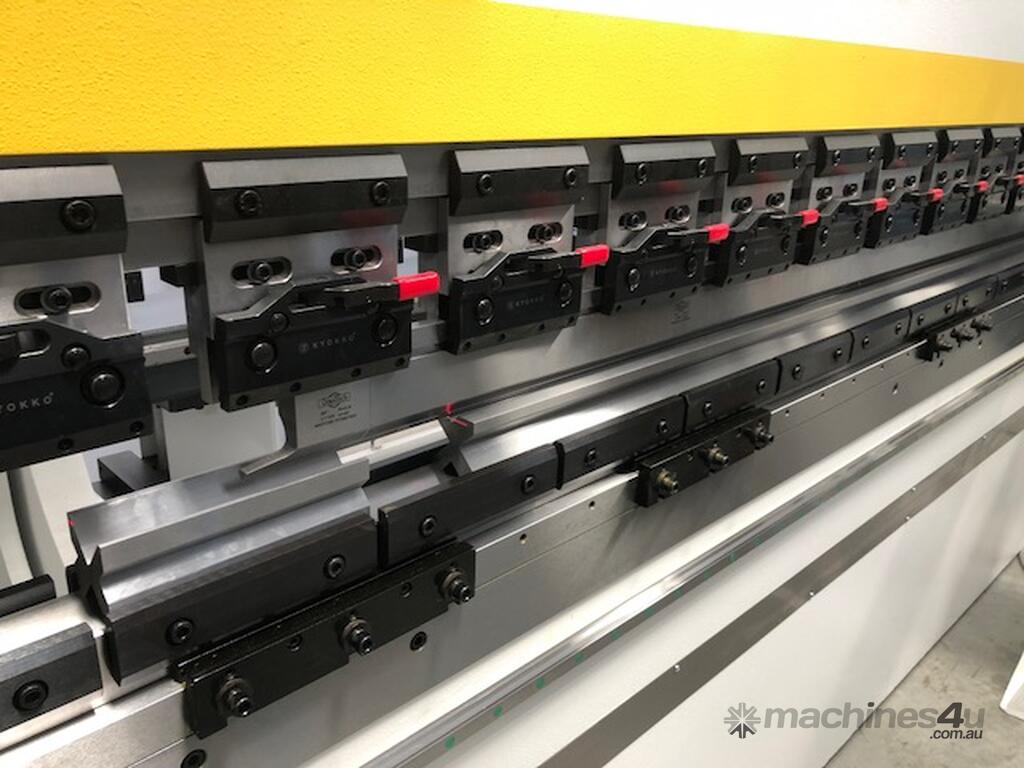

• Kyokko Vertical Manual fast clamping system for Euro style tools Included
• Overhead LED lighting Included

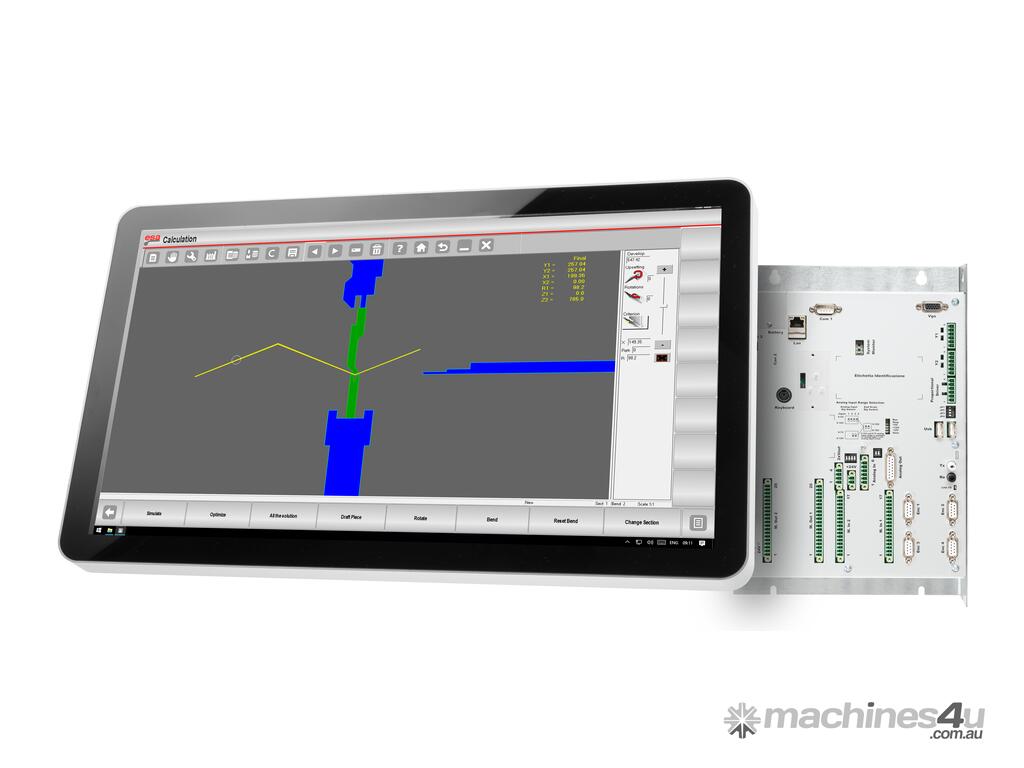

• ESA 660W PC 19”3D controller Included

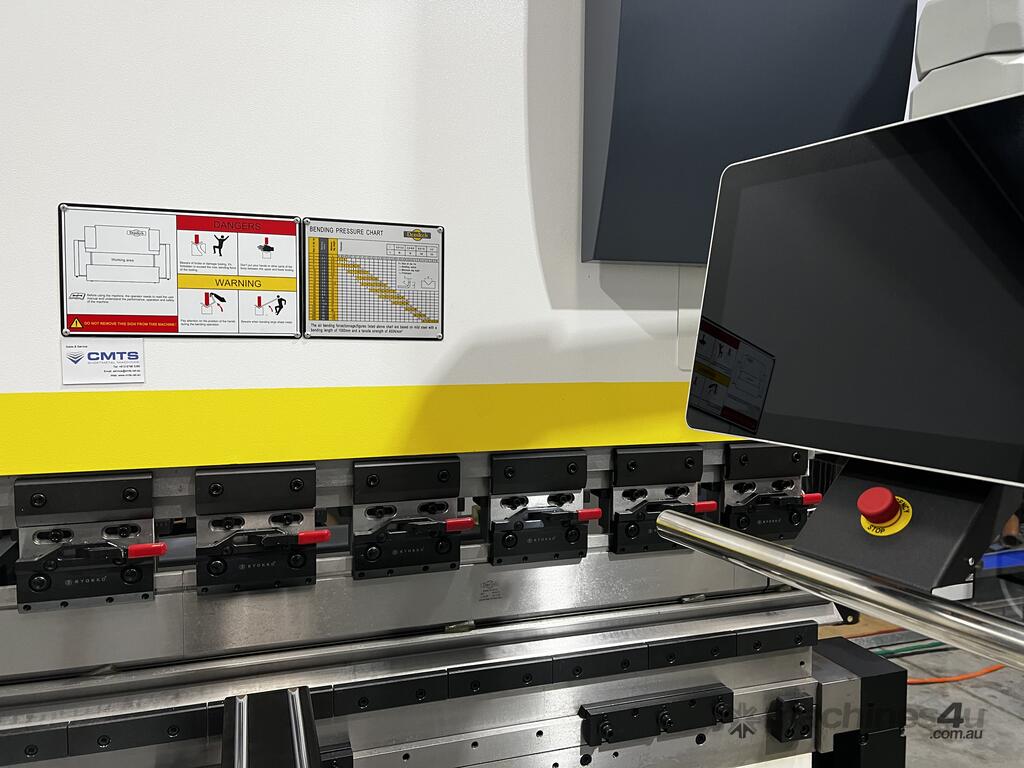

• ESA 660W PC 19”3D Twin controller Included
• Remote Tele – Diagnositic Assistance Included
• Hydraulic Oil Included
