Diamond Mowers 3-Point Linkage Boom Mower 16" STD

A COMBINATION OF POWER AND VERSATILITY
Diamond Mowers’ 3-point Linkage Boom Mowers, like all Diamond Mowers products, are built tough and reliable. The perfect solution to clear overgrowth from along and over fence lines, down in ditches, along waterways, batters, cutting back overgrown trees and much more.

The Diamond Mowers three-point linkage boom mower raises your capability and efficiency every day they’re out on the job. They are also perfect for terraces, drains, roadsides over guard railing, under trees and other hard to access areas. 3-point linkage boom mowers mount on tractors with ease. Diamond uses premium cast steel pumps and motors in a fully self-contained hydraulic system, which prevents any cross contamination between the mower and the tractor.

All Diamond 3-point Linkage Boom Mowers come standard with an easy to install 4-function proportional joystick.


FEATURES
Mounts quickly and easily to a 3-point linkage, adding value to your existing equipment
PTO driven
Self-contained unit
Fully fabricated steel construction
4-function proportional joystick

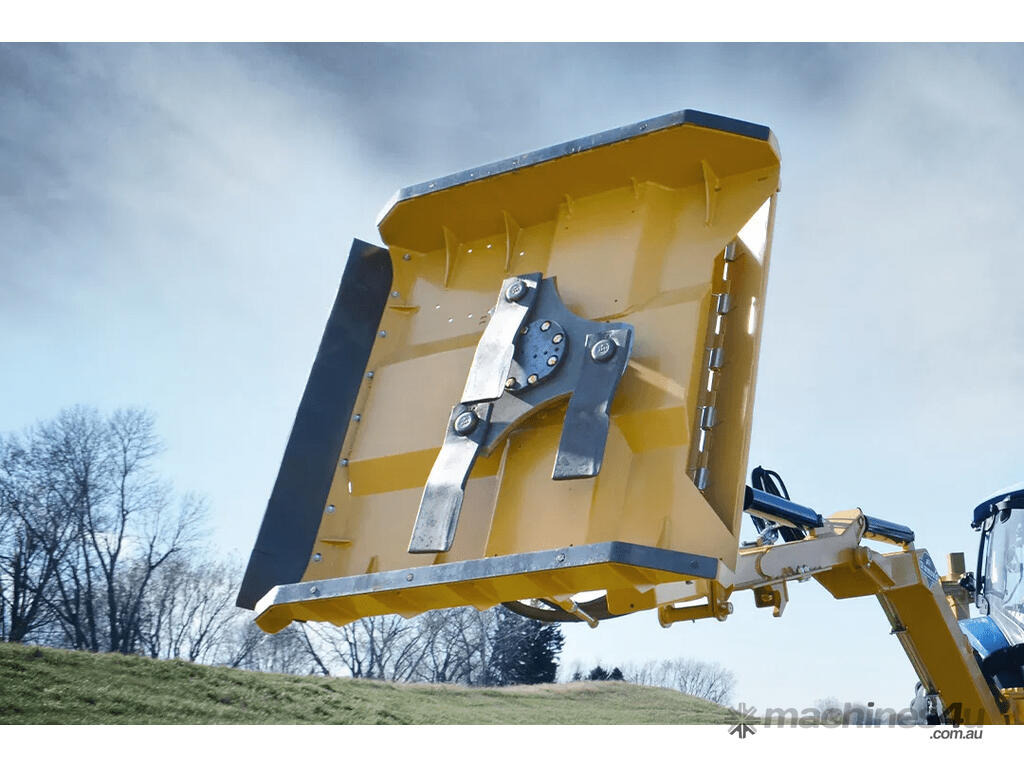

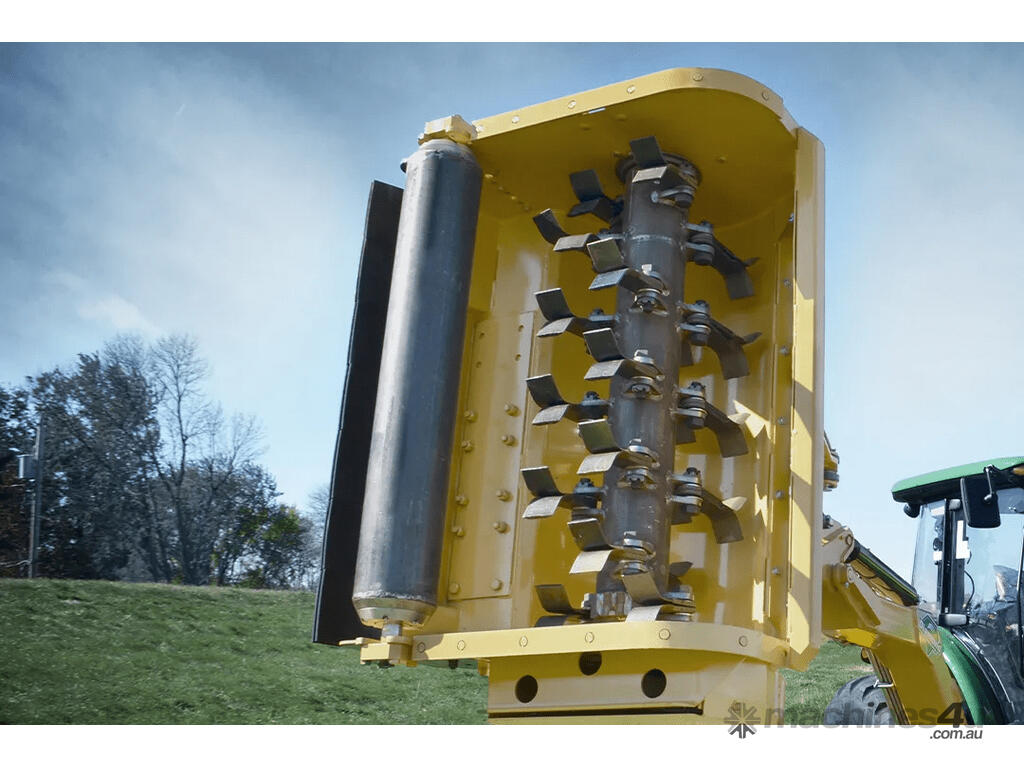

Two cutting heads to choose from: Rotary Mower & Flail Mower

APPLICATIONS
Land owners wanting to clean up fence lines
Cutting back overhead trees and branches
Land clearing and roadsides
Landscaping and maintenance
Suitable for professional contractors and councils/municipalities

BENEFITS
Increased safety in difficult terrain
Fast cutting of fence lines and roadsides
Able to access ditches and low ground
Flexibility to cut grasses through to tree branches

SPECIFICATIONS:
HITCH Cat II or III
PTO RPM 540 rpm
PTO HP 60 hp
MIN. TRACTOR WEIGHT 2720 kg
SUITED TO CUTTING Grass, Brush & Shrubs (Up to 3")

HEADS: 40” (1016 mm) Rotary or 42” (1067 mm) Flail
WEIGHT WITH ROTARY HEAD 1136 kg
WEIGHT WITH FLAIL HEAD 1174 kg

DIMENSIONS:
A 15’7” (4750 mm)
B 16’1” (4902 mm)
C 5’2” (1575 mm)
D 2’7” (787 mm)
