Diamond Mowers 30" EX Drum Mulcher DC Pro X

Get more productivity per pass.

A world-class drum mulcher from Diamond, maker of the toughest and most reliable attachments for real-world applications.

The 63cc two-speed adjustable displacement hydraulic motor provides impressive class-leading torque to power through large material, while accommodating the higher flow rates provided by modern excavators.

OPTIMISED INFEED
Efficiently processes material up to 5" in diameter.
Forward drum exposure allows optimum tree engagement and productivity
Feeds materials from the left or right as you sweep the ground
Produces an aesthetically desirable chip size with a single process, which greatly reduces the need for reprocessing

REMOVABLE BOLT-ON DOOR
Contains thrown chips better than chain guards
Can be easily removed for maximum production when the situation warrants
Located on backside of drum mulcher
The EX Drum Mulcher DC Pro X was engineered to maximize cut width relative to weight. Whether you’re a landowner or a full-time mulching pro, add this versatile attachment to your arsenal to optimize productivity, diversify work opportunities or create new revenue streams.

Note: Exact weight will vary based on excavator bracket. Flow requirements specified below require 1/2" case drain.


FEATURES
Access panel for ease of maintenance

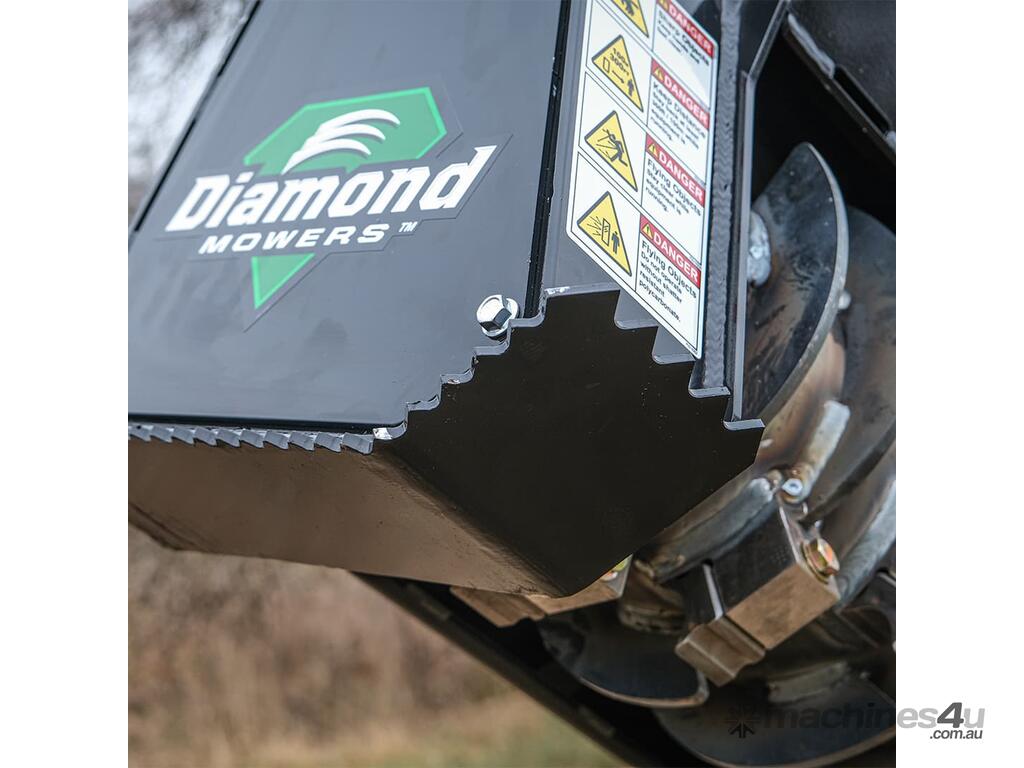

Oversized serrated skid shoes to control & position downed material for more effective mulching
Replaceable abrasion resistant AR 400 liner minimises wear from debris

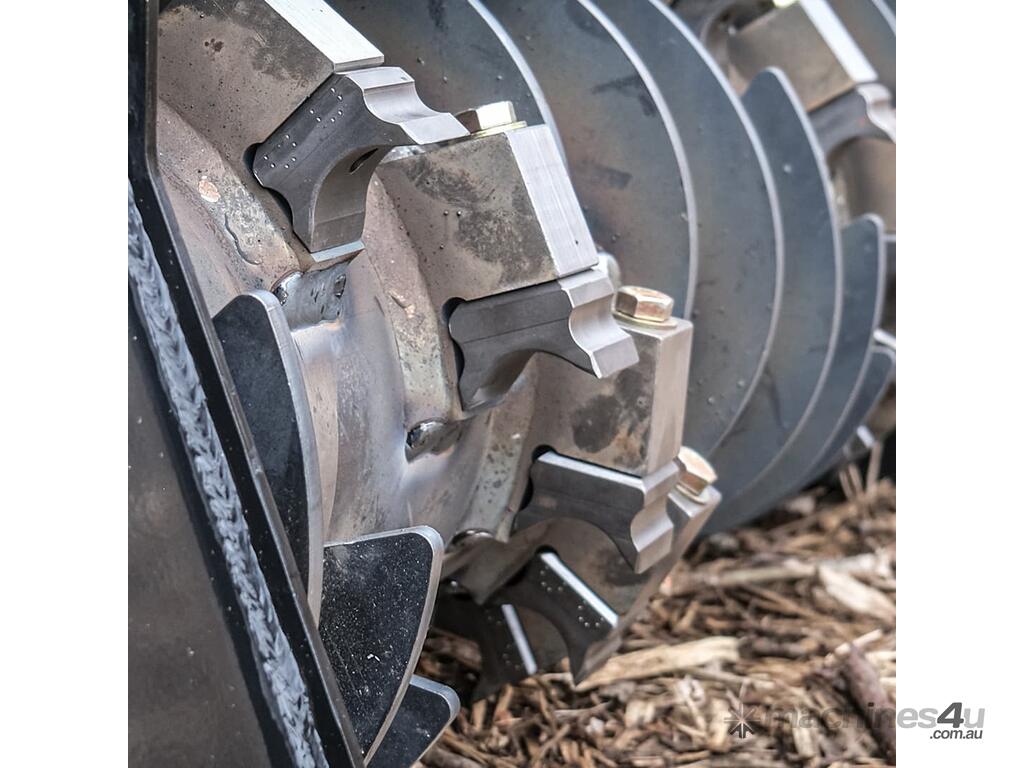

Equipped with planer teeth for low maintenance durability (additional teeth options available)
Severe duty rated bearings rated to 77,000+ lbs protected by Labrynth design and triple steel ring seals

APPLICATIONS
Maintaining agricultural property
Converting land for agricultural use
Land clearing for development
Mitigate the spread of invasive species
Habitat restoration and maintenance
Seismic exploration
Fire fuel reduction
Create defensible space
Limb low-hanging limbs to remove ladder fuels
Widen fire breaks
After-burn restoration
Utility and roadside maintenance
Right of way clearing
Fire prevention
Utility line land clearing
Waterway clearing and maintenance

BENEFITS
Efficient robust solution over inferior competitor models
Total attachment depth comparable to a loader bucket for ease of operation
Achieves a finer more uniform mulch finish
Throws material away from the machine, less debris getting under the cab
Safer to use in populated, built up areas and around livestock and utilities

SPECIFICATIONS
MAKE Diamond Mowers
MACHINE MODEL 30"
WEIGHT: 363 kg
CUTTING WIDTH: 30" / 762mm
MULCHES MATERIAL UP TO 5 in.
SUITED TO CUTTING: Brush & Shrubs (Up to 3"), Small Trees & Branches (Up to 5")

FLOW RATING MIN. 45 lpm
FLOW RATING MAX. 151 lpm
EXCAVATOR SIZE 4.5 - 10 MT
