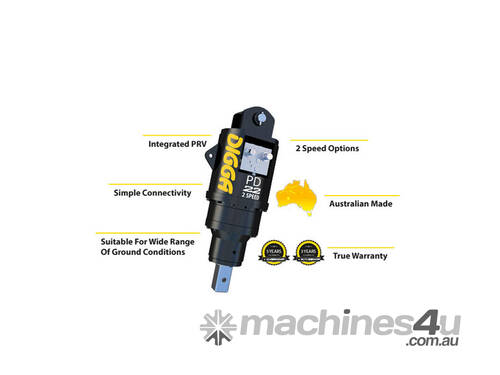

Digga 2 Speed High Flow 15-22T Auger Drives

Digga’s 2 speed drilling auger drives for High flow machines have been designed for a wider range of applications. Offering a high speed, low torque setting for the smaller auger jobs when you need that extra RPM, and low speed, high torque for when you really need to grind out that larger diameter hole. It’s like having 2 drive units in 1.

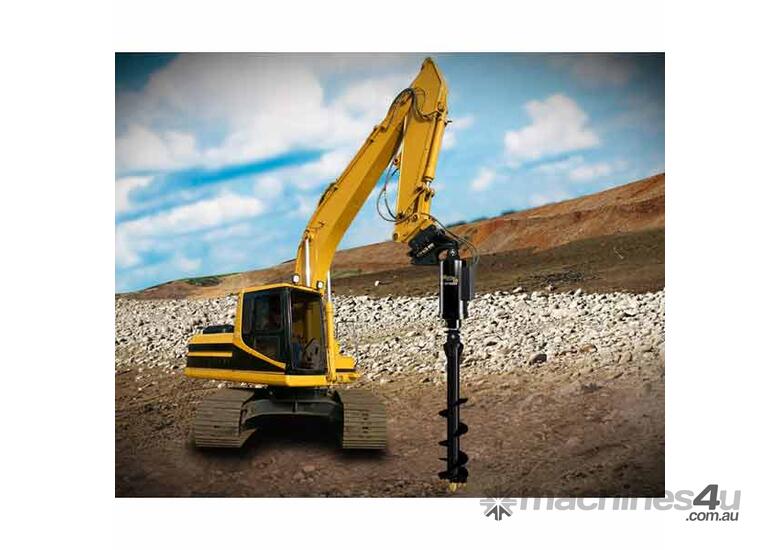

Two speed drives suit excavators & skid steer loaders, truck cranes, front end loaders, wheeled loaders, and backhoes.

Improved motor design & performance with 2 Speed options:
Low speed – High torque for large holes
High speed – Low torque for smaller holes
Suitable for a wide range of ground conditions:
Soft loose soils, hard soils, and rocky conditions
Integrated PRV (Pressure Relief Valve)
Simple electrical connection:
12 or 24 volt coil, just requiring connection
Optional joystick switches, floor mounted switches & cigarette plugs available pre-wired to suit
Low maintenance with 5yr gear box and 3yr motor warranty

PDT18
Rec Flow Range: 40-180 lpm
Max Torque: 18372 Nm
Motor: Vis EATON
Pressure Valve Fitted: Included
Energy Control Valve: Optional
Case Drain Required: Yes
Max Pressure: – – – – – Do not exceed 240 bar 150 lpm – – – – –
Max Flow: – – – – – Do not exceed 180 lpm 200 bar – – – – –
Max Continuous Power: – – – – – Do not exceed 60 Kw (80 hp) – – – – – –
Overall Length: 979 mm
Diameter: 340 mm
Weight (no frame / hitch): 193 kg
Std Output Shaft: 75 mm Square
Swing Control: Optional
Diggalign: Optional
Rec Auger: 8 Series
Max Auger Dia Clay / Shale: 1200 mm
Max Auger Dia Earth: 1600 mm
(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.

PDT22
Rec Flow Range:
Max Torque:
Motor:
Pressure Valve Fitted:
Energy Control Valve:
Case Drain Required:
Max Pressure:
Max Flow:
Max Continuous Power:
Overall Length:
Diameter:
Weight (no frame / hitch):
Std Output Shaft:
Swing Control:
Diggalign:
Rec Auger:
Max Auger Dia Clay / Shale:
Max Auger Dia Earth:
(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.
