Digga Auger Drive for Tractors with DIY Weld-on Kit

The Digga DIY Weld-On Ear Kit is suitable for all makes and models of Tractors.
PROUDLY PRODUCED AND MANUFACTURED IN AUSTRALIA

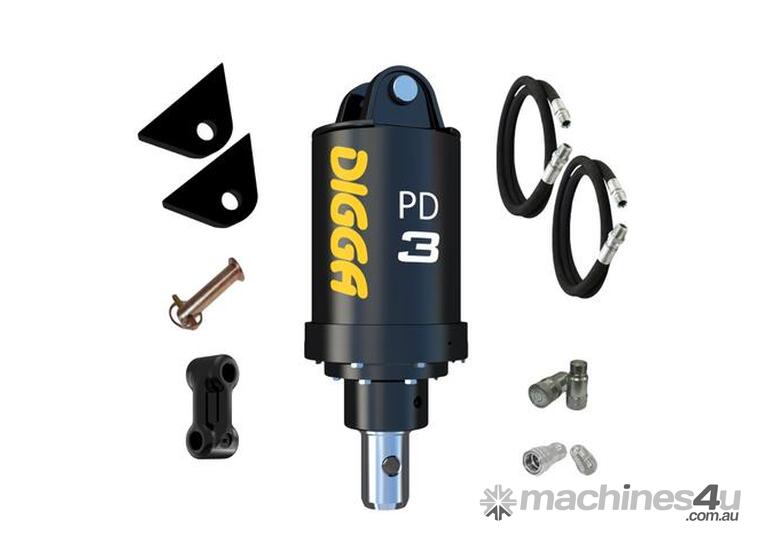

Package includes:

1x Digga PDD, PDX. PDX2, PD3, PDH3, PD4 or PDH4 Auger Drive with
1x Hoses and Hydraulic Couplers (poppet or flat faced)
1x DIY Weld-on Ear, Link Block and Pin kit

Halo Options include: Lead-in Cable and 3m Extension Cable

The DIY Ear, Link Block and Pin kit is a self install package.

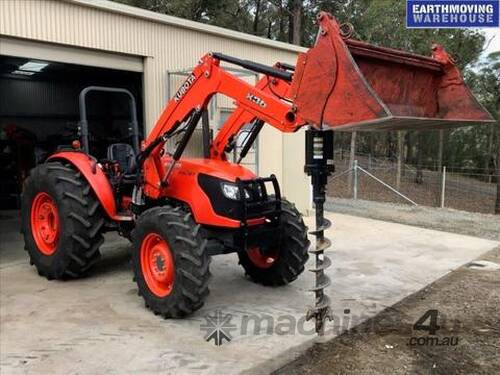

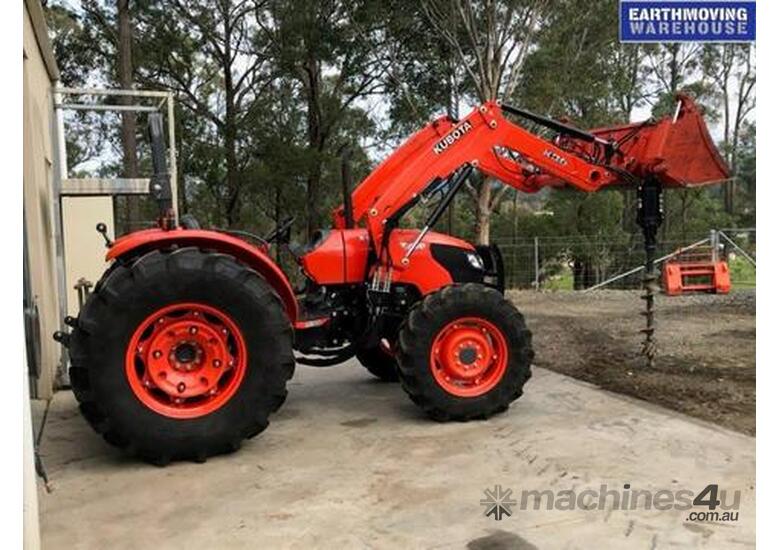

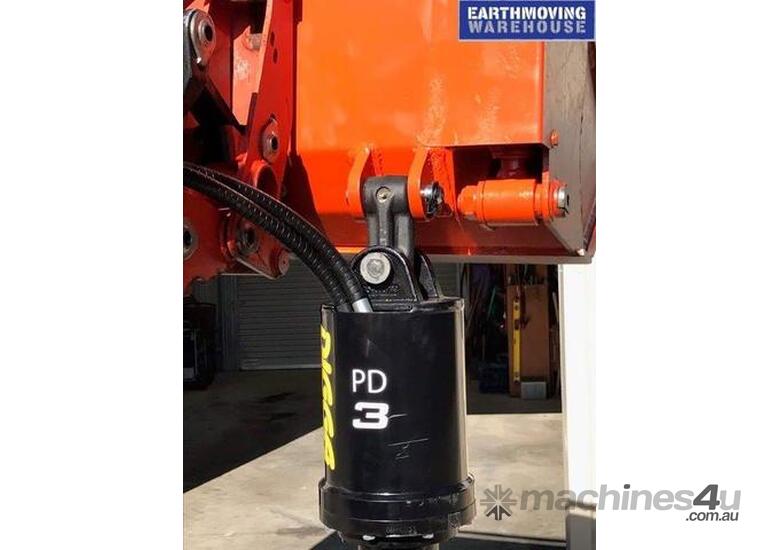

Weld the Ears onto the heel of your bucket for quick and easy mounting of your auger drive.



*Choose your Auger Drive unit by Horse Power from the dropdown menu.

Choose your augers here: .earthmovingwarehouse/collections/augers
Also available with HALO

Specifications:

PDD for Tractors to 30Hp
Torque Range: 412 - 1166 Nm
Oil Flow Range: 15 - 45 Lpm
Oil Pressure Range: 60 - 240 Bar
Hub: 65mm Round

PDX for Tractors to 60Hp
Torque Range: 633 - 1743 Nm
Oil Flow Range: 20 - 50 Lpm
Oil Pressure Range: 60 - 240 Bar
Hub: 65mm Round

PDX2 for Tractors to 85Hp
Torque Range: 987 - 2307 Nm
Oil Flow Range: 30 - 50 Lpm
Oil Pressure Range: 60 - 240 Bar
Hub: 65mm Round

PD3 or PDH3 for Tractors to 130Hp
Torque Range: 1198 - 3544 Nm
Oil Flow Range: 45 - 75 Lpm
Oil Pressure Range: 60 - 240 Bar
Hub: 65mm Round

PD4 or PDH4 for Tractors to 250Hp
Torque Range: 2316 - 4448 Nm
Oil Flow Range: 55 - 85 Lpm
Oil Pressure Range: 60 - 240 Bar
Hub: 65mm Round

HALO can be adapted to plug into your 3rd Function control box on the FEL.
What is HALO



Highly visible indicator
Halo features recessed high accuracy inclination green and red LED indicators, which can be clearly seen in daylight. With Halo, there in no need for an in-cab display screen, and no need to take your eyes off the job to realign your auger.






No setup (battery option)
Halo can be connected to the in-cab cigarette lighter, or powered by a magnetised rechargeable battery which will last all day, and can be charged via USB or a 240V wall charger. The battery pack can be attached to the drive hood, frame, machine boom, or placed in-cab.






Set angle of inclination
The battery powered option features a 'zeroing' function which lets the operator set the angle of inclination with the press of a button. This feature is ideal for the installation of shade sails.






Technology
HALO utilises a microprocessor and 6 sensors to provide accurate readings to +/- 0.25 degrees - Even under heavy vibration. Effectively eliminating the need for a spotter with a spirit level. The dust/water proof LED ring is also recessed into the hood to protect it from knocks.






Durable Australian quality
HALO is proudly made in Australia, and has undergone 4 years of development & testing to ensure the unit works faultlessly, and is capable of enduring the rigors of our industry.


Please note that the PDD auger drive does NOT have a gearbox and is Direct Drive. In heavy or hard ground conditions it may not run augers larger than 400mm in diameter.
