Digga, Magnum Multcher

Shred vegetation & trees with ease:

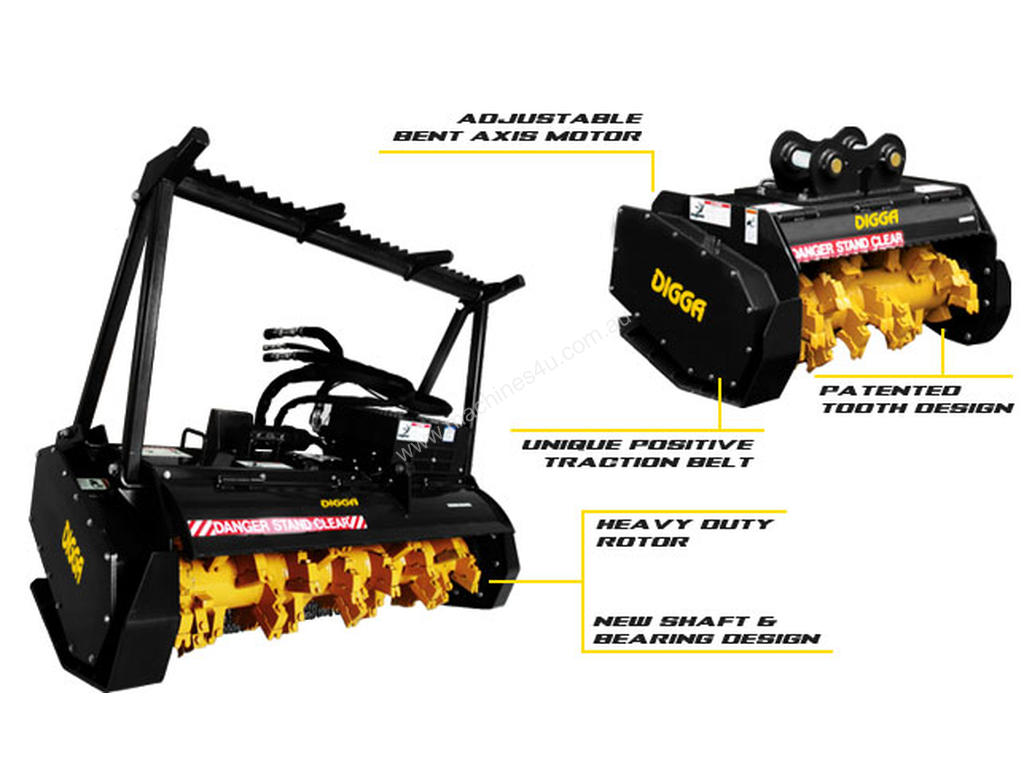

Digga’s Magnum mulcher provides high flow skid steer loaders and Excavators (up to 20 tonnes) with the versatility of grinding small and large material, trees or brush, even above ground stumps with just one operator. Debris can be mulched back into the soil for faster decomposition. Magnum is the perfect value-adding attachment for clearing firebreaks, land, maintenance of park or forestry trails, vegetation management, and re-mediation.

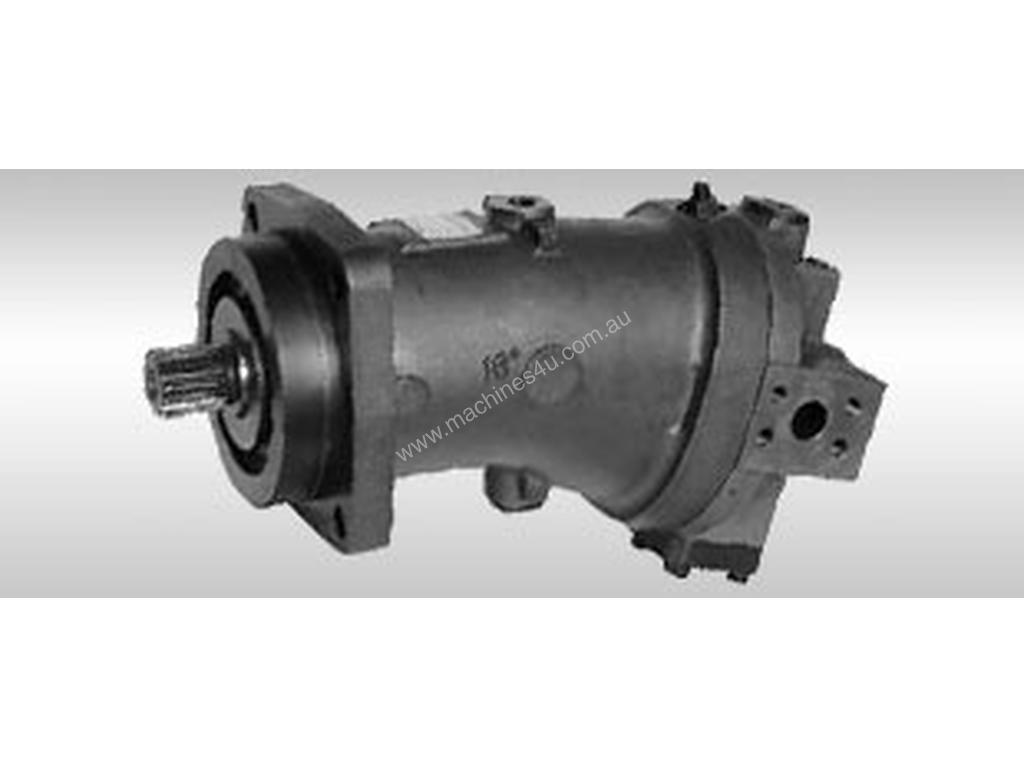

Adjustable bent axis motor

Adjust hydraulic motor flow to match output of host machine. For best results, tailor RPM to the application (2000 RPM max). Increase production by reducing recovery time.

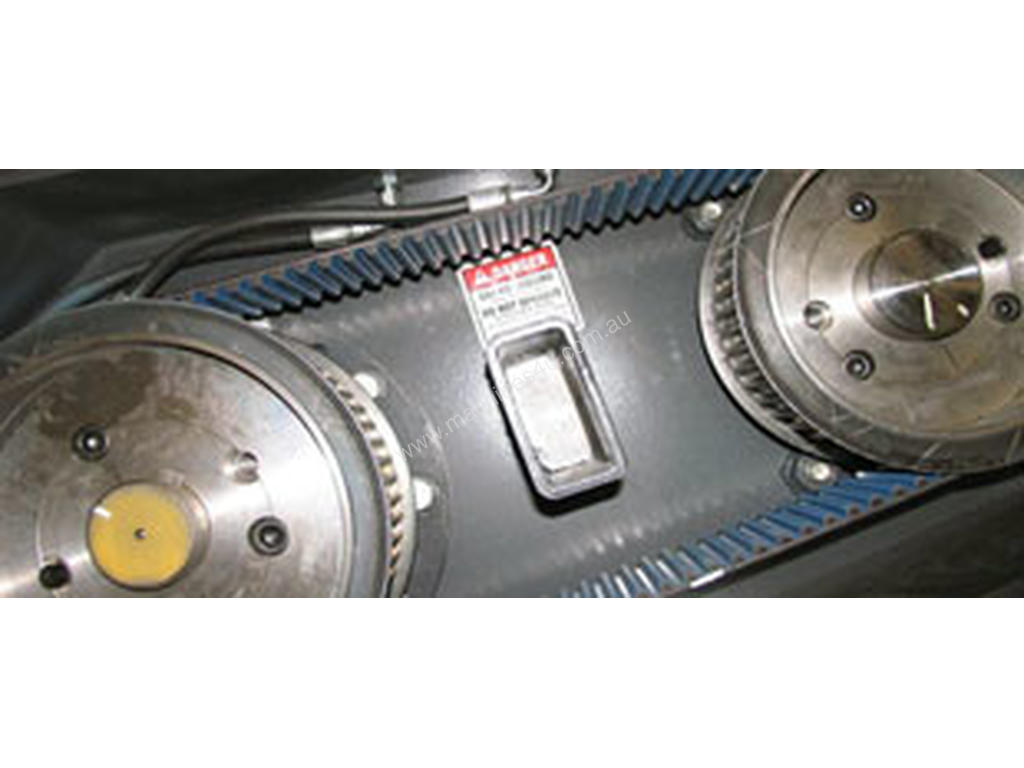

unique drive belt

Heavy duty purpose-built positive traction belt eliminates slippage to increase productivity and reduce operating / maintenane costs. Many competitors use standard car engine belts to drive their drum.

patented tooth design

Split tooth design channels cut material through the centre of the teeth providing relief, consistent cut material, and reduced motor drag. Reversible tooth allows quick field replacement without down-time.

heavy duty rotor

Digga’s Magnum mulcher features 3/4 inch drum wall thickness and five reinforcing stabilisers to reduce rotor flex while a through shaft design adds to its rigidity. This results in increased bearing life.

innovative shaft & bearing design

‘Push’ type adapter sleeve traps the bearing against a shoulder on the rotor shaft to prevent the rotor from floating axially. Guaranteed rotor shaft positive grip able to withstand heavy shock load / unintentional axial load. Design also prevents dirt from reaching the bearings.
