Digga Mini Bigfoot Trencher 900mm Dig 150mm Combo Chain - Up to 1.5T

Includes mini loader multi pickup and hoses

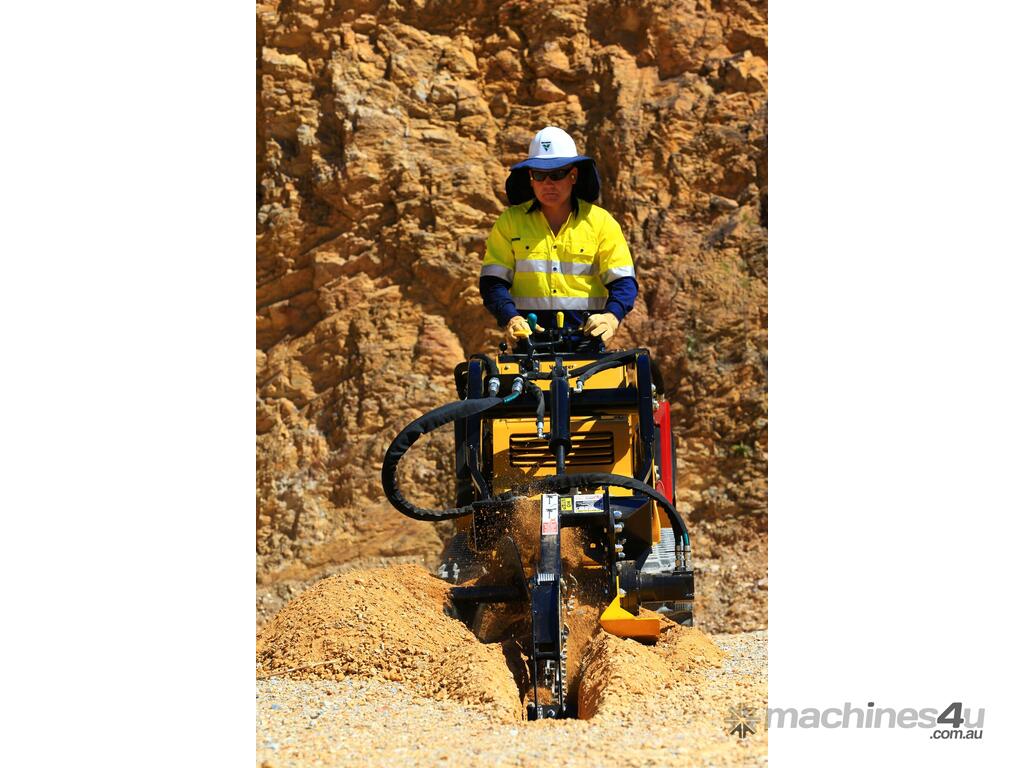

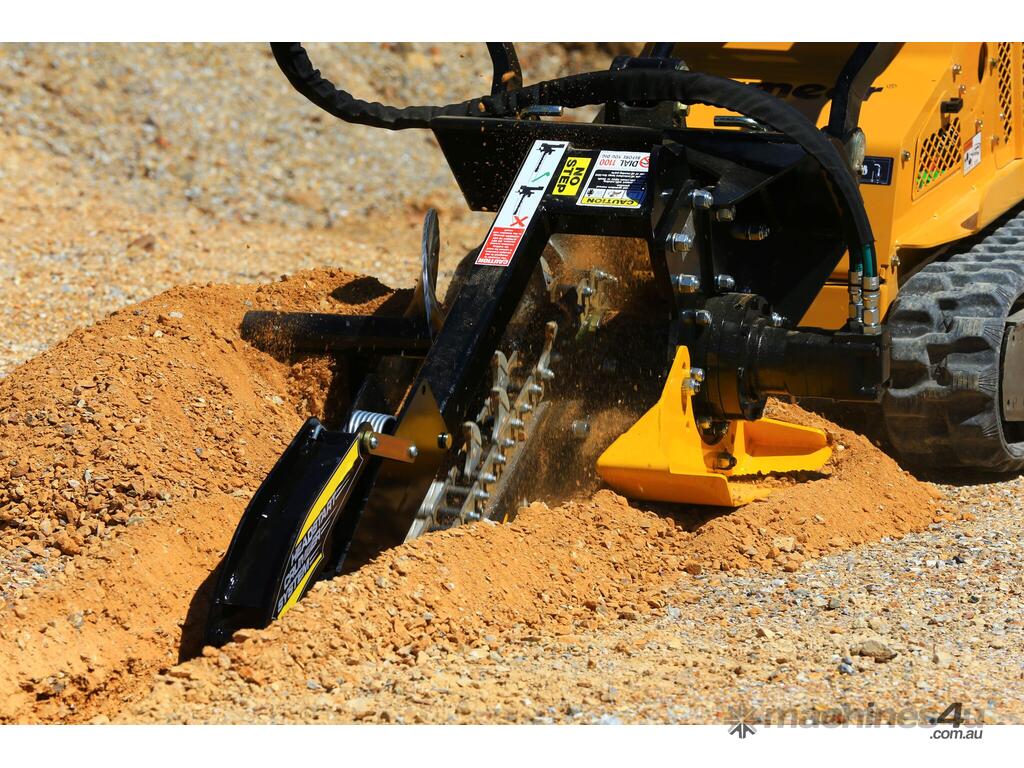

The new Digga Mini Trencher designed specifically for mini loaders up to 1.5t is the lightest, most compact power packed mini trencher on the market. Unique design gives the operator consistent digging depth, efficient spoil to one side of the trench and finely crumbed spoil for effective compaction back into the trench. Provides minimal ground disturbance to surrounding conditions and a cleaner finish.
Features:
• Quality Australian made Digga gearbox & Eaton motor ?
• Adjustable skid foot to maintain constant digging depth ?
• Side-shift option available upon request for digging close to permanent structures with small skid steers ?
• High quality bearings and components ?
• 3 Different chain options available; Earth, Combo, and Diggatac ?
• 900mm digging depth and 150mm digging width ?
• Head Start crumber system (patent pending) - start trenches with the crumber bar in the down position. Save time by not having to get off the machine ?Ideal Use: ?Pipe laying for irrigation, underground power and communications, road repairs and general construction. ?Machine Suitability: ?Mini Machines, Excavators, Small Skid Steer Loaders. ?

Specifications
Cutting Width: 150 mm
Foot Depth Presets: 450 / 600 / 750 / 900 mm
Hydraulic Flow: 40-90 lpm
Motor Size: 2K Bell EATON
Max Pressure (Do not exceed): 240 bar at 60 lpm
Max Flow (Do not exceed): 95 lpm at 200 bar
Max Continuous Power: 25 kW (34 hp)
Weight (with built-in frame): 198 kg
Weight (with bolt-on frame): 230 kg
Length: 1402 mm
Horizontal Height: 645 mm
Width: 989 mm

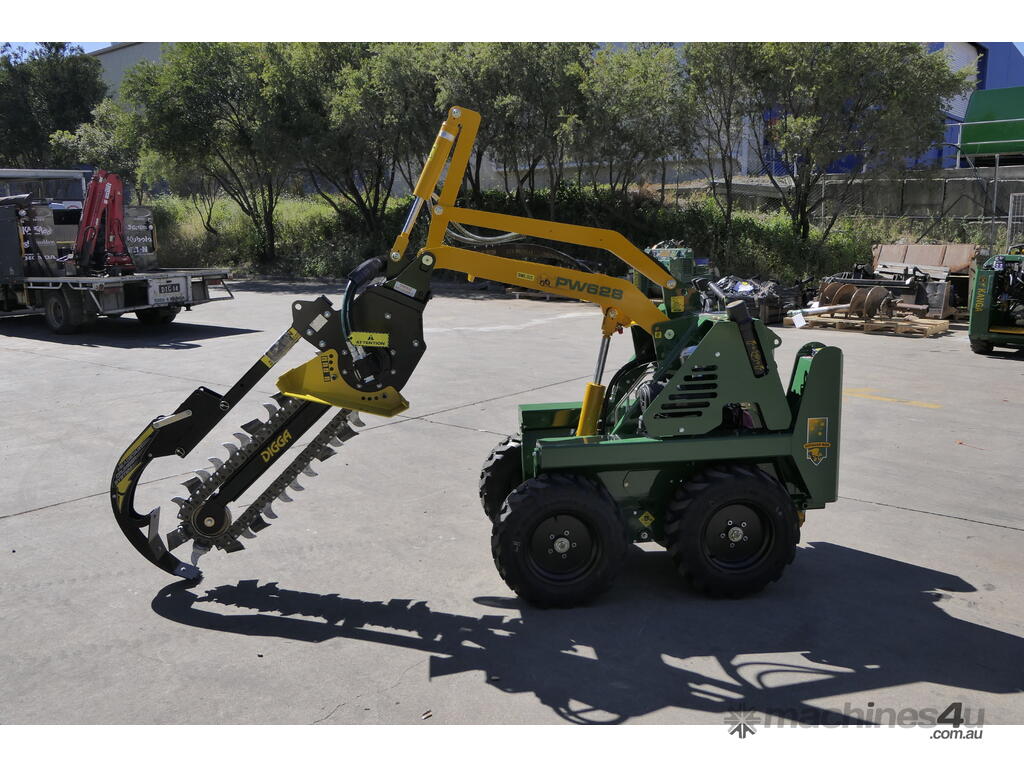

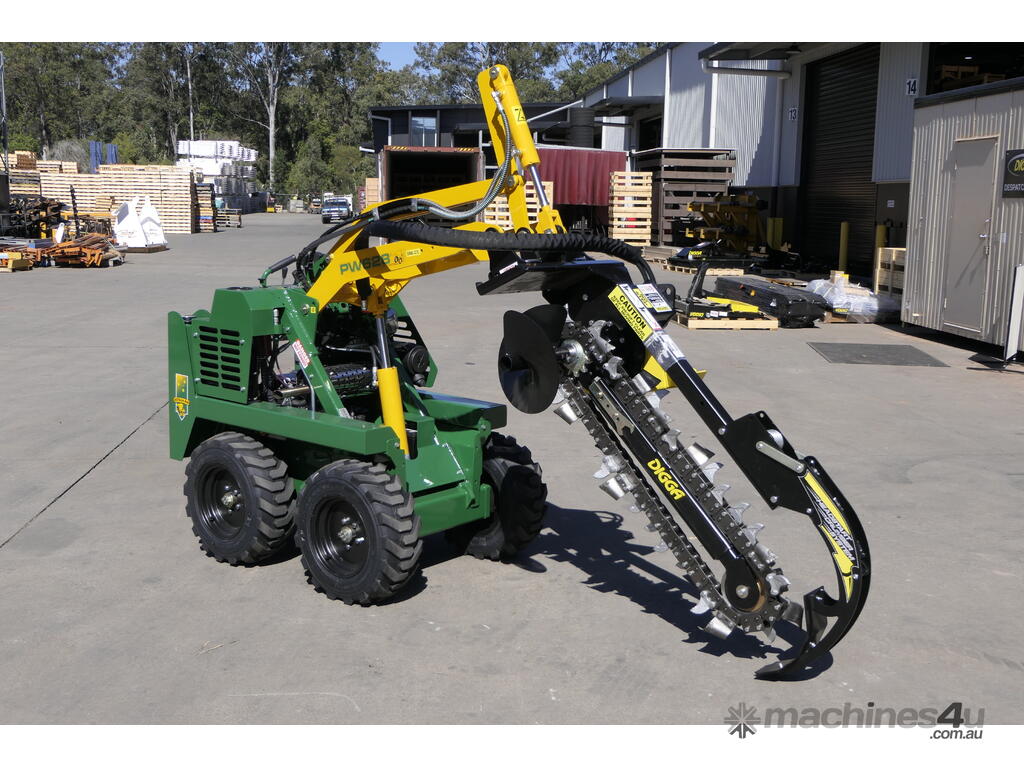

note: does not include the mini loader in photos.
