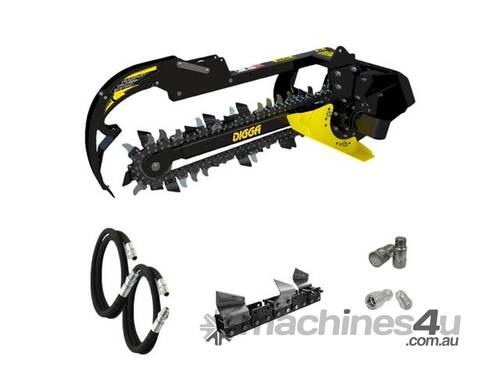

Digga Mini Loader and Small Skid Steer Loader Bigfoot Trencher 900mm

Trenchers for Mini Loaders and Trenchers for Small Skid Steer Loaders

Mini Loader Trencher

Suits all makes and models of Mini Loaders with Mini Multi Fit Frames including Boxer, Dingo, Kanga, Viking etc and other makes including Toro, Vermeer and more.

For Mini Loader Trenchers please choose the frame and chain type from the drop down menu.

Small Skid Steer Loader Trencher
Suits all Small Skid Steer Loaders including ASV PT30/RC30/RT40, Bobcat S70/S100, Case 1825, New Holland L120 and Toyota Huski 4SDK4.

For Small Skid Steer Loader Trenchers please choose Bolt On Frame and chain type from the drop down menu and we will confirm your machine make and model prior to shipping or pick up.

The Digga Mini Loader Bigfoot Trencher 900mm has the option of 3 different size chains and 3 different types of Chain Teeth:

100mm, 150mm and 200mm Chains.

Earth Chain: Earth Teeth on every "Second Station." Best for soft clean ground with no floaters or tree roots.

Combination Chain: 70% Diggatac Teeth and 30% Earth Teeth. Best for most applications. Cuts through hard soil, roots, shale and rocky ground.

Diggatac Chain: Diggatac Carbide Teeth. Best for hard shale, asphalt or frozen ground.

Frame, hoses and your choice of Couplers.

Pick up from our warehouses in Brisbane, Sydney or Melbourne

Freight available Australia wide

PROUDLY PRODUCED AND MANUFACTURED IN AUSTRALIA

Ideal for mini machines up to 1.5 tonne, including brands such as Dingo, Toro, Kanga, Vermeer & ASV, Bobcat, New Holland, Huski and more. The Mini Bigfoot Trencher can be used for pipe laying for irrigation, underground power & communications, road repairs, general construction.

Mini Bigfoot trencher - Adjustable depth skid foot - Digga Australia
Adjustable depth skid foot
Precision depth control ensures the spoil auger has optimum ground clearance. Take advantage of every bit of valuable horsepower when trenching. Preset depths: 450 / 600 / 750 / 900mm.

Mini Bigfoot trencher - Heavy duty crumbing system - Digga Australia
Heavy duty crumbing system
Start trenching with the crumber in-ground. A super heavy duty spring ensures the crumber stays engaged with the bottom of the trench for maximum spoil removal from start to finish. View animation.

Mini Bigfoot trencher - Skid foot can be seen from the cab - Digga Australia
Skid foot can be seen from the cab
The new design foot can be clearly seen from the cab and allows the operator to see when the trencher is in the correct trenching position. No need for a spotter.

Mini Bigfoot trencher - A cleaner work-side of the trench - Digga Australia
A cleaner work-side of the trench
Digga's new foot design also feeds overburden back onto the chain, transferring it to the spoil auger for a cleaner clearer work side of the trench.

Mini Bigfoot trencher - Anti-back flex chain design - Digga Australia
Anti-back flex chain design
You can be guaranteed of quality and superior performance with our Anti-back Flex design. It prevents the chain links from flexing back in tough soil conditions.

Mini Bigfoot trencher - Trench in all ground conditions - Digga Australia
Trench in all ground conditions
Available in a number of different tooth configurations for trenching in soft ground, mixed grounds and even permafrost so you can get the job done no matter what environment you are in.

Specification Mini
Cutting Width 100 / 150 / 200 mm
Foot Depth Presets 450 / 600 / 750 / 900 mm
Hydraulic Flow 40-90 lpm
Motor Size 2K Bell EATON
Max Pressure - Do not exceed 240 bar 60 lpm
Max Flow - Do not exceed 95 lpm 200 bar
Max Continuous Power 25 Kw (34 hp)
Weight - with built in frame* 198 kg
Weight - with bolt on frame* 230 kg
Length 1402 mm
Horizontal Height 645 mm
Width 989 mm
(*) Applies to a mini trencher with a 150mm combo chain. Weight is an approximation only.
