Digga Truck Crane / Telehandler Auger Drives

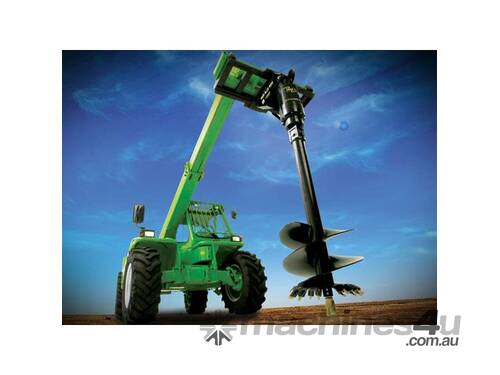

Digga’s PDX2 to PD10 range of earth drills are ideally suited for truck cranes and telehandlers with a flow between 30 to 115 lpm. Innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimises maintenance, optimising your returns. Digga planetary auger drives are fitted with Digga / Eaton bell motors specially designed for drilling and augering in most ground conditions.

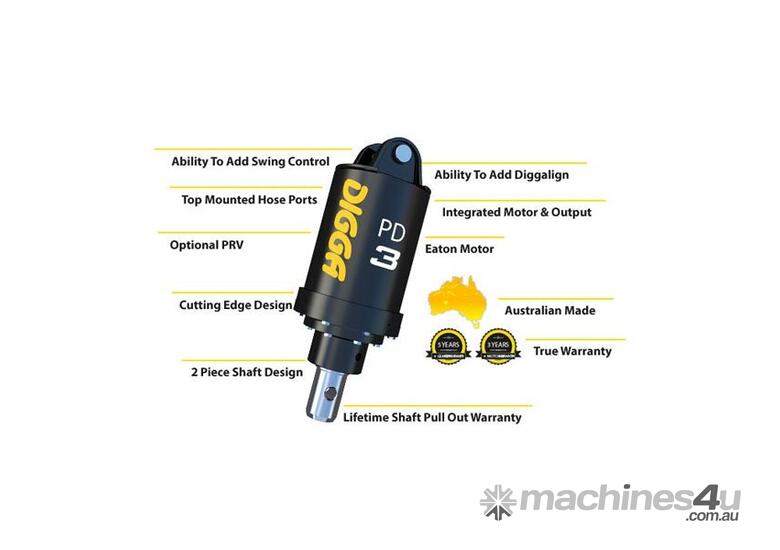

Compact high torque Digga manufactured gearbox
Highly efficient design with less moving parts
Fitted with Eaton/Digga geroler hydraulic motor
No case drain required
Full range of shafts available upon request
Extreme duty shaft locking system
Drive fits down the hole for greater digging depth
Low maintenance with 5yr gear box and 3yr motor warranty

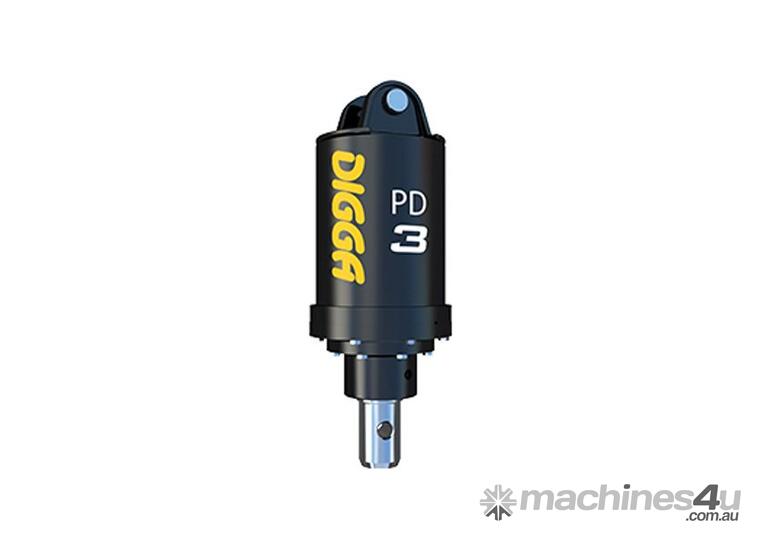

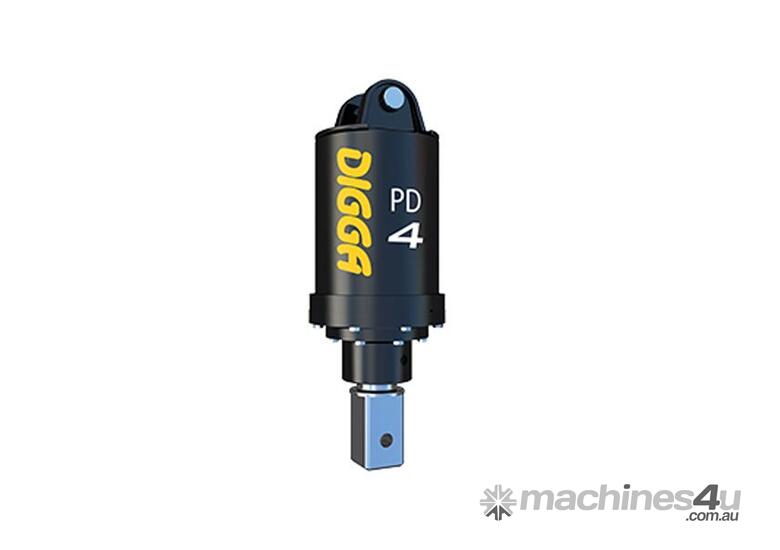

SPECIFICATION PDX2 PD3 PD4 PD5
Rec Flow Range 30-50 lpm 45-75 lpm 55-85 lpm 60-95 lpm
Nominal Torque 2307 Nm 3544 Nm 4448 Nm 5151 Nm
Motor 2K Bell EATON 2K Bell EATON 2K Bell EATON 2K Bell EATON
Pressure Valve Fitted Optional Optional Optional Optional
Energy Control Valve N / A N / A N / A N / A
Case Drain Required No No No No
Max Pressure – – – – – – – – – – Do not exceed 240 bar 60 lpm – – – – – – – – – –
Max Flow – – – – – – – – – – Do not exceed 115 lpm 130 bar – – – – – – – – – –
Max Power – – – – – – – – – – Do not exceed 25 Kw (34 hp) – – – – – – – – – – –
Overall Length 557 mm 579 mm 579 mm 579 mm
Diameter 187 mm 240 mm 240 mm 240 mm
Weight (no frame / hitch) 45 Kg 57 Kg 58 Kg 67 Kg
Std Output Shaft 65 mm Round 65 mm Round 75 mm Square 75 mm Square
Swing Control N / A Optional Optional Optional
Diggalign N / A Optional Optional Optional
Rec Auger 4 Series 4 Series 4 Series / 6 Series 6 Series
Max Auger Dia Clay / Shale 450 mm 600 mm 750 mm 900 mm
Max Auger Dia Earth 600 mm 750 mm 900 mm 1000 mm
PD6 PD7 PD8HF
Rec Flow Range 70-115 lpm 75-115 lpm 80-200 lpm
Nominal Torque 5596 Nm 6040 Nm 7136 Nm
Motor 2K Bell EATON 2K Bell EATON 6K Bell EATON
Pressure Valve Fitted Optional Optional Included
Energy Control Valve N / A N / A Optional
Case Drain Required No No No
Max Pressure – – – Do not exceed 240 bar 60 lpm – – – Do not exceed 240 bar 130 lpm
Max Flow – – – Do not exceed 115 lpm 130 bar – – – Do not exceed 230 lpm 130 bar
Max Power – – – Do not exceed 25 Kw (34 hp) – – – Do not exceed 50 Kw (67 hp)
Overall Length 730 mm 734 mm 350 mm
Diameter 240 mm 240 mm 290 mm
Weight (no frame / hitch) 89 Kg 90 Kg 146 Kg
Std Output Shaft 75 mm Square 75 mm Square 75 mm Square
Swing Control Optional Optional Optional
Diggalign Optional Optional Optional
Rec Auger 6 Series 6 Series 6 Series
Max Auger Dia Clay / Shale 900 mm 900 mm 1000 mm
Max Auger Dia Earth 1000 mm 1000 mm 1200 mm
(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.
