Digga XO 100HD Extensions – Up to 30T

Digga’s drilling extension range is the ultimate in quality and cost effectiveness. Manufactured inhouse by Digga using only the highest grade materials and strictest quality control. The X0100HD range of extensions is suited for machines up to 30 tonnes.

Easy fit design
Easy fit design with no adaptors required helping you connect and disconnect your augers faster. Featuring eyelets to suspend the extension and auger in the hole while another is added or removed.

Reduce excess play
Welded hub and shaft reduces excess play in the connections ensuring a straighter hole.

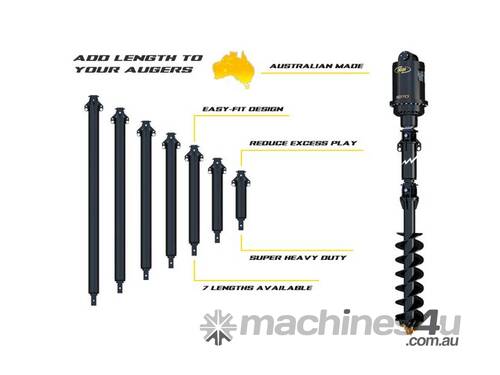

7 Lengths available
7 length options available including 1000 / 1500 / 2000 / 2500 / 3000 / 35000 / 4000 mm extension lengths.

Australian made
Our product quality and innovation leads the industry. 100% Australian made, designed and manufactured for Australian conditions, providing you with versatility, competitive pricing and a factory-backed warranty.

Specification XO100 HD
Type Outer
Auger Suitability RC11 / DR11
Drive Suitability SD
Machine Suitability 15-30 tonne
Maximum Torque 95000 Nm
Standard Hub 100mm Square
Hub Options N / A
Body (Dia x Wall) 219 mm x 12.7 mm
Length Options 1000 / 1500 / 2000 / 2500 / 3000 / 35000 / 4000 mm
Availability Made to Order
