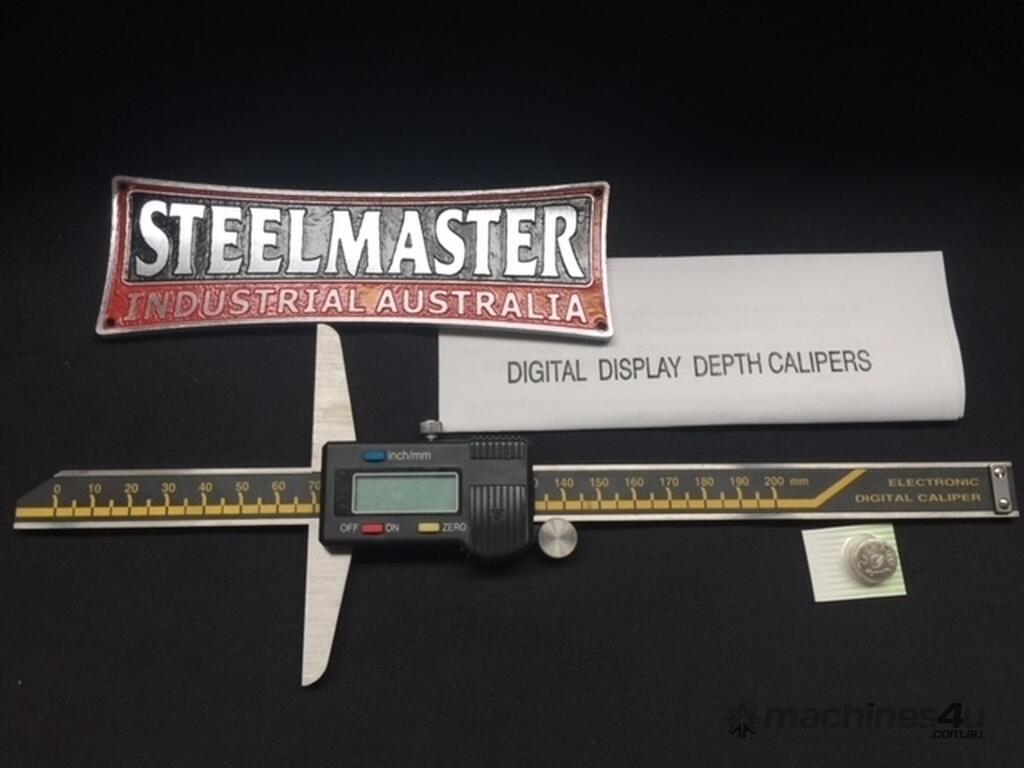

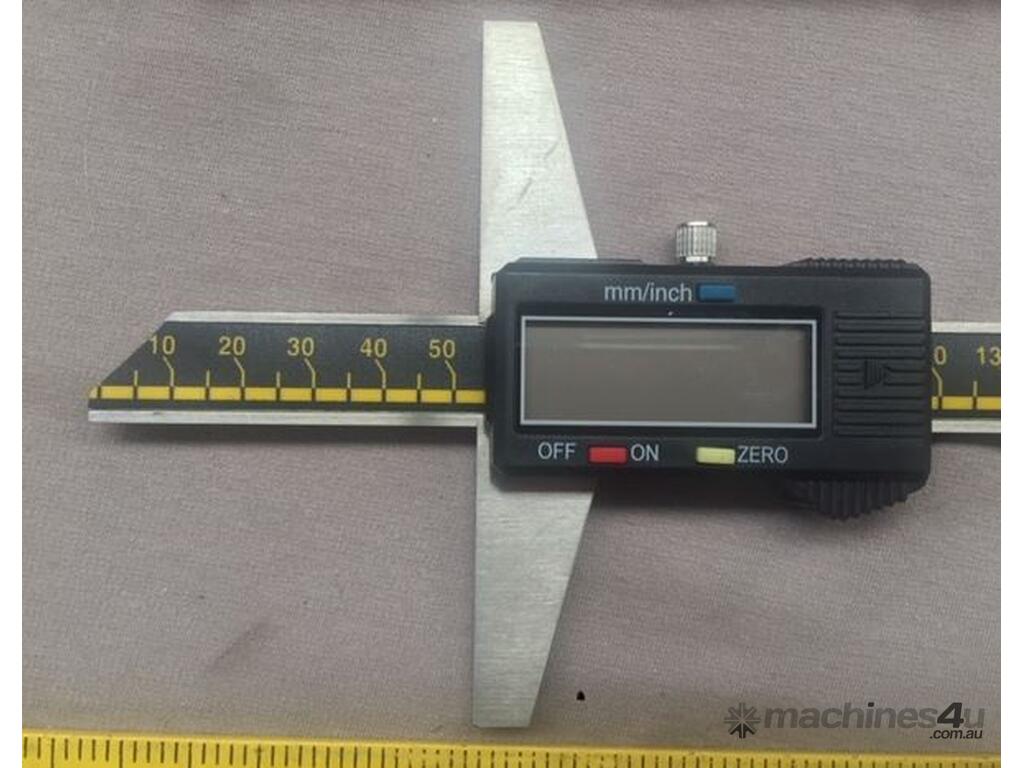

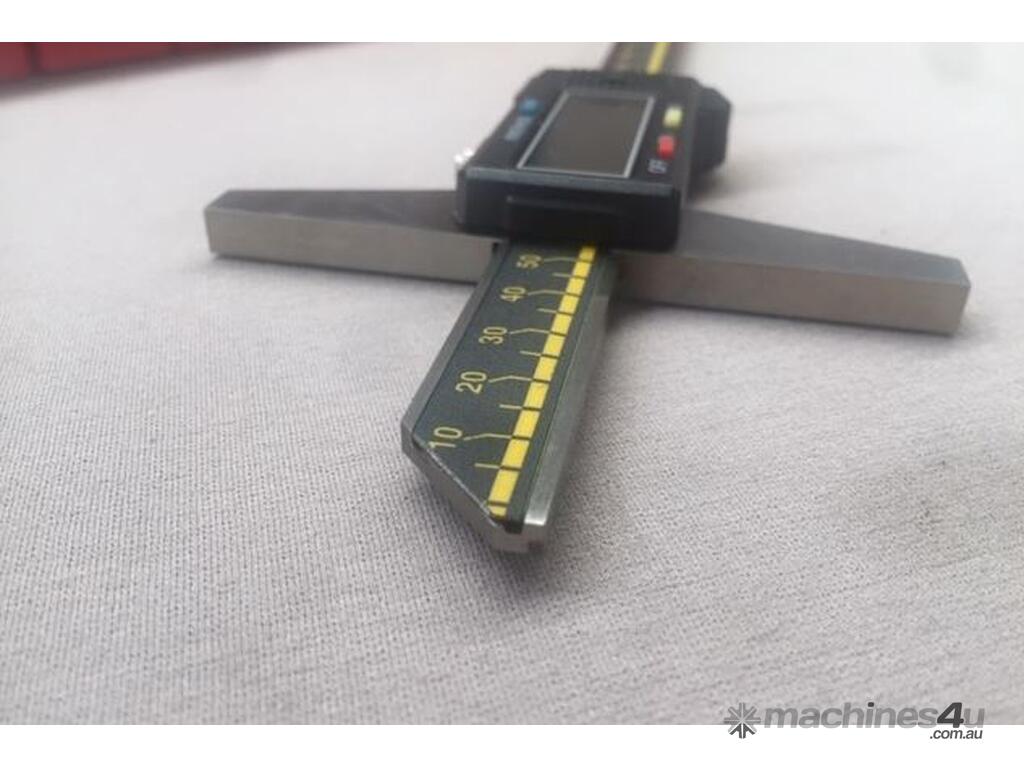

Digital Depth Gauge - 0 ~ 200mm Range. Dual Measurements.

Description

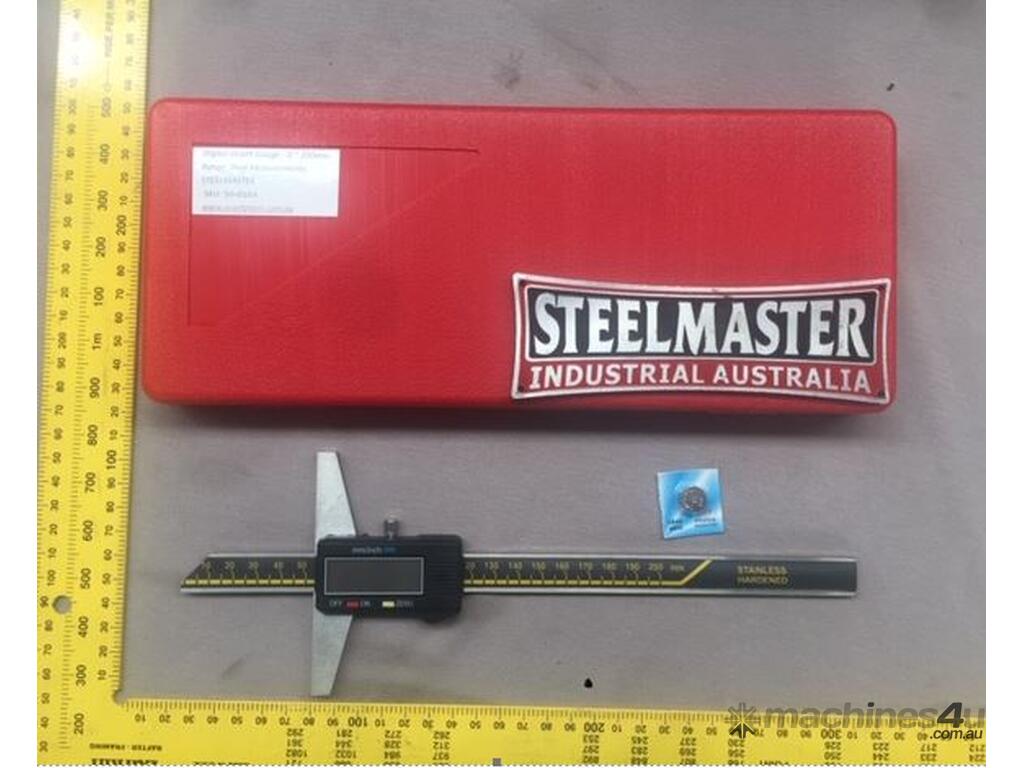

Precise depth measurements are easy with these Digital Depth Gauges. Choose either 150mm or 200mm ranges, both feature inch/millimeter conversion, zero set button, 0.0005 resolution and stainless steel construction. Model H8136 includes a plastic foam lined case.

Features
- measuring range: 0 ~ 200mm
- precise depth measurements are easily achieved with our depth gauges
- stainless steel body offering both metric and imperial conversion with a 0.01mm resolution
- product ordering code: 50+0164

Specifications:

- Measuring Range: 0-200mm /0-8"
- Resolution: 0.01mm / 0.0005"
- Measuring Speed: 1.5m/sec, 60"/sec
- Measuring System: Linear capacitive measuring system
- Display: LCD Display
- Power: 1 x LR44 ( 1.5v ) Battery
- Working Temp: 5*C - 40*c

Operating Instructions:

- Open battery Cover on the top to install you LR44 battery with Positive side facing out
- Loosen the locking Screws
- Switch unit on with the "on" button, the select the unit system need by pressing Inch/Metric button
- Apply normal measuring pressure on slider to close the external jaw, then press Zero button to reset the display to zero
- Your Digital depth Gauge is now ready to use

Maintenance:

- Wipe clean all the measuring Faces and Caliper bar after each use to maintain optimum performance of Caliper
- When not in use remove battery to avoid damage
- Always place back in its case for storage
- If Flashing digits are displayed it means the battery is low and will need to be replaced
- Never apply and electric pressure on caliper for fear of damaging its internal chip
