Dimpleflo Tube-In-Tube Heat Exchanger

Name: Dimpleflo Tube-In-Tube Heat Exchanger
Brand: Teralba
SKU: I-00021803
Availability: InStock

Laverton North, VIC - Delivers Nationally

Contact this seller for accurate pricing

Finance Repayment Calculator

Get a quote from our independent finance provider

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

Used

Category:

Heat Exchangers

Make:

TERALBA

Model:

2T 51 76 2000

Year:

Not specified

Member Since: Jul 2009

Gold Member

Listings: 580

Sellers stock ID:

I.00021803

Description

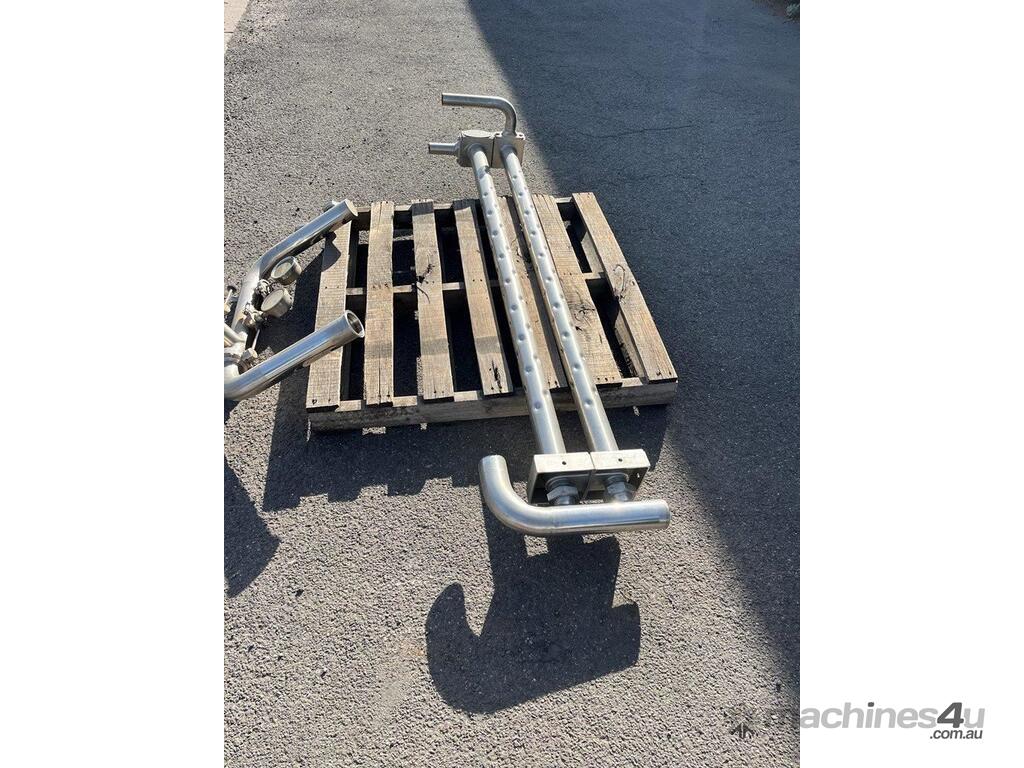

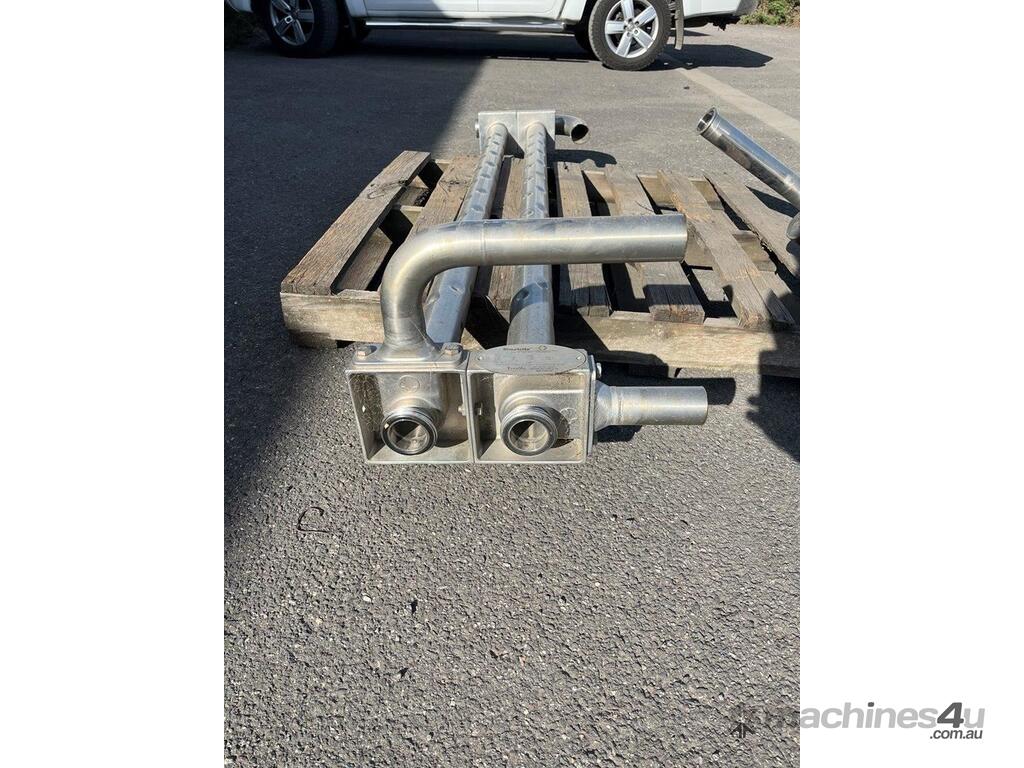

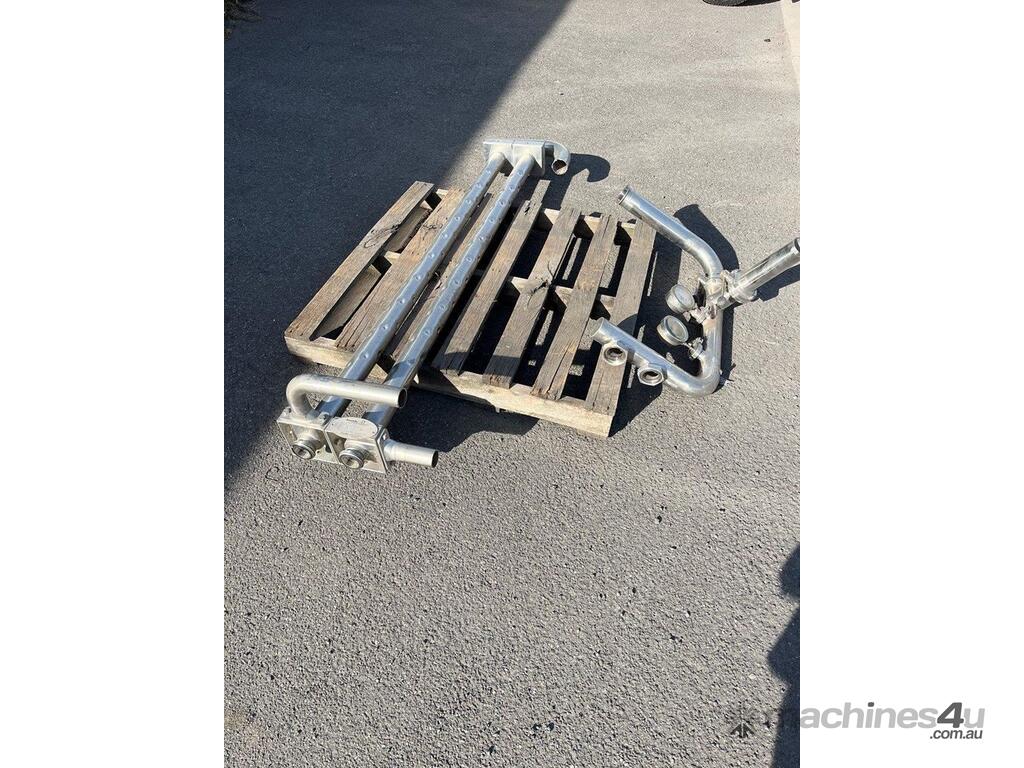

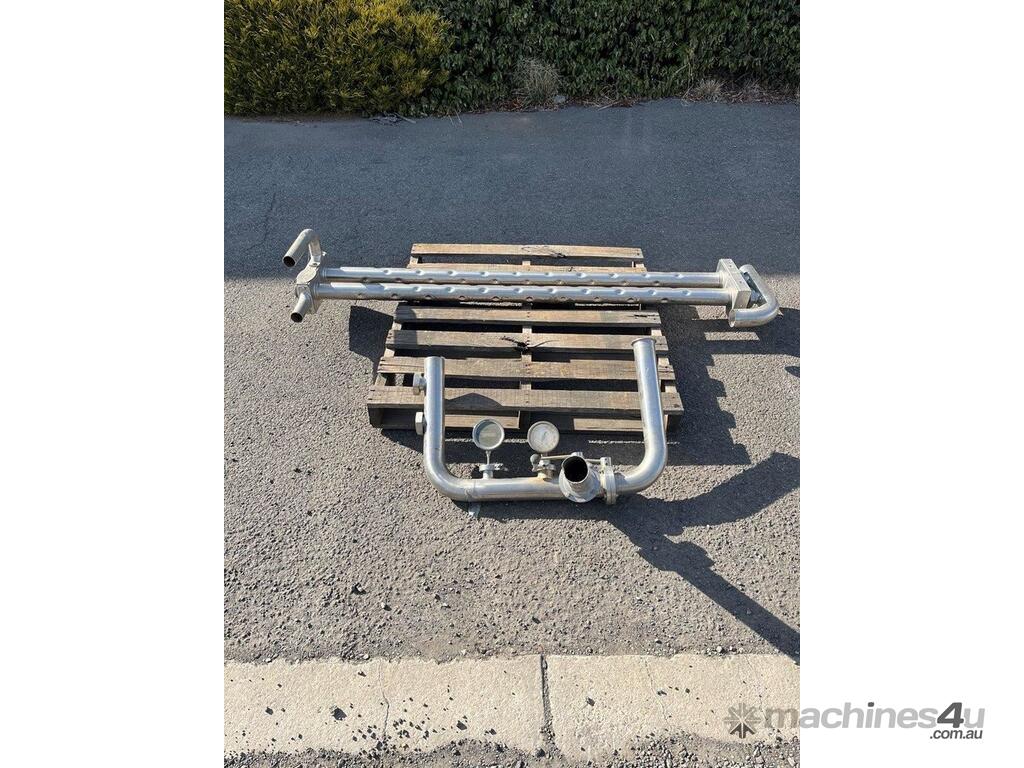

Dimpleflo tube-in-tube heat exchanger.
Double tube each measuring 2000mm long
Inner DP 400KPa TP 600KPa
Outer DP 400KPa TP 600KPa
DT -10C to 100C
3 inch product line.
2 inch service fluid line.
The Dimpleflo Double Pipe Heat Exchanger (also known as “Tube-in-Tube”) is the simplest and most robust configuration of hygienic heat exchanger.
Dimpleflo tube in tube heat exchangers are utilised for fluids containing stringy fibres, chunks or other particles and low-high viscosity fluids.

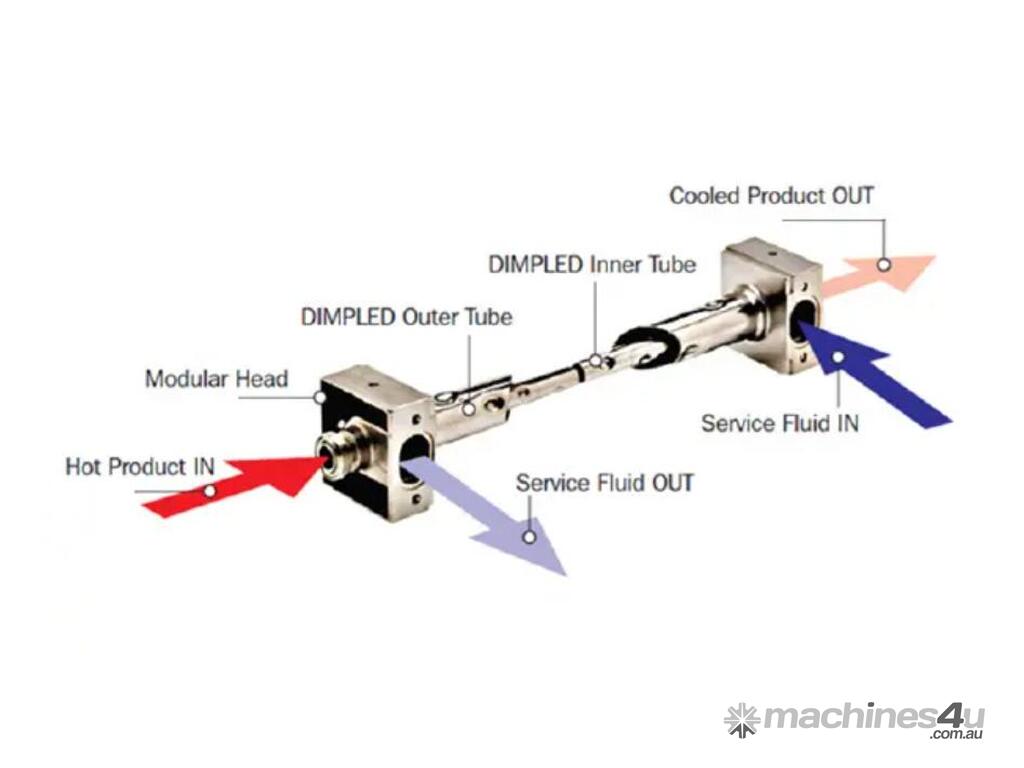

A tube in tube heat exchangers involves the product flowing through the inner heat transfer tubes and the service fluid flows through the surrounding shell.
Because of its configuration and geometry, the Dimpleflo Double Tube heat exchanger is a true counter current heat exchanger providing absolute product integrity.
Using dimple tube technology, both heat transfer and efficiency are increased over conventional smooth tube heat exchangers.
A further benefit the turbulence enhancing dimples is potential fouling is minimised, especially for fouling and viscous product
