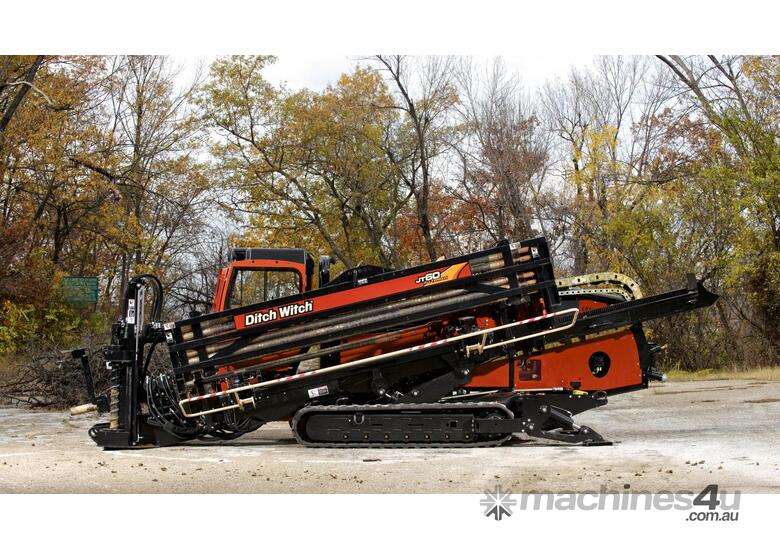

Ditch Witch AT60, 60k lbs rock drill

Every Ditch Witch All Terrain directional drill stands apart from competitors by virtue of its patented, two-pipe All Terrain drilling system, which delivers more power to the bit than any other rock-drilling system in its class, resulting in unbeatable productivity in the widest range of ground formations. With the JT60 All Terrain, you also get a uniquely powerful combination of rotational torque, thrust and pullback, plus intuitive carve mode and many other features requested specifically by customers.

ALL TERRAIN
Patented All Terrain technology has the industry’s most advanced inner-rod design, proven to increase production in hard rock and difficult terrain.

POWER
60,000 lb (267 kN) thrust and pullback and 9,000 ft·lb (12,240 N·m) rotational torque—the powerful combination you need for outstanding productivity on big installation jobs.

Choice of a 190-gross-hp (142-kW) Tier 3 or 200-gross-hp (149-kW) Tier 4i Cummins® diesel engine.

PRODUCTIVITY
Proven, industry-leading pipeloading system is simple, easy to use and designed to increase speed with automation, saving you time, money and effort.

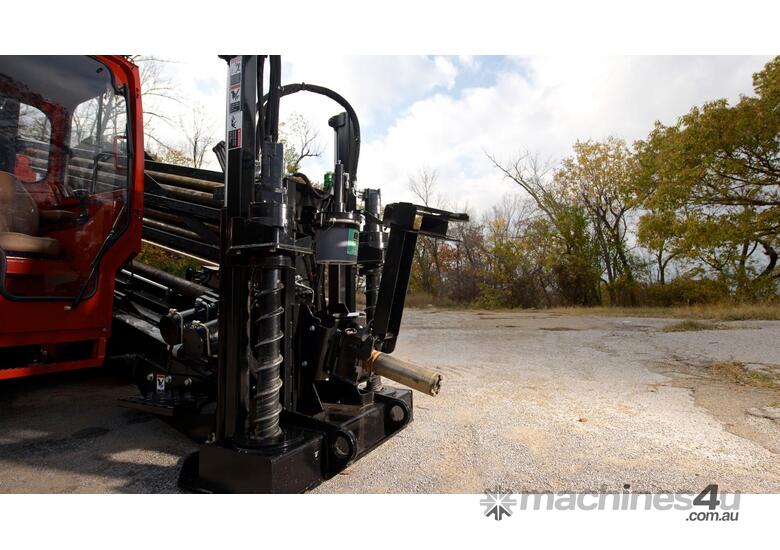

Heavy-duty, planetary-driven anchor system enables you to use full machine thrust when needed, improving jobsite productivity.

Onboard, enclosed 150-gpm (560-l/min) fluid pump for productive drilling at greater distances; flow rate can be operated simultaneously with thrust/pullback and rotation.

Two-speed thrust drive motors provide exceptional low-speed drilling control as well as higher speeds necessary for rapidly loading drill pipe.

INNOVATIVE DESIGN
Designed for greater uptime with a simple, durable, customer-driven design.

Double rack-and-pinion thrust drive is field-proven and designed to push/pull through the long, tough bores.

Simple, intuitive carve mode reduces operator fatigue; compatible with superior TriHawk® HD housings and bits for exceptional productivity.

Dual rear independent stabilizers give you confidence to set up on uneven terrain.

Open-top vise wrenches are angled toward the operator for an excellent view of the tool joint when making up and breaking out pipe.

Easy to service, with all daily maintenance points in one location that is easily accessed through removable doors.

OPERATOR'S STATION
Fully enclosed, climate-controlled cab features instrument panel gauges positioned for visibility, conveniently placed controls and an excellent view of the tool joint.

Dual-pivot drill frame allows steep entry angles without raising the tracks off the ground—no need to constantly readjust the machine even when the terrain is muddy or steep; enhances operator comfort because operator’s station stays level.

Operator’s station features intuitive joystick that controls all drilling functions, ergonomic seat, color LCD engine display, and an excellent view of all drill functions.

SUPERIOR SUPPORT
Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
