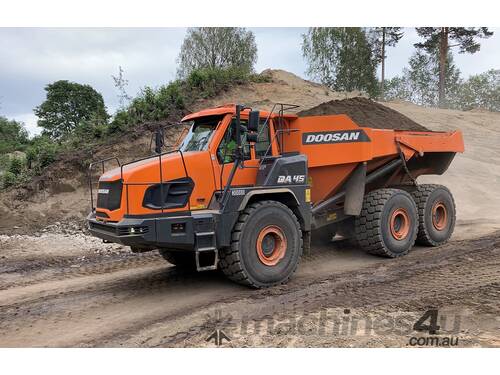

Doosan DA45 Articulated Dump Truck

With a true 41 tonne payload and unique design features, this machine offers excellent driving stability, equal weight distribution and superior traction. These features include a free swinging rear tandem bogie, forward-mounted turning ring and sloping rear chassis. Its exclusive transmission design increases power, torque and weight distribution, while the automatic internal retarder in combination with the engine exhaust brake provide outstanding retardation without using the service brakes, greatly reducing maintenance costs over the life of the machine. Exceptional operator comfort is given by the semi independent hydro-pneumatic front axle suspension and the quiet (72 dBA), spacious cab. Safety is enhanced by the unsurpassed operator visibility, while the simplicity of operation reduces driver fatigue.

Engine Six cylinder 12.7L capacity
Max Power 368 Kw (500Hp)
Max Torque 2373 Nm
Transmission 8 speed fully automatic powershift
Speed (Fwd/Rev) 55/16 km/h
Payload capacity 41,000 kg
Net Operating weight 30,300 Kg
Tyres 29.5 R25
Ground pressure front (Loaded) 130 kPa
Ground pressure rear (Loaded) 152 kPa
Body Volume (with/without tailgate) 26 m3/24.4 m3
Braking and retarder systems Hydraulic enclosed oil-cooled multiple discs on all wheels, with automatic engine exhaust and internal transmission retarder (Not using service brakes).
