Double Deck Vibrating Screen | Wet or Dry | 150tph | 8' x 4' |

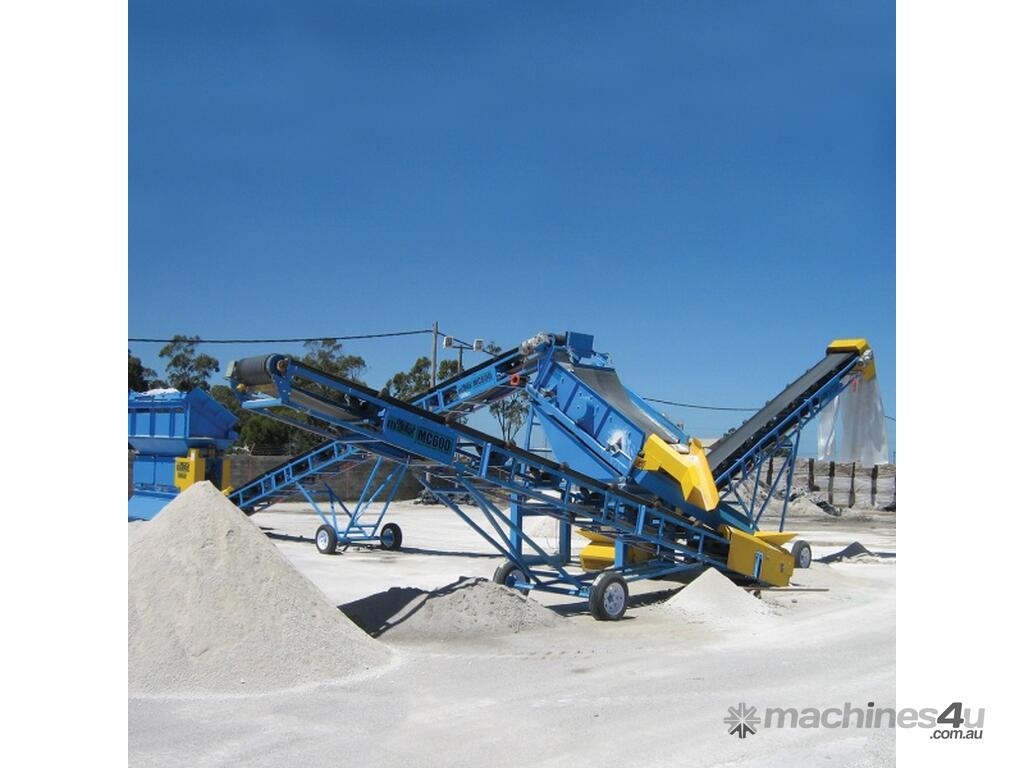

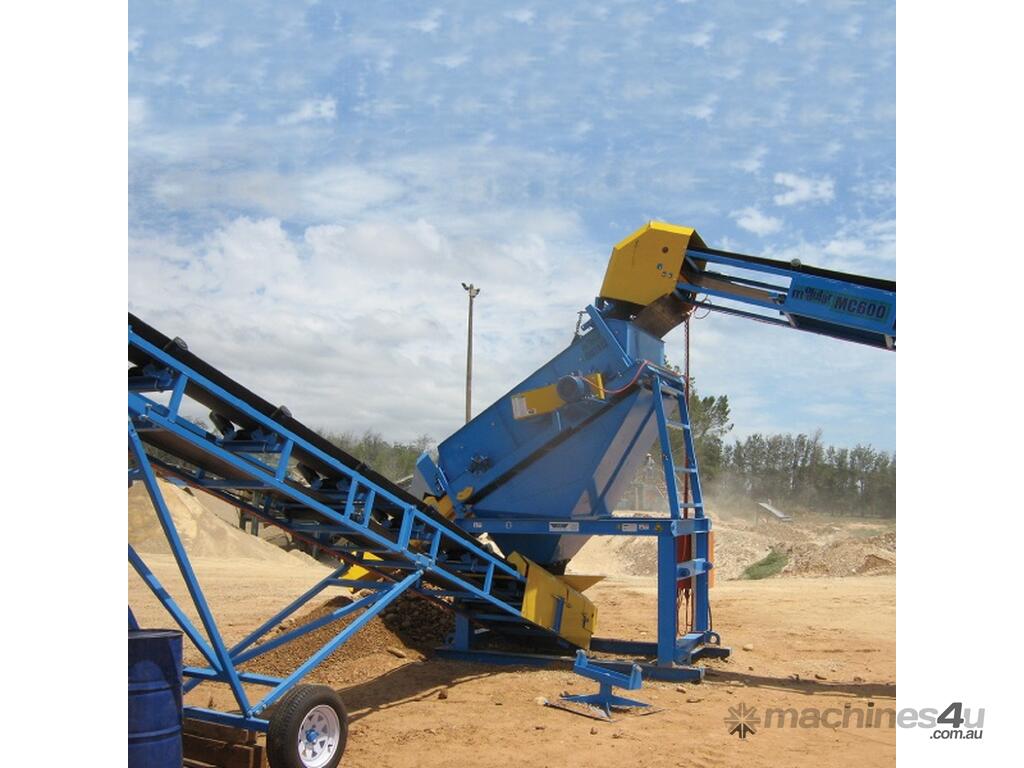

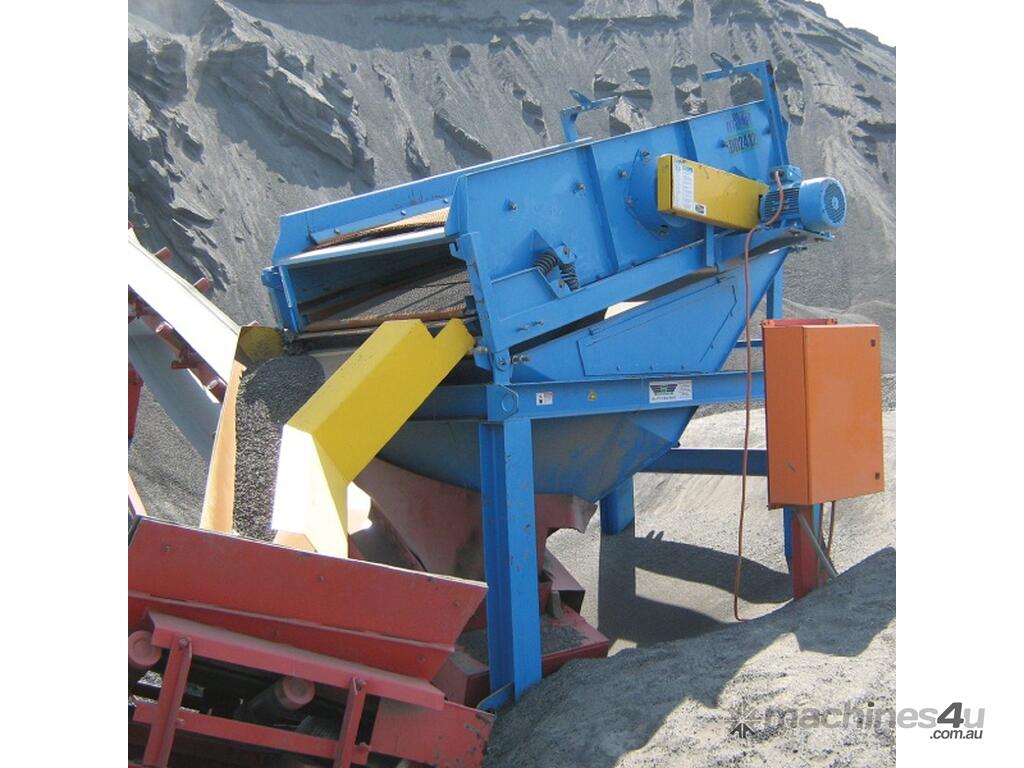

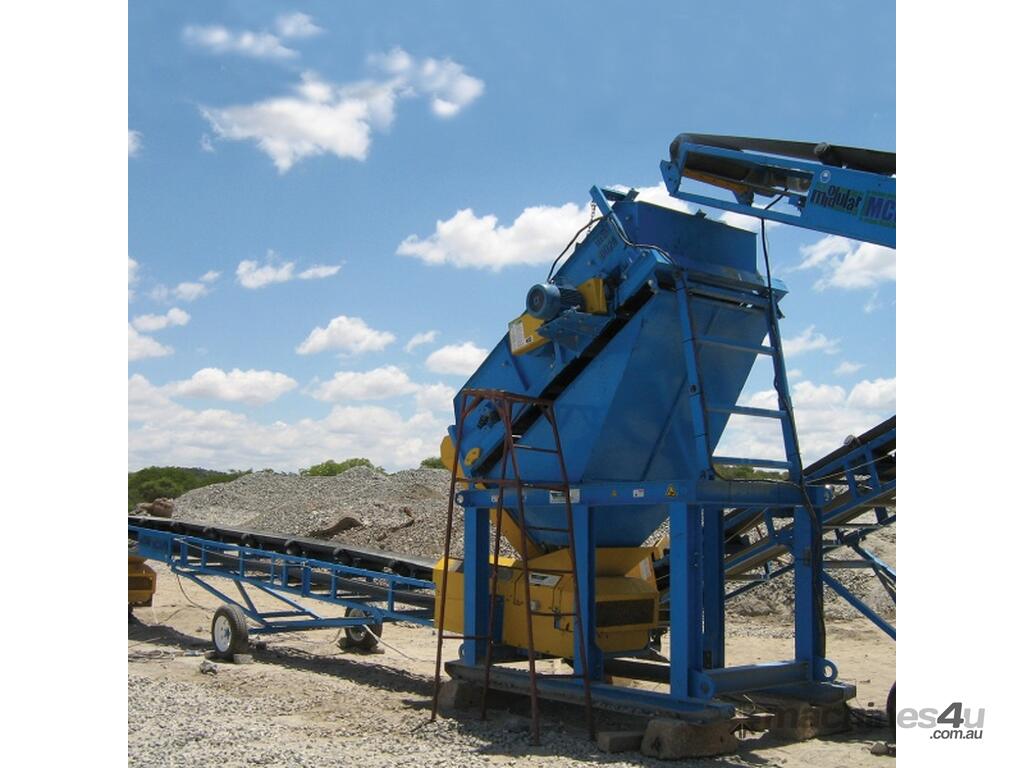

The DD2412 is a double deck vibrating screen and the complete module comes standard as a semi-mobile, skid mounted screen.

This screen is designed to be operated as a primary or secondary screen, using a diverse range of screening media.
The screen box allows for a wide variety of media choices such as mesh or piano wire.

The DD2412 can be configured for either wet or dry screening applications.

The DD2412 is particularly well suited to final screening and sand screening up to a maximum throughput of 150tph.

Technical Specifications:
- 2240mm x 1220mm (8’ x 4’) open screen area
- Top Deck: Square mesh, side tensioned
- Bottom Deck: Square mesh or piano wire, end tensioned
- Inclined adjustable screen angle support frame
- Maximum 100mm feed size
- Throughput up to 150tph (material dependent)
- 5.5kW motor

Dimensions:
- 2130mm wide x 4000mm long x 3500-4100mm high

Options:
- Wet Screening Pack including:
- Top deck – bolt on frame with manifold box and adjustable spray bars and nozzles
- Bottom deck – bolt on spray bars and nozzles

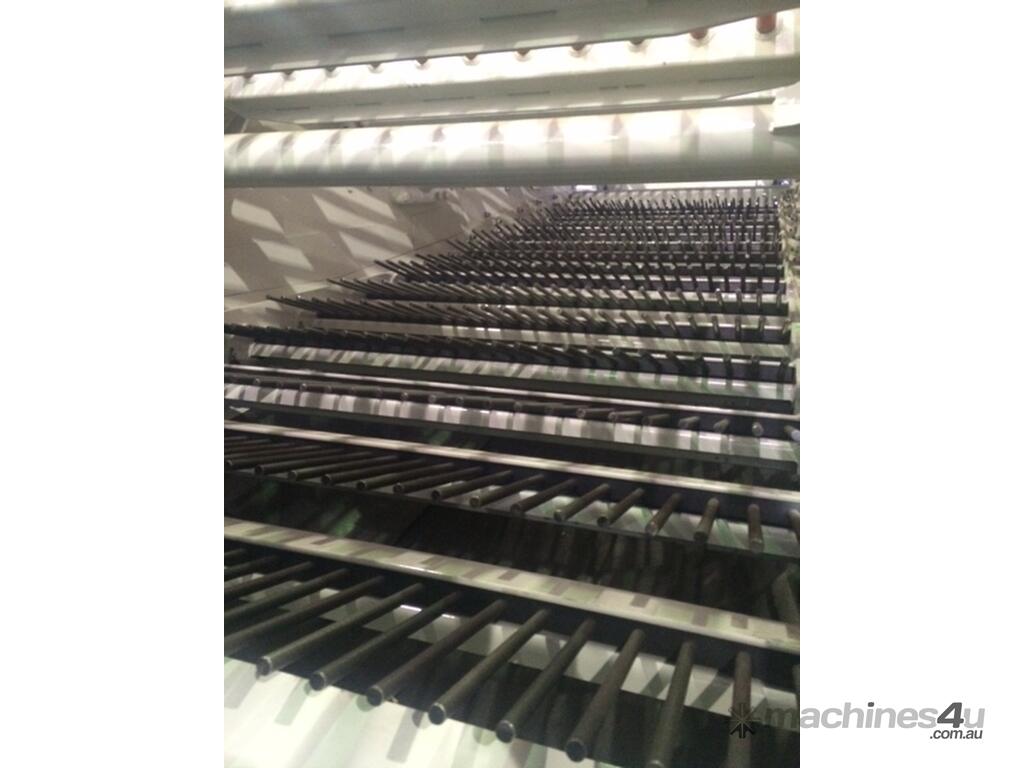

- Top or bottom deck as finger screens
- Low friction sandbox liners
- Double outlet sandbox
- Removal of mounting frame and chutes

Exclusions: Freight, Installation, Electrical works


?
