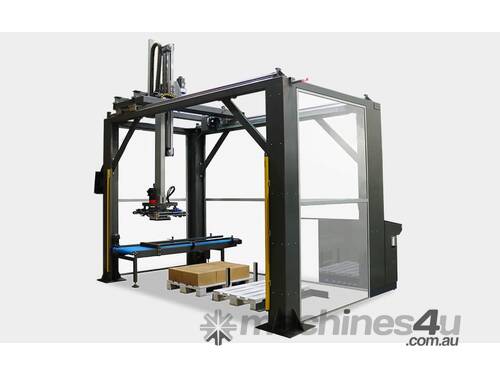

Double Station Compact Palletizer

Double Station Compact Palletizer

Our range of Cartesian palletisers are composed of two available models, capable of meeting clients’ needs in terms of speed, dimensions and final configuration.
Designed and constructed on robust support structures, they boast extreme accessibility and are equipped with light curtains to guarantee safe operator intervention, if necessary.

The gripper head (pick & place) can be customised according to the type of product to palletise, and is designed to product measurement to guarantee delicate handling and correct positioning before final positioning. Compact design, reduced dimensions and precise and easy use are the main features of the palletisers line.

Measurements starting from L 2200 mm x W 1350mm and, based on the pallet, height can reach up to H. 2700 mm including pallet.

Workable pallet measurement: in the compact version: 800*1200 mm and 1000*1200). Height: 1750 mm with pallet, 2700 mm with pallet,

Speed: up to 10 movements per minute.
Version: single pallet bay on the ground
Gripper head: suction cups, vacuum.
Dimensions of products: minimum mm. 90x150x100h, maximum mm. 400x600x600h

The double station version can include different optionals: additional bay, interlayer storage, pallet picking storage, automatic loading and unloading rollers of the empty or full pallet, pallet wrapping and depalletisation systems.
