Precision grinding machine.

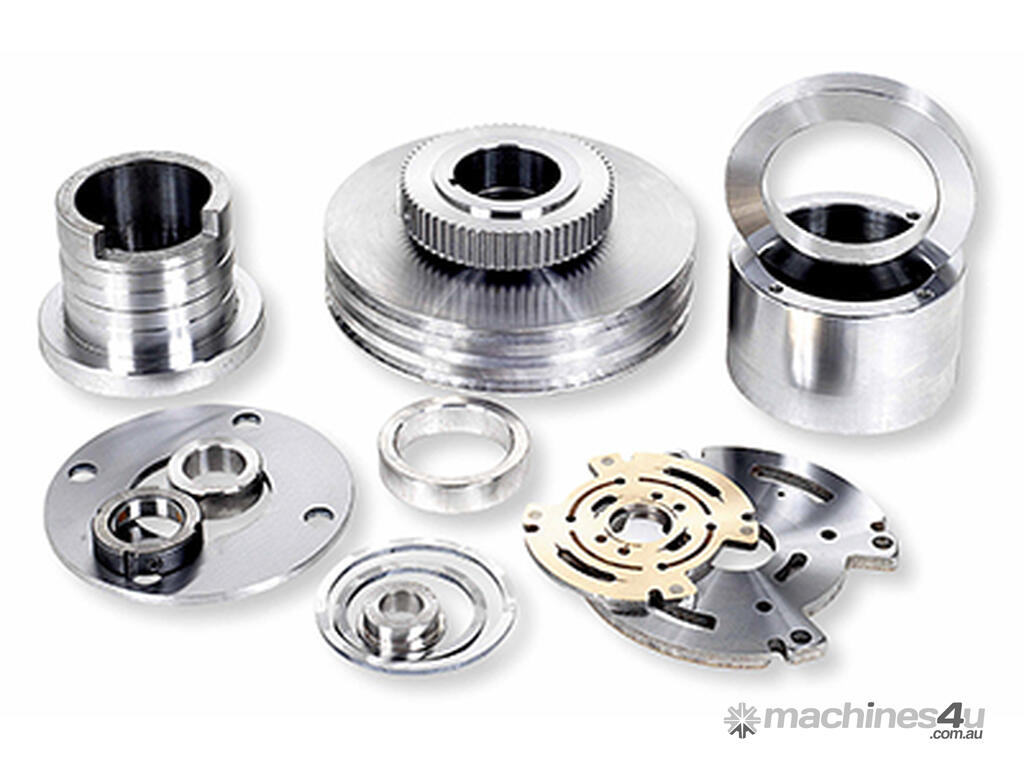

Surface finishing to mirror class.
Automatic Trim Compensation.
On line spindle vibration monitor.
Machine base fully supported design creating high rigidity structure.
Y, Z axis and rotary driven by AC servo motor.
DESCRIPTION UNIT HR-300AND
Rotary magnetic chuck dia. mm 300
Maxi grinding radius mm 175
Distance of table surface to spindle surface center mm 360
Rotary magnetic chuck speed r.p.m. 20-250
Rotary magnetic chuck horse power W 750
Spindle motor HP 3
Spindle speed (50/60Hz) r.p.m. 3000/3600
Auto downfeed horse power W Servo Motor 500
Vertical hand wheel downfeed per revolution MPG/ mm x1, x5, x10 /0.1, 0.5, 1
Vertical hand wheel downfeed per graduation MPG/mm x1, x5, x10 /0.001, 0.005, 0.01
Wheel size (dia x width x bore) mm 180x13x31.75
Net weight / gross weight (approx) kg 1600/1800
Packing size (LxWxH) mm 2050x1450x2020
