Downdraft Table 1,240 x 930 mm SDT-5

Name: Downdraft Table 1 240 x 930 mm SDT-5
Brand: SmartVent
SKU: 827647
Price: 15950 AUD
Availability: InStock

BAYSWATER, VIC - Delivers Nationally

Play Video

$15,950 AUD($17,545 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$55.56
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Down Draft Tables

Make:

SMARTVENT

Model:

SDT 5

No. in Stock

Year:

2022

Member Since: Aug 2022

Silver Member

Listings: 215

Electrical Phase:

Three Phase

Engine Power (hp):

Number of Filters:

Description

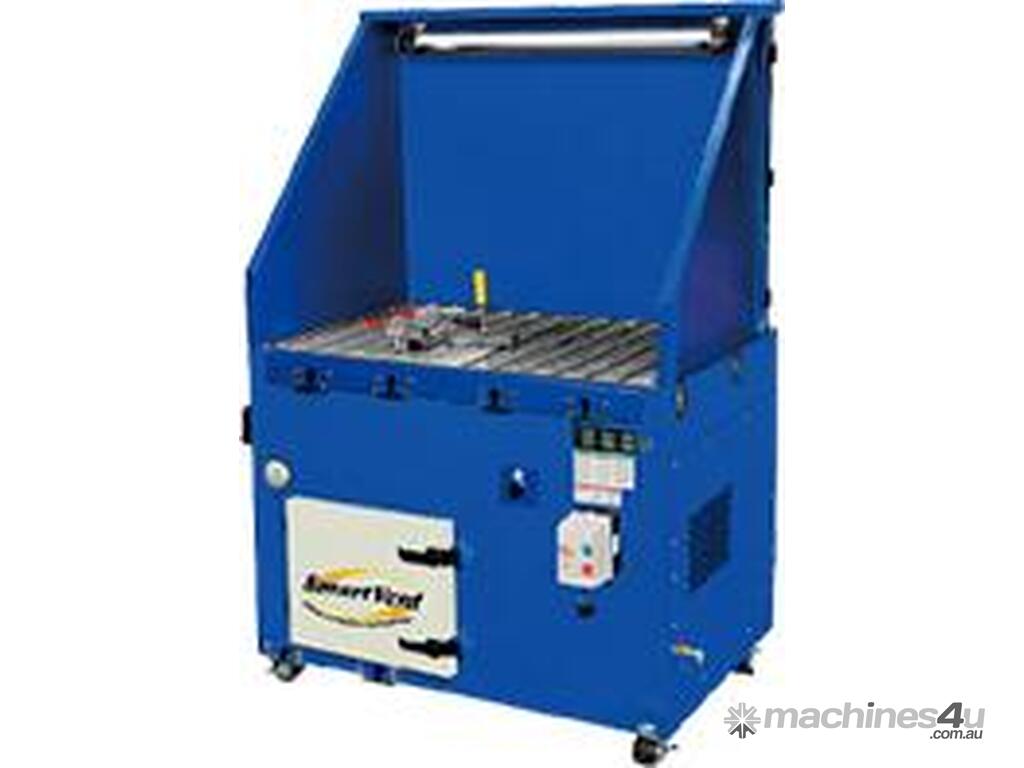

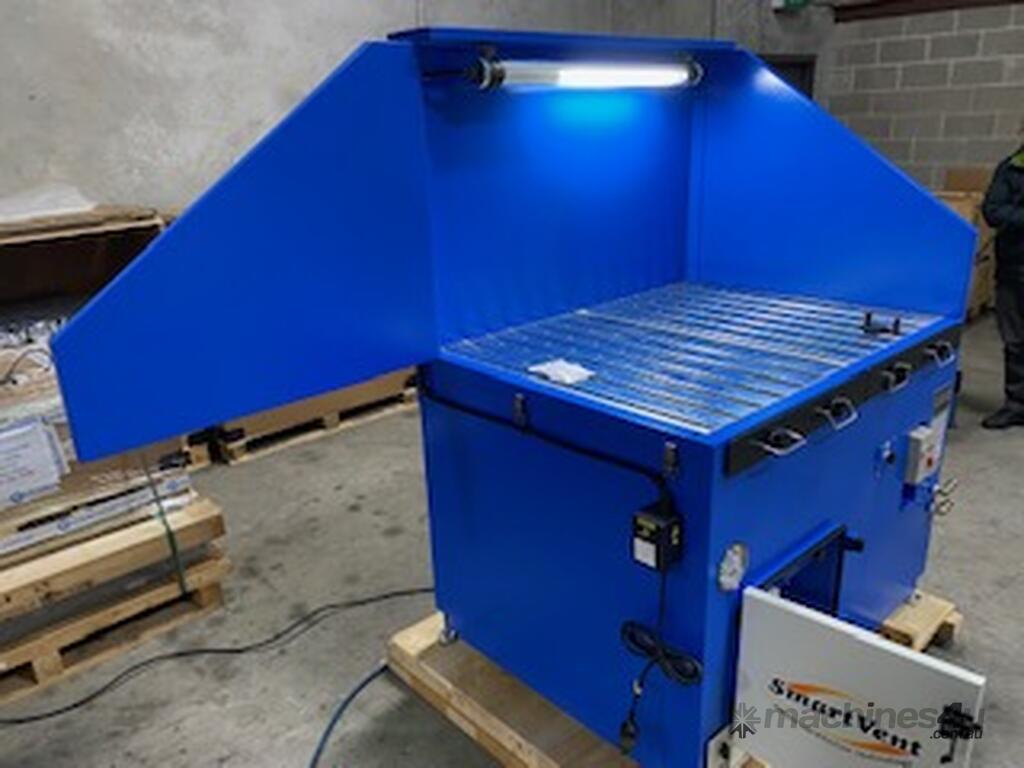

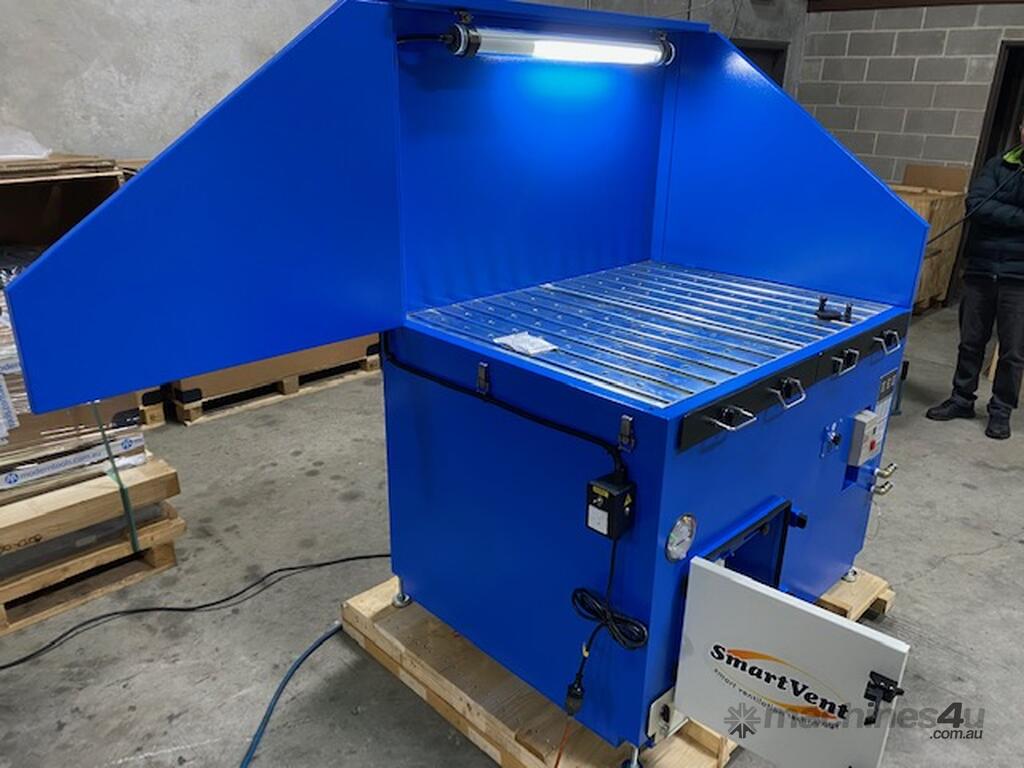

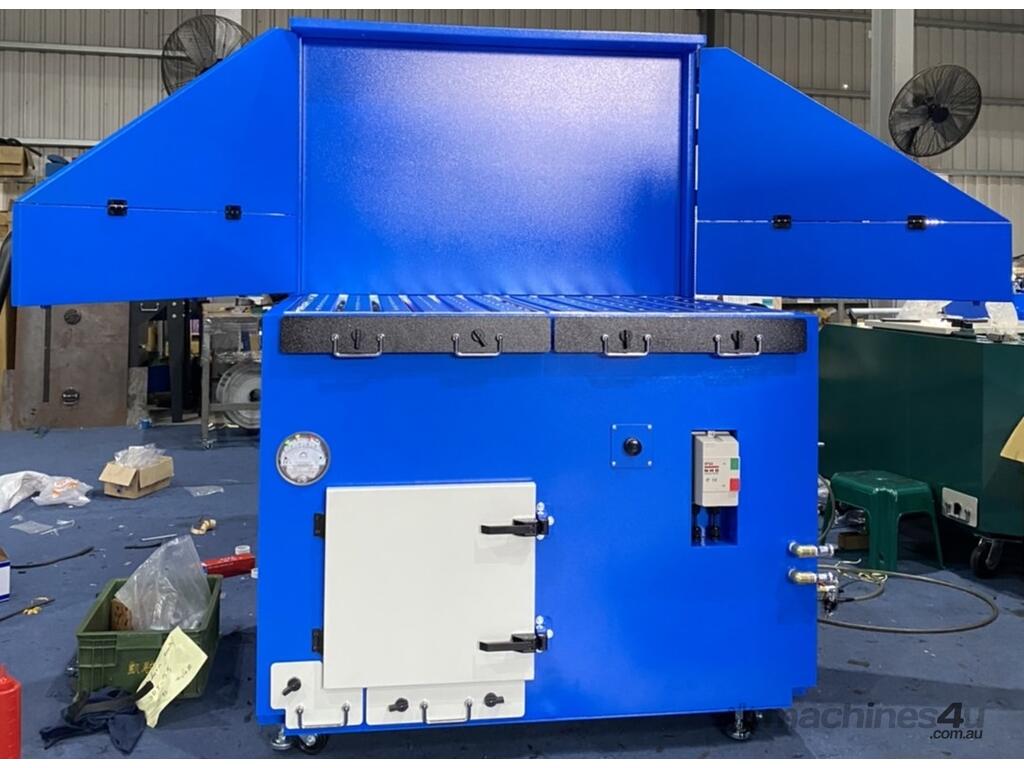

SmartVent Downdraft Tables
Manual Air Pulse Jet Cartridge Cleaning.
Extends filter life

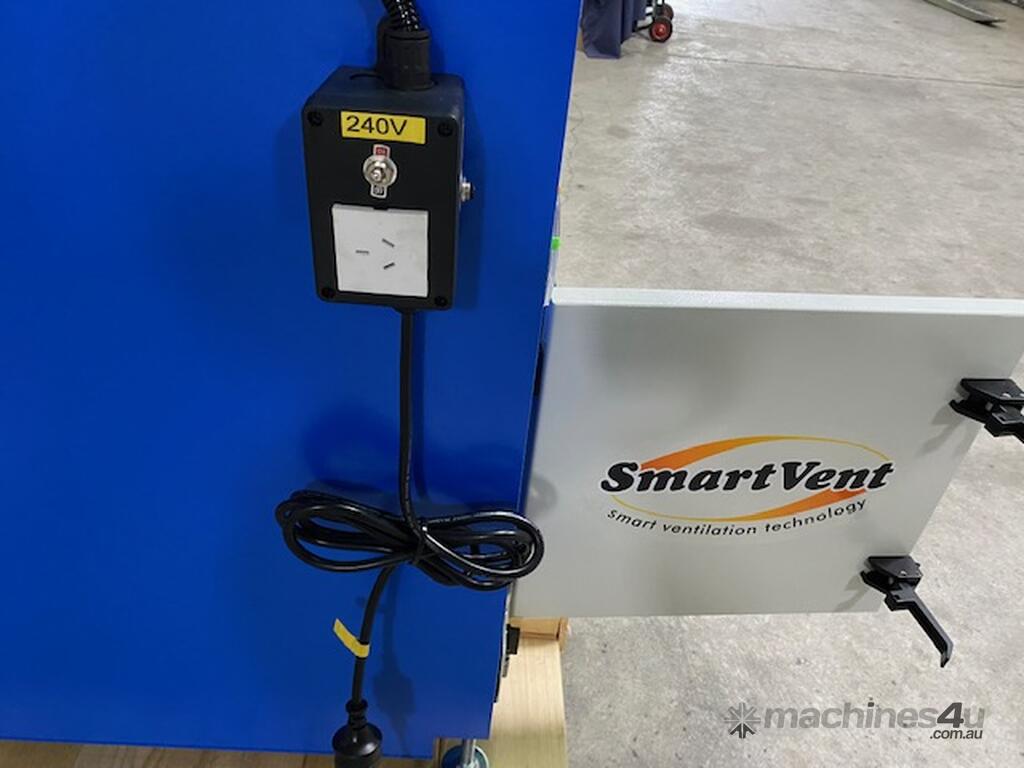

240 volt power point for grinding tools

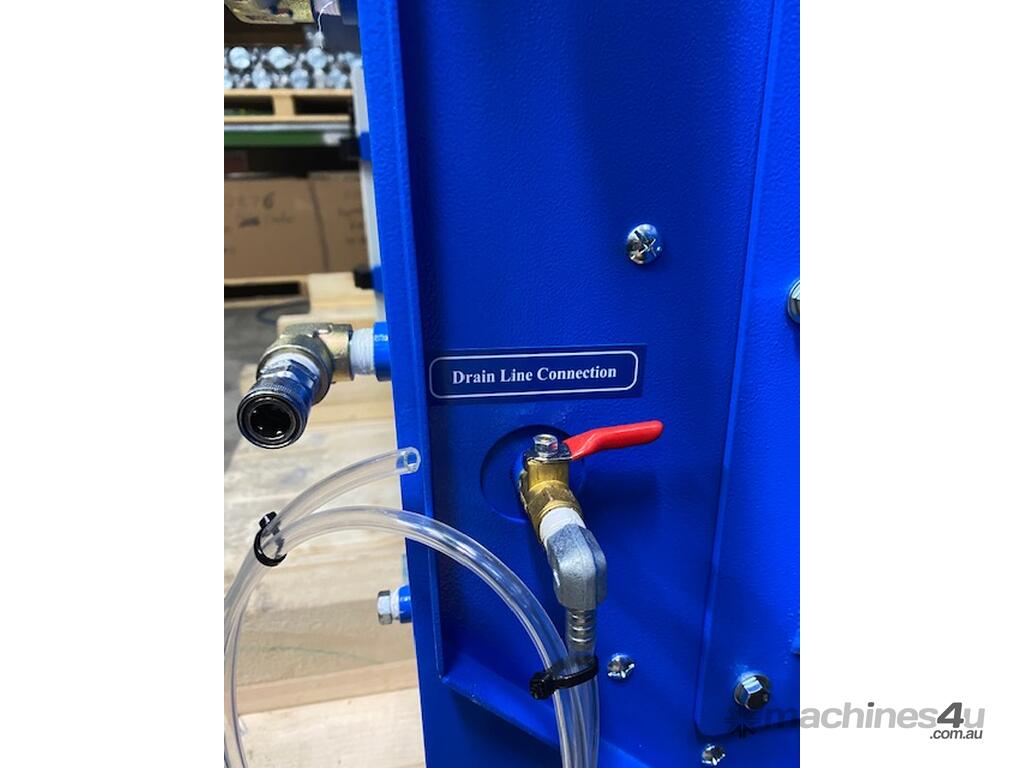

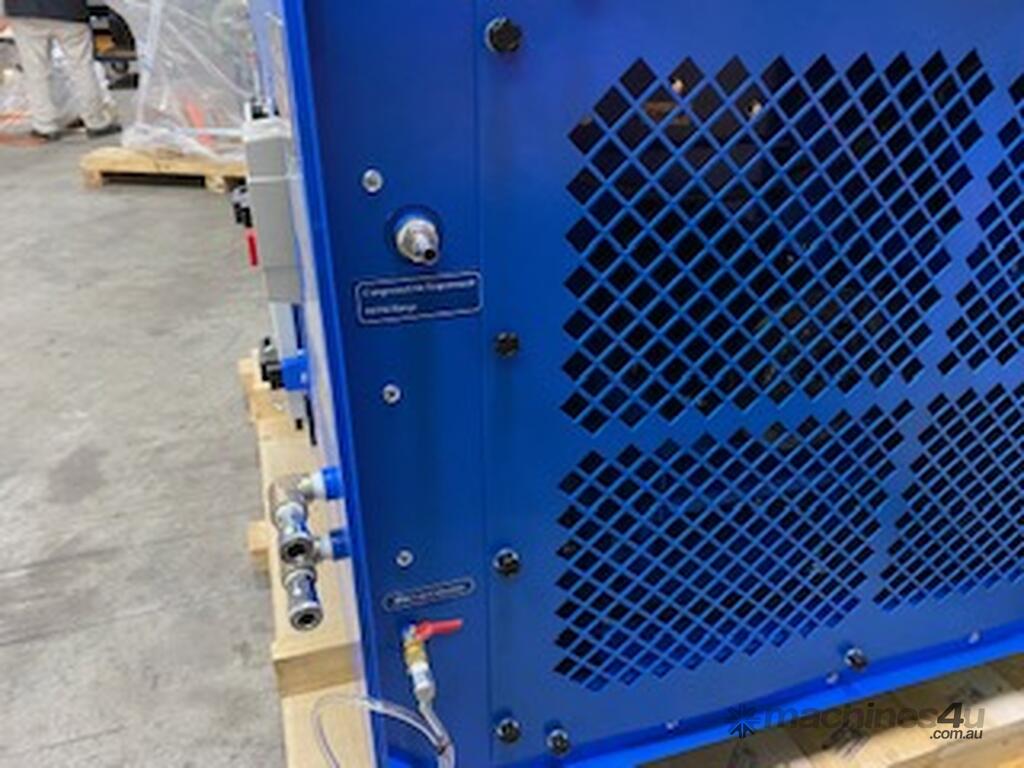

Compressed air take off points for air tools
Cartridge: 99% of 1 Micron filter efficiency
Heavy gauge powder coated steel

Downdraft table

• Motor = 5 HP
• CFM = 2,340
• Cubic metre per hour = 3,973
• No of cartridges = 3 ps
• Machine size = 1,470 x 1,185 x 1,790 mm
• Net Weight 560 kg Gross Weight 615 kg
• Noise level = 75 Decibel
• Worktable size = 1,240 x 930 mm
• Maximum Load capacity = 800kgs
Appliance
1. Welding Fume Collection
2. Grinding Dust Collection
3. Dry Dust Collection

Option
1. HEPA Module
2. Backdraft Module
3. Caster wheels
Product Features
• 2-Stage Filtrations

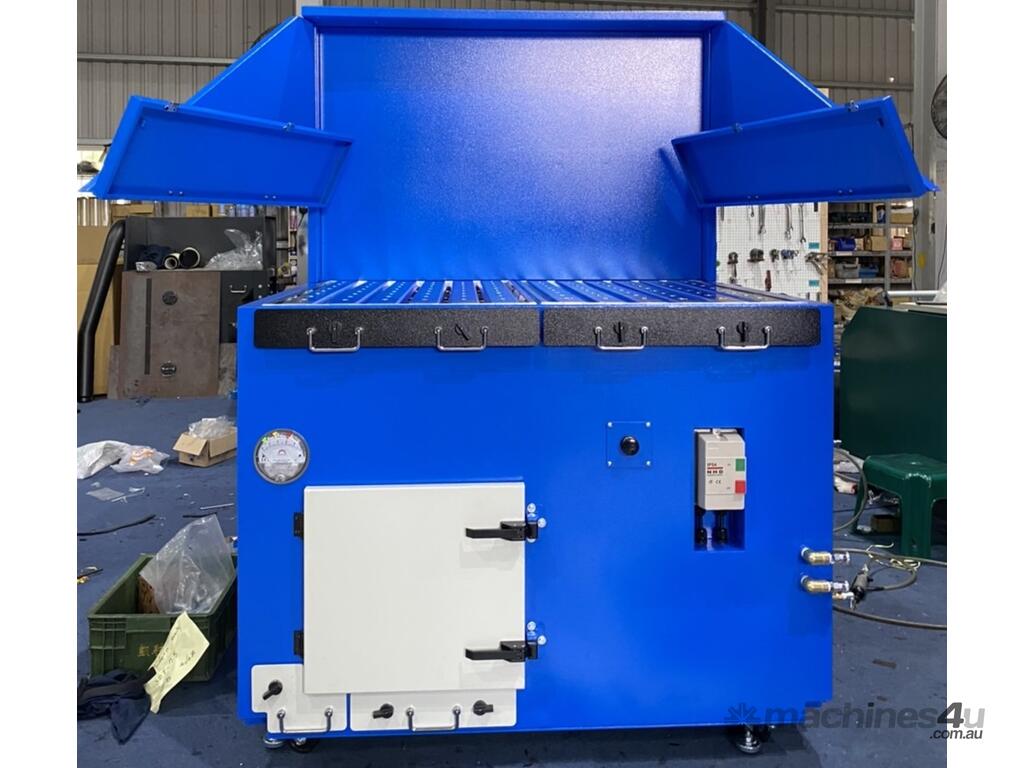

• Side Panels:
o Close for keeping fume & dust inside;
o Open for big workpiece
• Manual air pulse jet cartridge cleaning
Fixture Hole Ø16mm Desktop

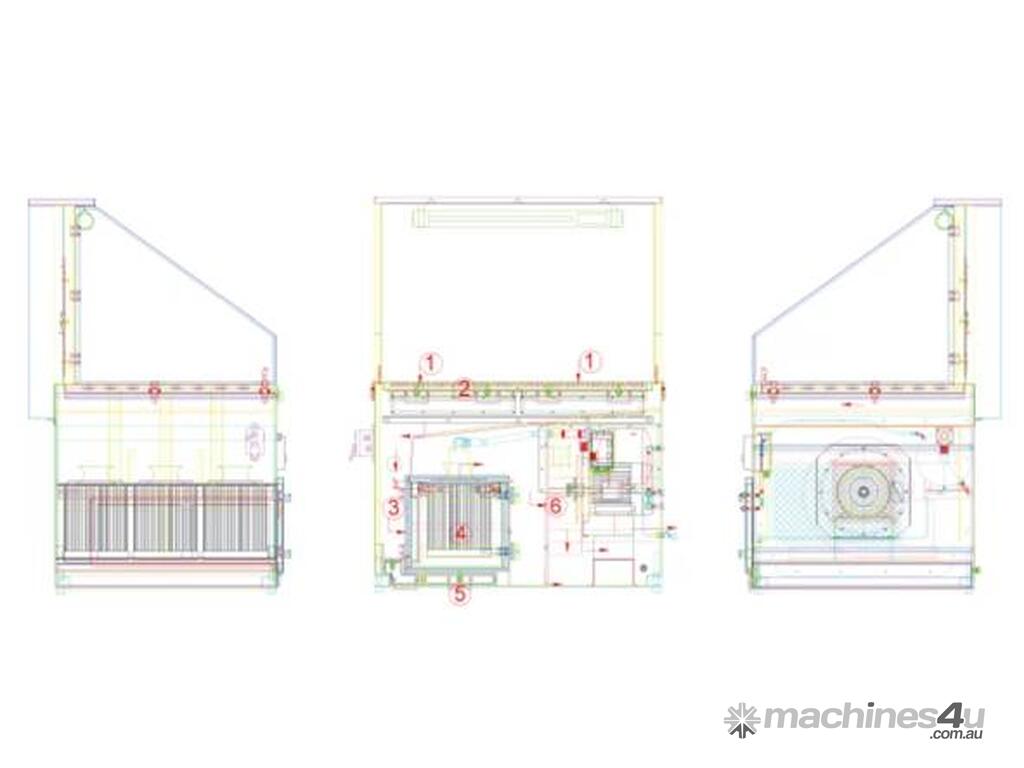

How it works
STEP 1

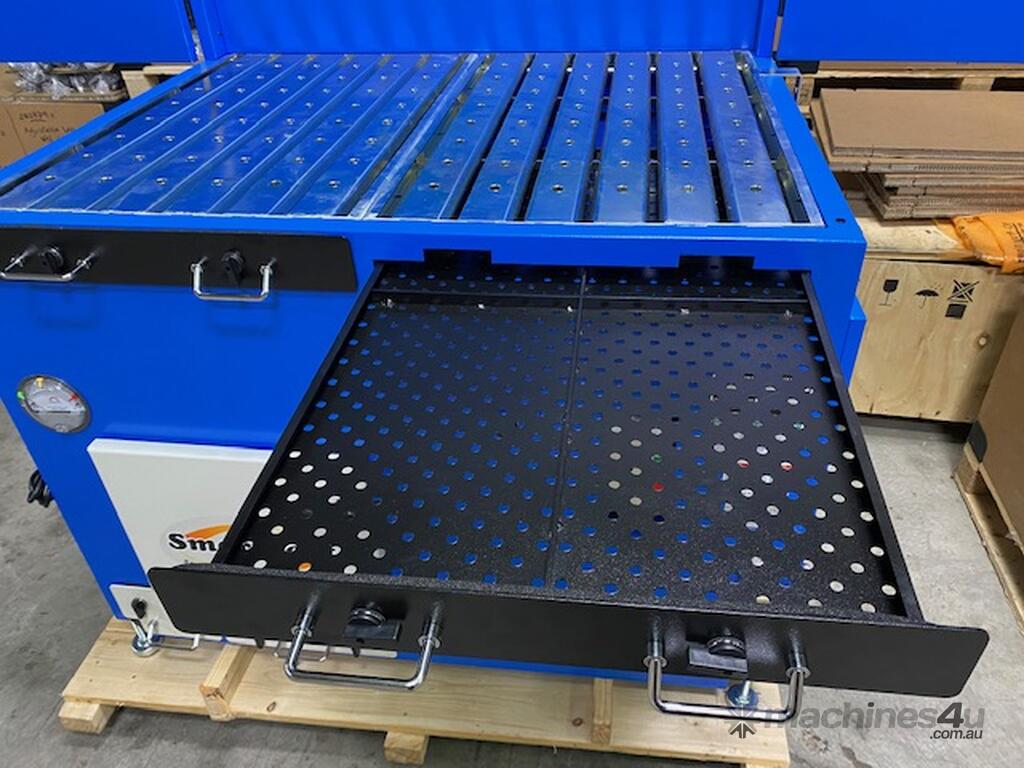

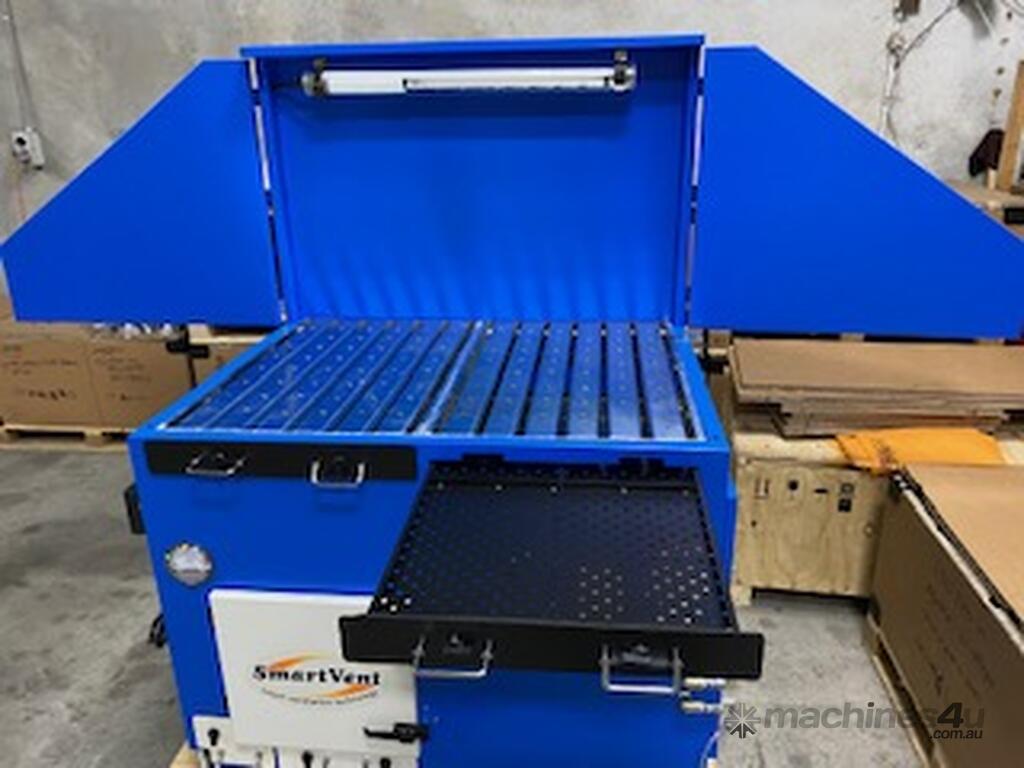

Air downward-drafted via Table Surface Hole Inlet 1, drawer 2below for filtering large welding wastes.

STEP 2
Extracted air being passed through Aluminium Mesh 3 for trapping fire sparks.

STEP 3

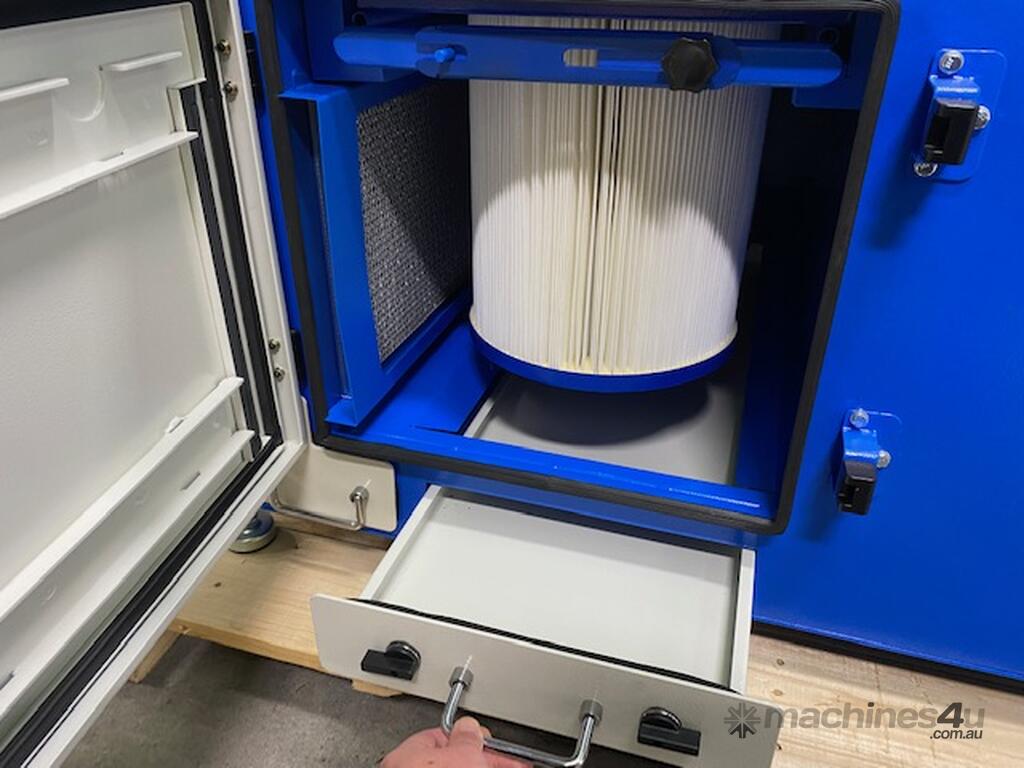

Being conducted into Cartridge Filters 4 for screening fine dusts.

STEP 4

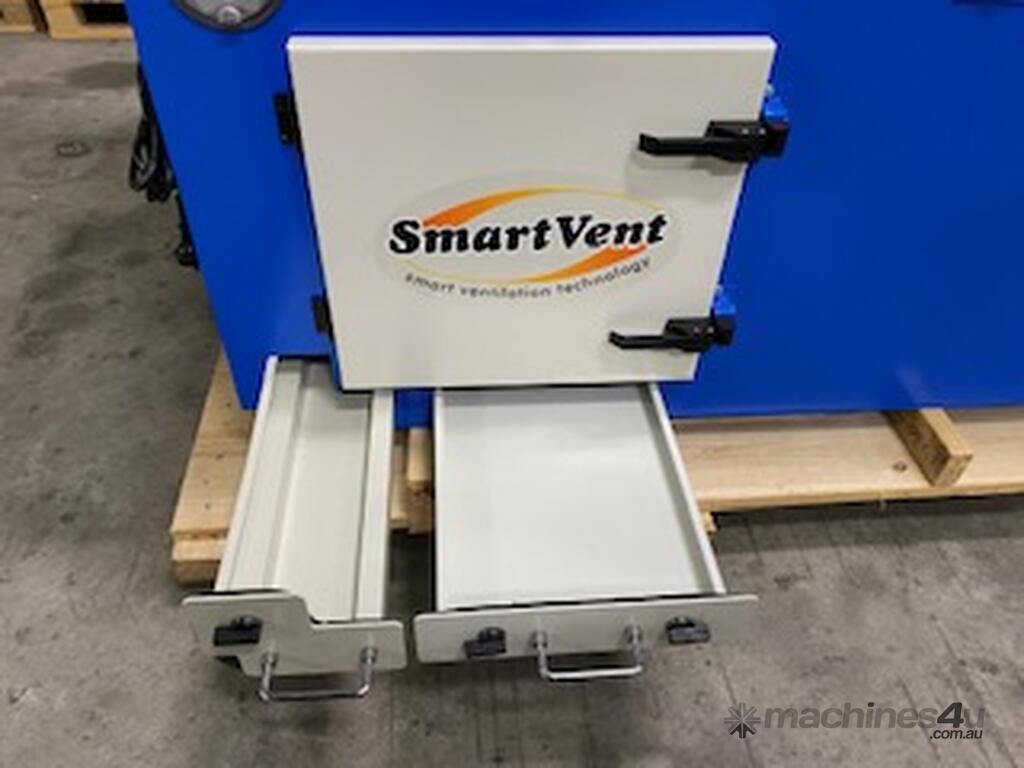

Larger particles being falling down onto the bottom dust collecting drawer 5

STEP 5
Clean air exhausted out by Blower 6 via outlet.

Model No. SDT-5
Motor 5 HP
Airflow 2340 ft3/min
3973.32 m3/hr
Table Size (mm) 1240 x 930
G.W. (kg) 615
