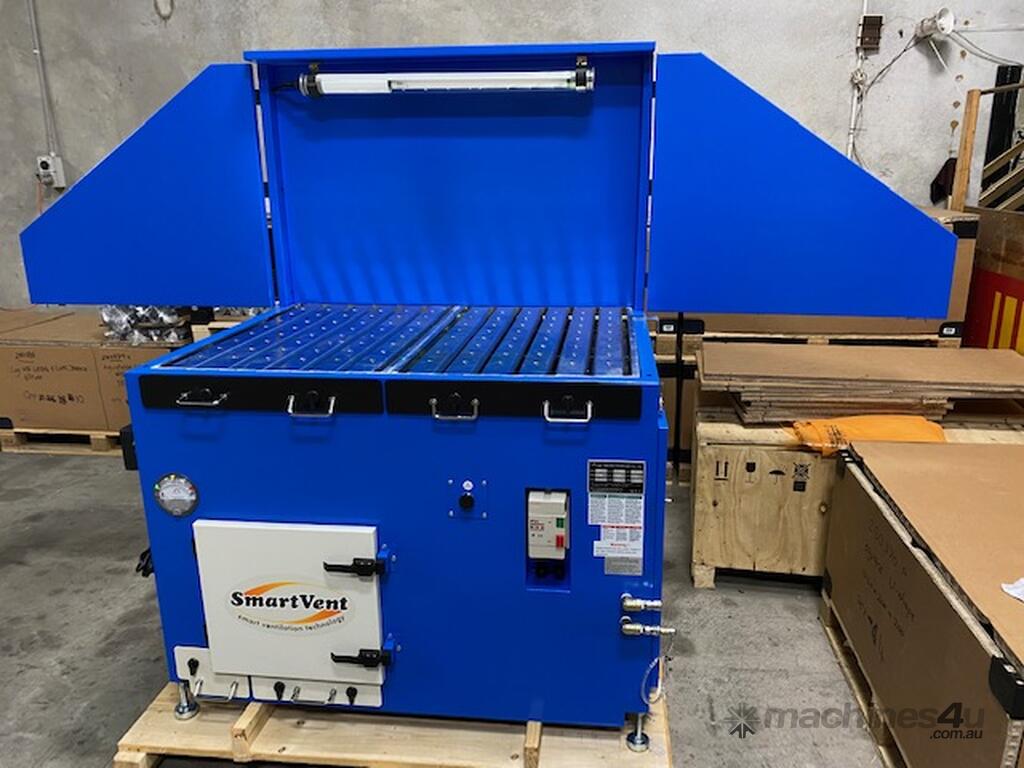

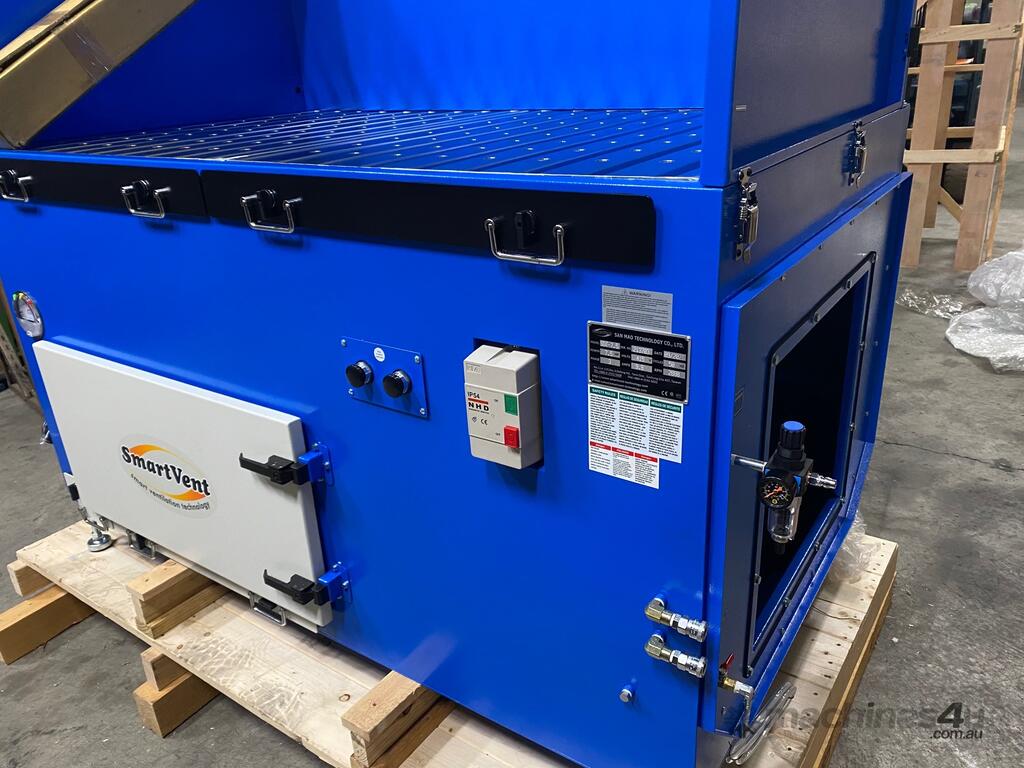

Downdraft Table 1,670 x 930mm SDT-7.5

Downdraft table
• Motor = 7.5 HP
• CFM = 3,000
• Cubic metre per hour = 5,094
• No of cartridges = 6 ps
• Machine size = 1,876 x 1,185 x 1,790 mm
• Net Weight 614 kg Gross Weight 678 kg
• Noise level = 75 Decibel (with silencer)
• Worktable size = 1,670 x 930 mm
• Maximum Load capacity = 920kgs

Appliance
1. Welding Fume Collection
2. Grinding Dust Collection
3. Dry Dust Collection

Options
1. HEPA Module
2. Backdraft Module
3. Stainless steel bench top
4. Gasket for Stainless steel bench top
5. Caster wheels

Aluminium Filter
Pleated Cartridge Filter (3rd stage) (Req)
HEPA Filter Cartridge (Req 2 pcs )

Product Features
• 2-Stage Filtrations
• Side Panels:
o Close for keeping fume & dust inside;
o Open for big workpiece

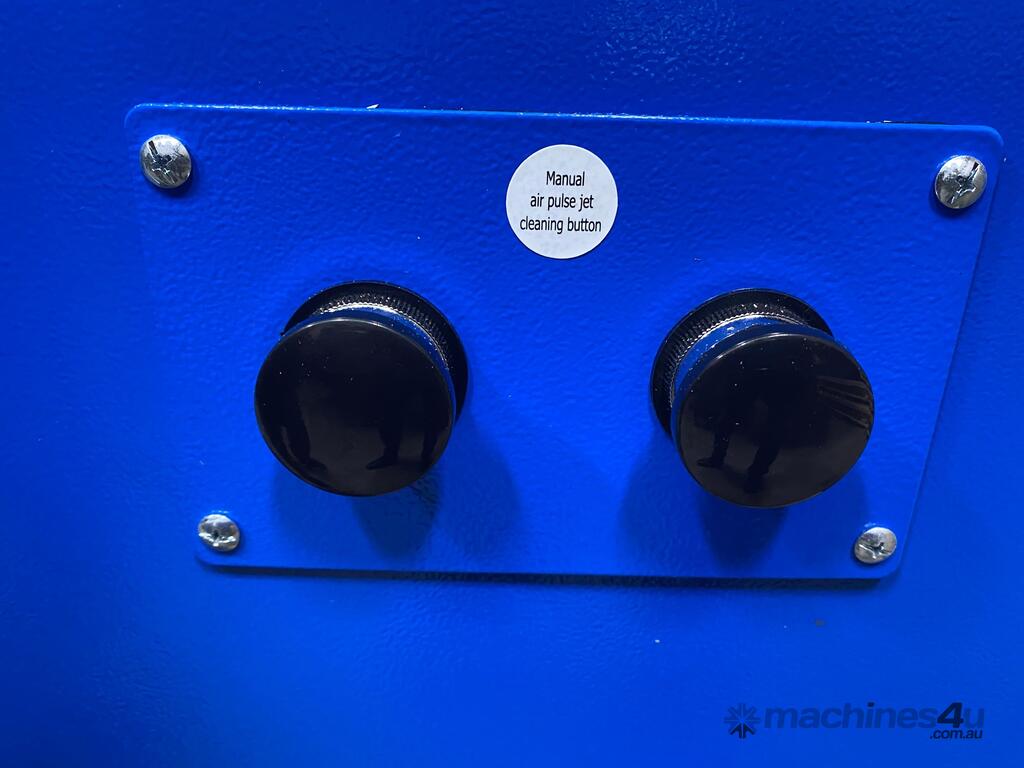

• Manual air pulse jet cartridge cleaning

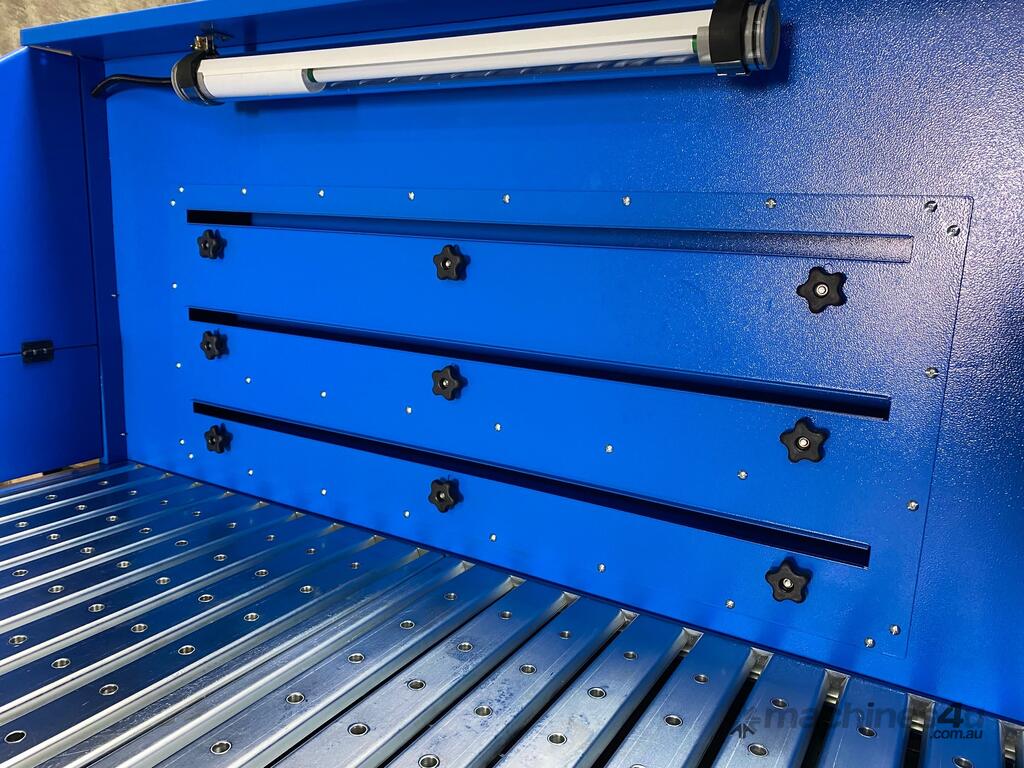

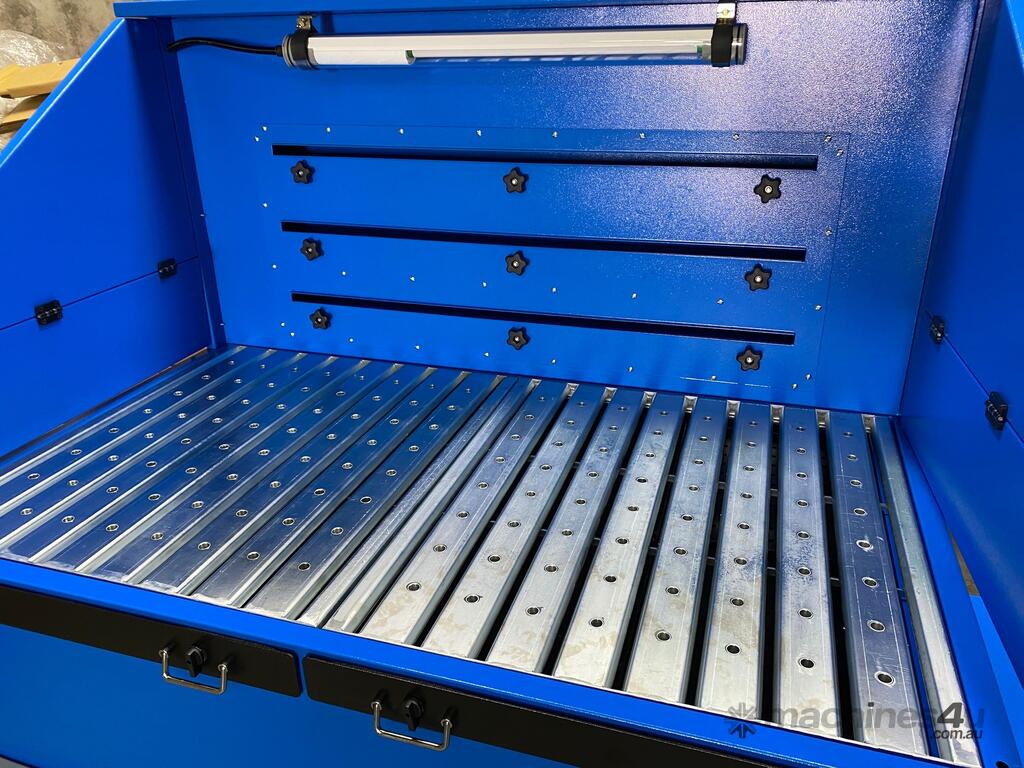

* Fixture Hole Ø16mm Desktop

Filter Performance metrics
HEPA: 99.97% at 0.3um

* Teflon cartridge filter: 99.18~100% at 0.3 ~ 7.0 um

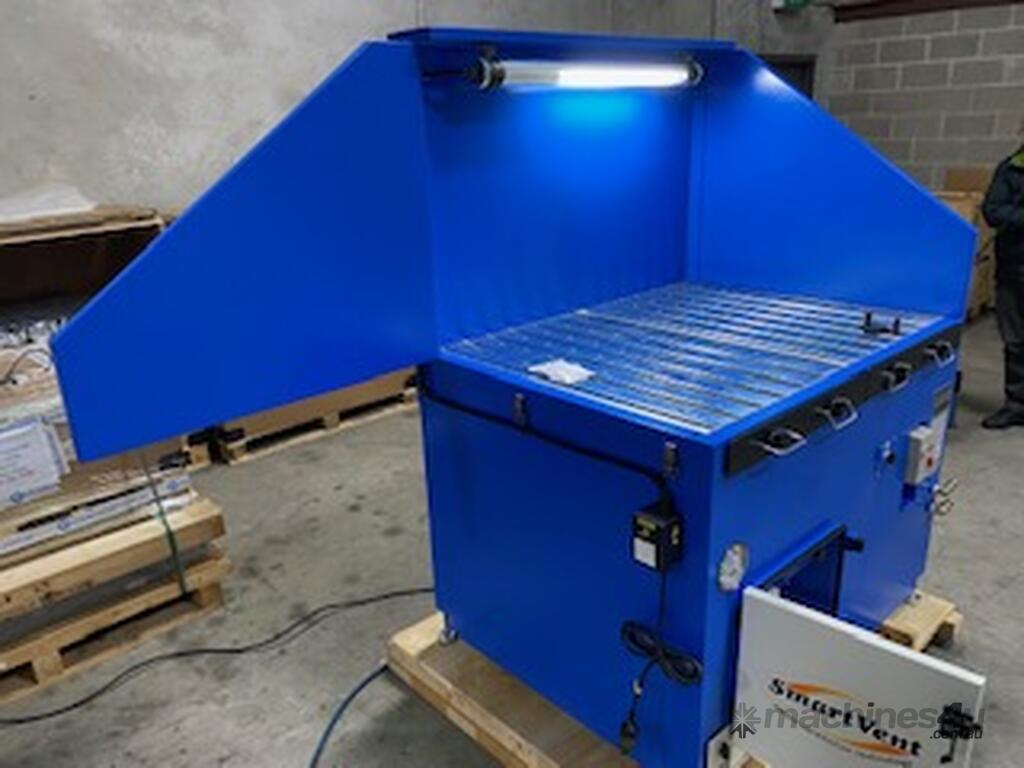

* Side panels open up to allow for larger work pieces to be used on table

* Manual Air Pulse Jet Cartridge Cleaning.

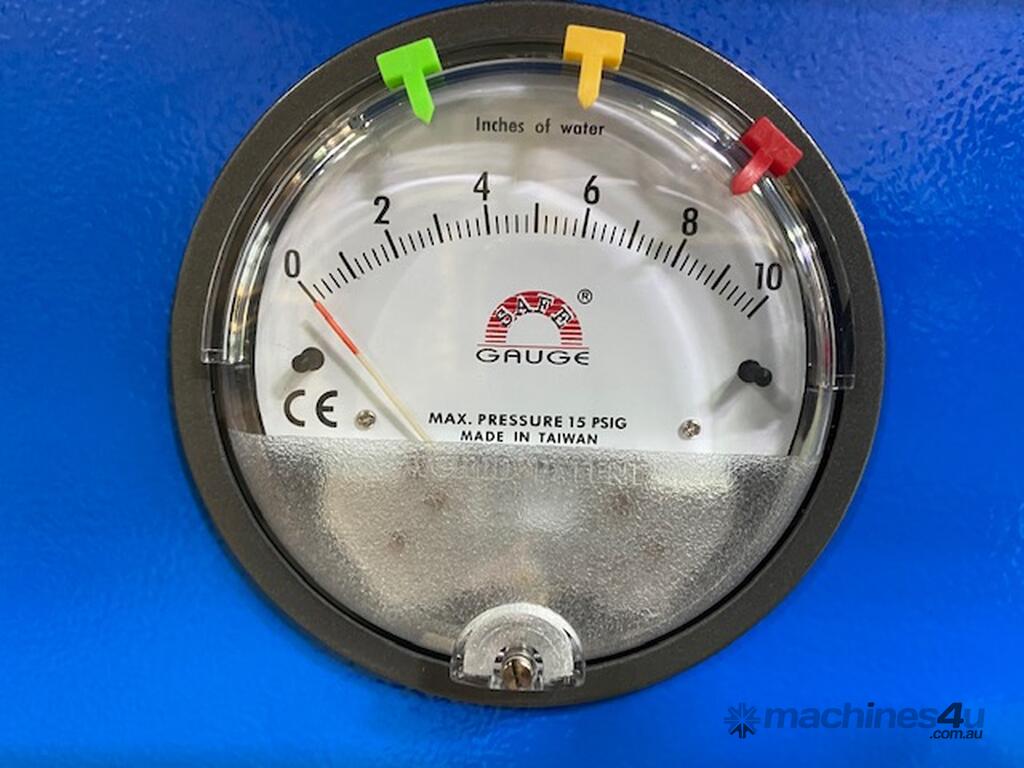

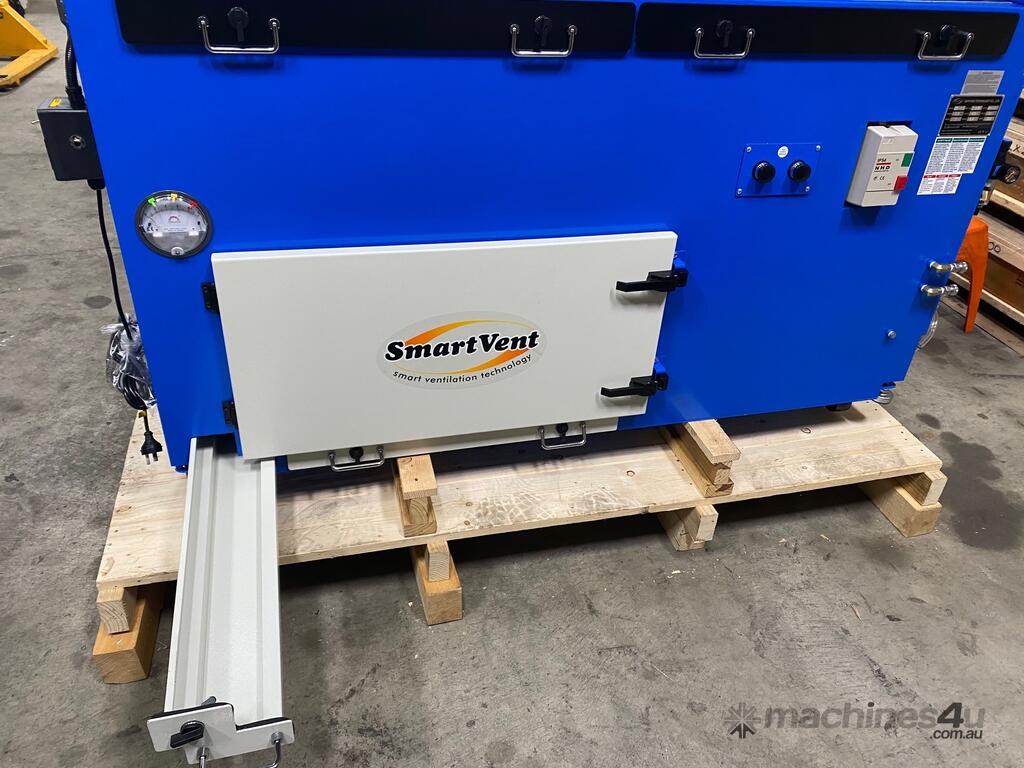

* Front gauge measures condition of pleated filters

* 240 volt power point to connect power tool to table

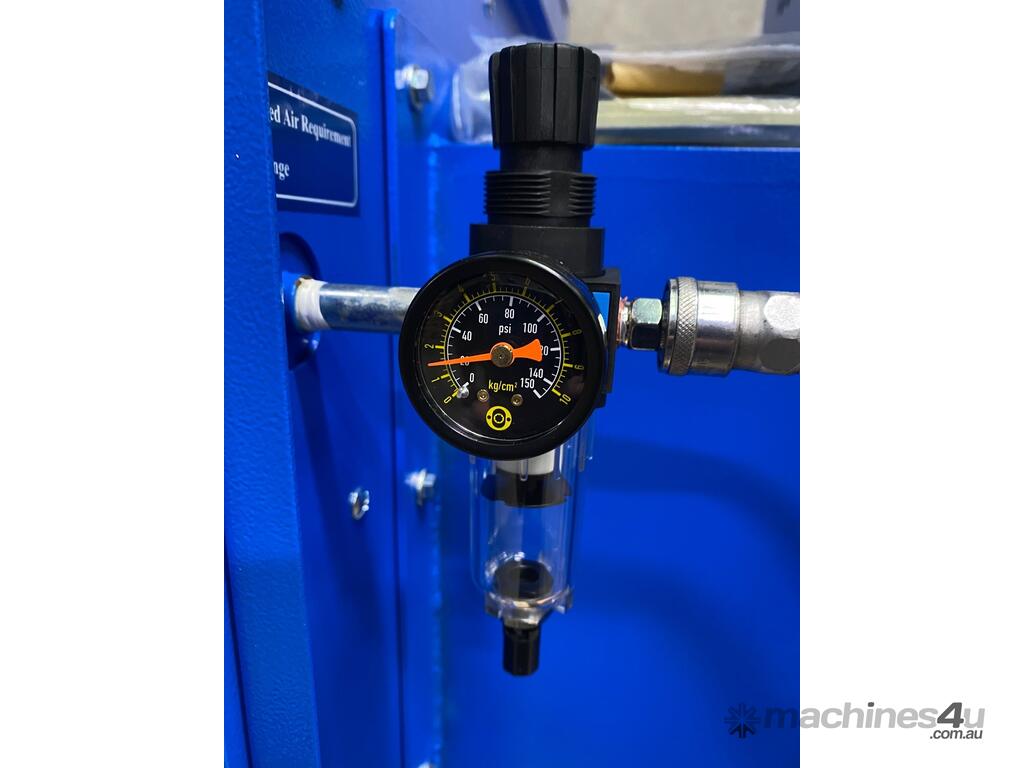

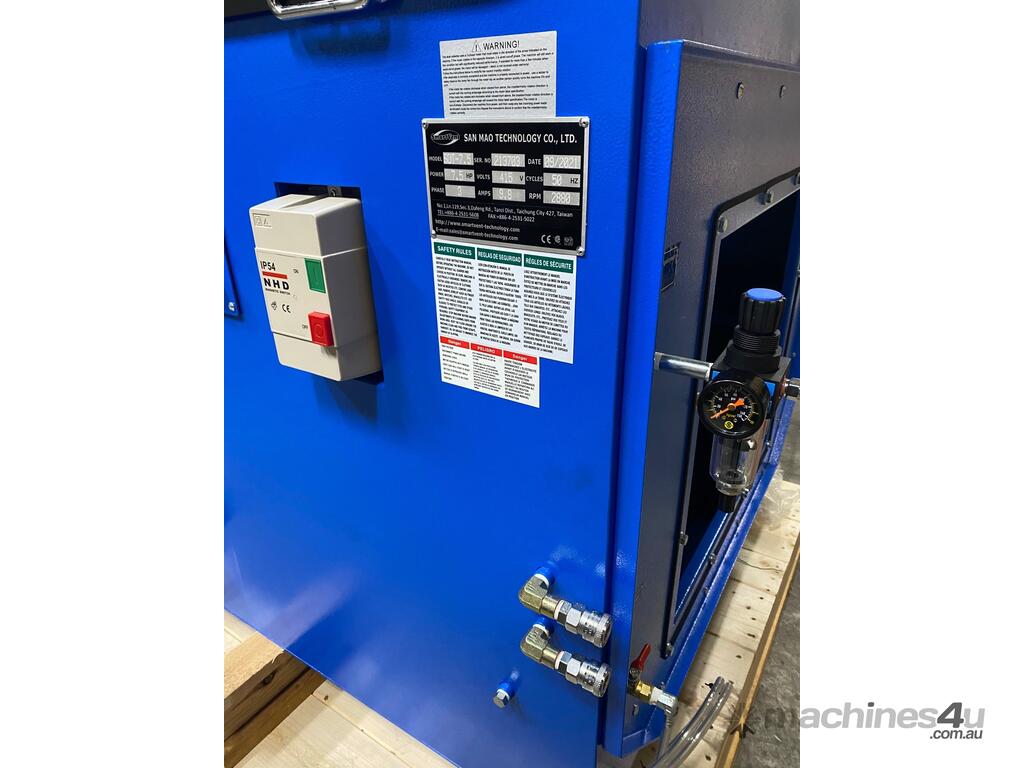

* 2 x compressed air outlets on machine to connect air power tools for working on table

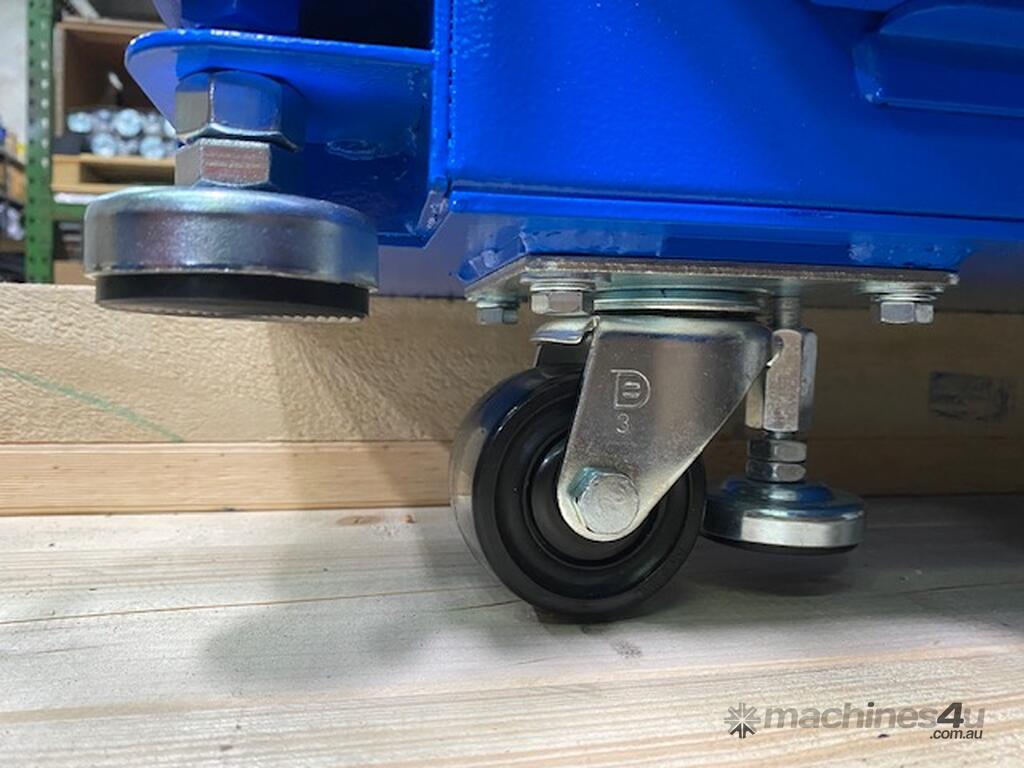

* Caster wheels with locking brake and locking legs

Cartridge: 99% of 1 Micron filter efficiency.
Heavy gauge powder coated steel.



How it works
STEP 1

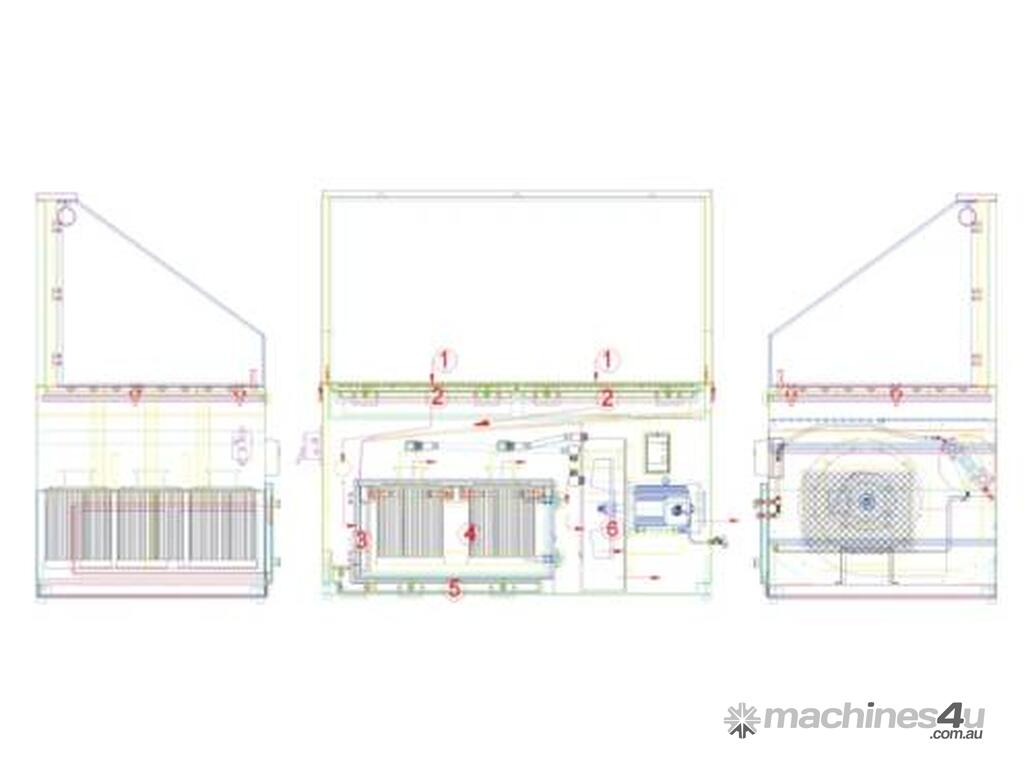

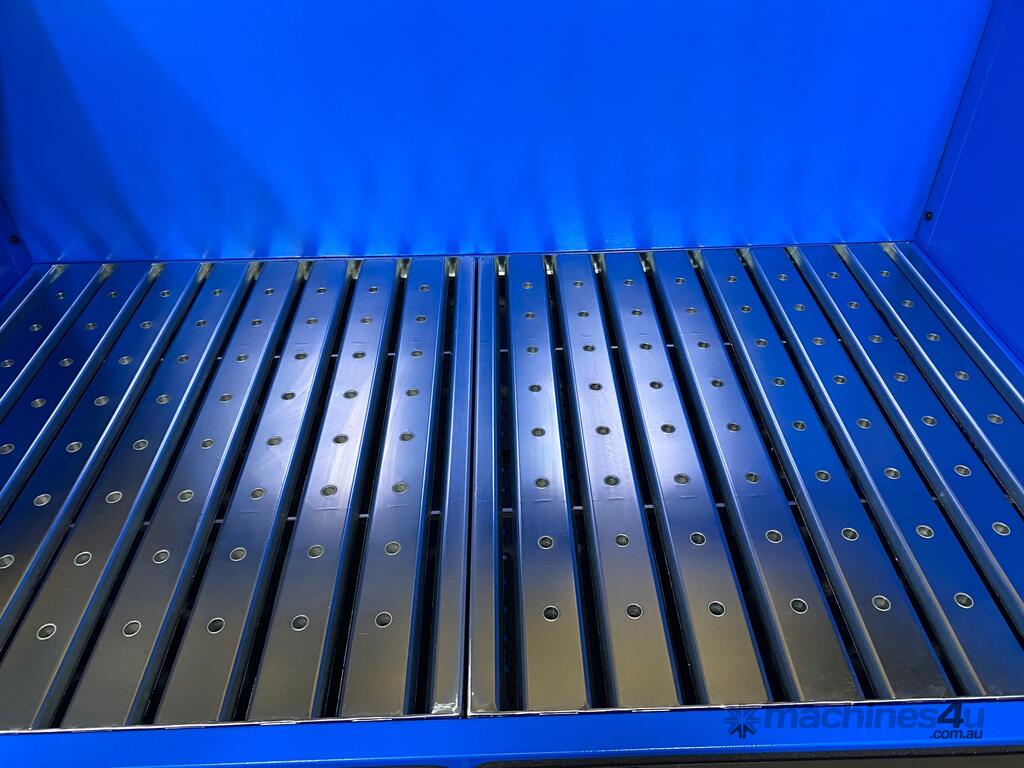

Air downward-drafted via Table Surface Hole Inlet 1, drawer 2below for filtering large welding wastes.

STEP 2
Extracted air being passed through Aluminium Mesh 3 for trapping fire sparks.

STEP 3

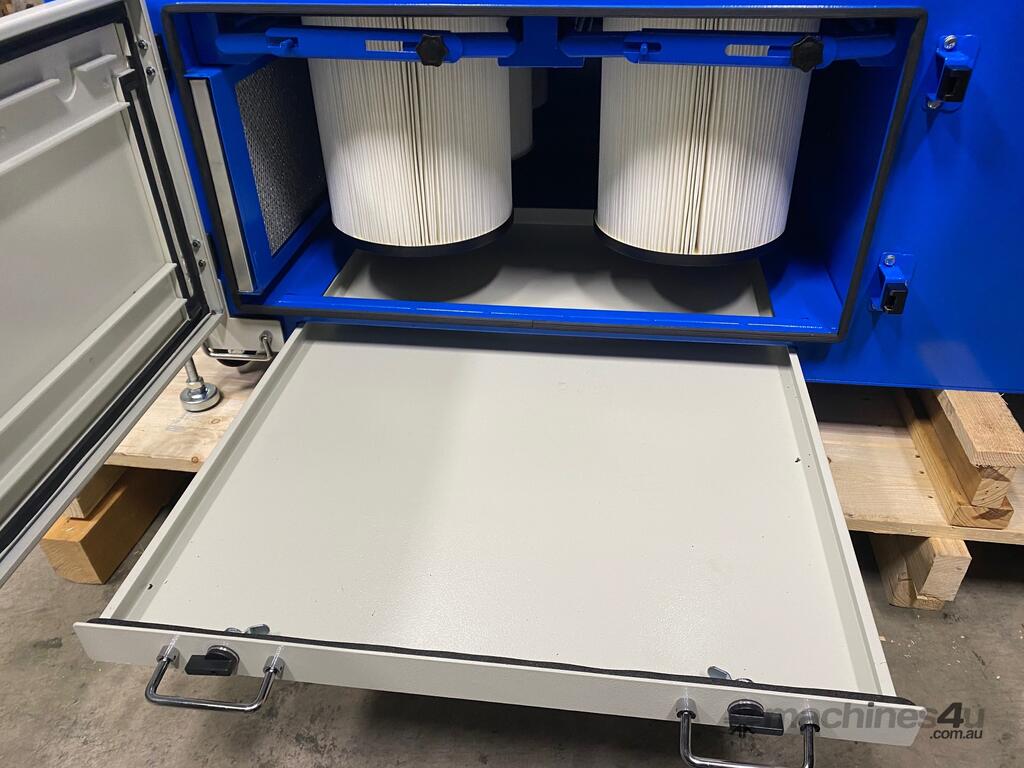

Being conducted into Cartridge Filters 4 for screening fine dusts.

STEP 4
Larger particles being falling down onto the bottom dust collecting drawer 5

STEP 5

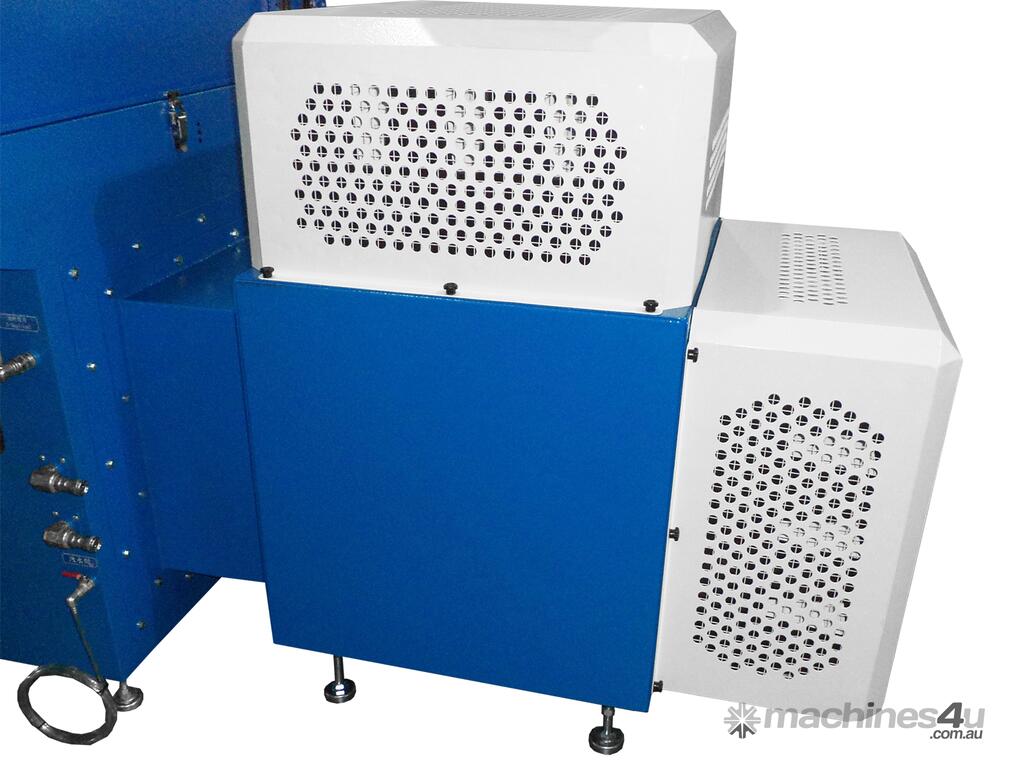

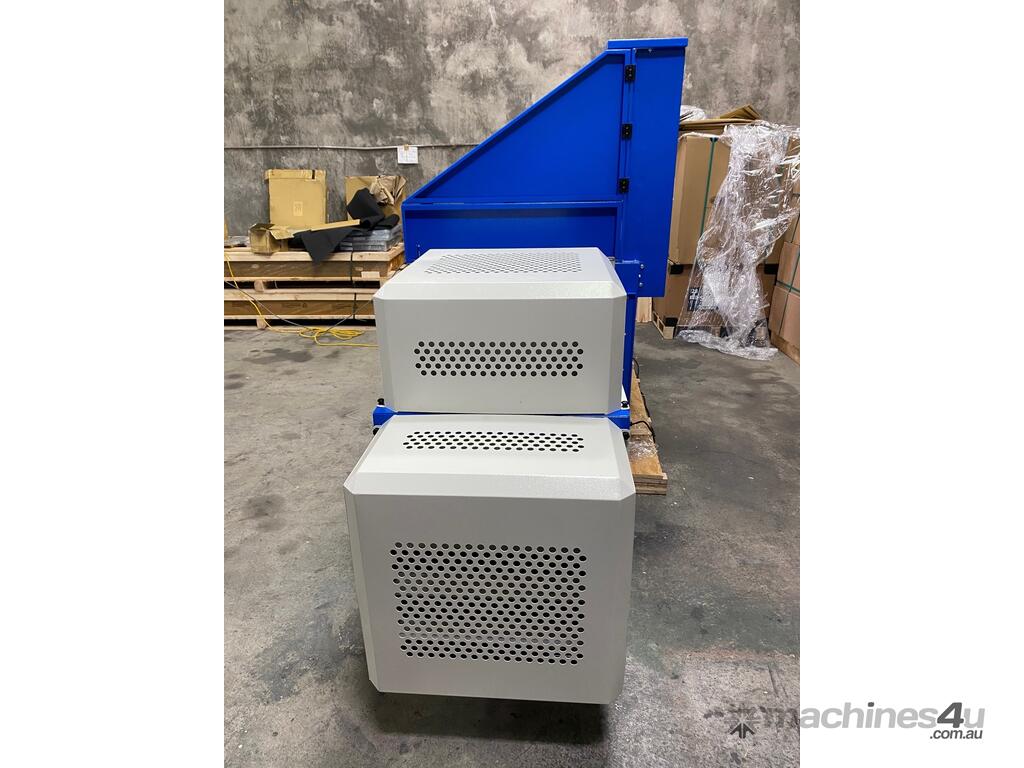

Clean air exhausted out by Blower 6via outlet.

3-Stage Filtrations
How it works
STEP 1
Pre-& After Dust Drawer Trapping large welding waste to protect the filter media.

STEP 2
AluminiumMesh (2) Capturing sparks and steel chips.

STEP 3
Cartridge Filter (6 Being coated with TEFLON, featuring 99% of 1-micron filter efficiency.
