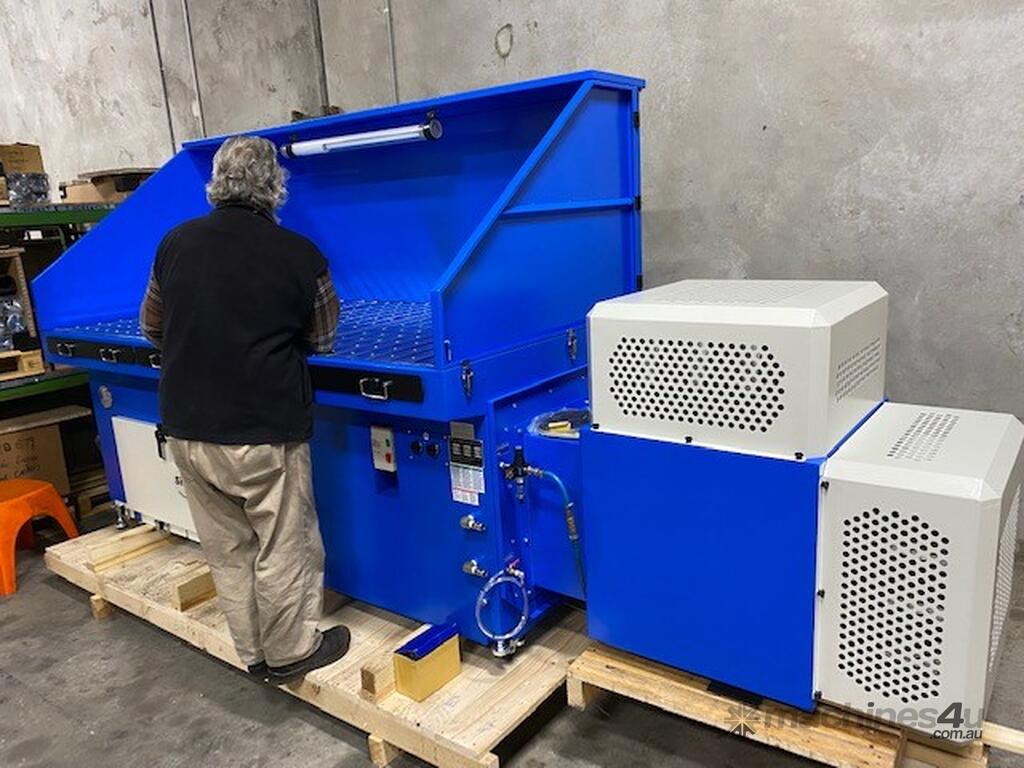

Downdraft Table 2,350x1,130mm SDT-10

SmartVent Downdraft Tables
Welding Fume Collection
Grinding Dust Collection
Dry Dust Collection

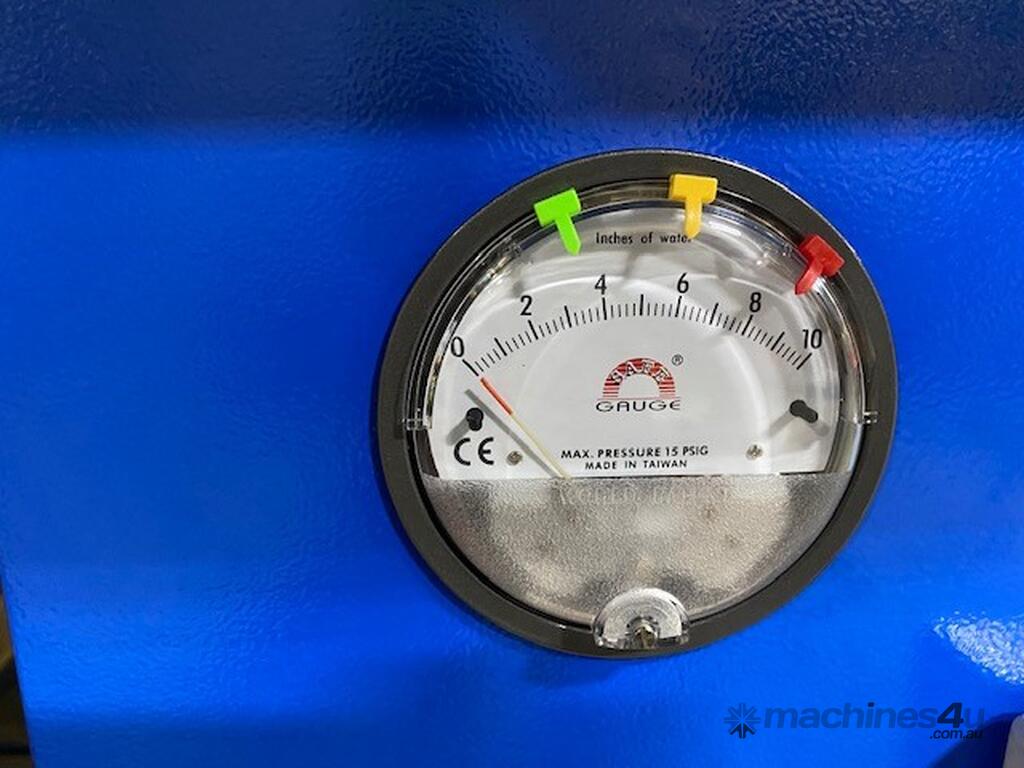

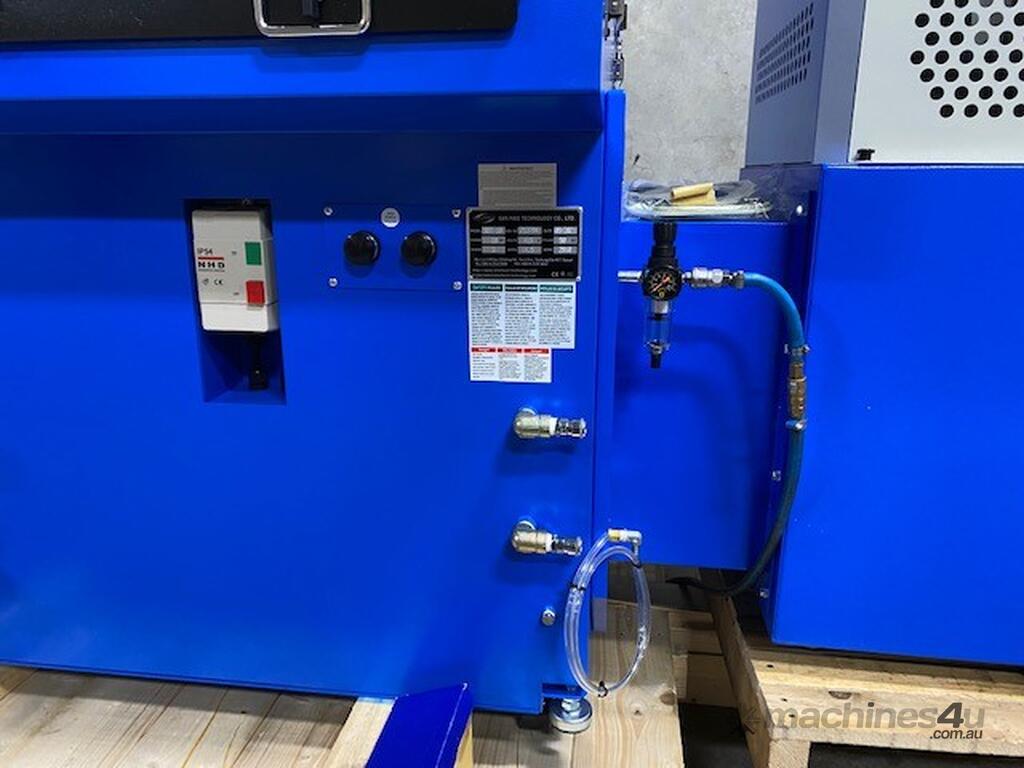

Filter quality gauge on front of machine
Safe Manual cleaning function to extend filter life

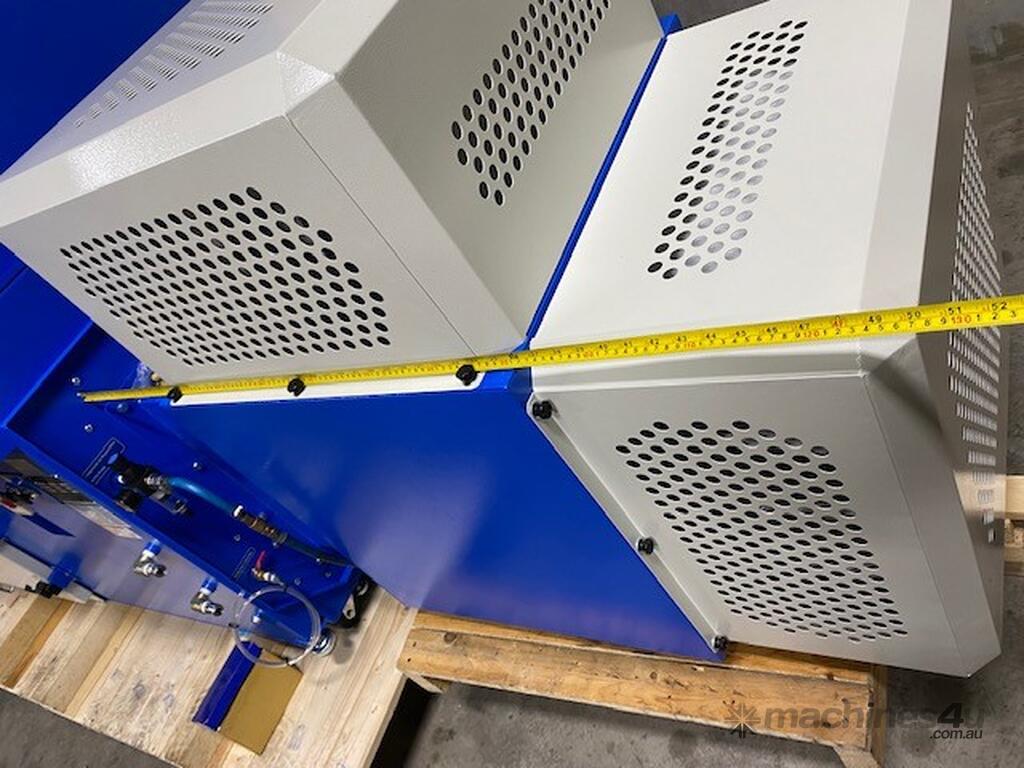

Side panels open to enable larger work pieces to fit on table when required

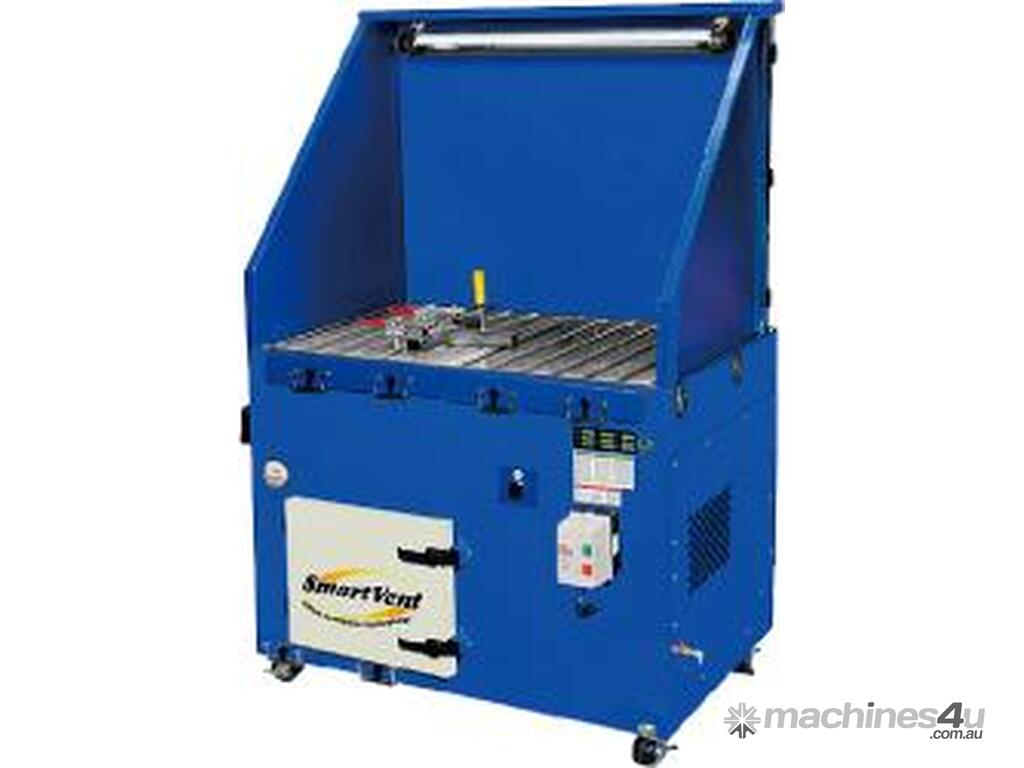

Downdraft table

• Motor = 10 HP
• CFM = 4,000
• Cubic metre per hour = 6,792

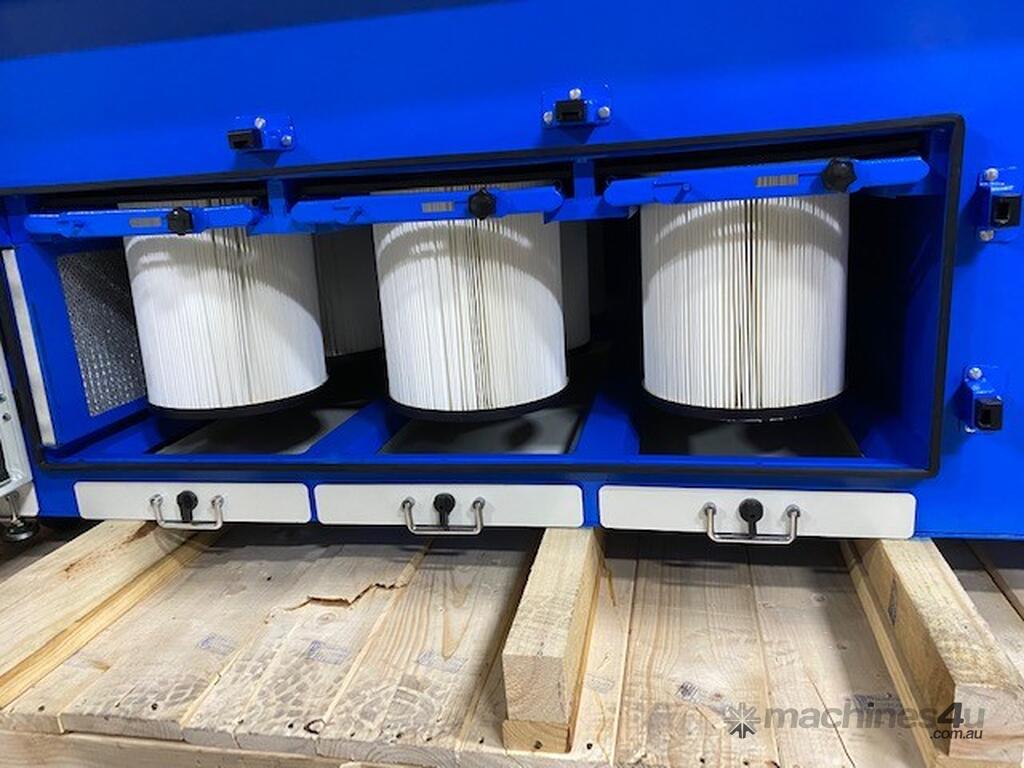

• No of cartridges = 9 ps
• Machine size = 2,440 x 1,220 x 1,770 mm

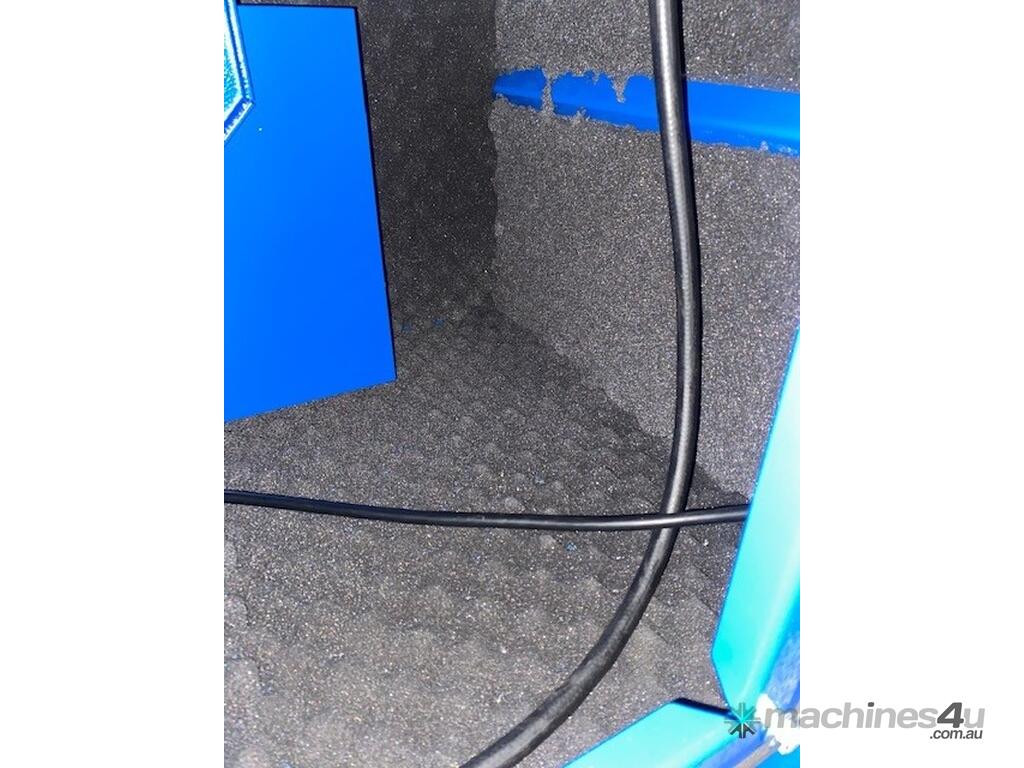

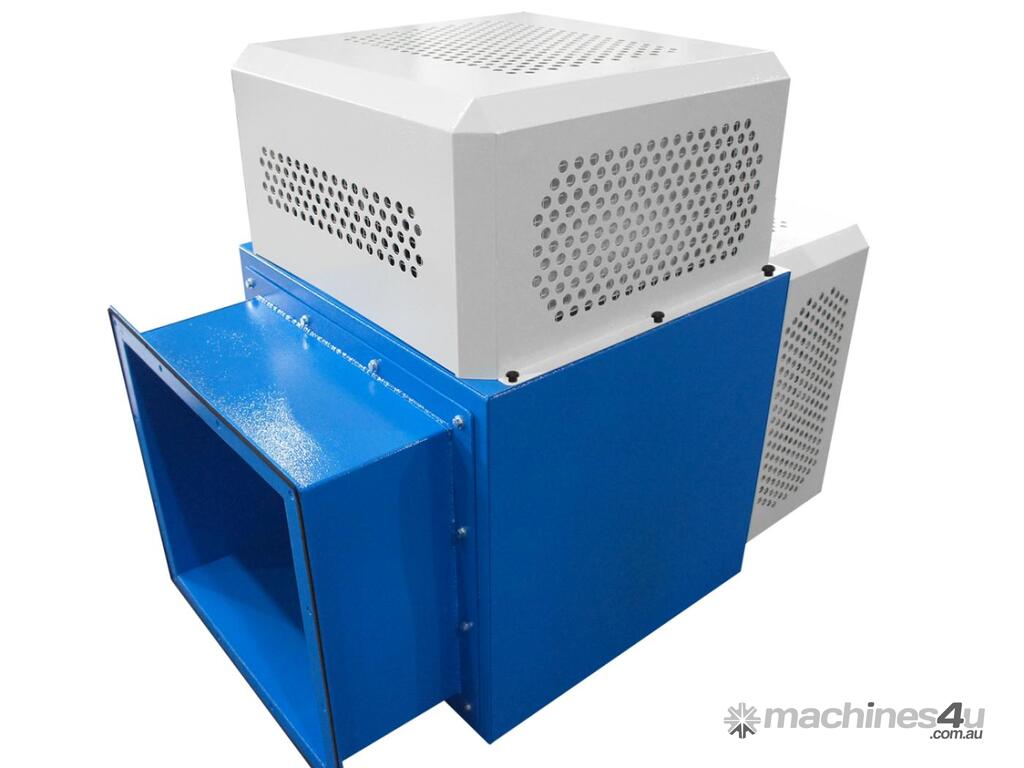

• Noise level = 77 Decibel (with silencer)
• Worktable size = 2,350 x 1,130 mm
• Maximum Load capacity = 1,150kgs
Appliance
1. Welding Fume Collection
2. Grinding Dust Collection
3. Dry Dust Collection

Option
1. HEPA Module
2. Backdraft Module
(Filters are same as SDT -7.5 req 9 x cartridges)

(Caster wheels Option on SDT 10 $214 + GST)


Product Features
• 2-Stage Filtrations
• Side Panels:
o Close for keeping fume & dust inside;
o Open for big workpiece
• Manual air pulse jet cartridge cleaning
Fixture Hole Ø16mm Desktop

Filtration Stage

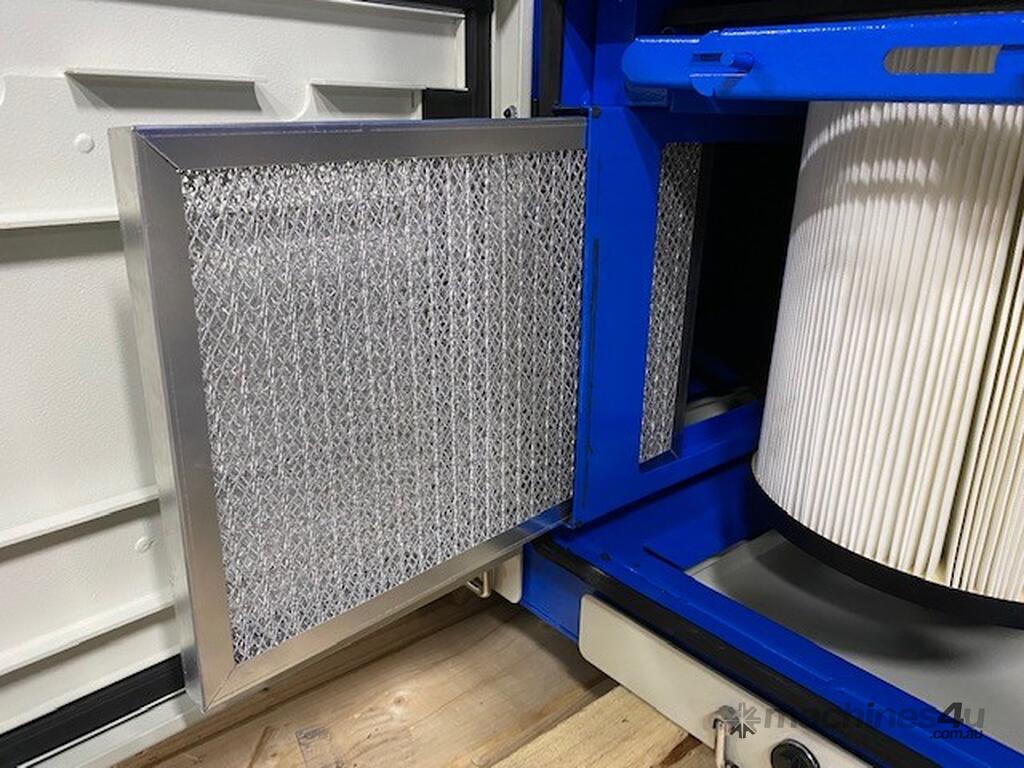

1. Aluminium Mesh

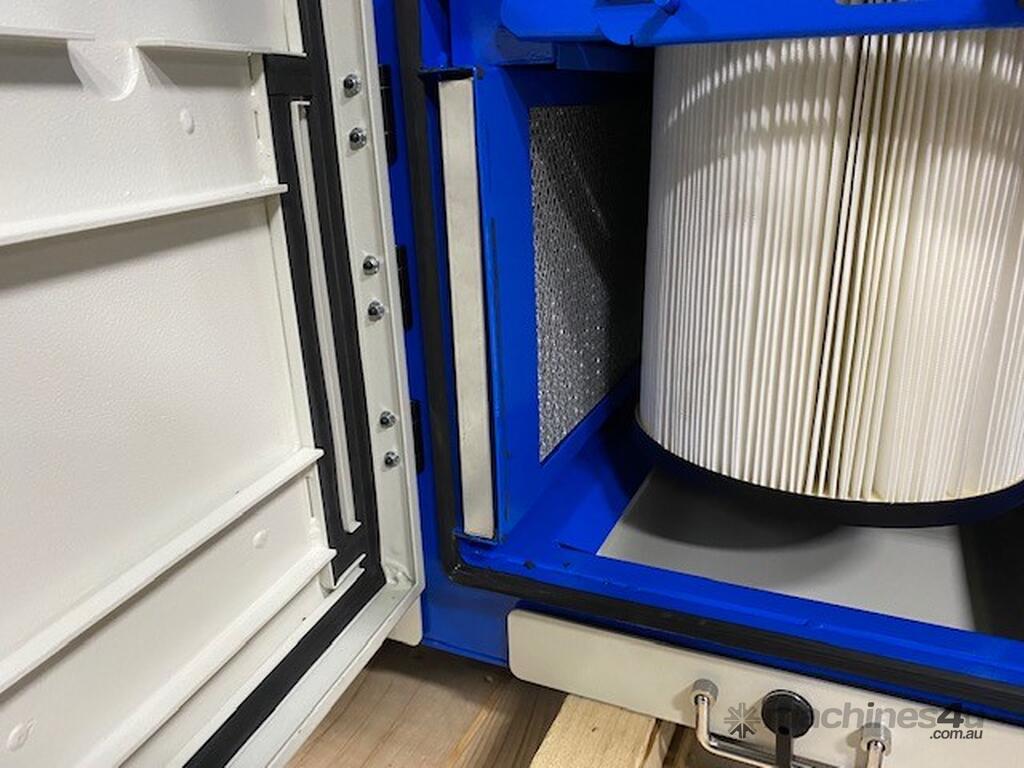

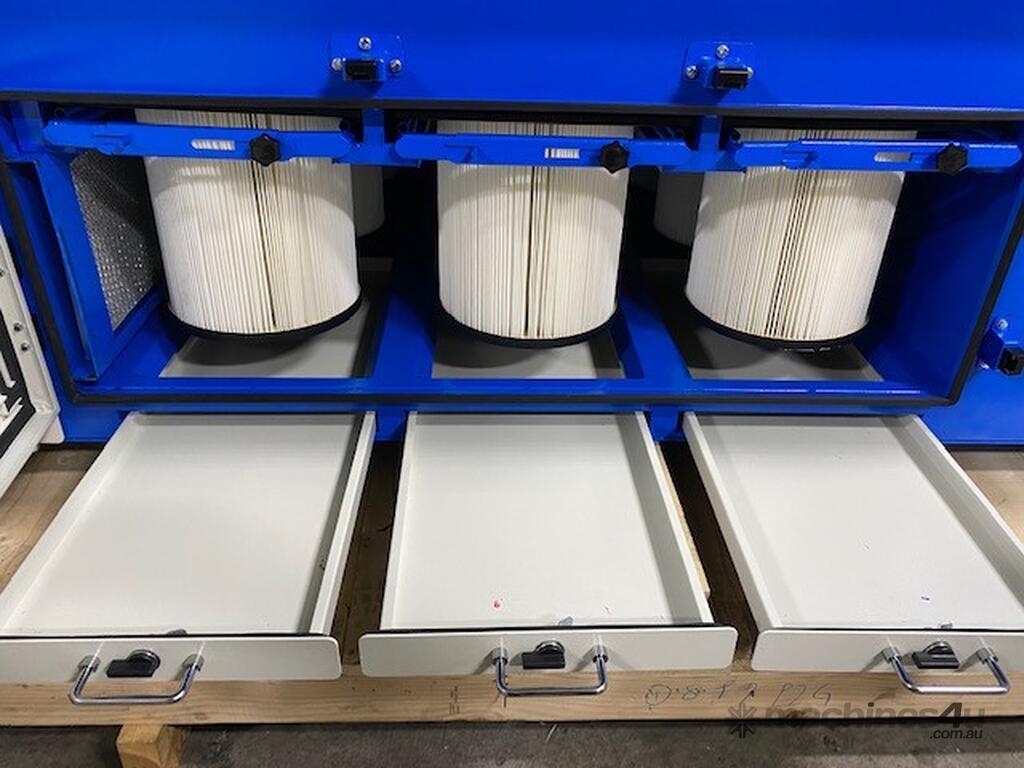

2. Cartridge Filter

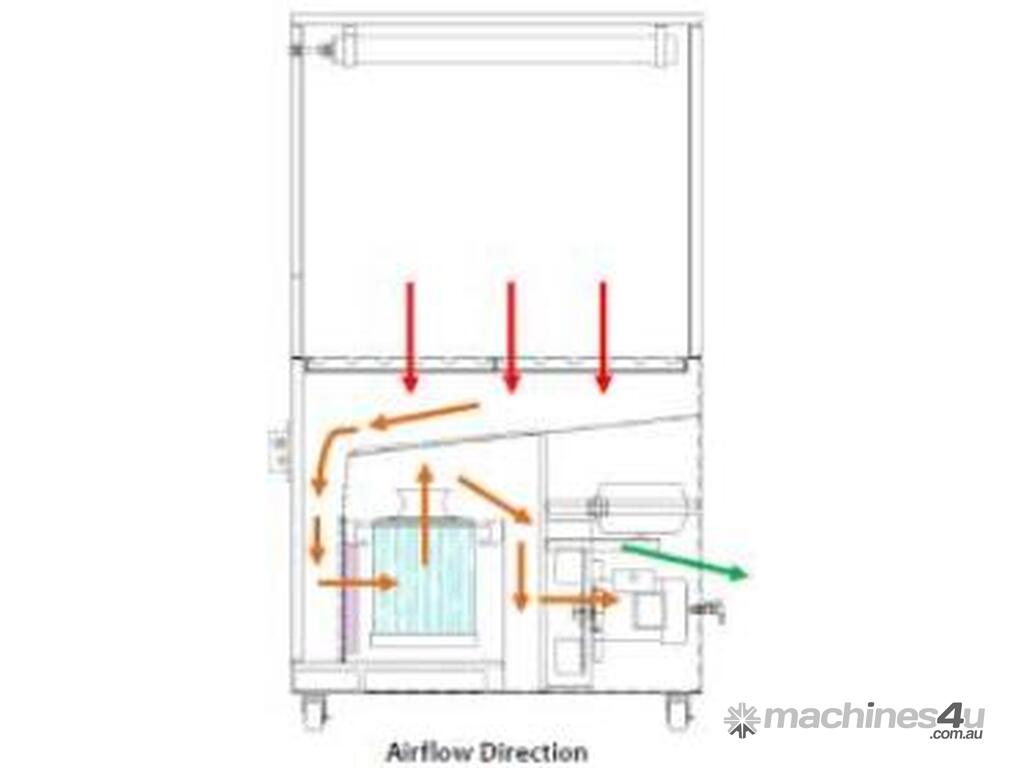

How does the extraction / filtration work
1. Air downward-drafted via Table Surface Hole Inlet, drawer below for filtering large welding wastes.
2. Extracted air being passed through Aluminium Mesh for trapping fire sparks.
3. Being conducted into Cartridge Filters for screening fine dusts.
4. Larger particles falling down onto the bottom dust collecting drawer.
5. Clean air exhausted out by Blower via outlet.


Product Features:
2-Stage Filtrations
Side Panels: Close for keeping fume inside; Open for big workpiece
Manual air pulsejet cartridge cleaning
Fixture Hole Ø 16mm Desktop

Filtration Stage
Aluminium Mesh
Cartridge Filter

How does the extraction/filtration work
1. Air downward-drafted via Table Surface Hole Inlet, drawer below for filtering large welding wastes.
2. Extracted air being passed through Aluminium Mesh for trapping fire sparks.
3. Being conducted into Cartridge Filters for screening fine dusts.
4. Larger particles being falling down onto the bottom dust collecting drawer.
5. Clean air exhausted out by Blower via outlet.

Model No.
SDT-10

Motor
10 HP

Airflow
4000 ft3/min
6792 m3/hr

No. of Cartridges
9 pcs

Table Size (mm)
2350 x 1130

N.W./G.W. (kg)
695/775
