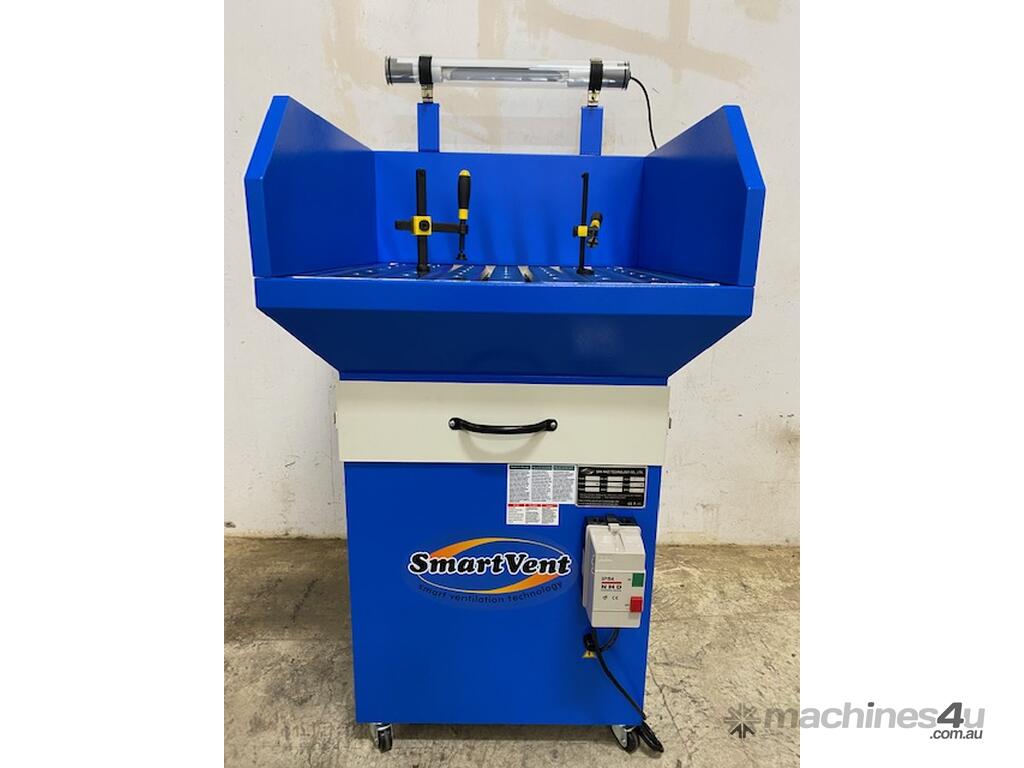

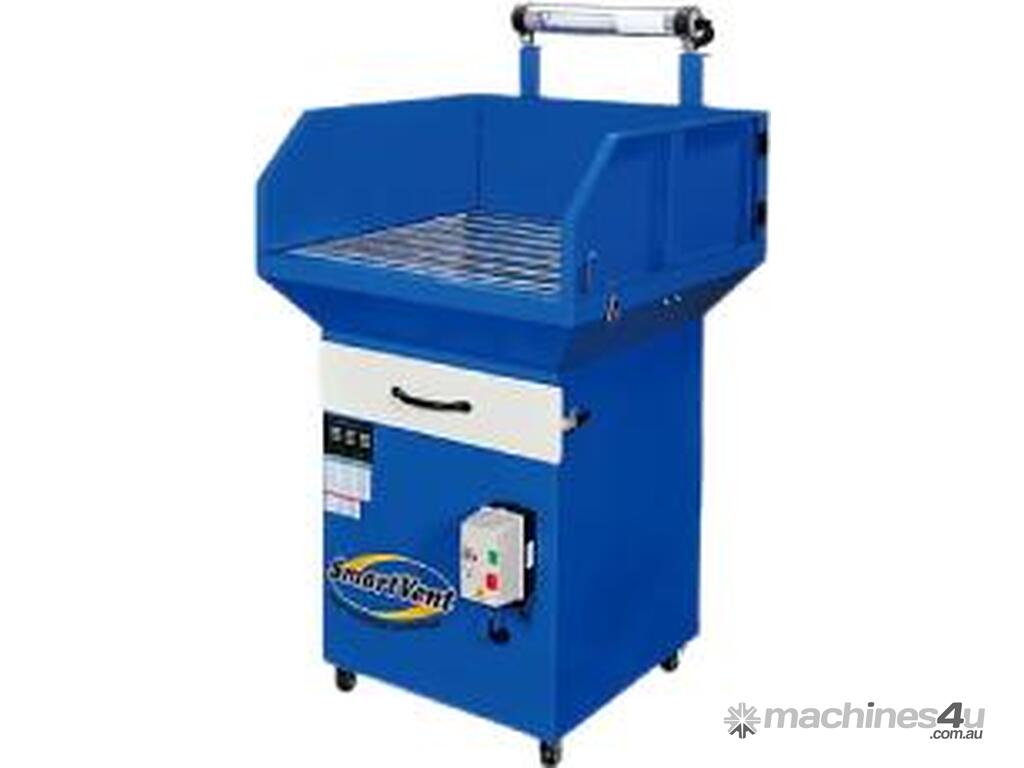

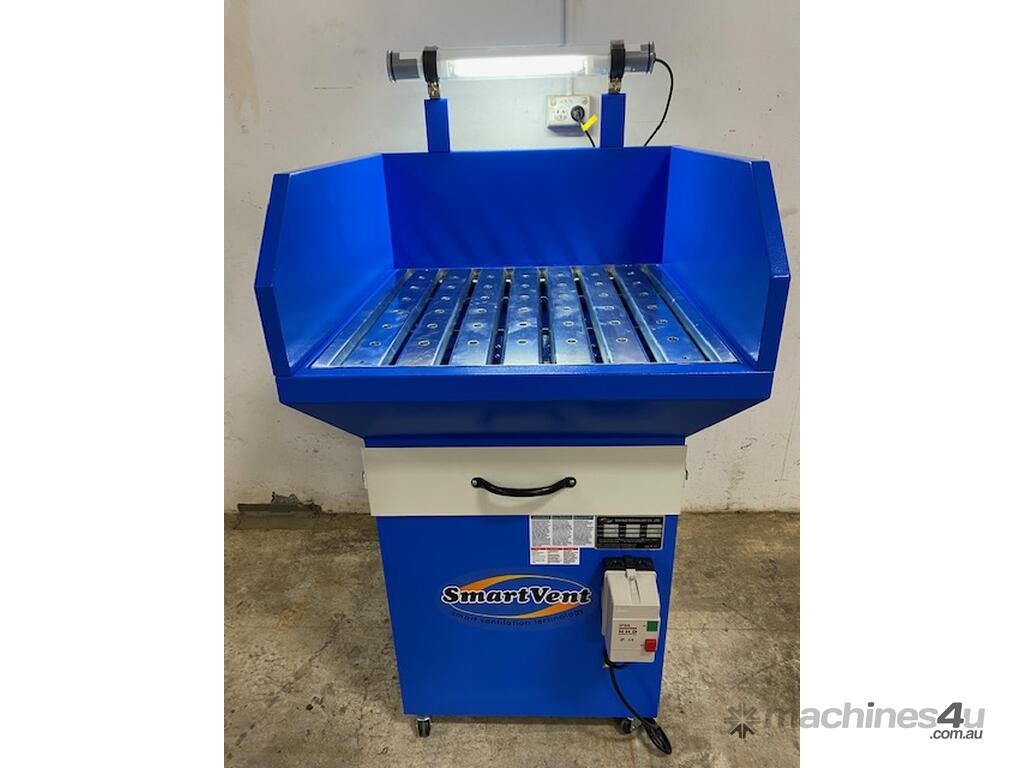

Downdraft Table 710x710mm FE-068E-S

SmartVent Downdraft Tables.
A Deflector under the table to capture welding sparks.

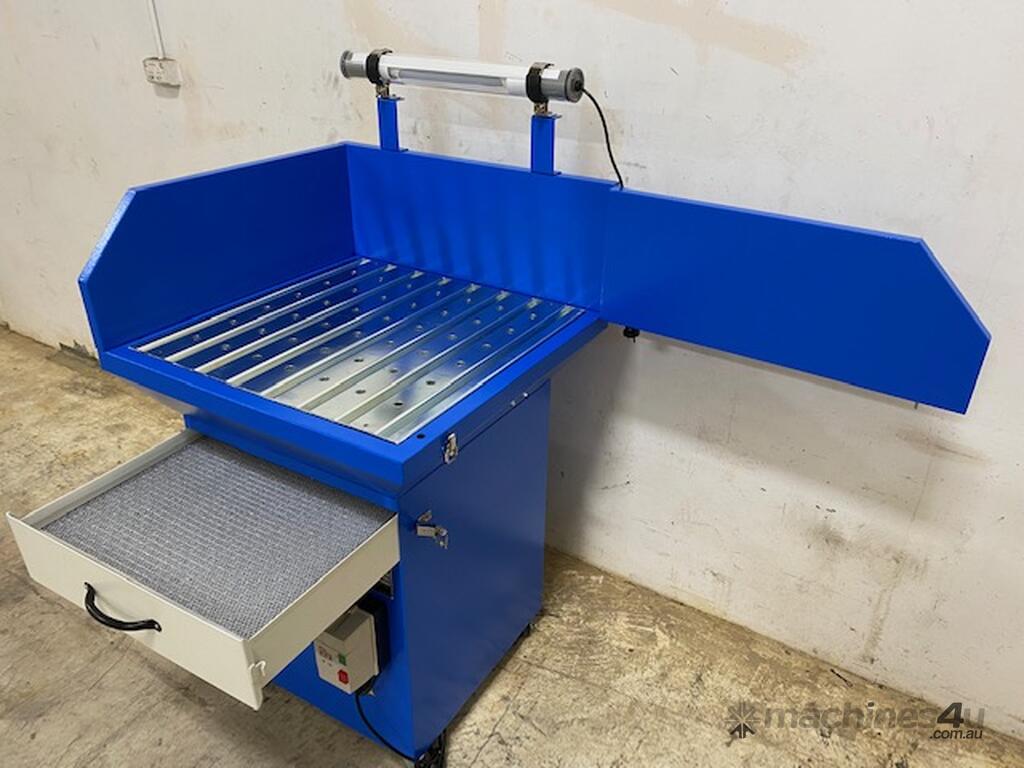

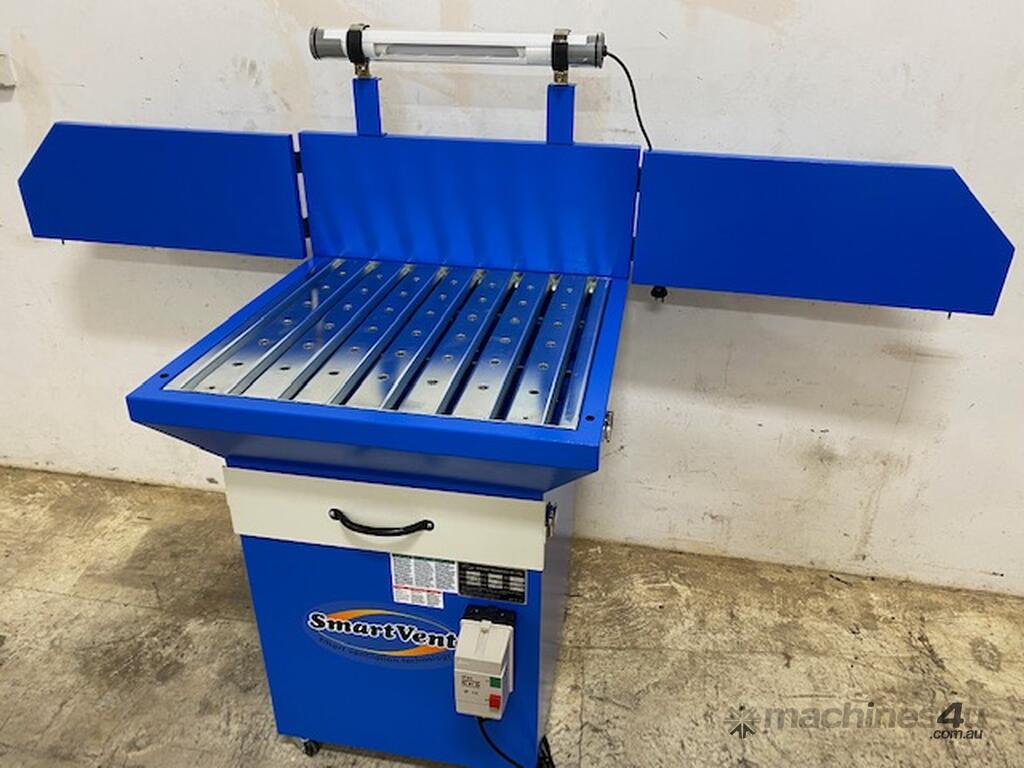

Side panels open up to allow for larger work pieces on table

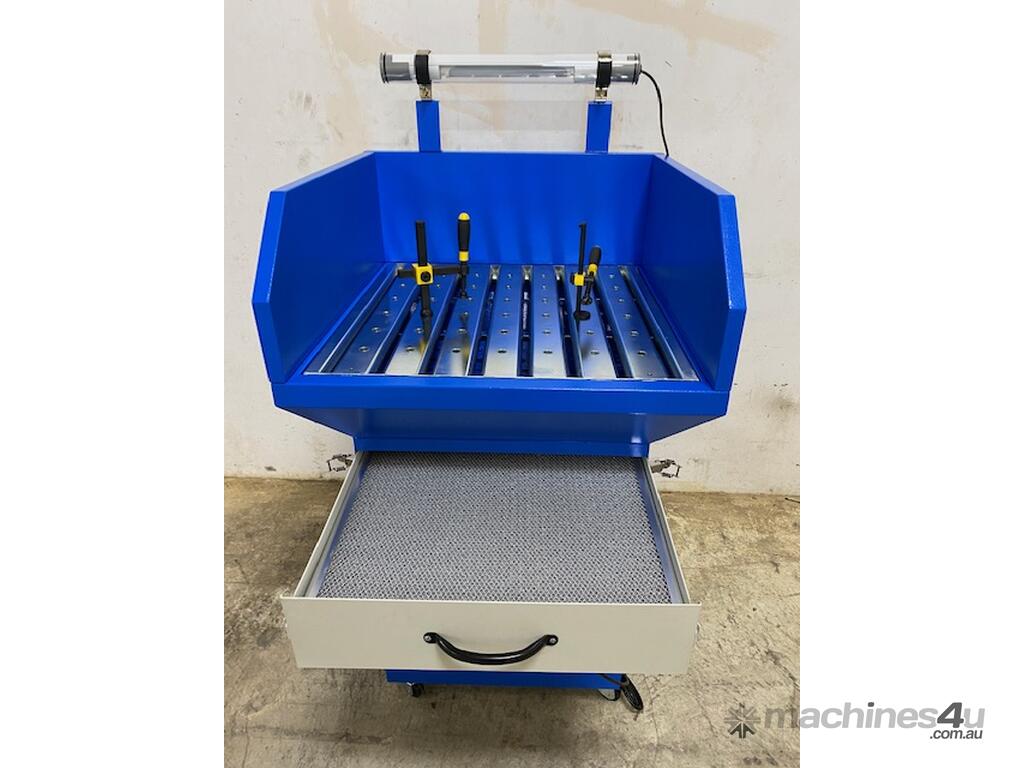

Easy access to the Pleated Filter.

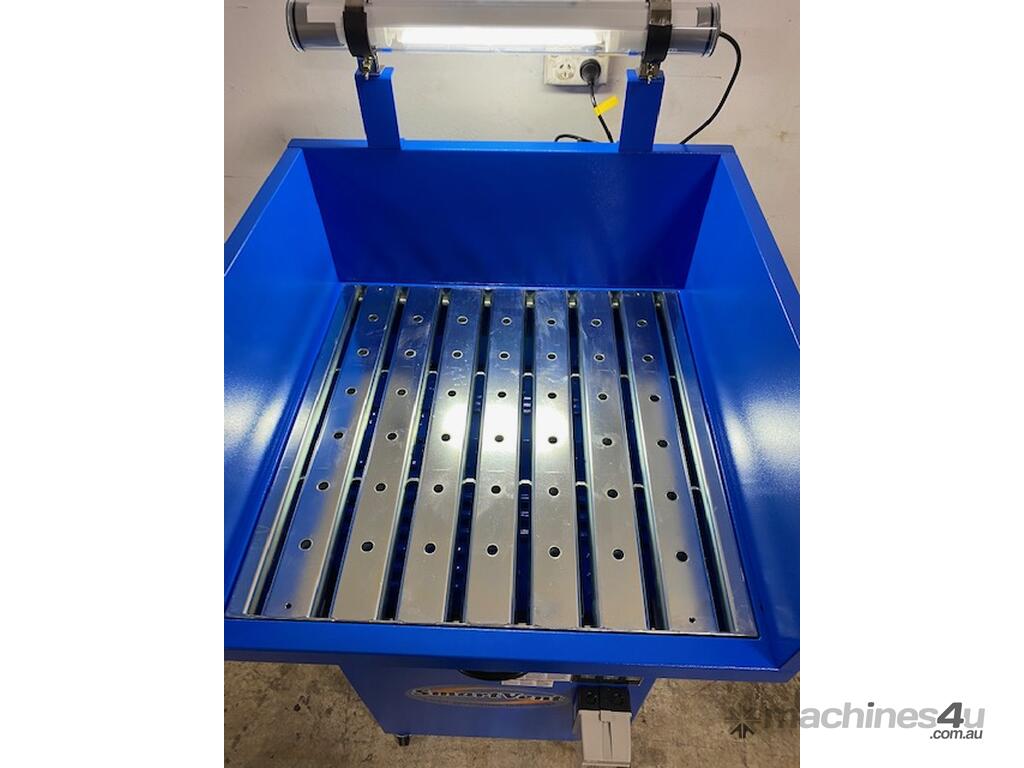

Working Light included.
Single phase 240 volt

ECO Downdraft table

• Motor = 2 HP - 240 volt
• CFM = 756
• Cubic metre per hour = 1284
• Machine size = 825 x 940 x 1530 mm
• Net Weight = 170 kg
• Gross Weight = 210 kg
• Noise level = 75 Decibels
• Worktable size = 710 x 710 mm
• Maximum Load capacity = 350kgs
• Filters to 85% of 1 micron

Product Features
• 2 Stage Filtration
o Aluminium mesh x 2
o Pleated filter x 1
• Side Walls
o Close keeping fume dust inside
o Open for big workpiece
• Noise reduction box
o Effective noise reduction while machine operating
• Easy access to filters

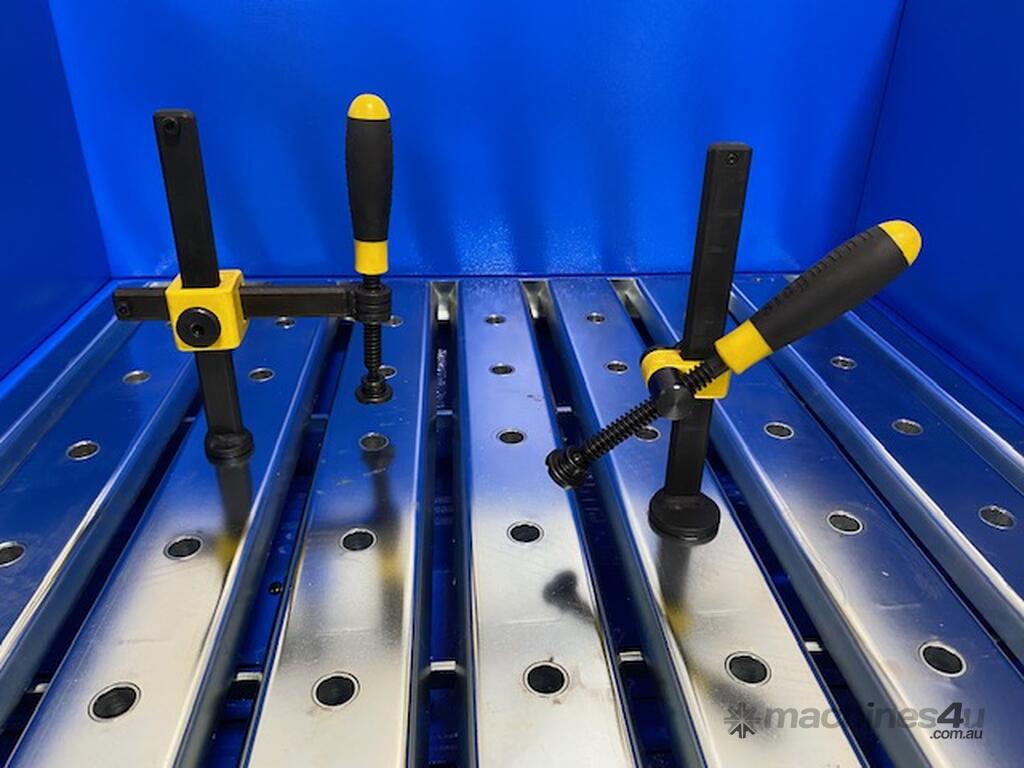

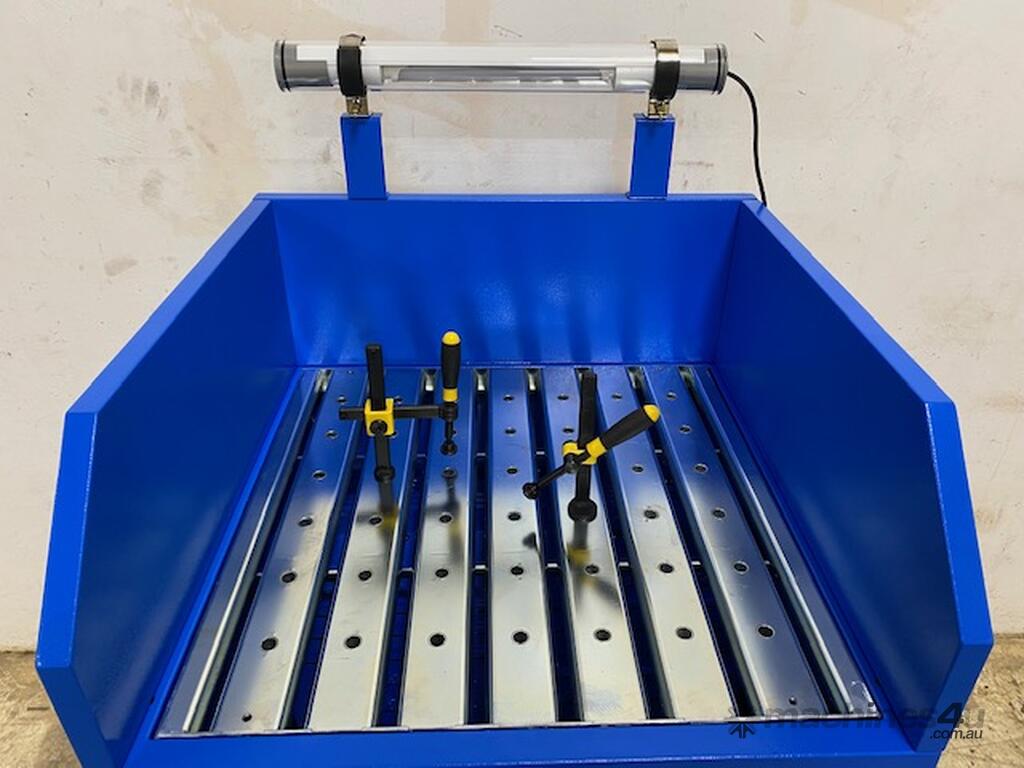

• Fixture Hole Ø 16 mm Desktop

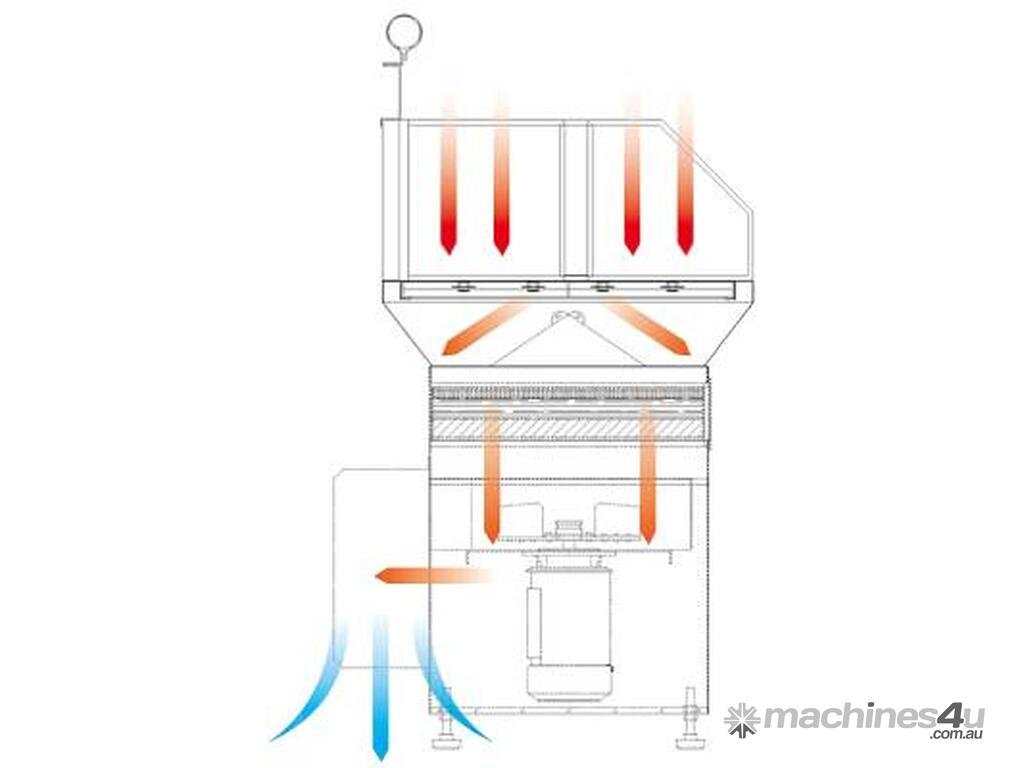

How does the extraction/filtration work
• Fumes / dust extracted via Table Surface Hole Inlet.
• Then fumes / dust being conducted down to the Filtration Drawer, Aluminium Mesh for welding sparks & Pleated Filter for fine dust.
• Clean air being returned to the work place from the Exhausting Outlet.
Aluminium Filter 1st Stage P/N FE-068E-S F1
Aluminium Filter 2nd Stage P/N FE-068E-S F2
Pleated filter P/N FE-068E-S F3



Stage 1
Aluminium Mesh (2) Capturing sparks and steel chips.
Stage 2
Pleated Cartridge Filter that be can cleaned by pulse-jet cleaning of the cartridge filter from an air compressor.

Model No.
FE-068E-S
Motor
240 Volt
Airflow
756 ft3/min
1284 m3/hr
Filter Media
3.69 m2
Table Size (mm)
710 x 710
Packaging Size (cm)
101 × 90.5 × 145
N.W./G.W. (kg)
170/210
