Drill/Tapping Center

Manford Machinery Co., Ltd., Taiwan’s leader in machine tools, offers a top-tier lineup, including 5-axis, vertical and horizontal machining centers, and CNC lathes. With four divisions in Taiwan, Manford delivers global excellence in precision and innovation. As the authorized distributor, TJ Machine Tools brings Manford's exceptional quality to Australia, offering customers cutting-edge technology and reliability.


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Manford Drill/Tapping Centers: Our Drill/Tapping Centers come in 2 models, perfect for diverse machining needs.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

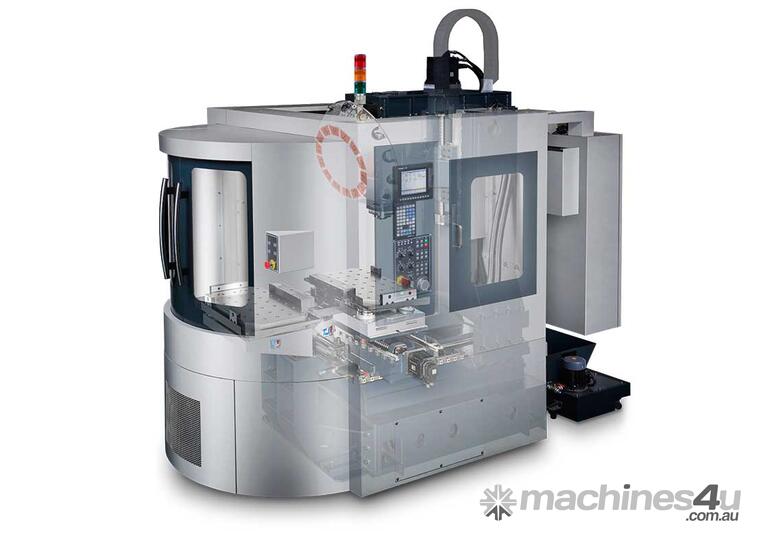

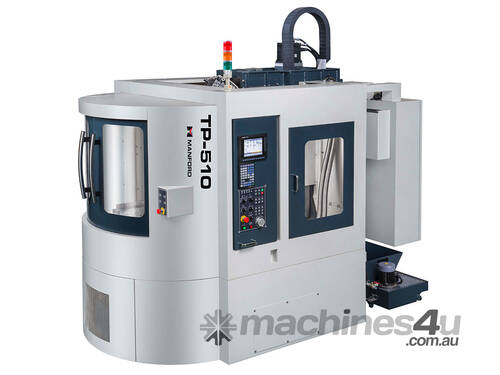

• Tapping Center | Model TP-510
This machine features 510 mm X travel, 400 mm Y travel, and 330 mm Z travel, with a table height range of 200 to 530 mm. It has a 650 x 400 mm table and a direct, built-in spindle taper BT30, capable of speeds from 10,000 to 24,000 rpm with a 2.2/3.7 kW motor. The ATC is a disc type with a capacity of 14 or 21 tools, making it suitable for high-precision machining tasks.

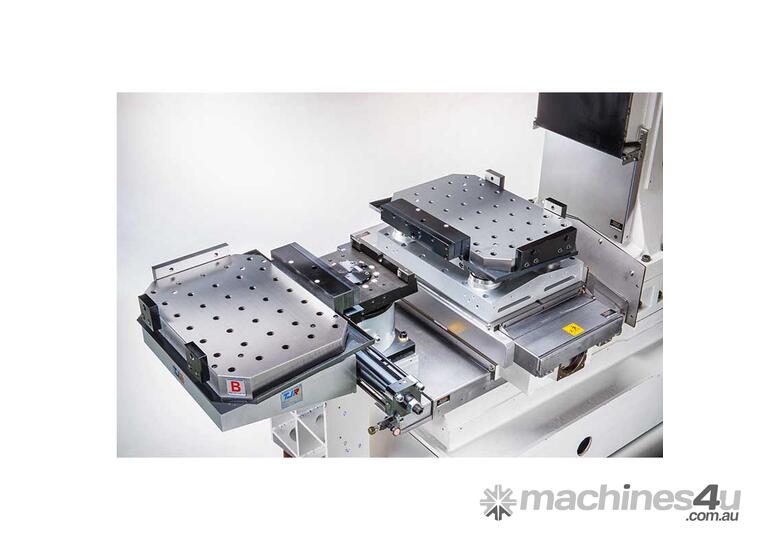

• Tapping Center APC | Model APC TP-510
This machine offers 510 mm X travel, 400 mm Y travel, and 330 mm Z travel. It features two 600 x 400 mm APC tables and 35 T-slots (M16 x P2.0) with a total load capacity of 500 kg. The spindle taper is BT30, achieving 10,000 rpm with a 3.5/5.5 kW motor. The ATC capacity is 14 tools, making it ideal for versatile machining applications.


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Contact TJMT (TJ MACHINE TOOLS) sales teams today to understand more and find the perfect machining center for your needs!
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

We offer a range of optional accessories and are here to assist with any customizations you need.
All machines undergo strict quality checks and are shipped with certificates. A standard one-year warranty applies, with extended warranties available upon request. Please contact us for additional information or to request our terms and conditions document.

Our comprehensive turnkey solutions include on-site installation and training by skilled technicians, ensuring seamless operations and timely spare parts delivery. We’re committed to supporting our customers and building strong relationships through continuous improvement.
