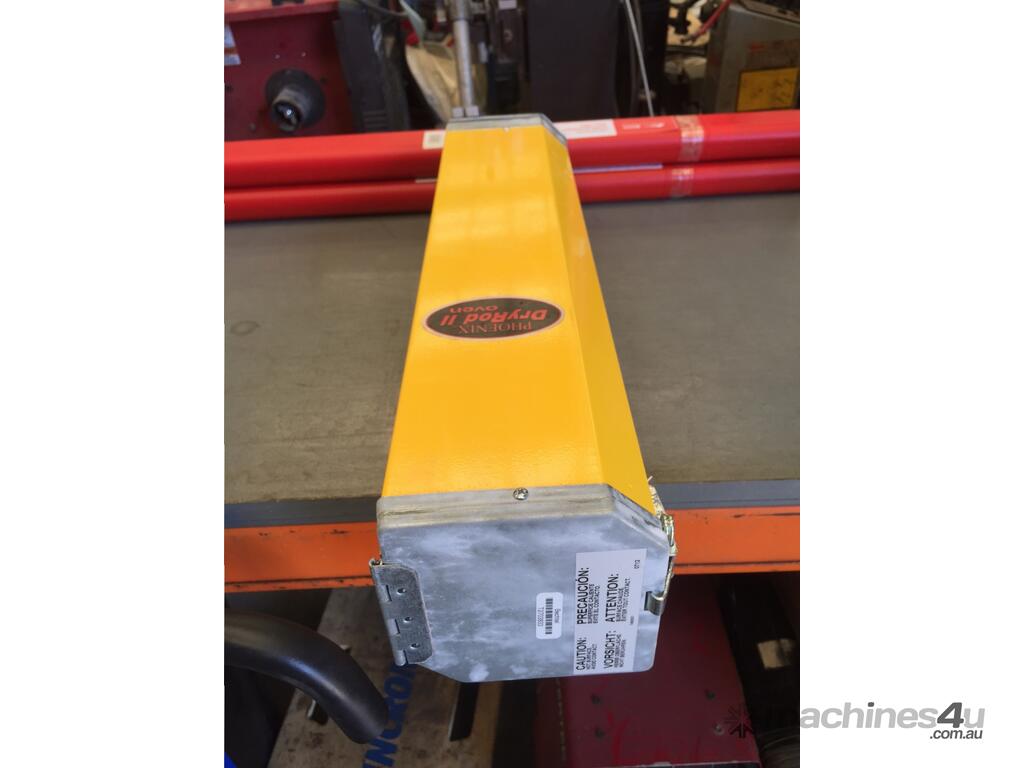

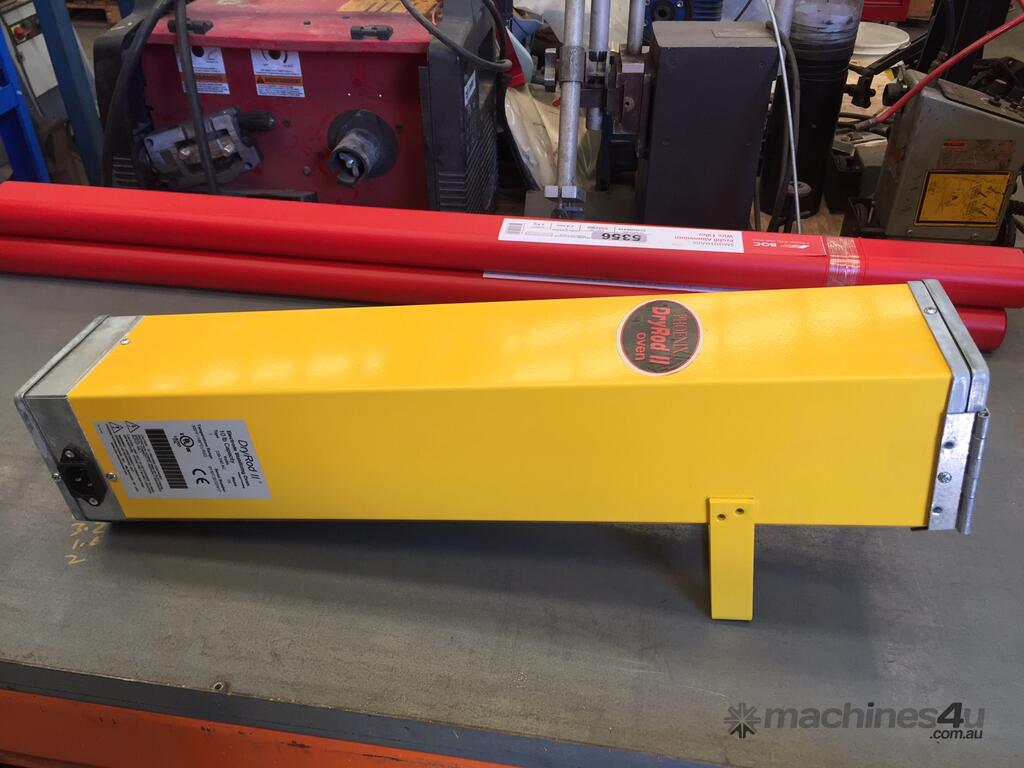

DryRod II Electrode Oven

As the smallest portable rod oven available from Phoenix, the DryRod®II Type 1 oven is ideal for the individual welder. Type 1 ovens have a capacity of 10 lb and can be filled from a large capacity storage oven to keep electrodes moisture-free until use. The oven chamber temperature remains fixed at a consistent 300°F (150°C), ensuring electrodes remain moisture-free in the field and pass inspection.

Type 1 ovens provide unmatched durability and are designed to be repaired rather than replaced. Built with heavy gauge steel and powder coated to withstand challenging conditions, the Type 1 will remain in use for multiple projects.

Voltage: 100-240 Volts - Single phase
Temperature: 300°F Preset
Heating element: 60 watts
Thermostat: Preset
Thermometer: No thermometer option
Insulation: Fiberglass batt (1.50 inches)
Chamber depth: 19.75 inches
Chamber diameter: 2.88 inches
