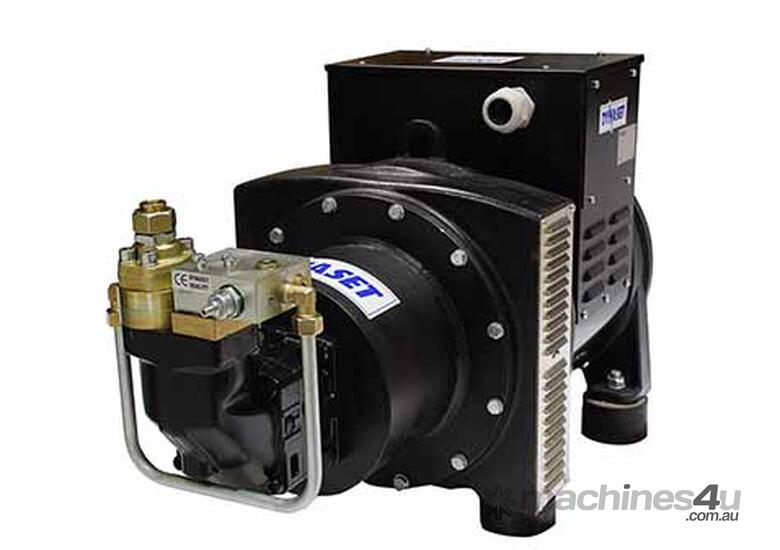

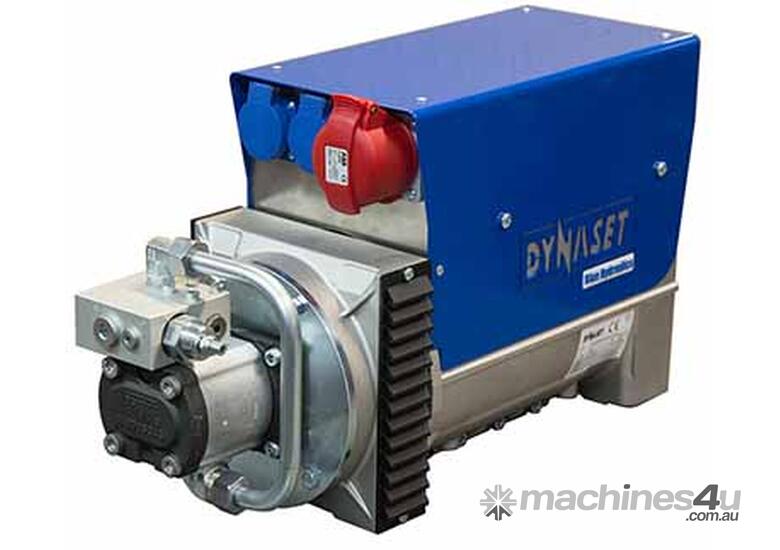

DYNASET HG Hydraulic Generator converts the hydraulic power of a mobile machine into electricity. HG Hydraulic Generators produce high-quality electricity from 3,5 kVA up to 350 kVA for 50 or 60 Hz frequencies to control any electric appliance in mobile use.
BASE MACHINES AND INSTALLATION
The world’s best power-to-size ratio guarantees easy installation on machinery such as excavators, trucks, platform lifts, service vehicles. It can be fitted into any mobile hydraulic system and thanks to its compact size and lightweight, it is easy to install anywhere on the mobile machine. HG can also be located in confined space since there isn’t any space-consuming fuel tank or an exhaust pipe creating air pollution and heat.
HOW DOES THE DYNASET HG HYDRAULIC GENERATOR WORK?
HG Hydraulic Generator produces high-quality electricity using the power from the base machine’s hydraulic system. The HG is turned on by opening the hydraulic oil flow to it. Then the hydraulic system feeds the hydraulic oil flow to the HG’s hydraulic motor. The motor is integrated into the generator, and when it starts, the generator produces electricity immediately. HG is designed to handle fluctuating hydraulic oil flows to ensure continuous, high-quality voltage.
THE NEW SILENT HYDRAULIC MOTORS INTEGRATED with HG HYDRAULIC GENERATOR
The new silent hydraulic motors, released on March 7th 2017, are integrated into the standard models of DYNASET HG Hydraulic Generator. The new hydraulic motors will improve the generators in many ways.
The most noticeable change is the drastically improved sound. The sound pressure level is significantly lower. However, this is not the only factor that makes the motor sound more pleasing for the ear. The improved sound structure and frequency level are even more significant factors which make the Dynaset equipment almost feel like silent. The high pitch sounds are unpleasant for the human ear, and significant amplitudes tend to hurt the ears. The new Dynaset silent hydraulic motors are designed to produce a sound which structure and frequency are more subtle for the ears. Therefore the motors sound very quiet. Better sound characteristics drastically improve the working environment and user ergonomics.
The silent hydraulic motors are designed to be more efficient and durable. The new Dynaset motors have less mechanical friction resulting in better efficiency and increasing durability. The new shaft seal is made for higher pressure endurance. The new silent motors are easy to recognise from the all-black motors with Dynaset logo on them.
SPECIFICATIONS
Available Sizes:3.5KVA to 70KVA
