EASY TO USE HYDRAULIC -3 Roll Lemas Plate Curving Roller - 1.5m x 6.0mm

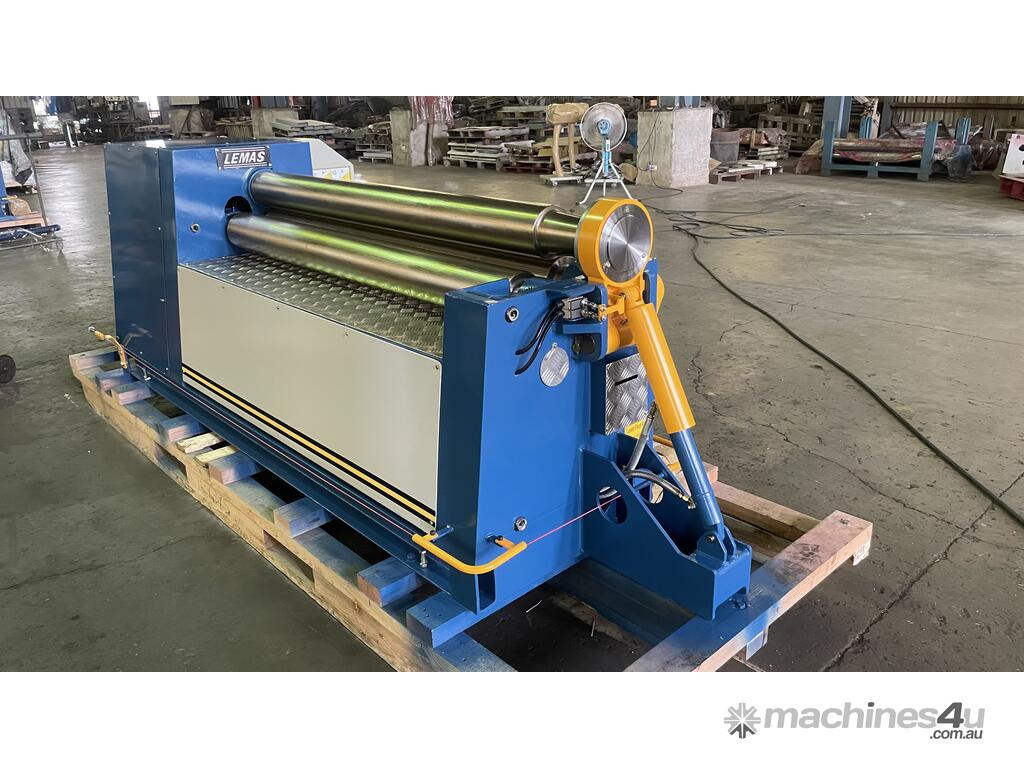

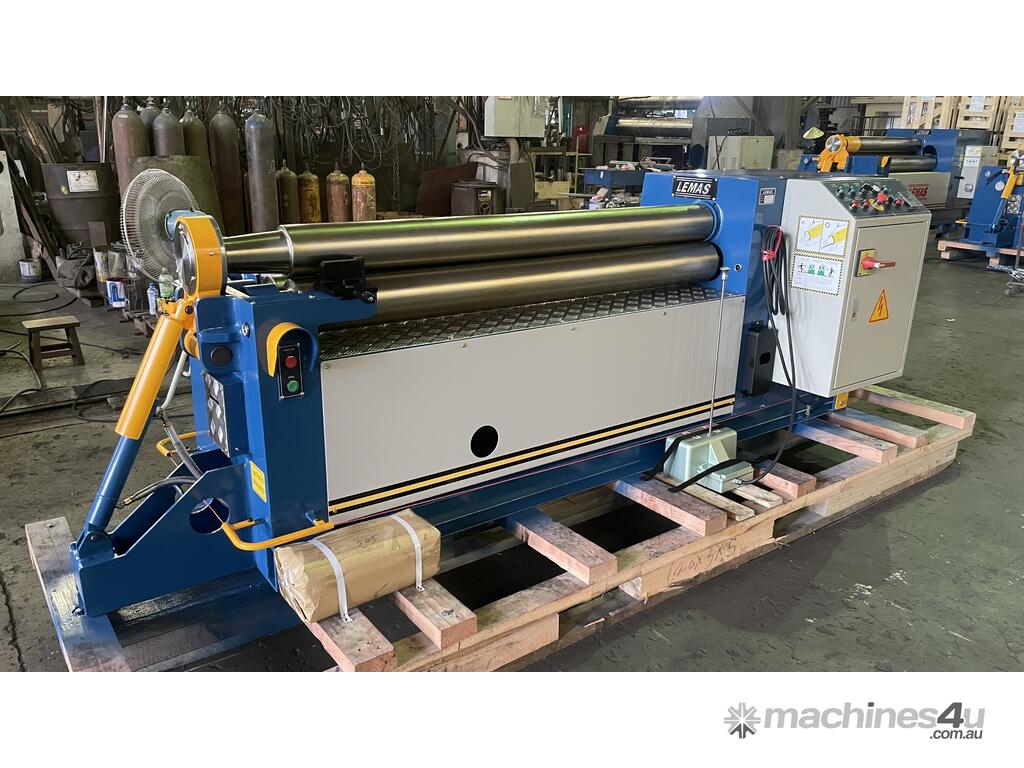

3 Roll Curving Roller from Lemas (Model LHF506E) with a 1.5 x 6.0mm capacity. Hydraulic with push button drop end and digital readouts.

Number of rolls: 3

Roll diametre: 160mm

Minimum cylinder diametre: 270mm


UNIQUE FEATURES

• Easy to use with hydraulic adjustment of side rolls and digital readout for position.

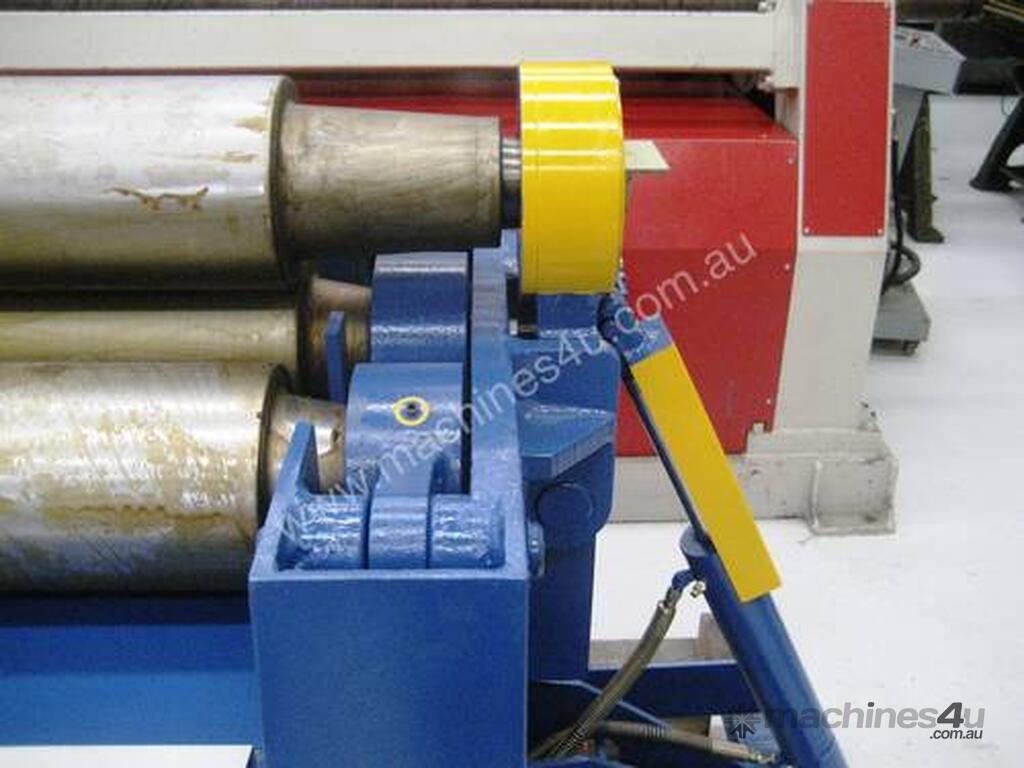

• Hydraulic swing down end frame for easy removal of cylinders.

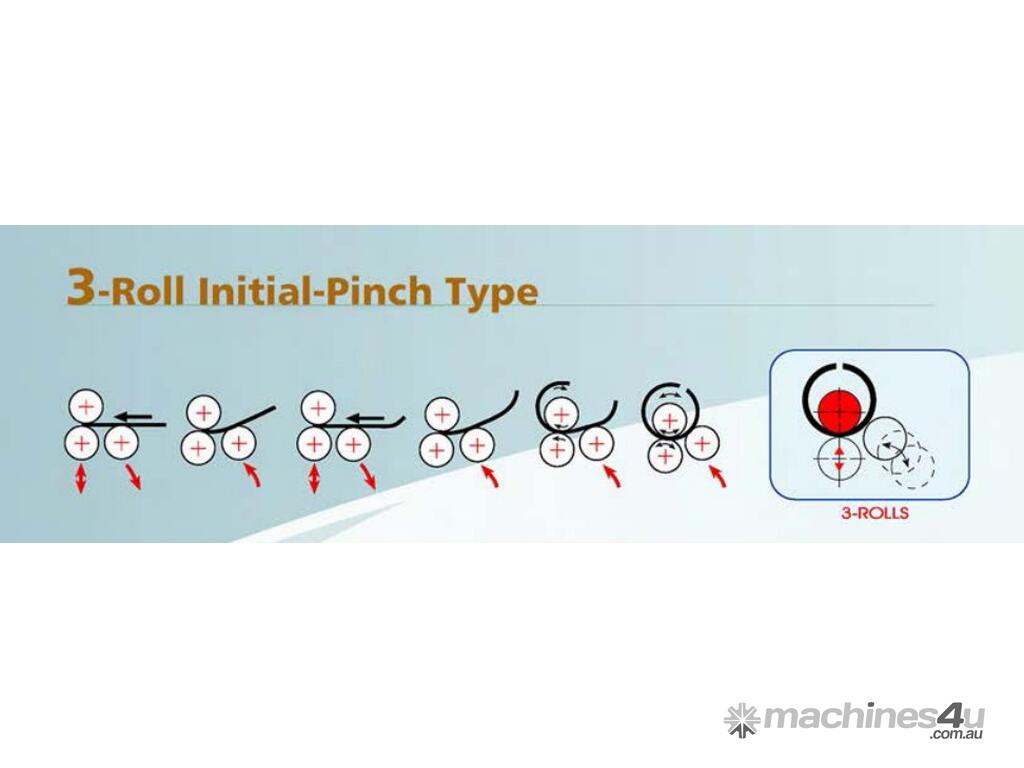

• The hydraulic single pinch design provides excellent pre-bending capability.

• The lower rolls can be adjusted individually from each other, with infinitely variable adjustment speeds, in a curved path around a common centre.

• The rolls are manufactured of SF45C solid steel forgings and high-frequency heat treatment with a surface hardness of HRC45 for maximum life and reduced material marking.

• Rolls are cambered to compensate for deflection, so you don’t roll barrel-shaped cylinders.

• A hydraulic motor with a reducer and chains drives to all three rolls ensuring you get maximum torques at all times.

• Digital LED readouts for showing the positions of the two adjustable bottom rolls.

• Both bottom rolls are individually and hydraulically tiltable by push button for cone rolling.

• Equipped with cone rolling attachment.

100's of good references across Australia. Call us for the nearest user.

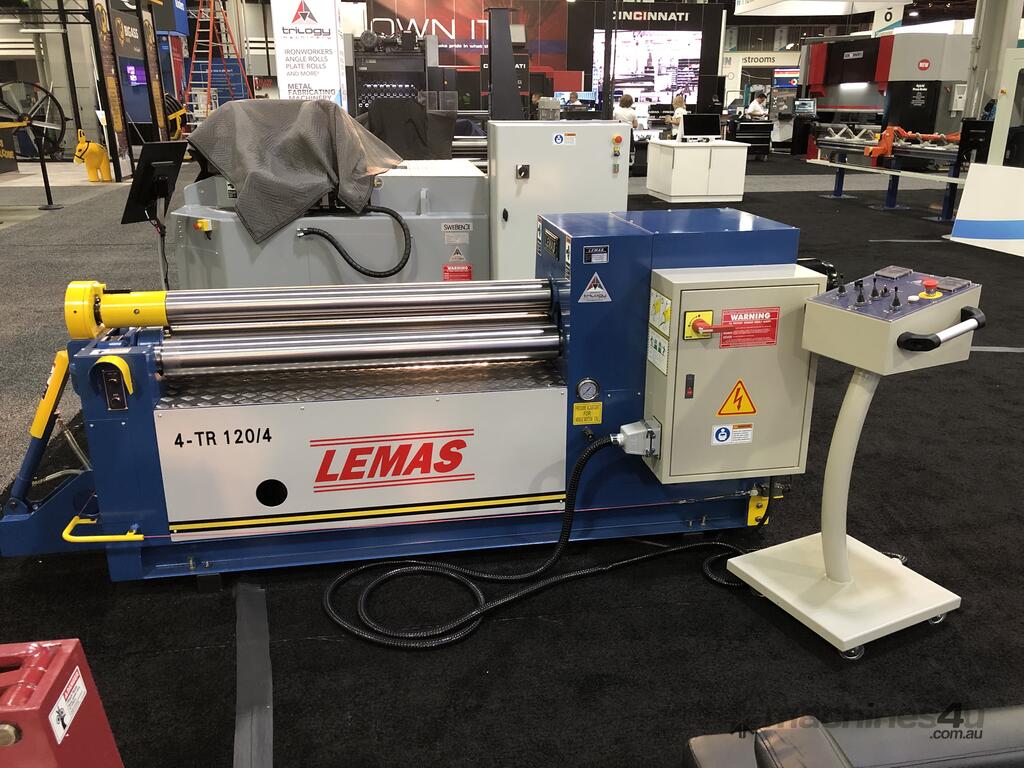

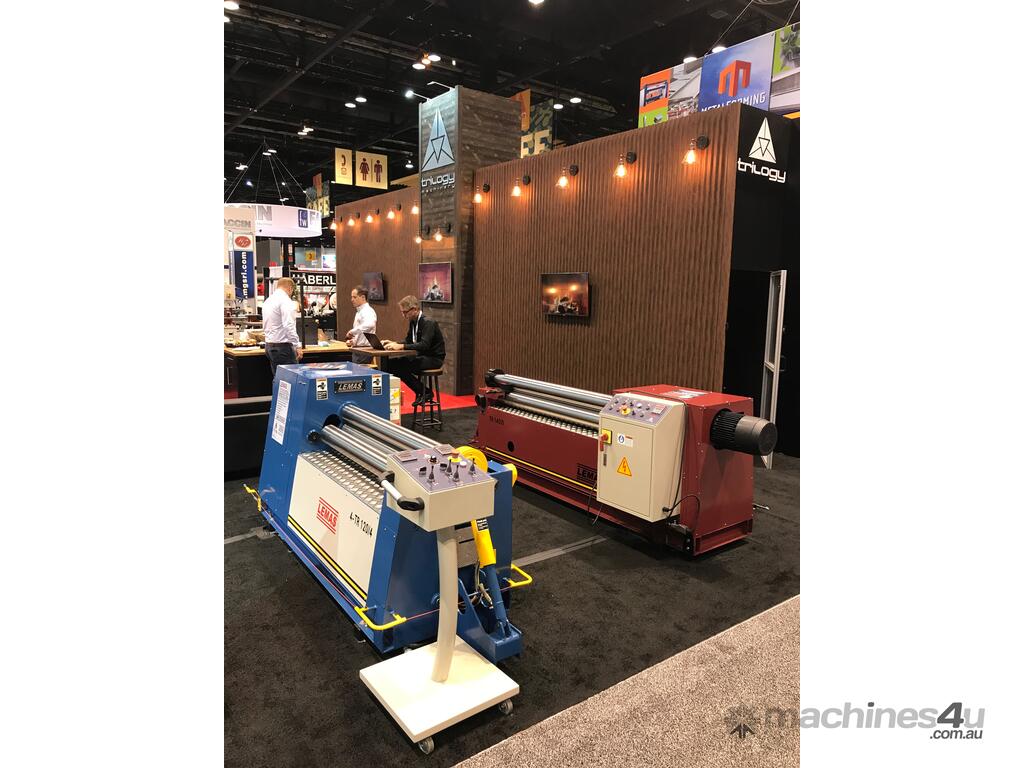

(Note that the mobile control console, as shown in some pictures, is not on this stock machine)

DOWNLOAD THE BROCHURE
