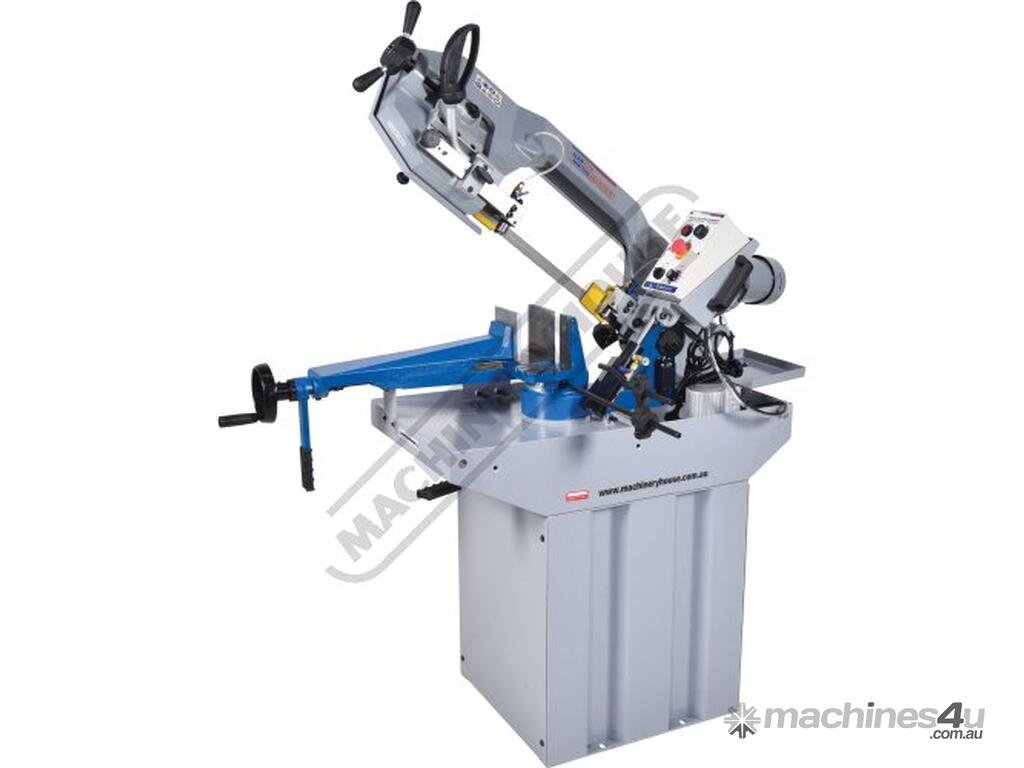

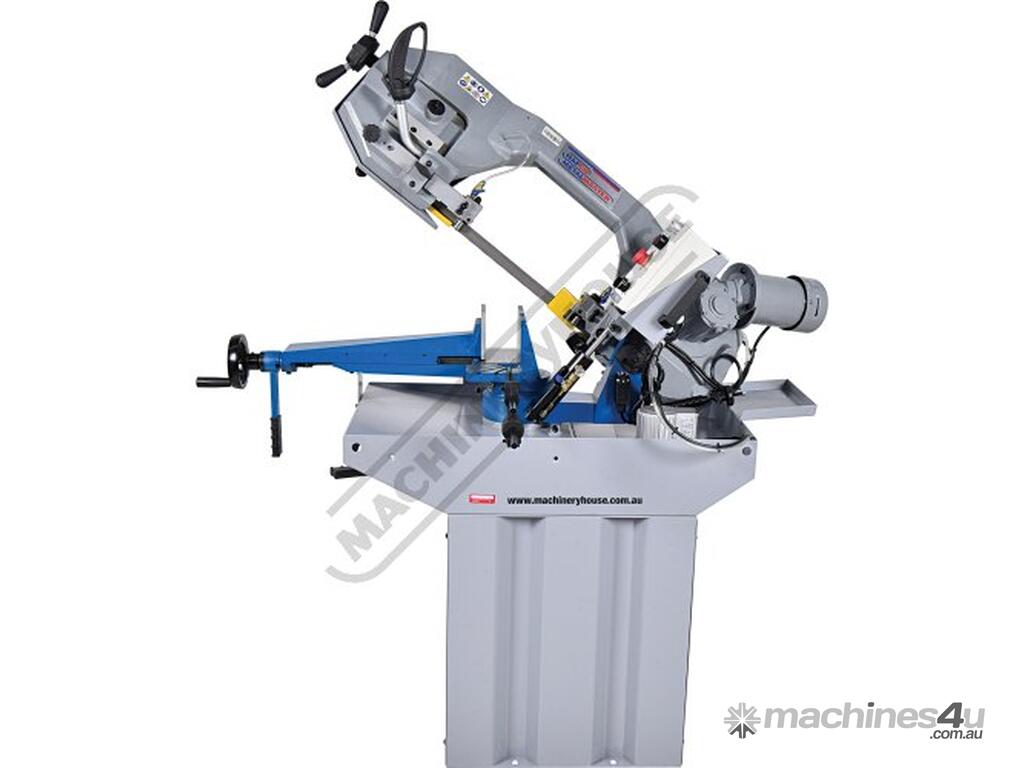

EB-260V Swivel Head Metal Cutting Band Saw Electronic Variable Blade Speed 20-90mpm, Mitre Cuts Up T

HAFCO-METALMASTER EB-260V Swivel Head Metal Cutting Band Saw Electronic Variable Blade Speed 20-90mpm, Mitre Cuts Up To 60º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control 225 x 180mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B062V

Manufactured in Taiwan

Features:
225 x 180mm rectangular capacity
Electronic variable blade speed 240V motor
Larger cutting capacity than conventional cold saws

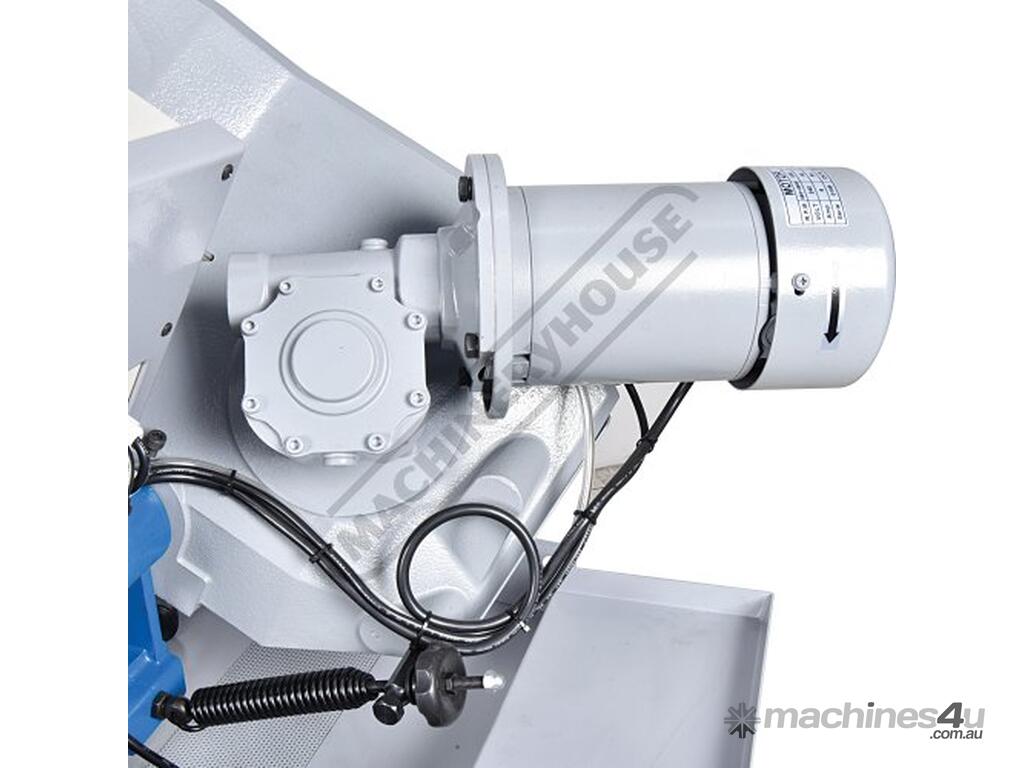

Heavy-duty gear drive system

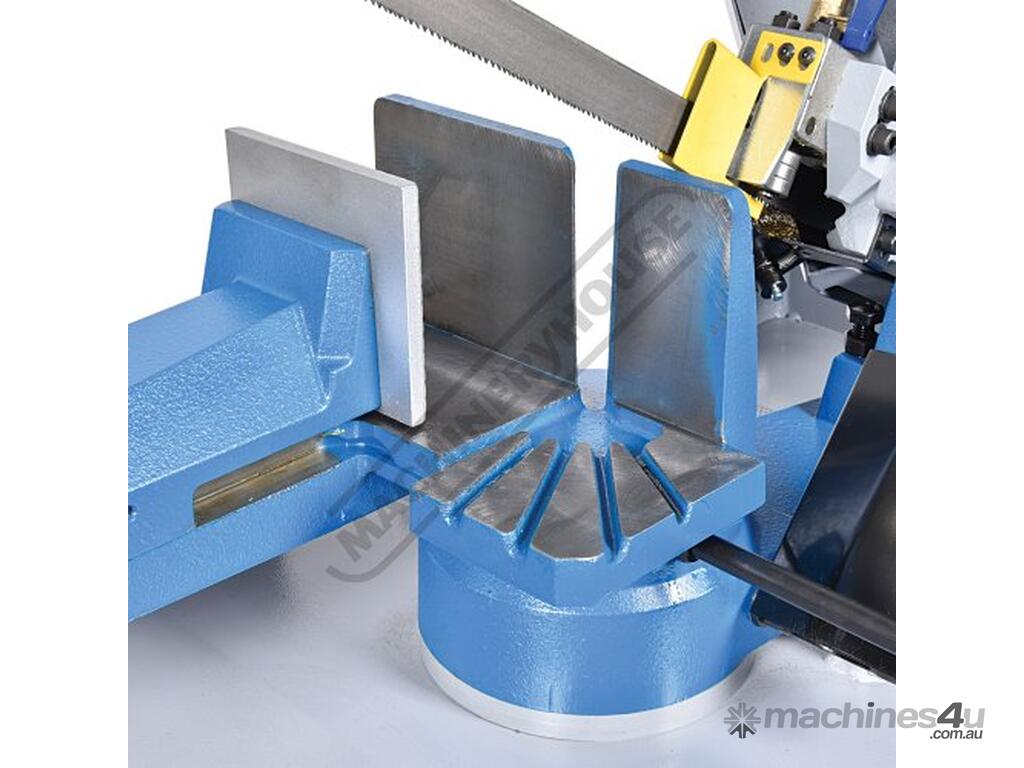

Quick-action lock/release vice

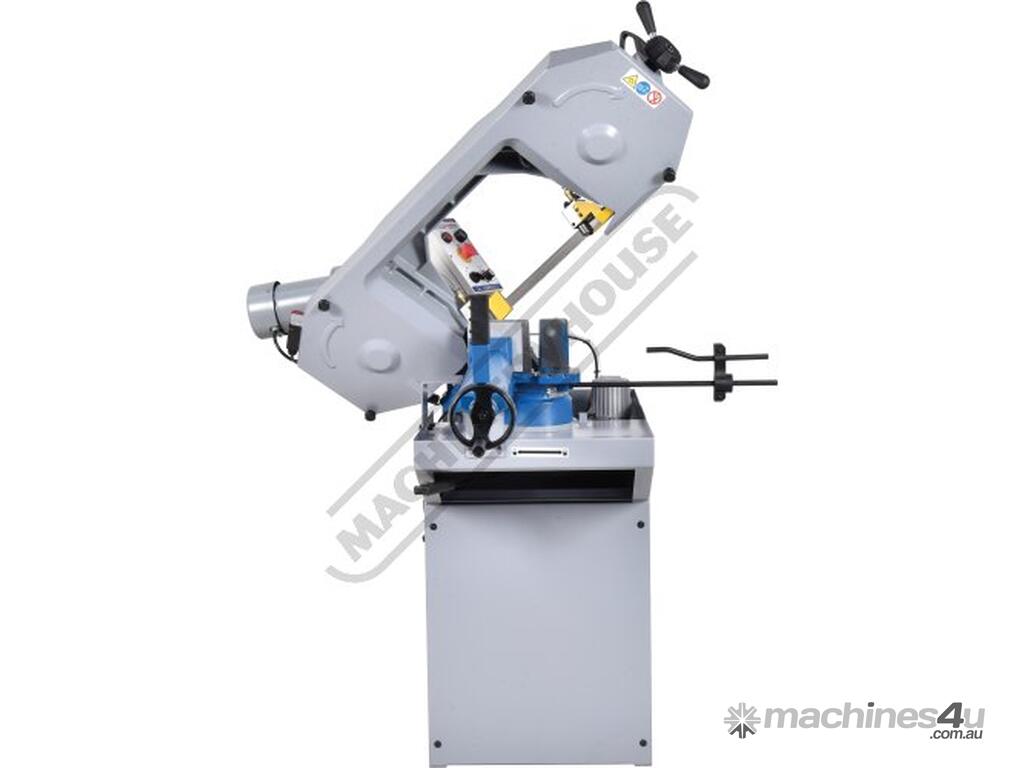

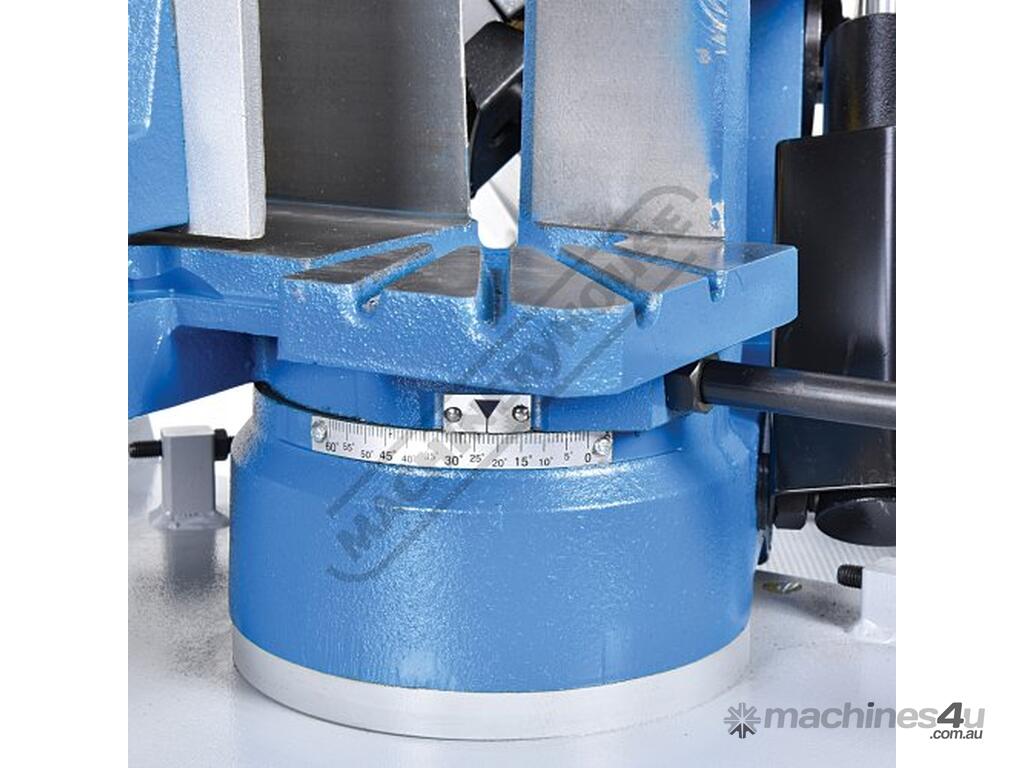

Swivel head mitre cut to 60º right

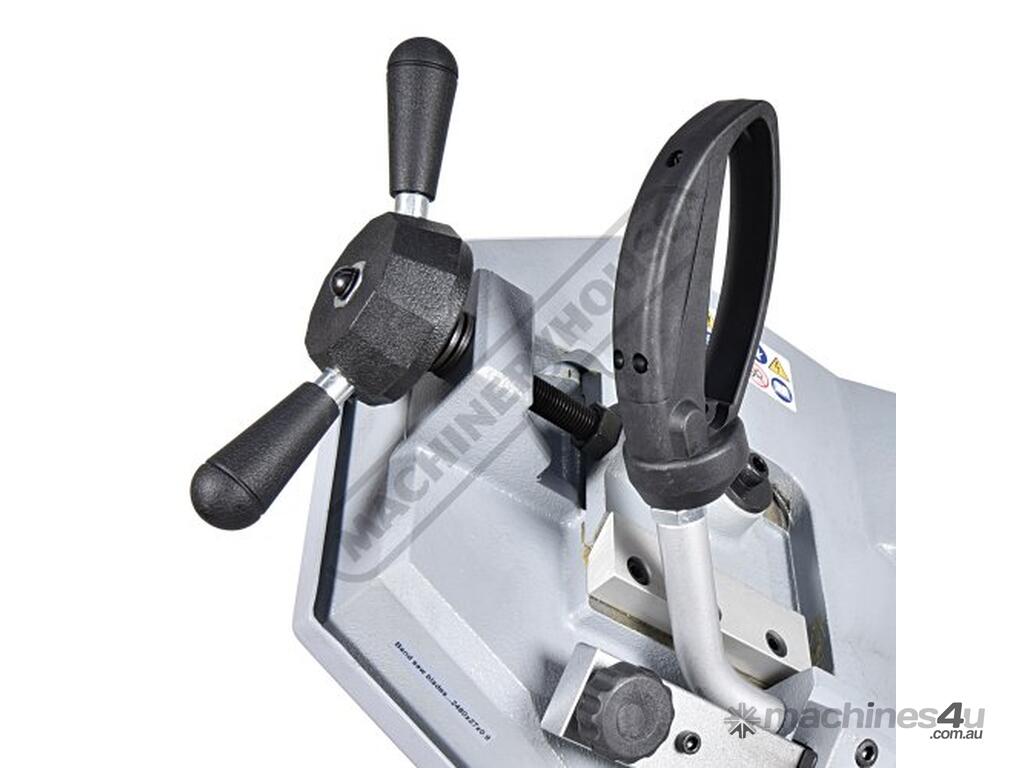

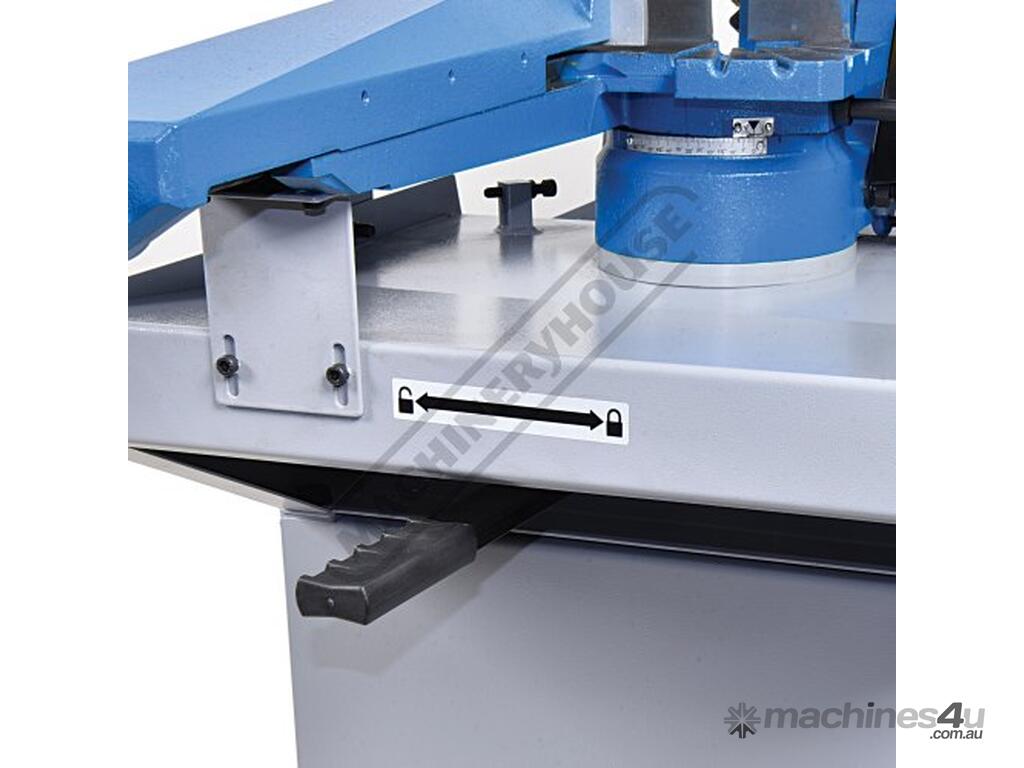

Quick action lock/release lever for swivel head

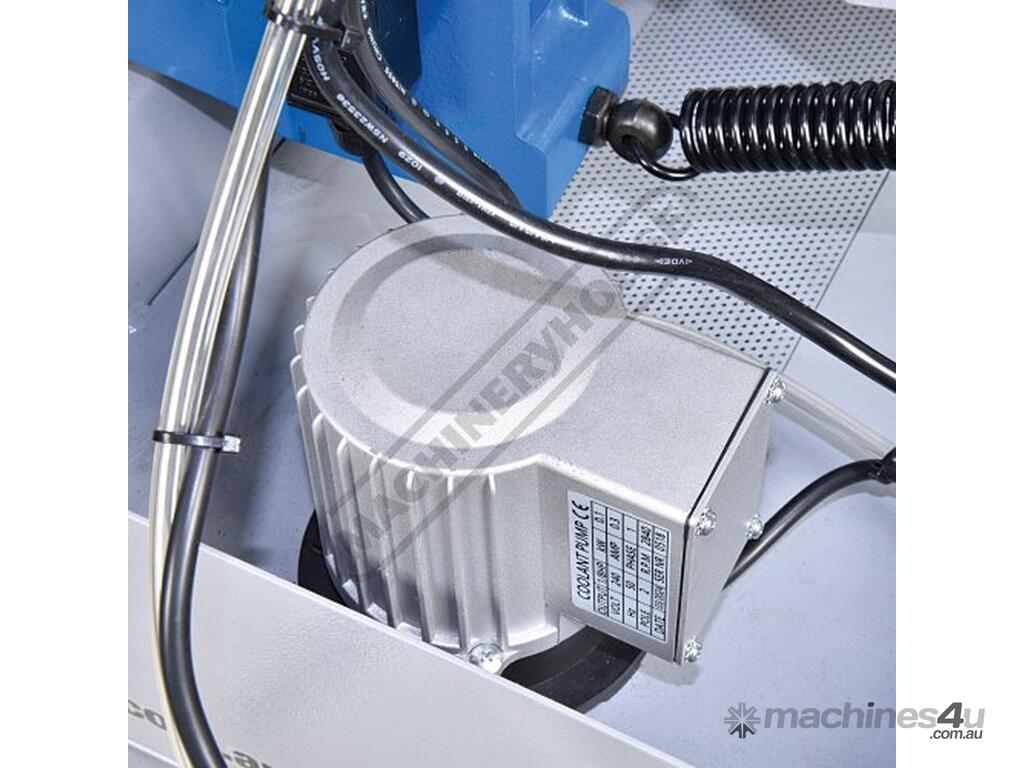

Coolant system for cutting efficiency and blade life
User friendly blade tension system

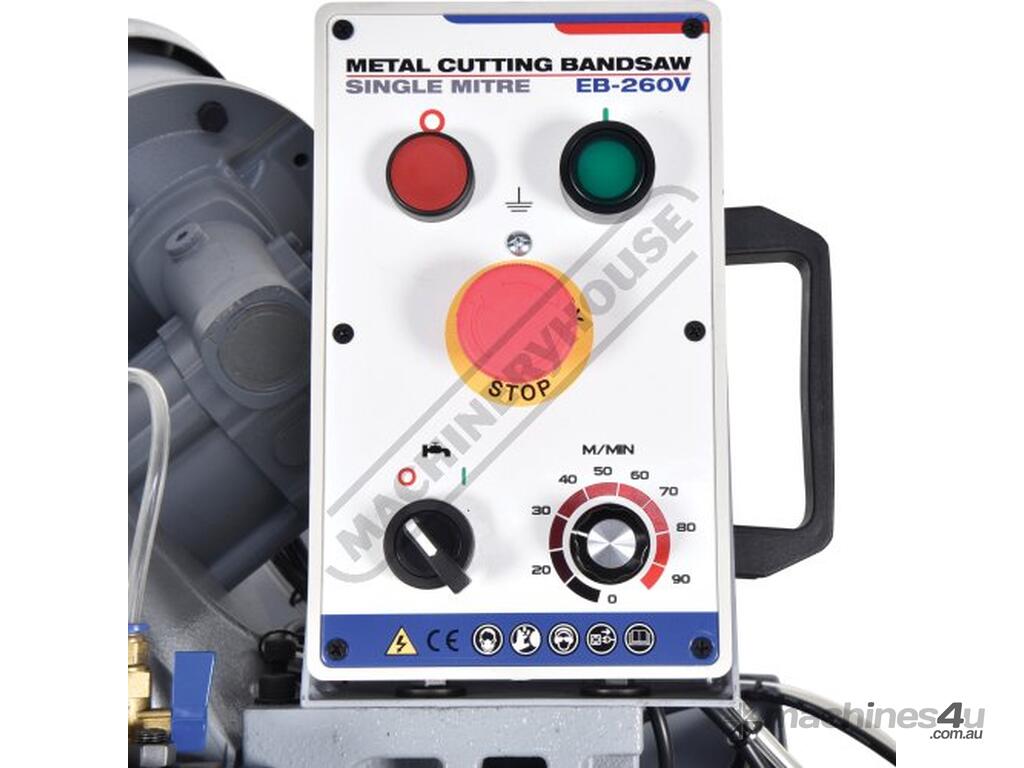

Control panel mounted for easy access

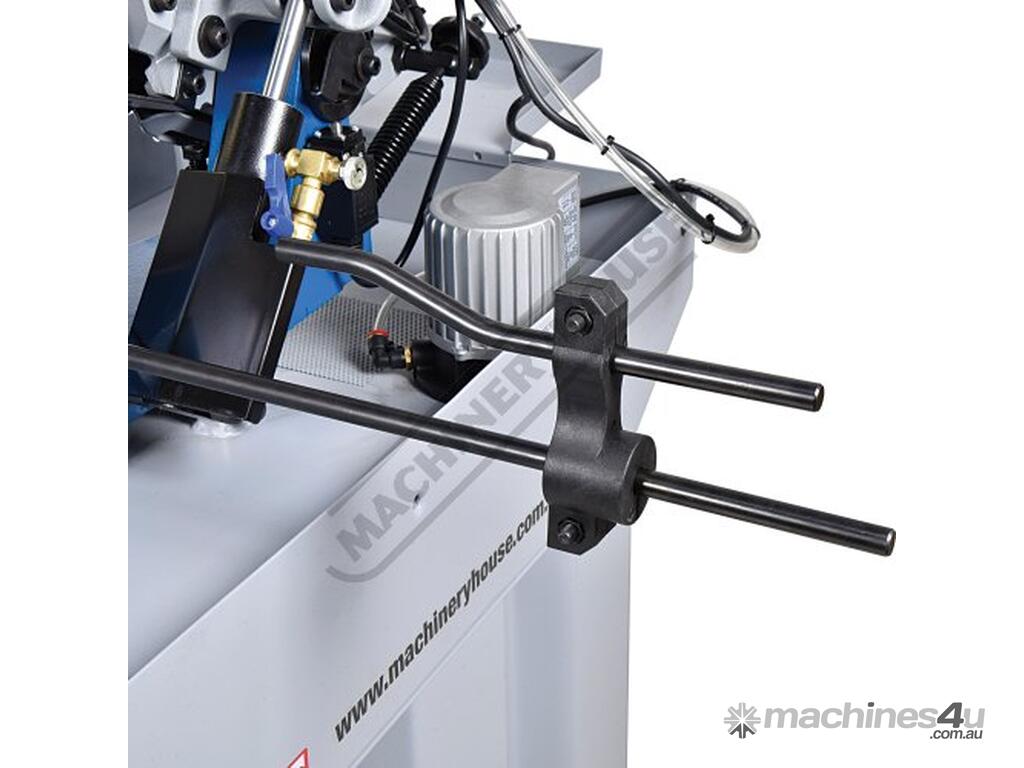

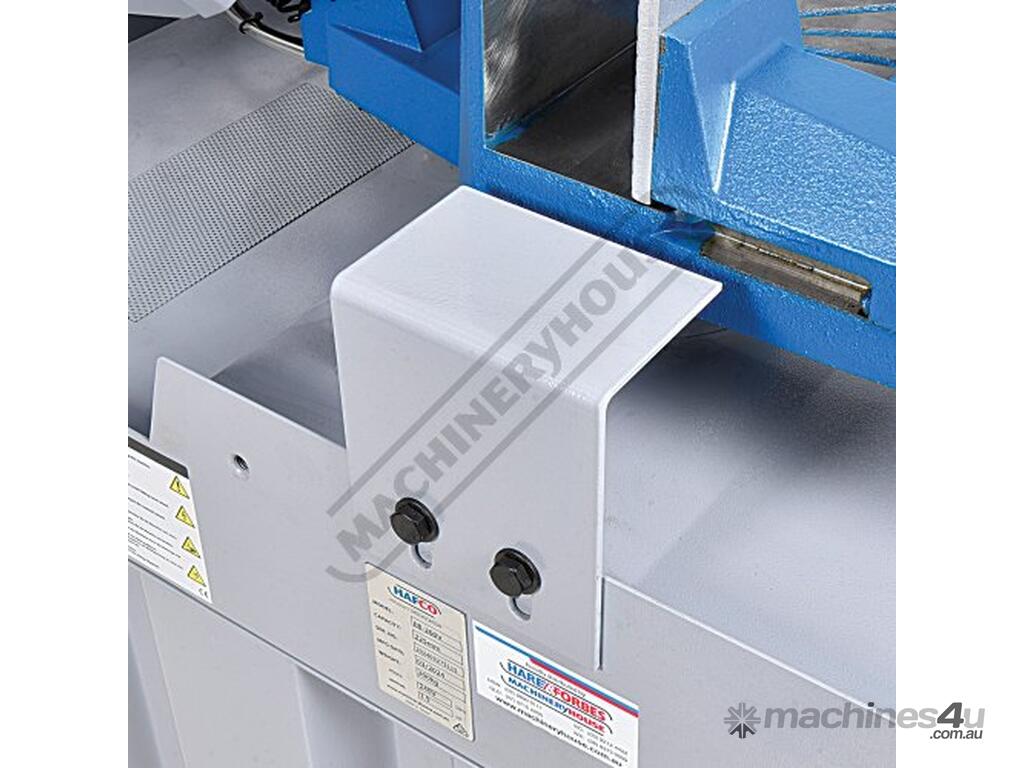

Adjustable length stop for repetition cutting

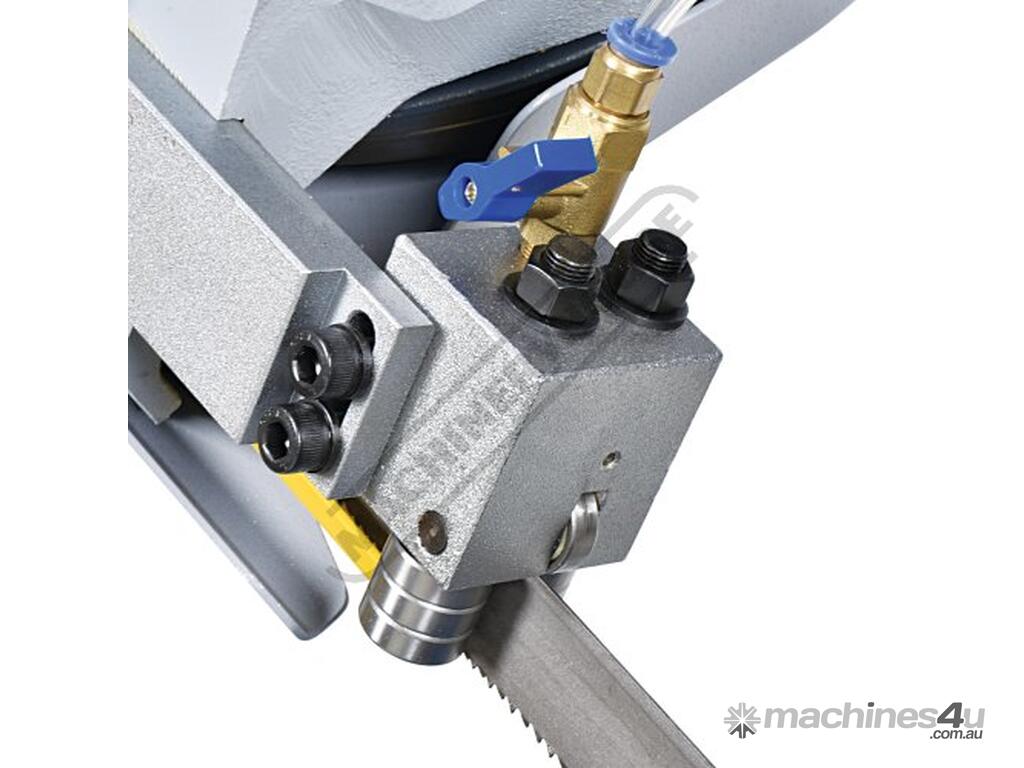

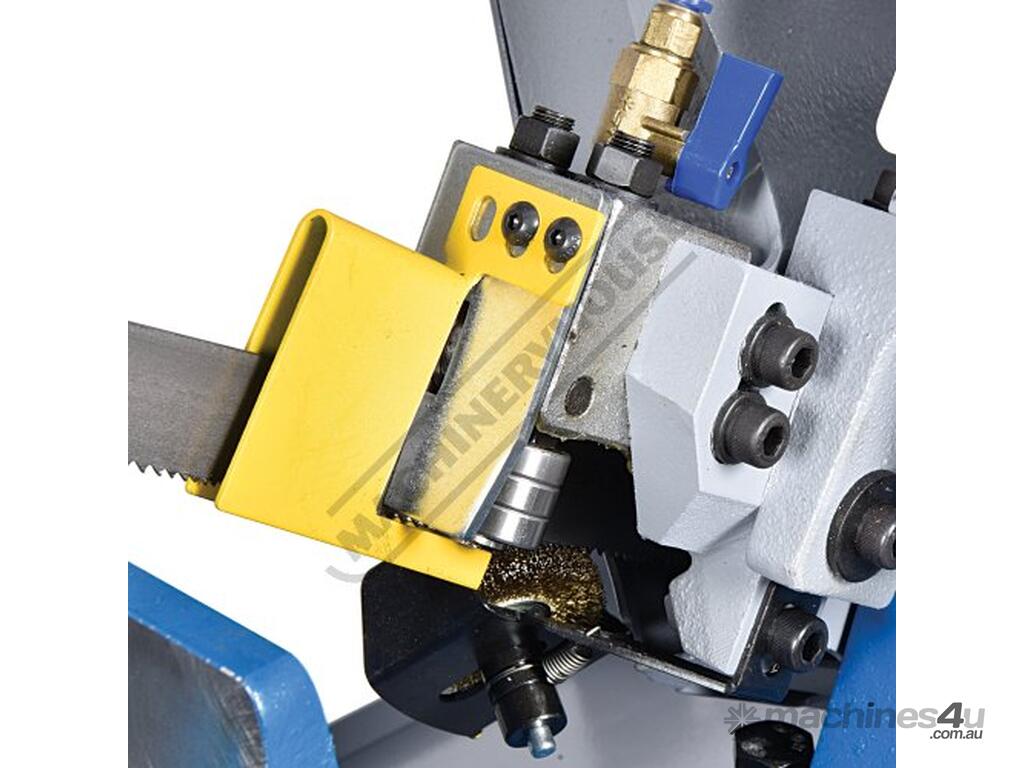

Ball bearing blade guides ensures minimal blade clearance wear & increases blade life due to less friction

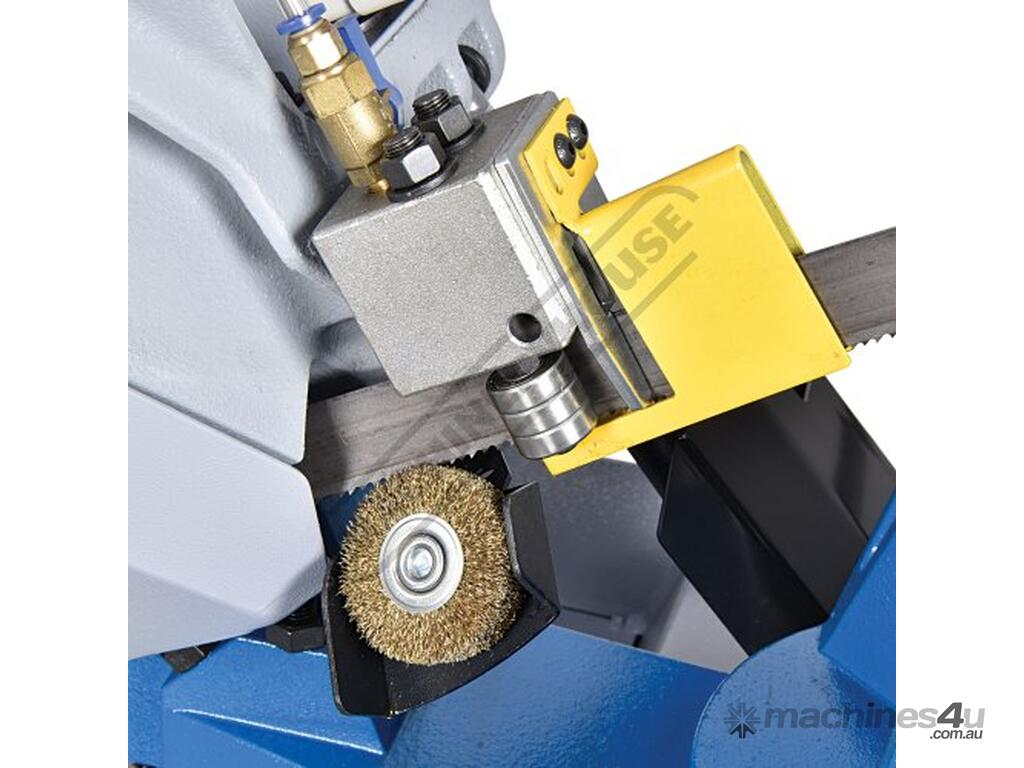

Blade cleaning brush incorporated into blade guide system

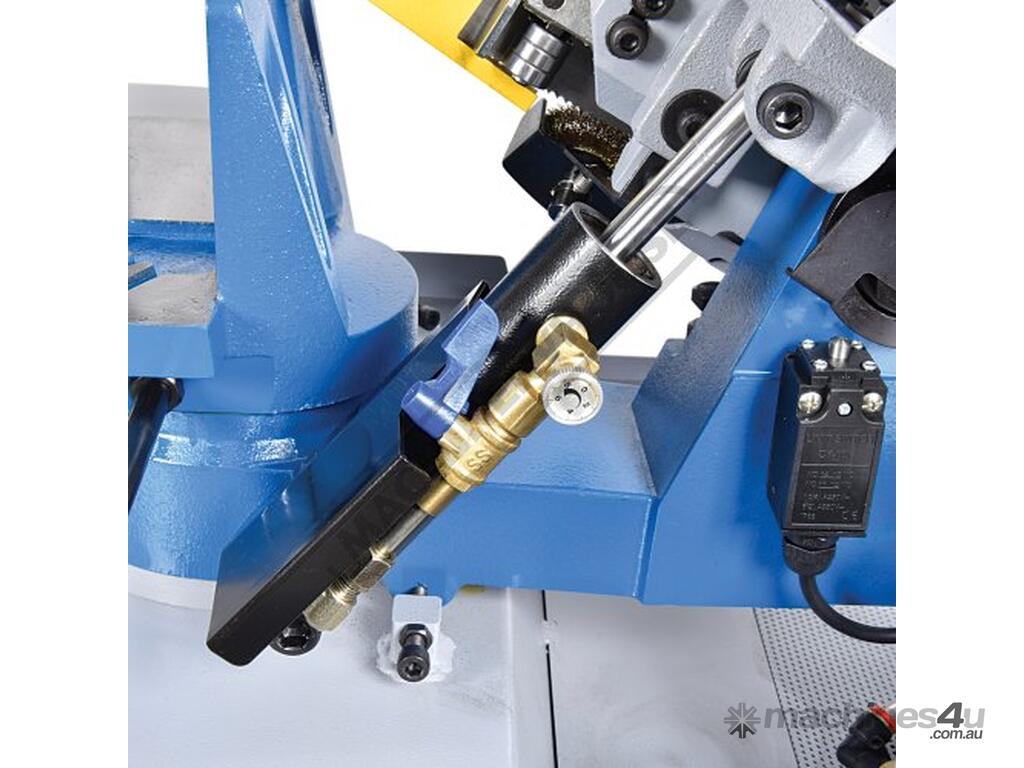

Adjustable hydraulic cylinder for auto feed
Vibration free low noise operation ensures clean & high precision cuts

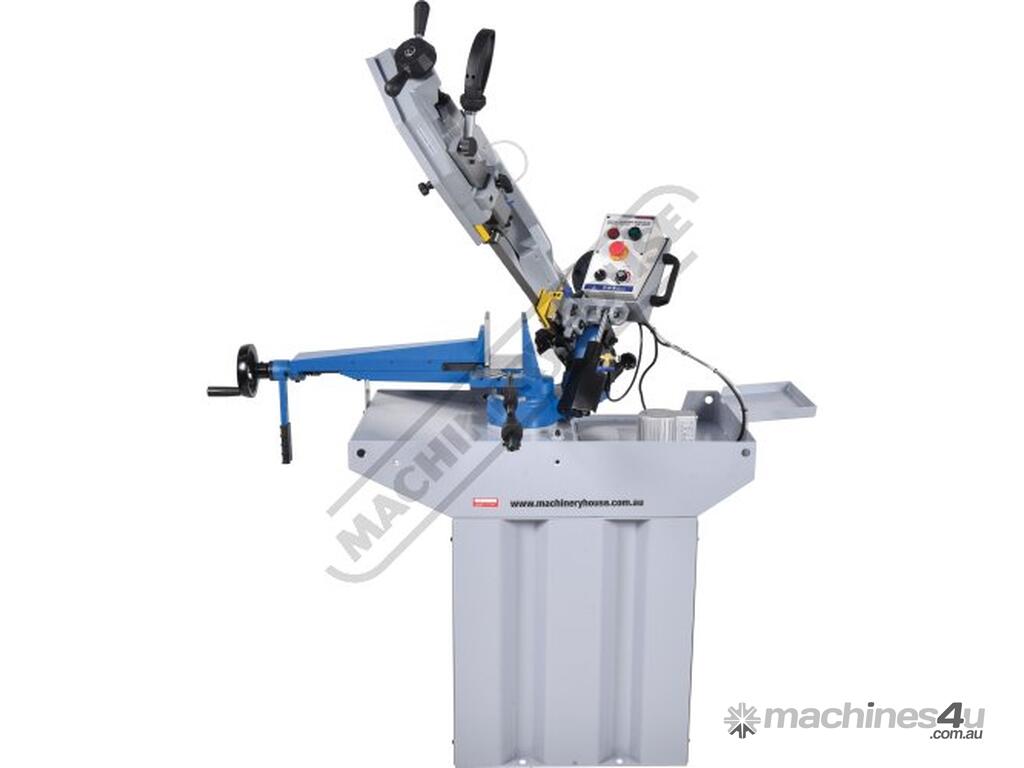

Machine stand with integrated cooling fitted as standard


Specifications:
ORDER CODE: B062V
MODEL: EB-260V
Operation Type: Swivel Head
Operation Type: ~
Round 90º (mm): 225
Round 45º (mm): 150
Round 60º (mm): 100
Square 90º (mm): 180
Square 45º (mm): 140
Square 60º (mm): 100
Rectangle (W x H) 90º (mm): 225 x 180
Rectangle (W x H) 45º (mm): 140 x 140
Rectangle (W x H) 60º (mm): 100 x 100
Coolant System: Yes
Table Working Height (mm): 950
Cutting Head Beam Type: Manual
Cutting Head Beam Return: Manual Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Manual - Quick Action
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min): Variable 20-90
Blade Size (L x W x T) (mm): 2480 x 27 x 0.9
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 200
