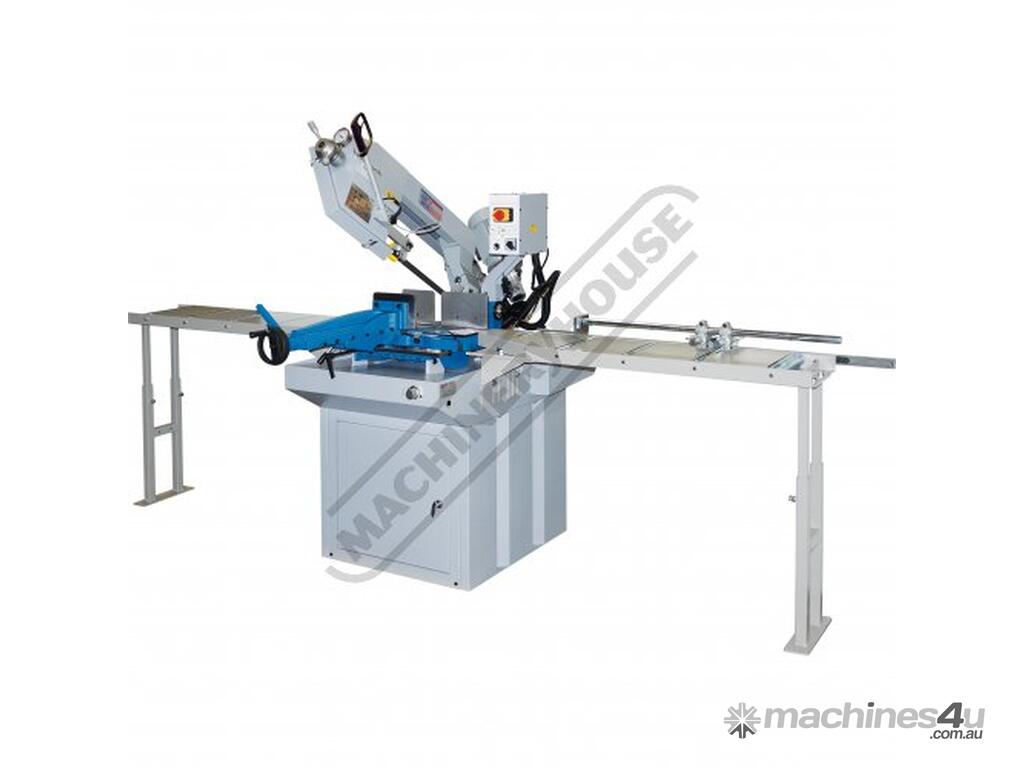

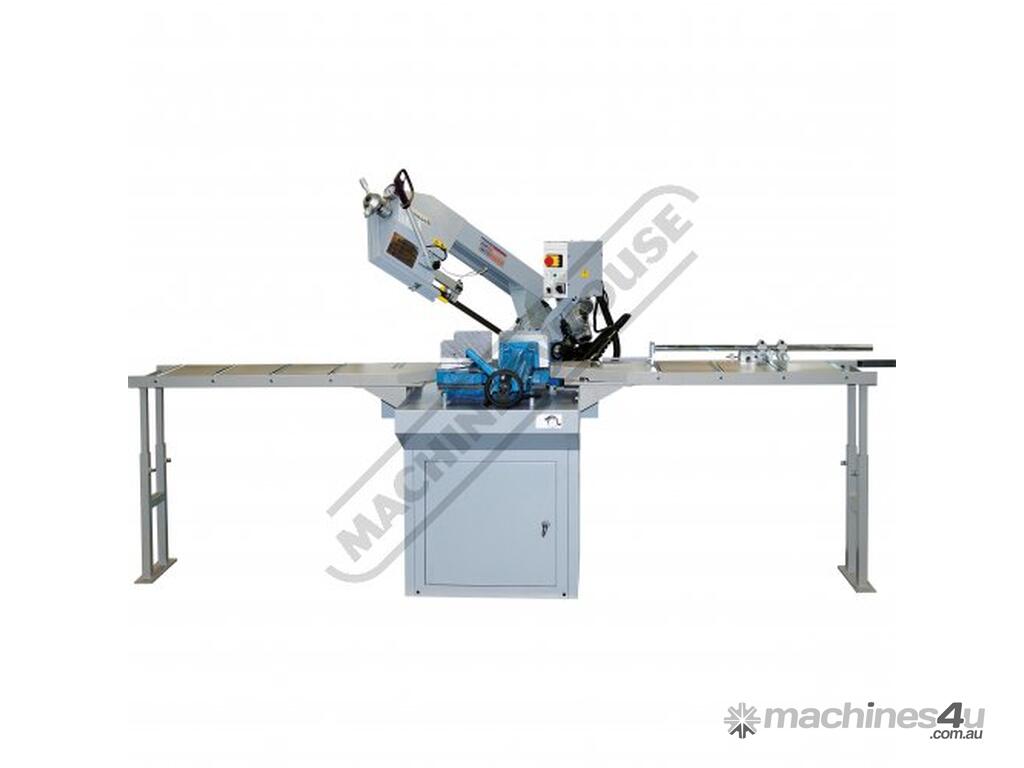

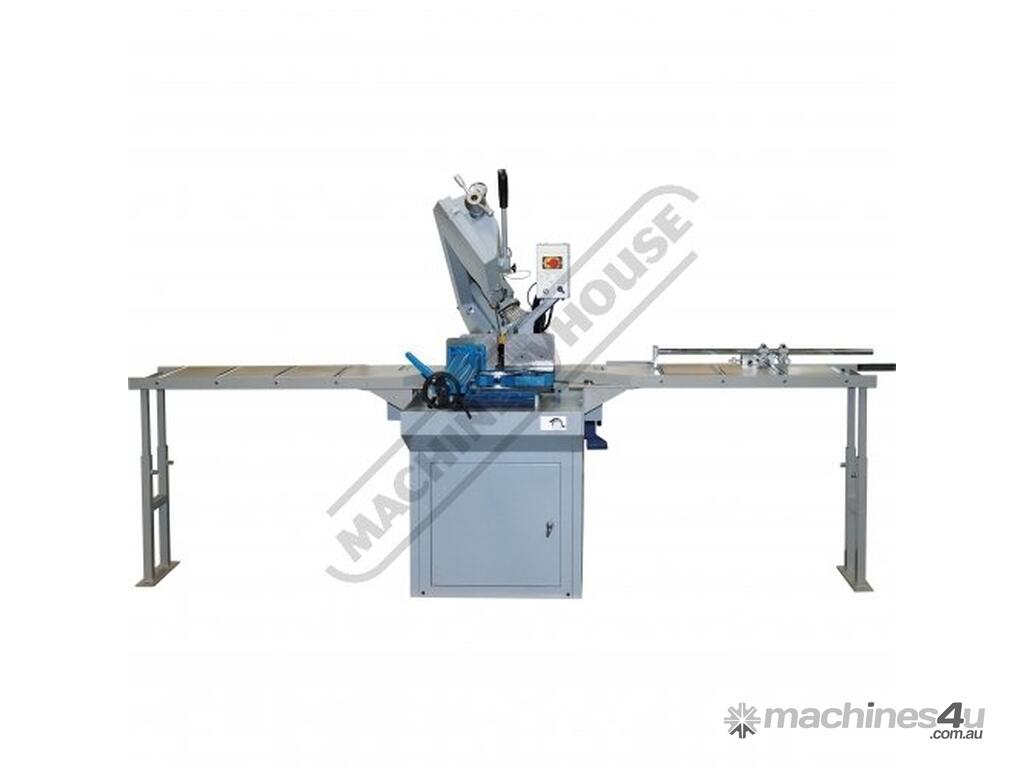

EB-330DSC Swivel Head-Dual Mitre Metal Cutting Band Saw with Conveyor System 2 Blade Speed 36 - 72mp

HAFCO-METALMASTER EB-330DSC Swivel Head-Dual Mitre Metal Cutting Band Saw with Conveyor System 2 Blade Speed 36 - 72mpm, Dual Mitre Cuts Up To 60º, Quick Action Material Clamp, Includes Hydraulic Downfeed Control & In & Out Feed Conveyor System 295 x 230mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B075

Features:
295 x 230mm rectangular capacity

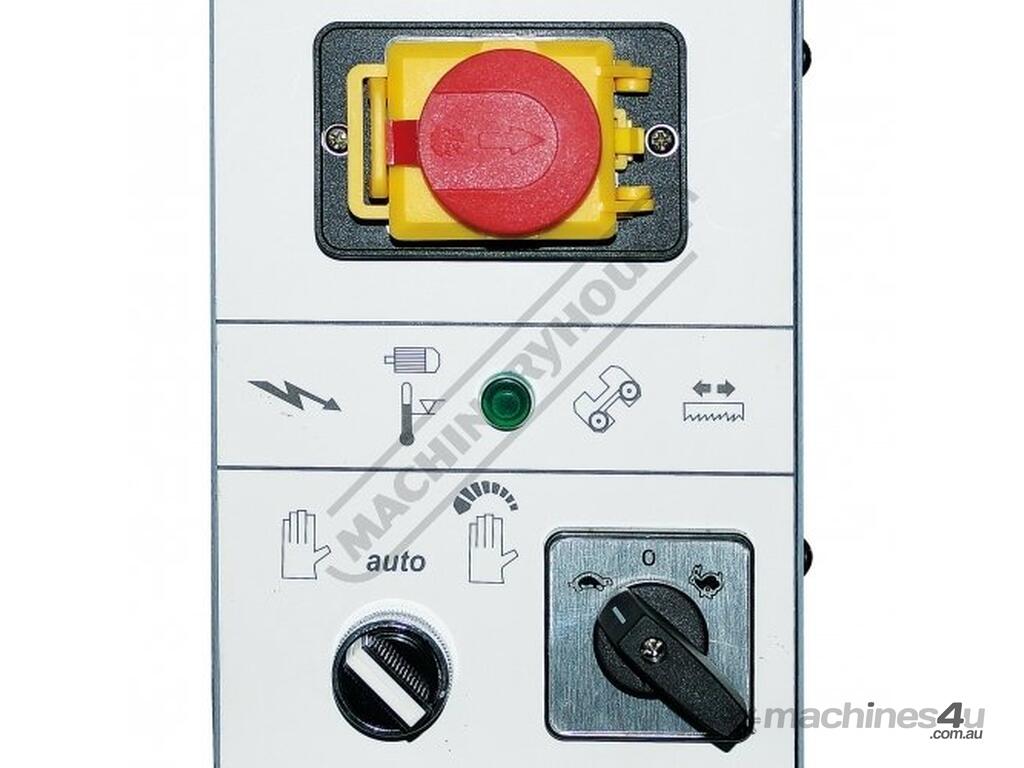

Control panel with "Auto" "Manual" & "Set-Up" modes
Unique rotating table swivels with the cutting head on ball bearings
Swivel head double mitre cut to 45º right & left 60º right

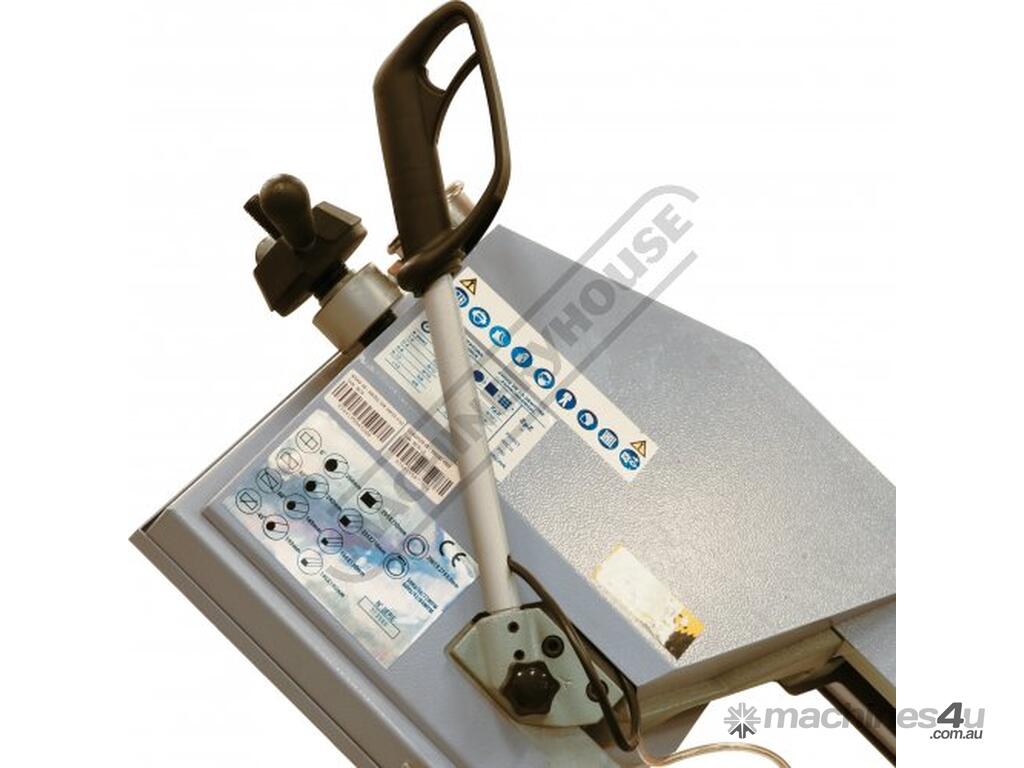

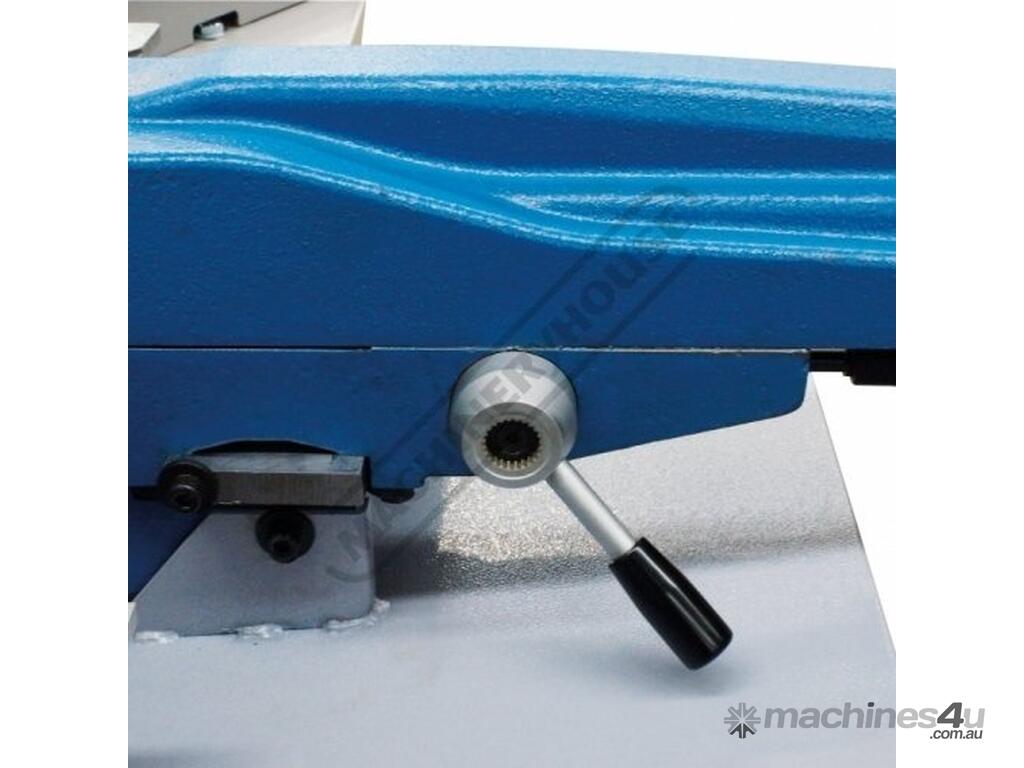

Quick action lock/release lever for swivel head
Swivel head incorporates rotating

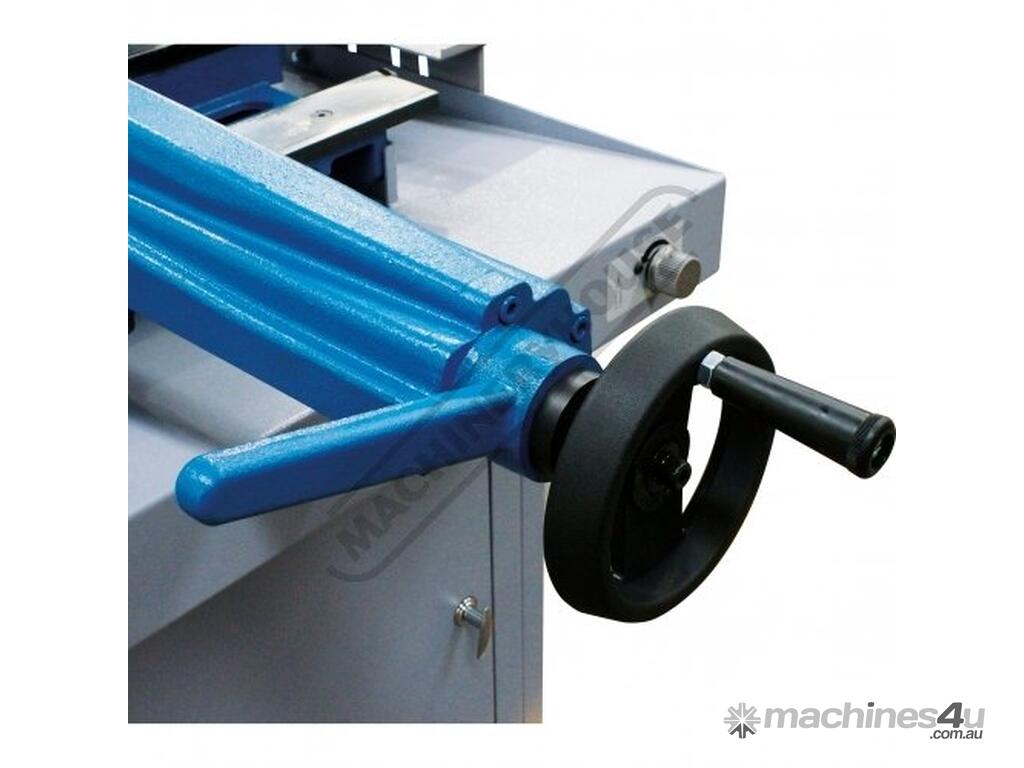

Quick action vice release to change opening & closing position
Quick-action clamping lever for repetition work

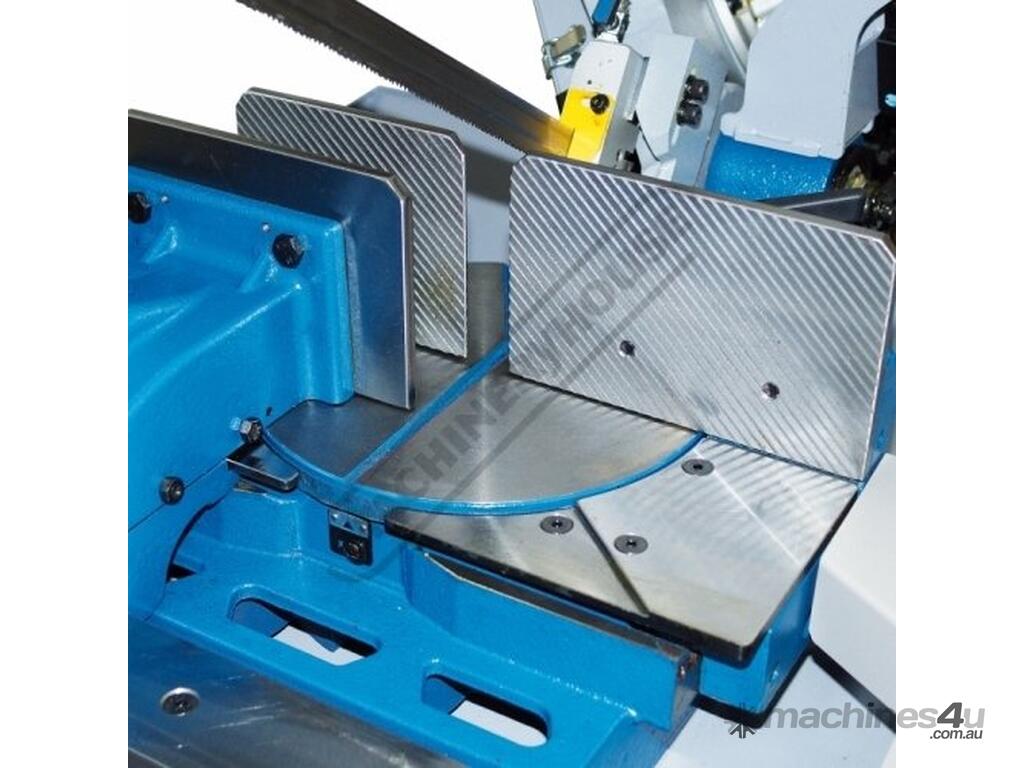

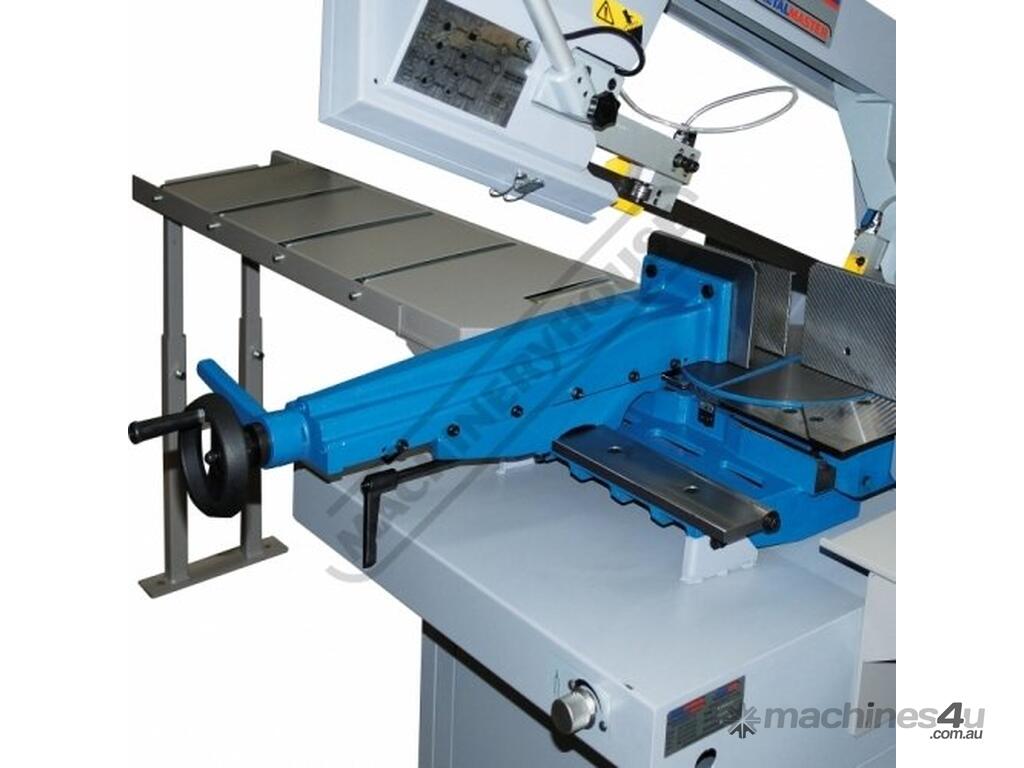

Unique sliding vice design for dual mitre operation

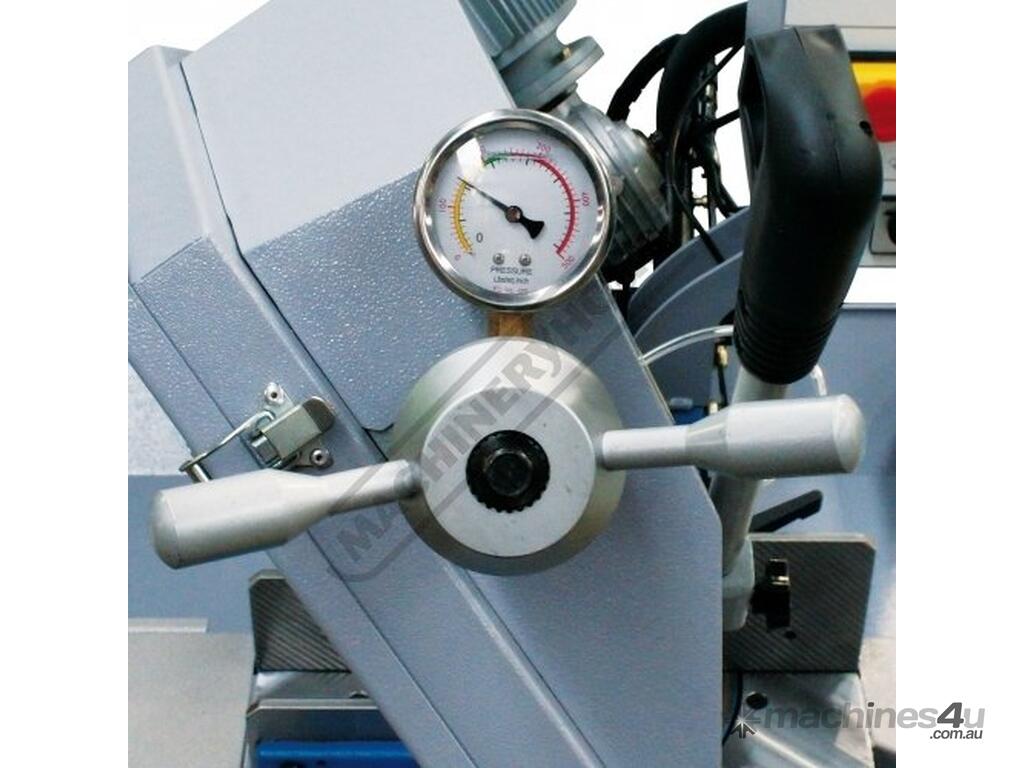

User friendly blade tension system with gauge
Larger cutting capacity than conventional cold saws
Adjustable length stop for repetition cutting

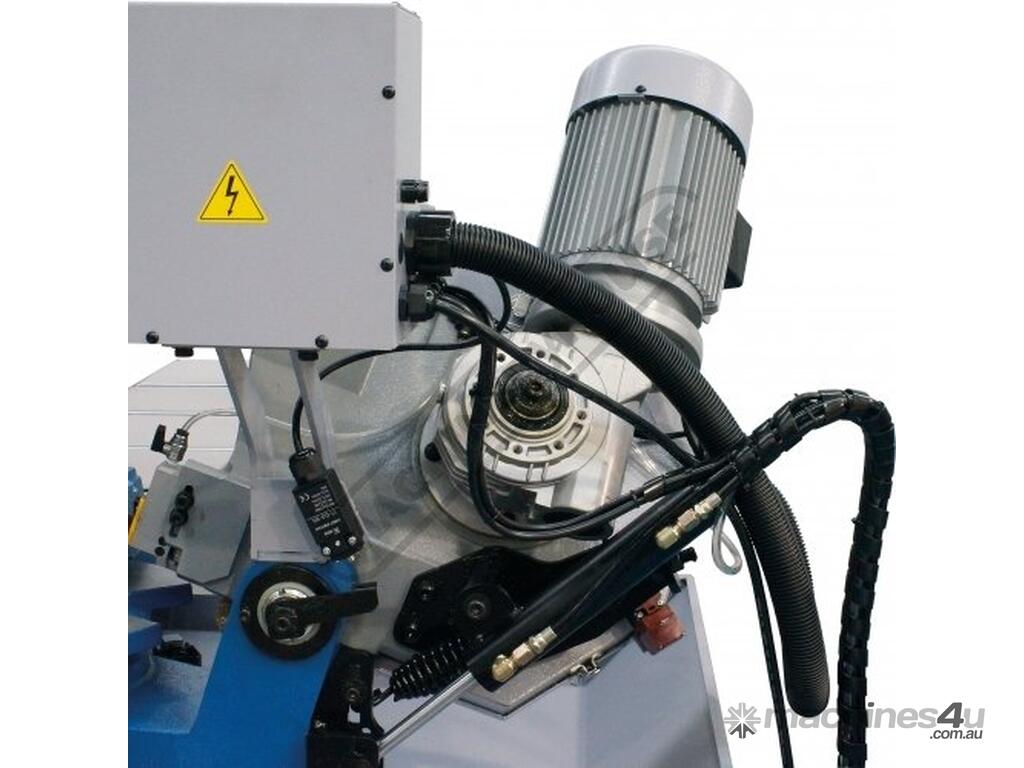

Heavy-duty gear drive system
2 x blade speeds 36 - 72mpm

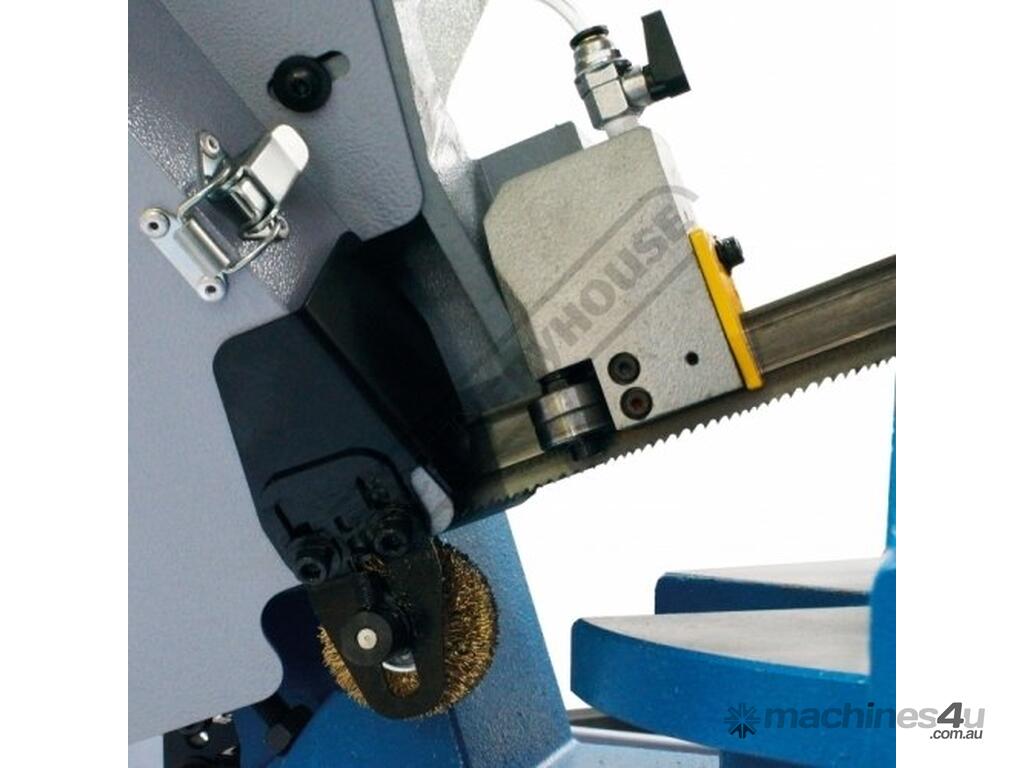

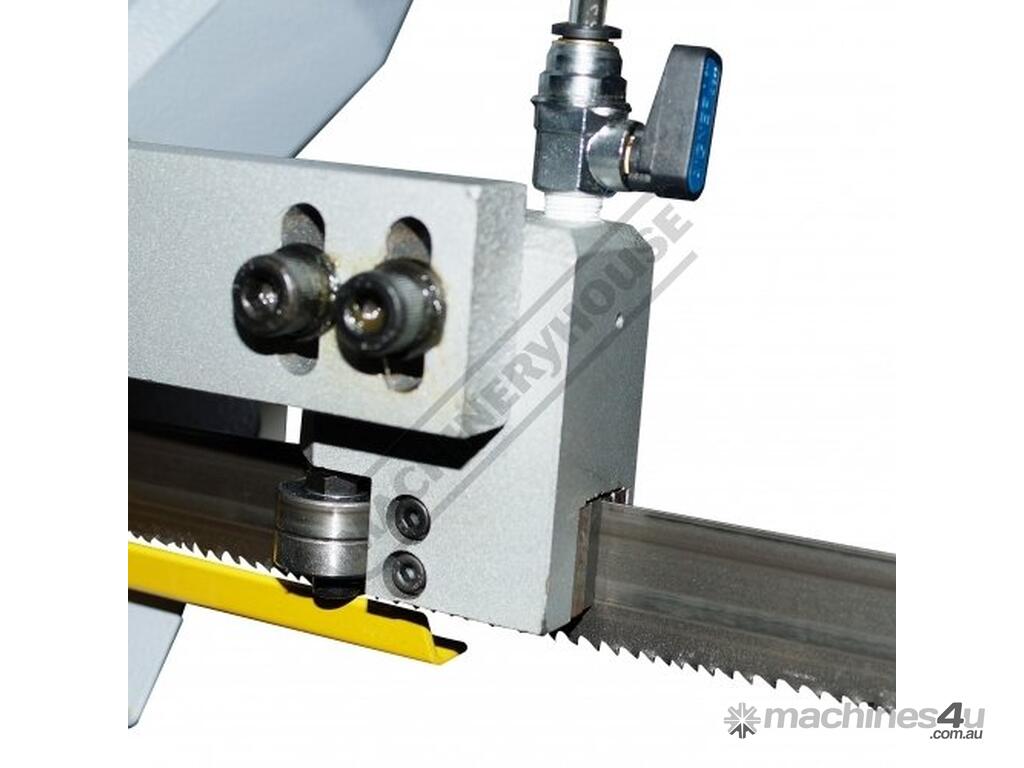

Ball bearing blade guides ensures minimal blade clearance wear and increases blade life due to less friction

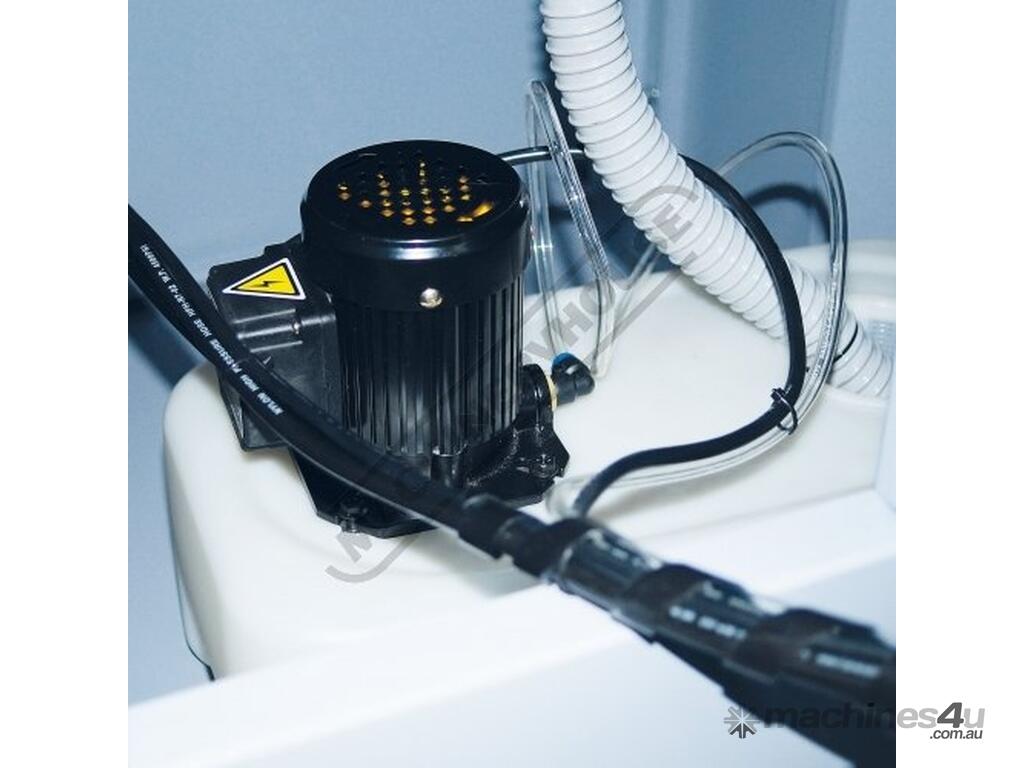

Coolant system for cutting efficiency and blade life

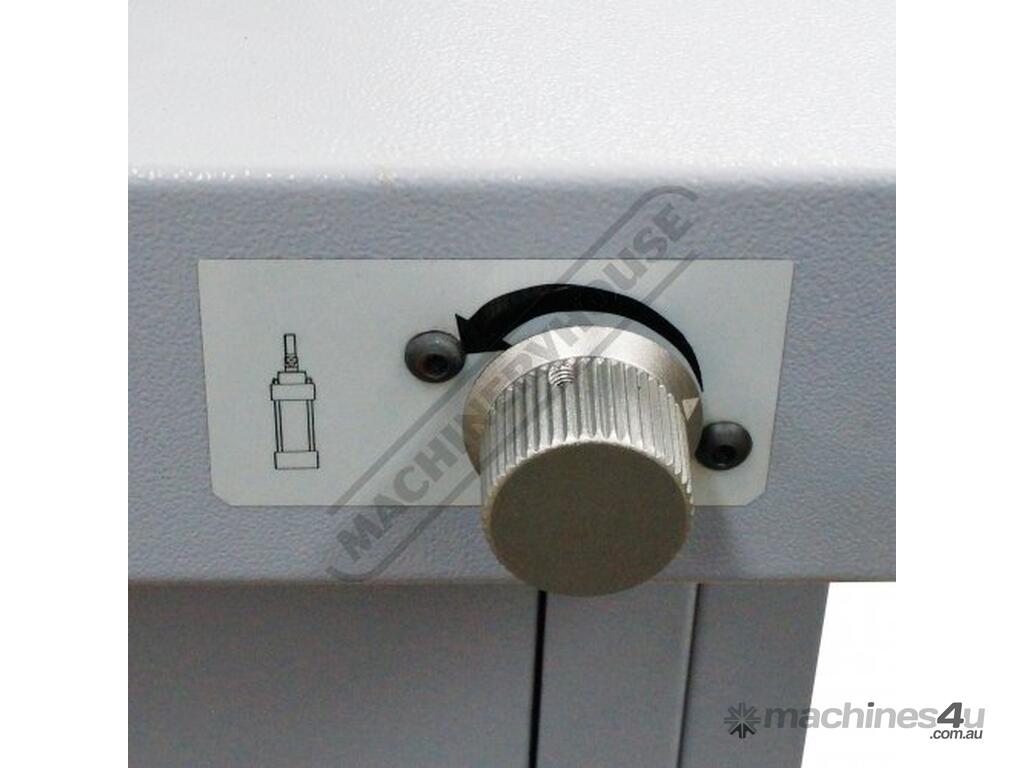

Adjustable hydraulic cylinder for auto feed
Vibration free low noise operation ensures clean & high precision cuts
Machine stand with integrated cooling fitted as standard
Made in Taiwan

Includes:

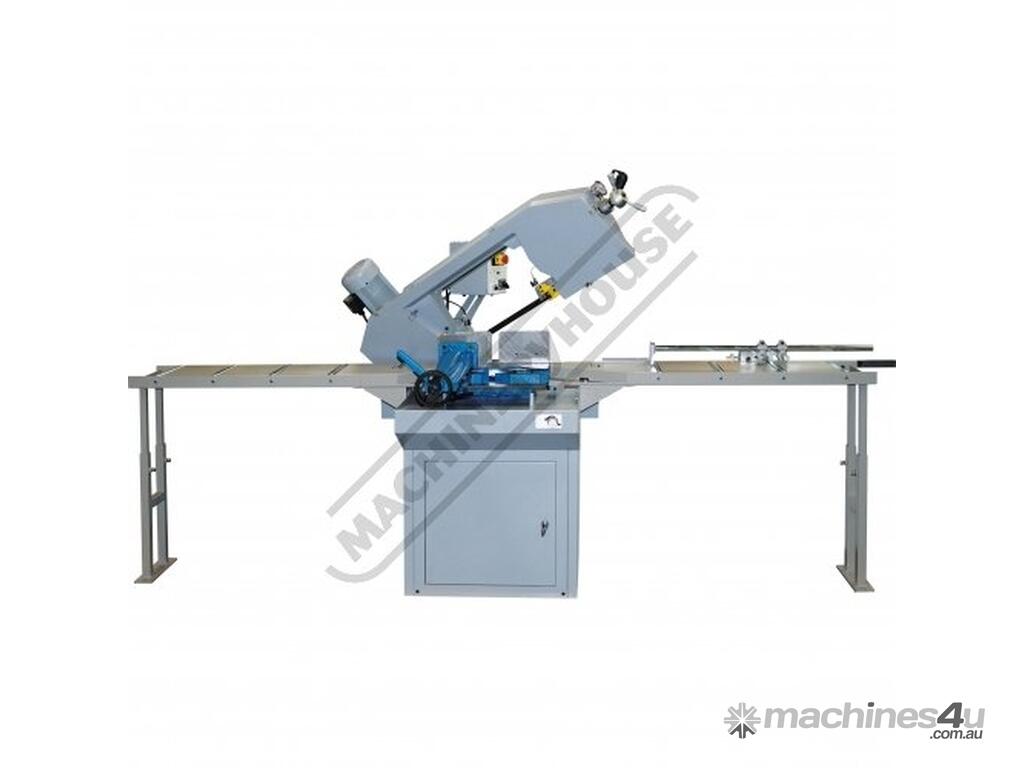

- In & out feed roller conveyor system with stands

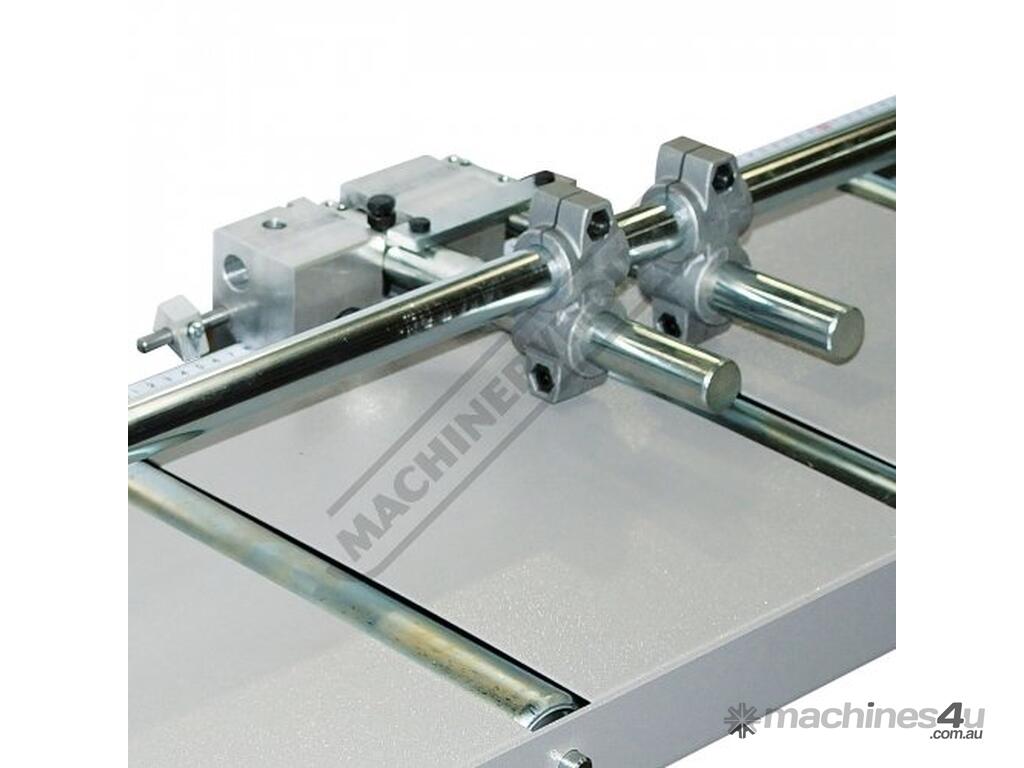

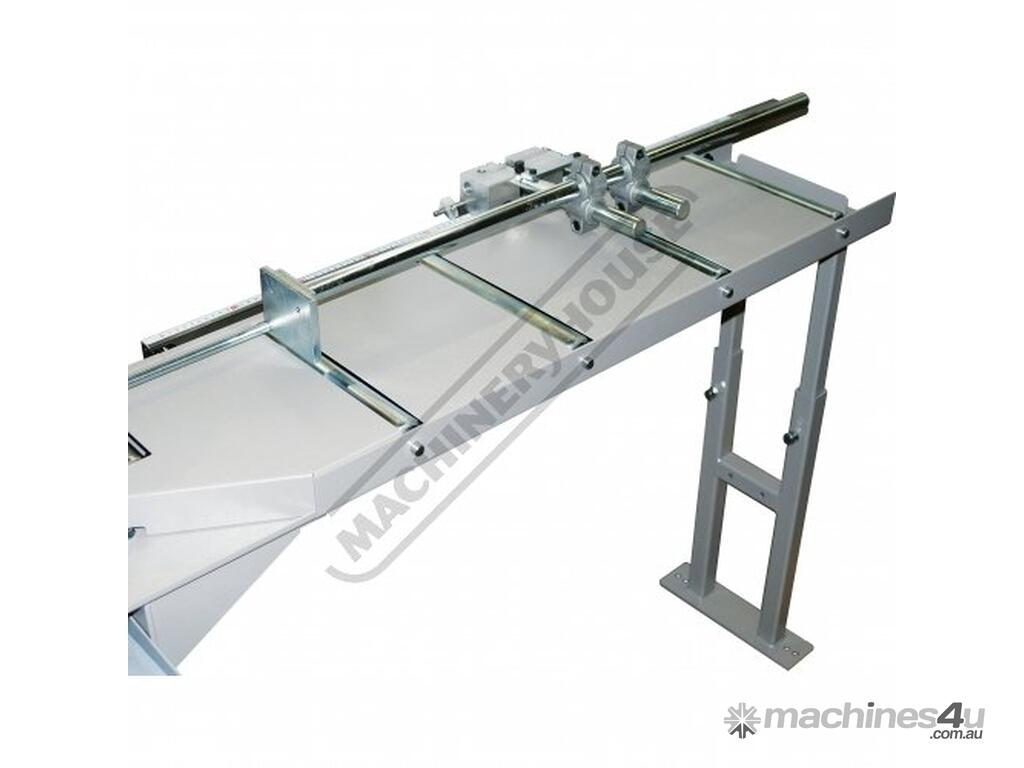

- Material length stop on ball bearing slide with flip over design



Specifications:
ORDER CODE: B075
MODEL: EB-330DSC
Operation Type: Swivel Head - Dual Mitre
Operation Type: ~
Round 90º (mm): 260
Round 45º (mm): 240
Round 60º (mm): 160
Square 90º (mm): 230
Square 45º (mm): 210
Square 60º (mm): 130
Rectangle (W x H) 90º (mm): 295 x 230
Rectangle (W x H) 45º (mm): 225 x 210
Rectangle (W x H) 60º (mm): 160 x 130
Coolant System: Yes
Table Working Height (mm): 950
Cutting Head Beam Type: Manual
Cutting Head Beam Return: Manual Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Manual - Quick Action
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min): 36, 72
Blade Size (L x W x T) (mm): 2965 x 27 x 0.9
Motor Power (kW / hp): 1.2 / 1.6
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 404
