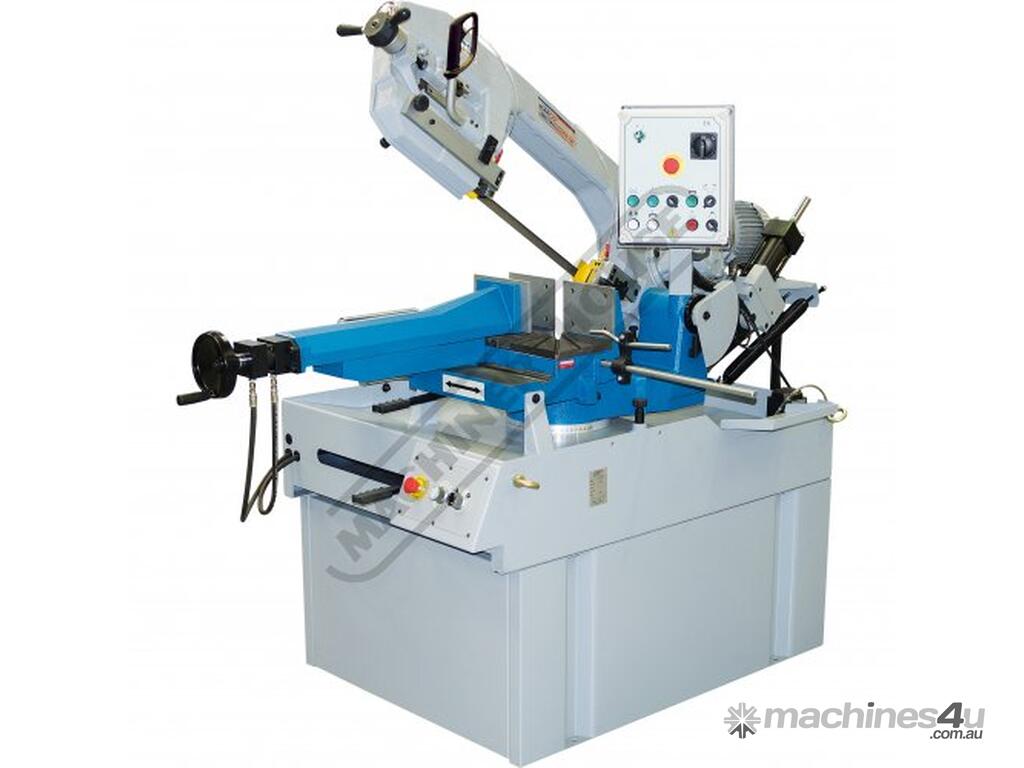

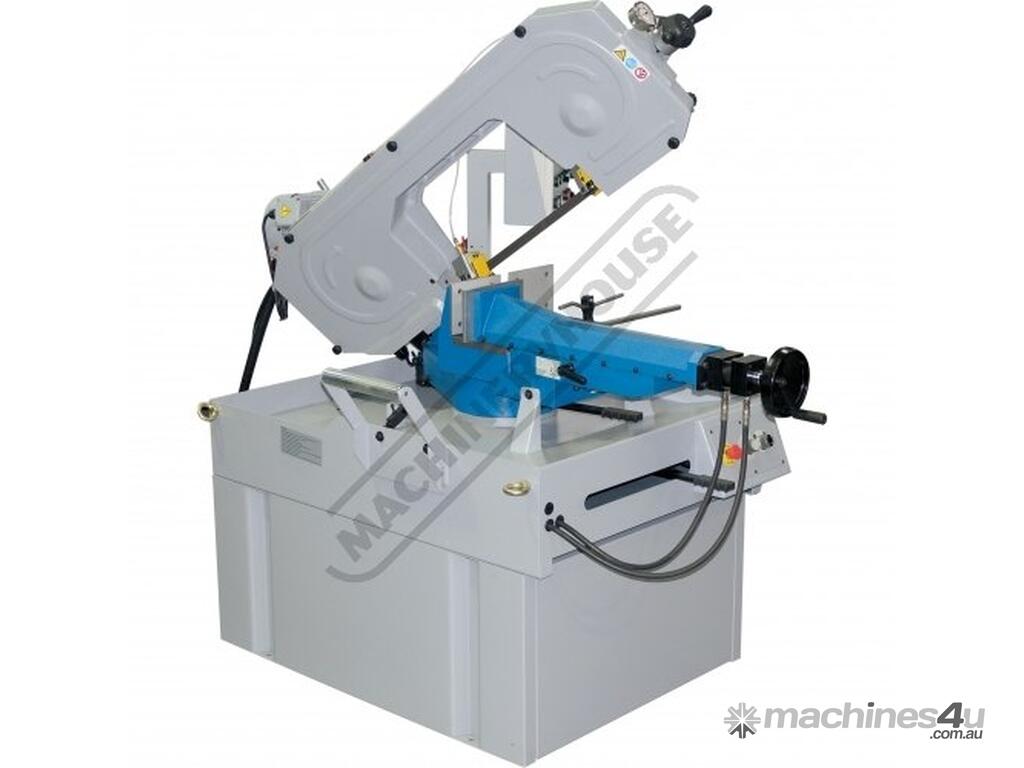

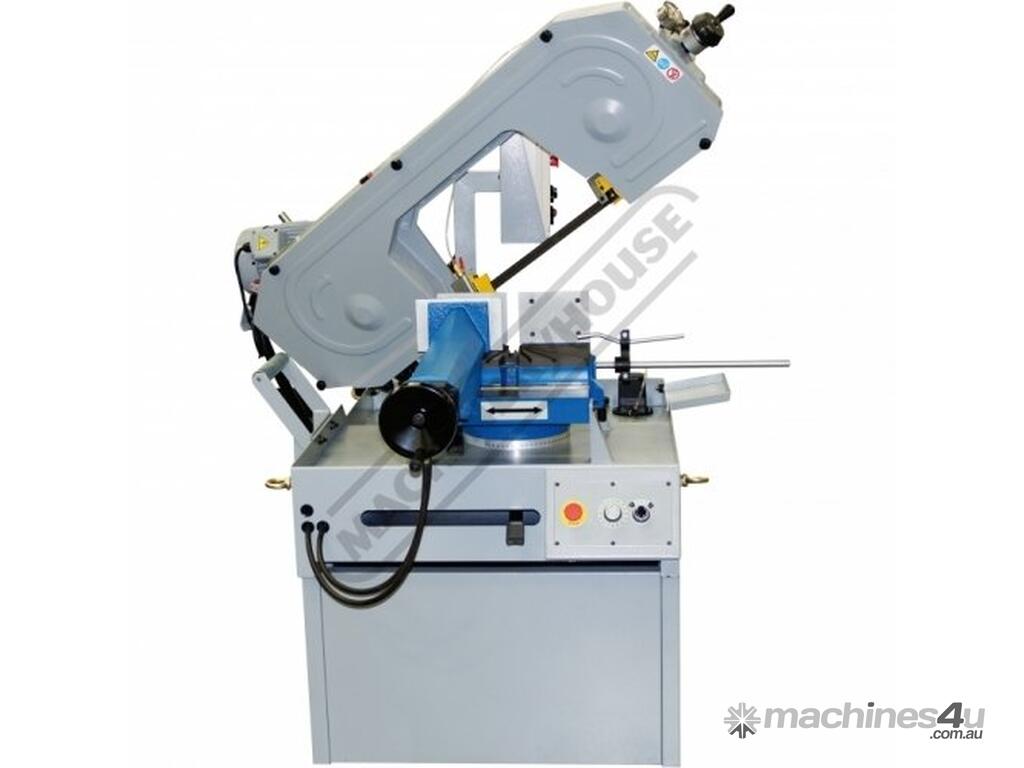

EB-351DSA Semi - Automatic, Swivel Head-Dual Mitre Metal Cutting Band Saw 2 Blade Speed 36 - 72mpm,

HAFCO-METALMASTER EB-351DSA Semi - Automatic, Swivel Head-Dual Mitre Metal Cutting Band Saw 2 Blade Speed 36 - 72mpm, Dual Mitre Cuts Up To 60º, Hydraulic Vice Clamping & Includes Hydraulic Downfeed Control 345 x 205mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B072

Manufactured in Taiwan

Semi-Automatic operation

Features:
345 x 205mm (W x H) rectangular capacity
Semi-automatic operation automatic arm rise after completion of cut

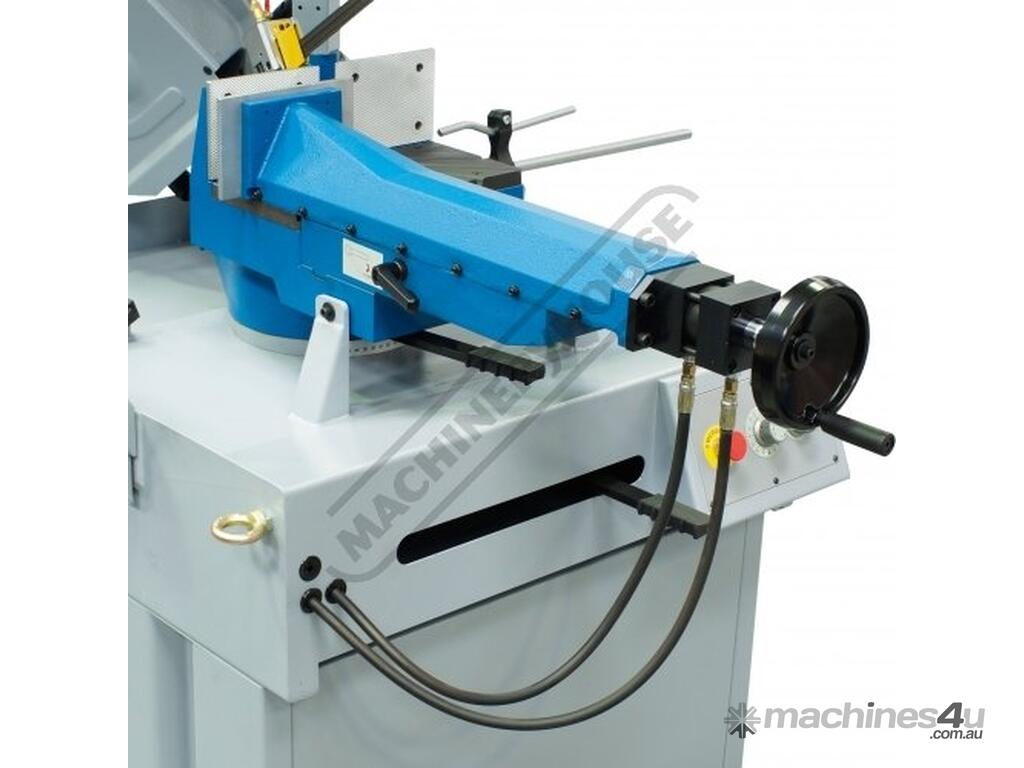

Automatic hydraulic clamping vice
Larger cutting capacity than conventional cold saws

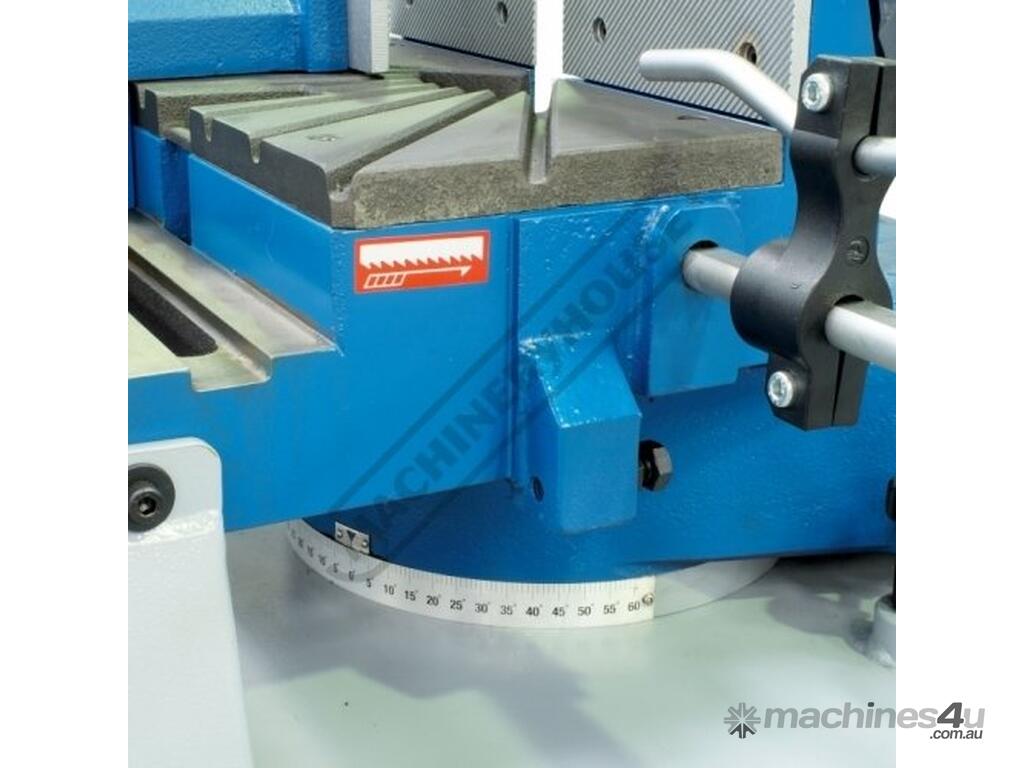

Swivel head double mitre cut to 45º right & left 60º right
Quick action lock/release lever for swivel head

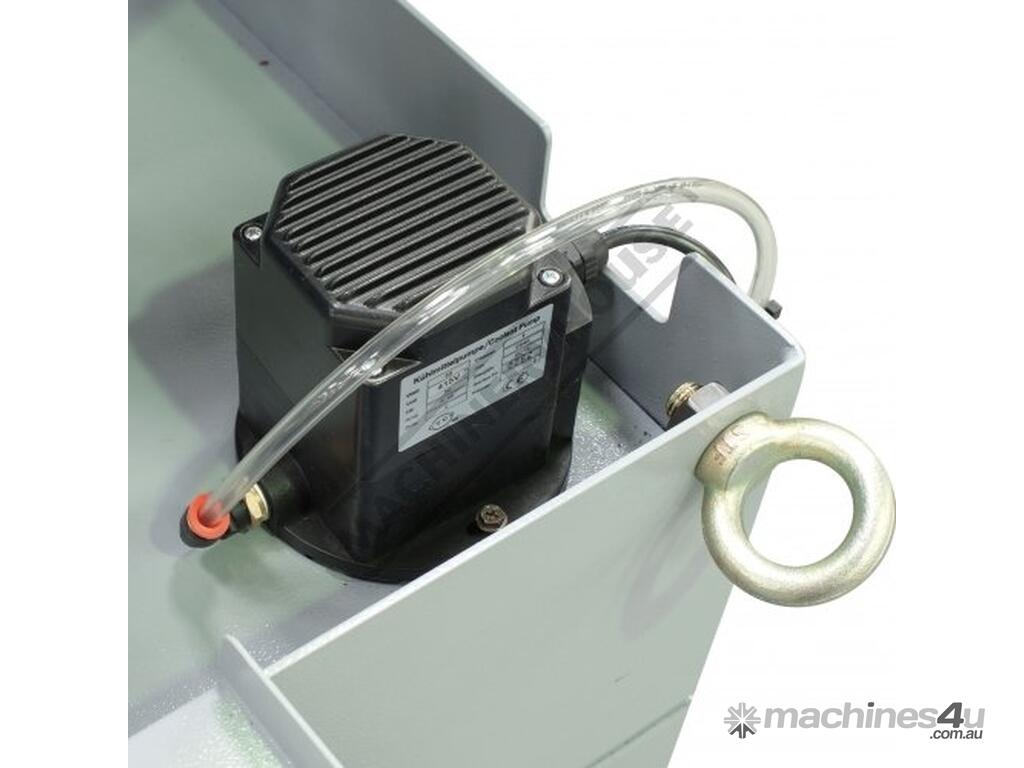

Coolant system for cutting efficiency and blade life

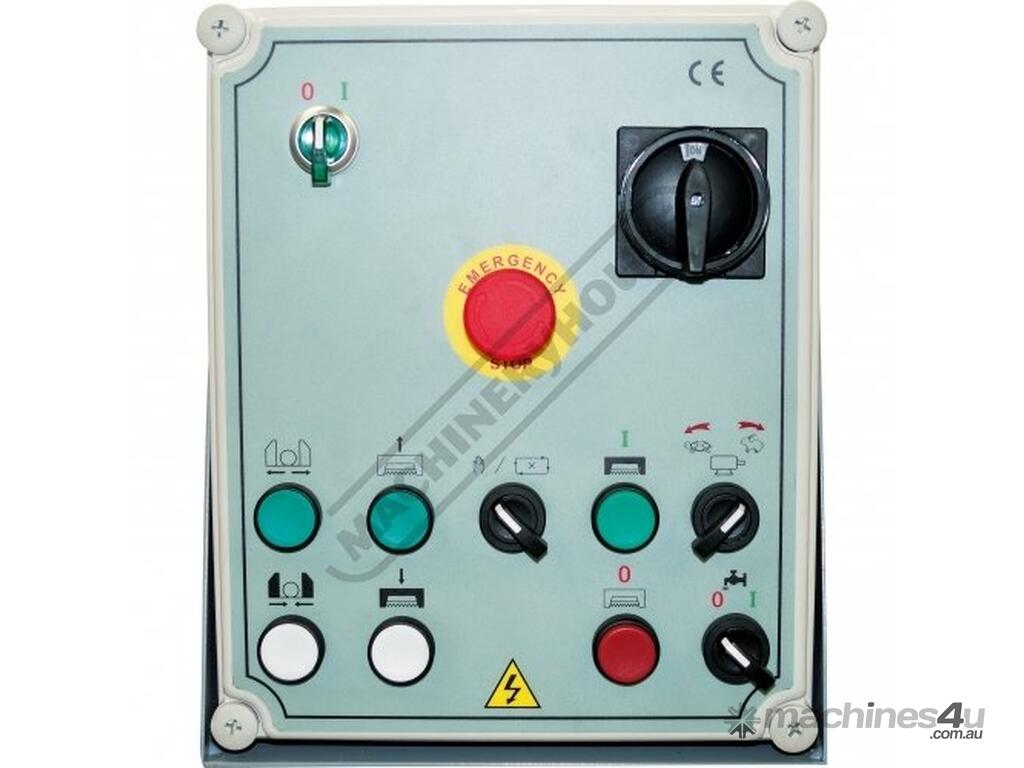

Control panel mounted for easy access

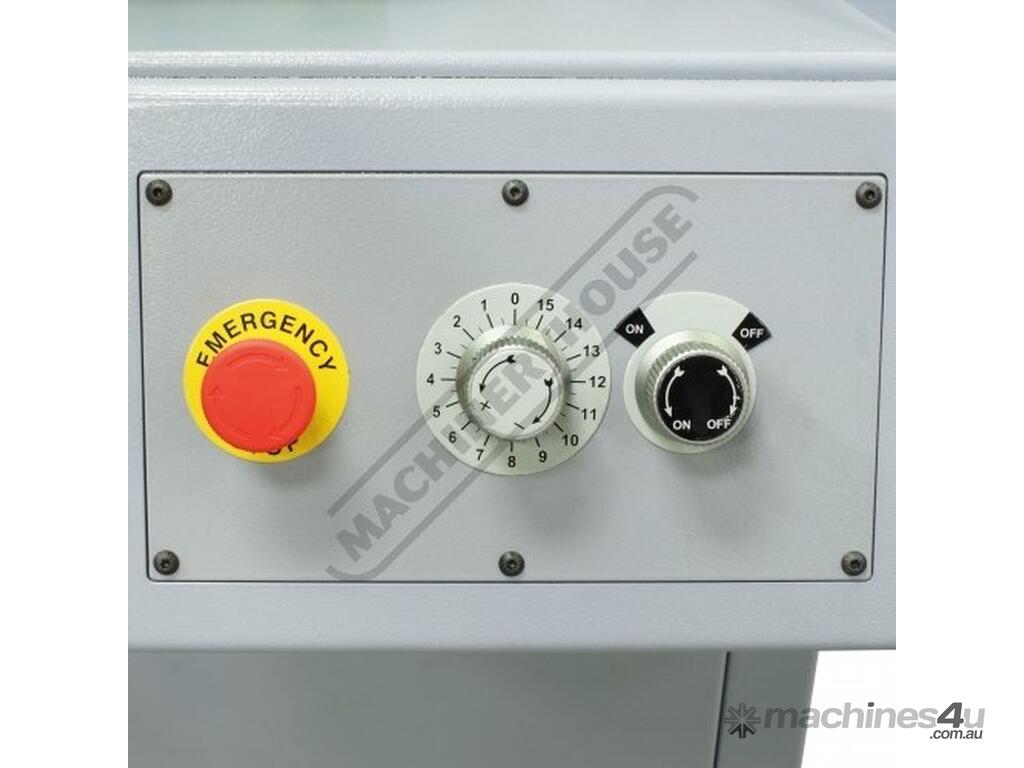

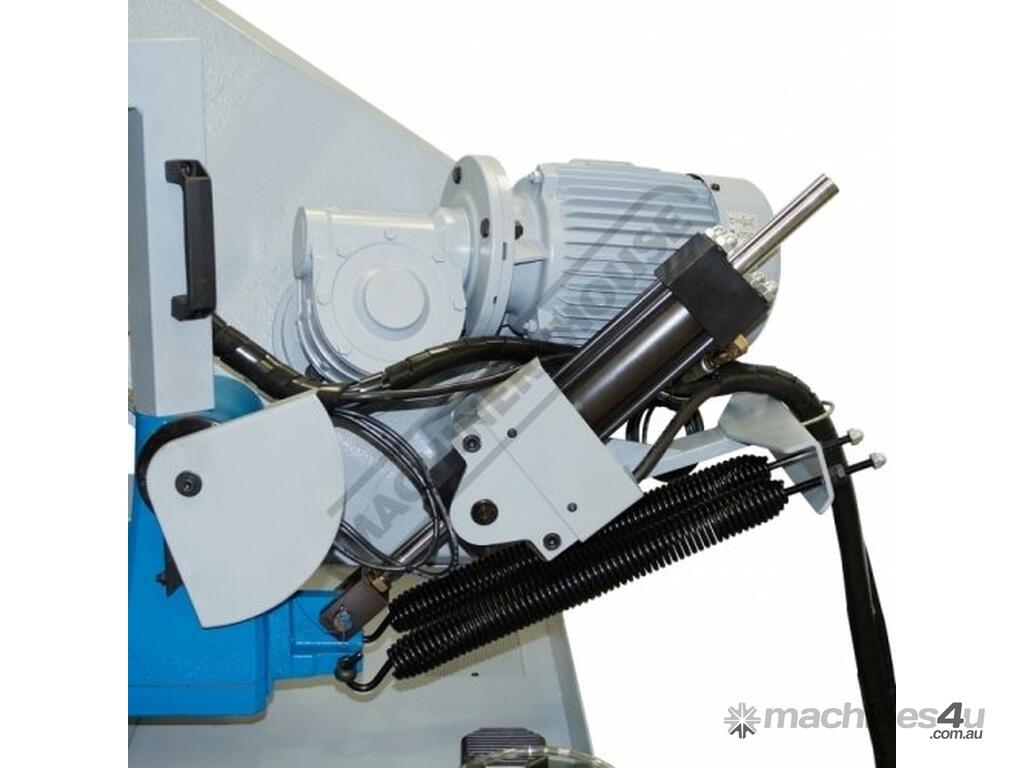

Adjustable hydraulic cylinder for auto feed

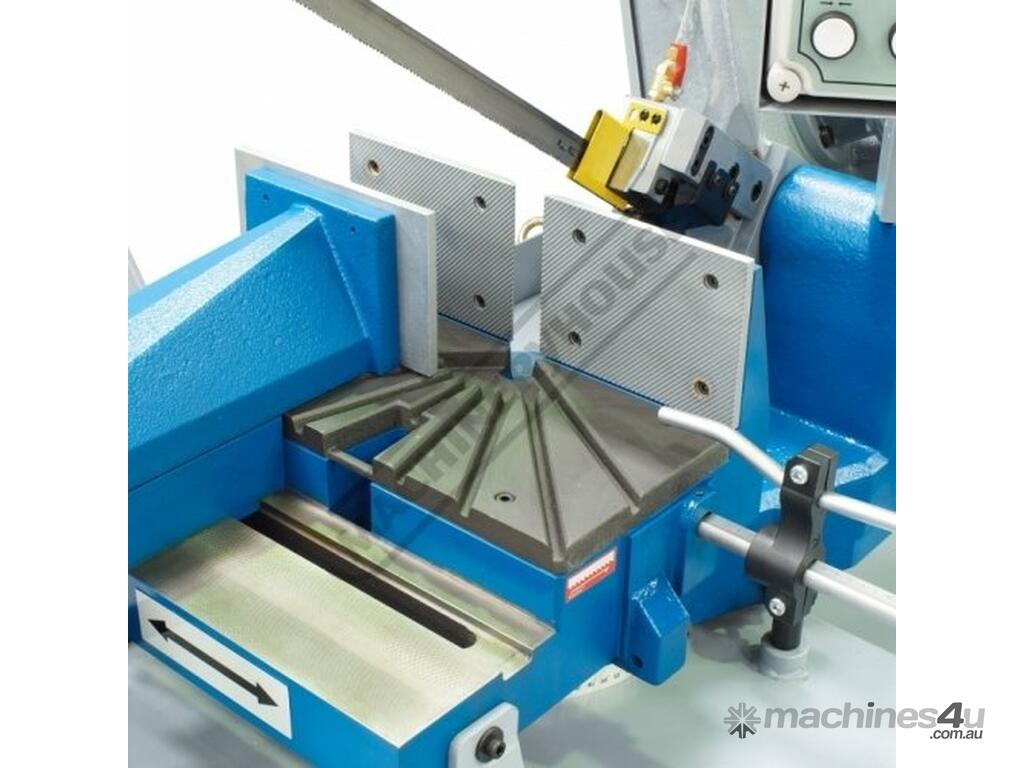

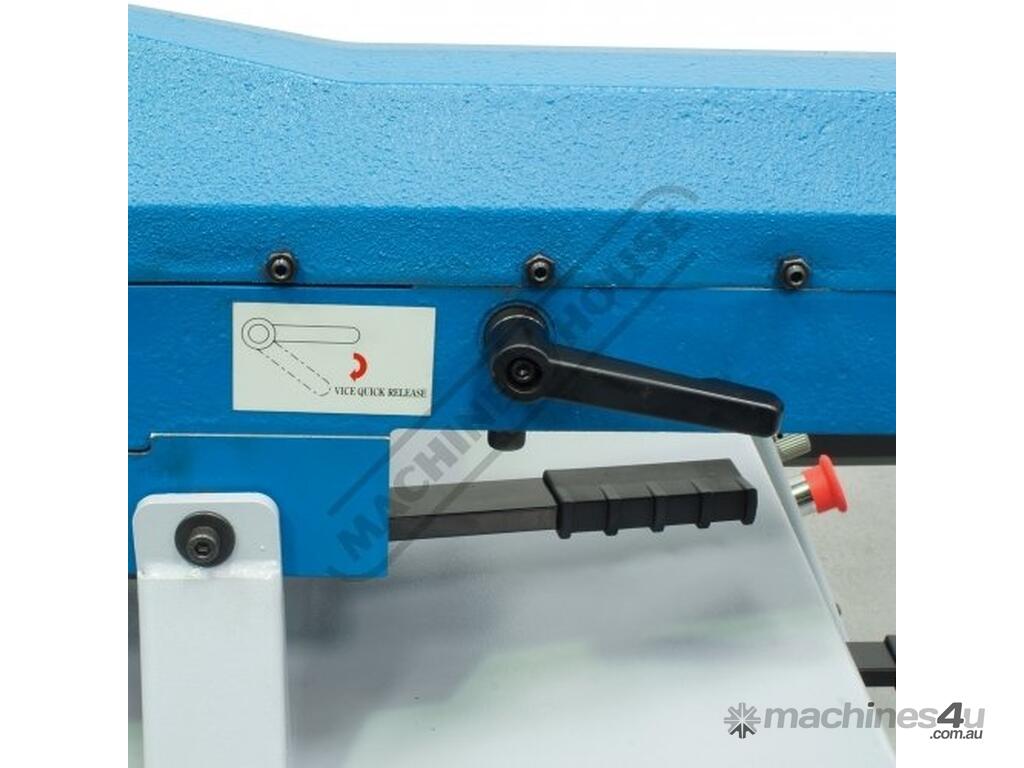

Unique sliding vice design for dual mitre operation
2-speed motor enabling blade speeds of 36 & 72mpm

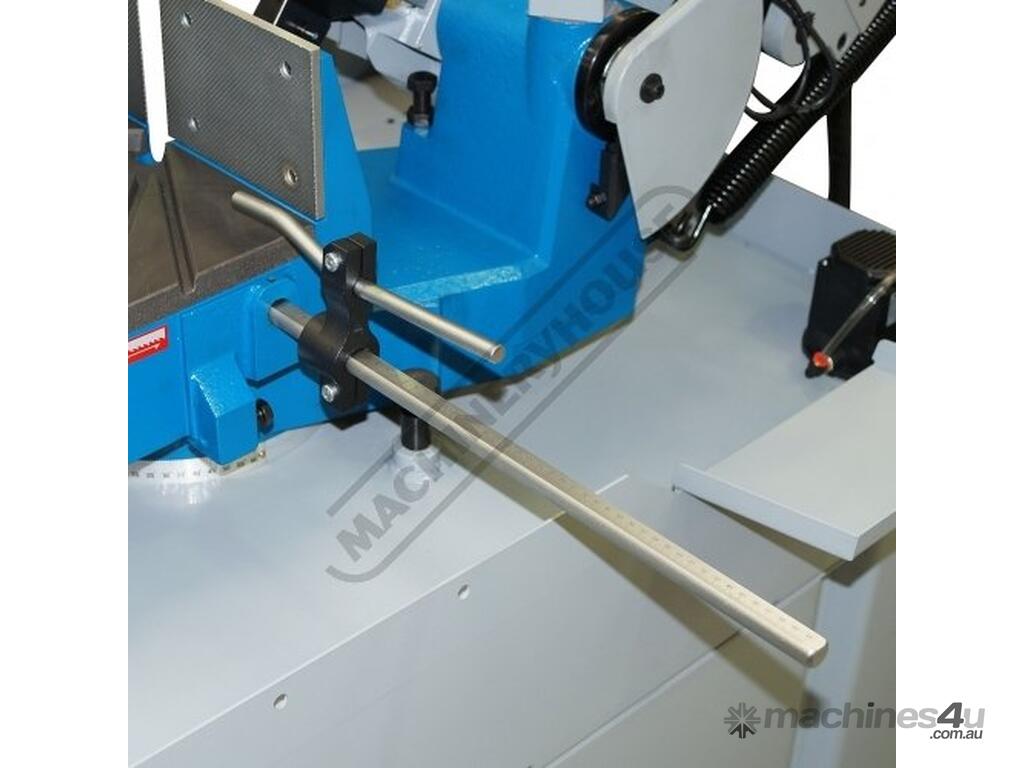

Adjustable length stop for repetition cutting

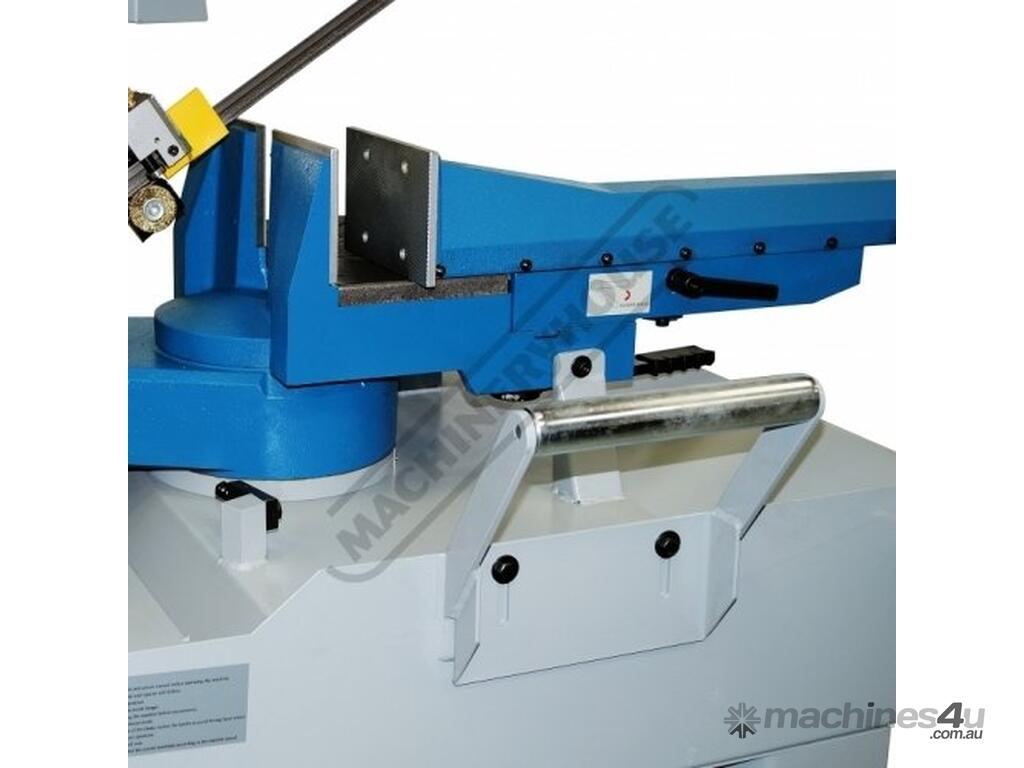

Input support roller for long stock
Heavy-duty gear drive system

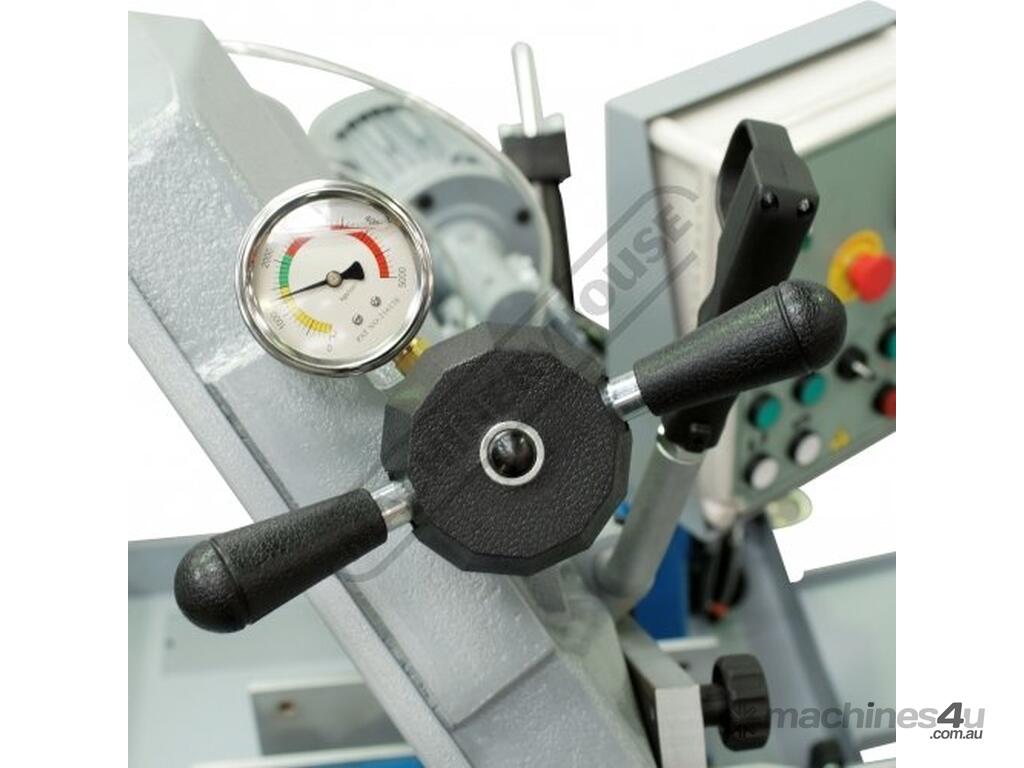

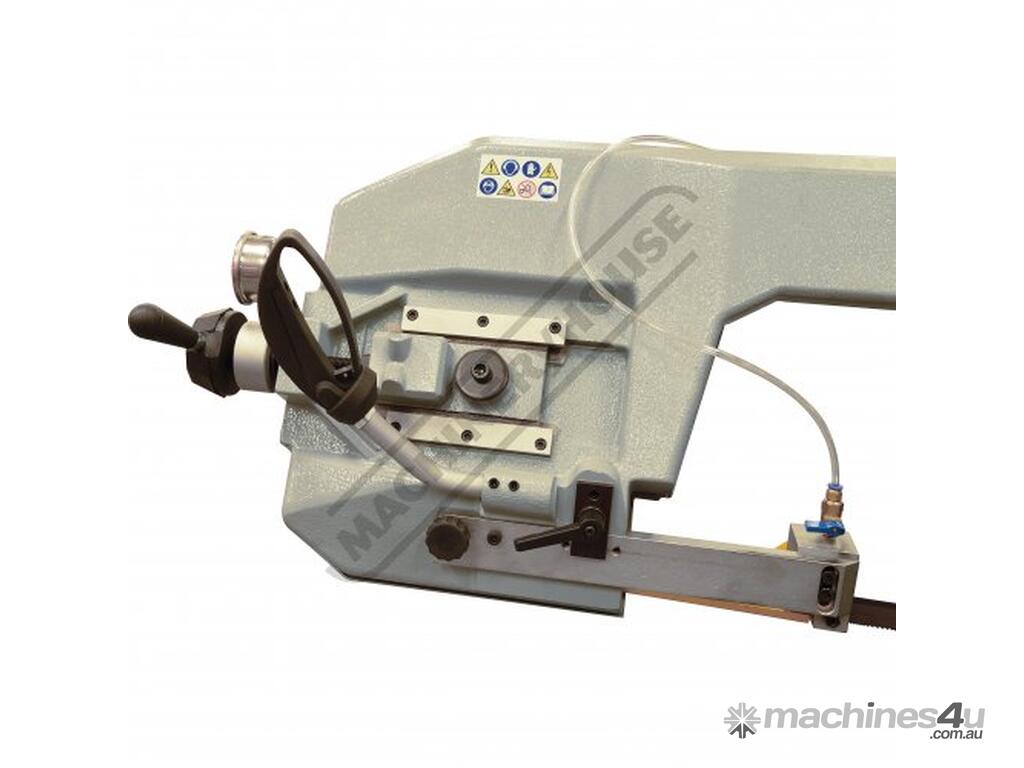

User friendly blade tension system with gauge

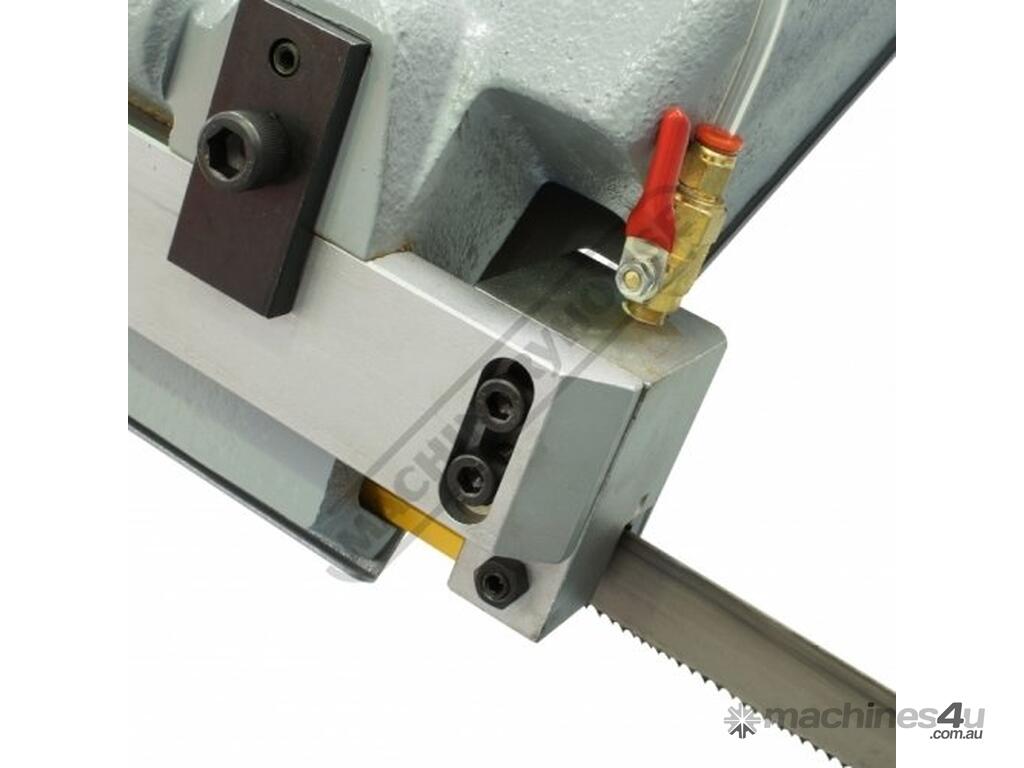

Ball bearing blade guides ensures minimal blade clearance wear & increases blade life due to less friction

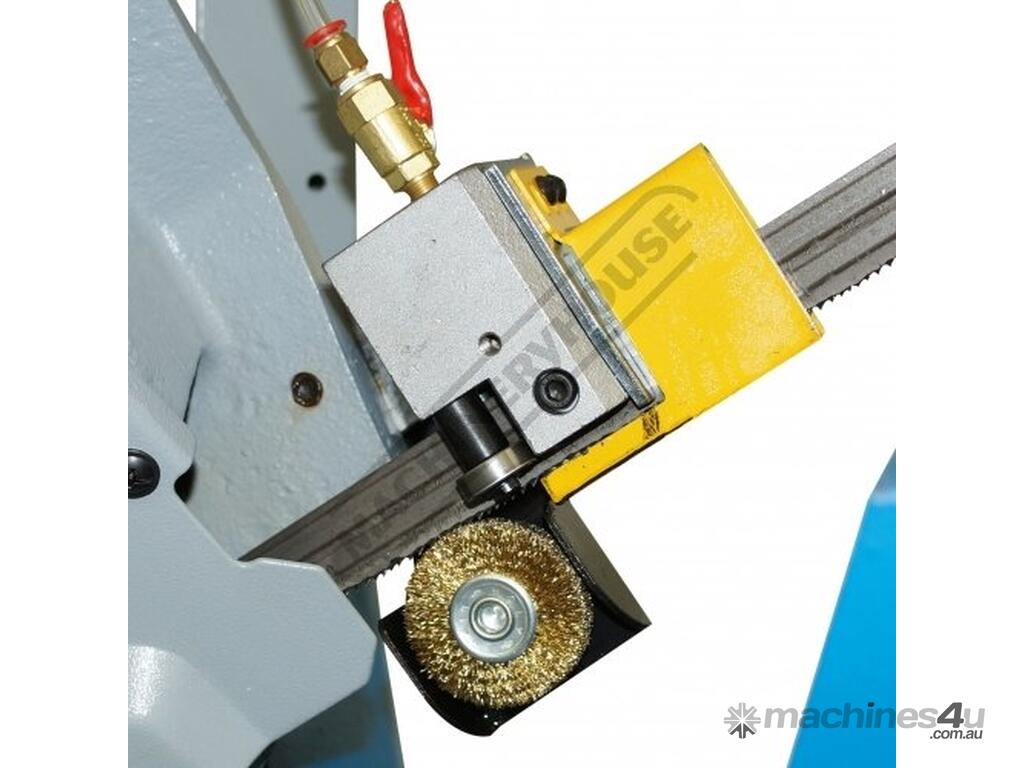

Blade cleaning brush incorporated into blade guide system
Vibration free low noise operation ensures clean & high precision cuts
Machine stand with integrated cooling fitted as standard
Made in Taiwan


Specifications:
ORDER CODE: B072
MODEL: EB-351DSA
Operation Type: Swivel Head - Dual Mitre
Operation Type: Semi - Automatic
Round 90º (mm): 270
Round 45º (mm): 230
Round 60º (mm): 135
Square 90º (mm): 260
Square 45º (mm): 210
Square 60º (mm): 150
Rectangle (W x H) 90º (mm): 345 x 205
Rectangle (W x H) 45º (mm): 230 x 150
Rectangle (W x H) 60º (mm): 135 x 135
Coolant System: Yes
Table Working Height (mm): 950
Cutting Head Beam Type: Semi-Automatic
Cutting Head Beam Return: Auto-Hydraulic Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Automatic-Hydraulic
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min): 36-72
Blade Size (L x W x T) (mm): 2925 x 27 x 0.9
Motor Power (kW / hp): 1.87 / 2.5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 650
