EMPTY CONTAINER
CVS FERRARI was founded in 1974 and since over 40 years offers a wide range of high quality and innovative heavy Capacity: liftrucks and reach stackers for container handling and industrial applications.
Since December 2016 the renown BP Sideloaders are also part of the CVS FERRARI product portfolio, along with many own designed and made attachments that turn the CVS FERRARI machines into the ideal solution for many heavy or special material handling requirements.CVS FERRARI builds 100% of its products in two modern factories located in Italy in full compliance with the most advanced international standards for quality, safety and environmental protection.
Our business formula is all about uncompromised quality, total control of the industry key technology and effortless product support. We use the most advanced design and production control process technology and build our machines with top notch western made components.
Our product development department is at the forefront of the industry as we offer the most advanced machinery in our sector and our quality control system is an award winning one. Our on-line product support system is a benchmark for any non mass production equipment manufacturer.
CVS FERRARI is a ISO 9001 Quality Management System certified organization and all our products are CE certified.
FEATURES & BENEFITS

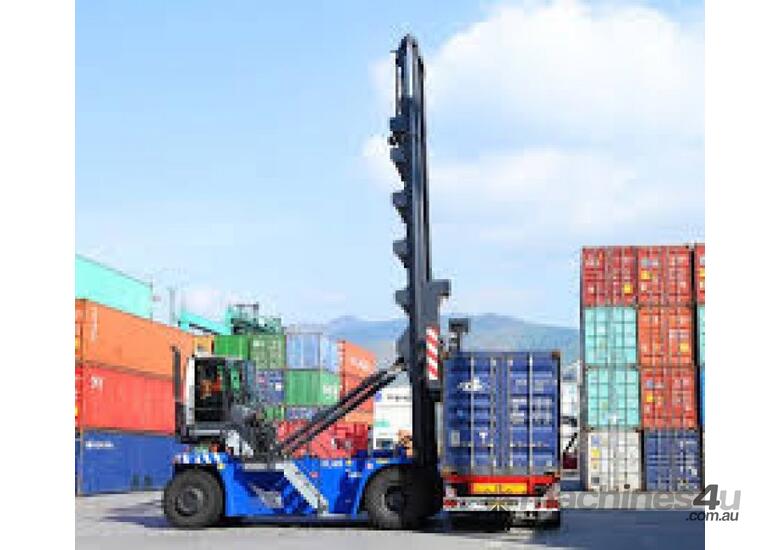

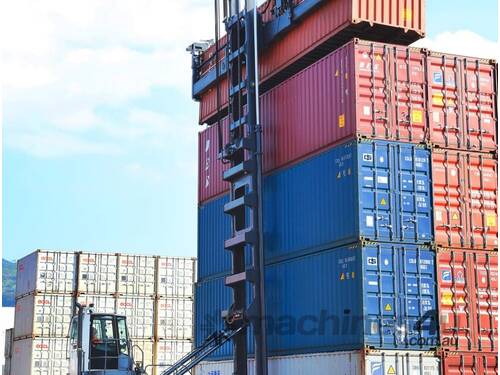

A new generation of Toploader with innovative features never seen before. Offered in two basic chassis and three main stacking options capable of lifting 4 by 9'6', 5 by 9'6' and 6 by 9'6' high. A three-stage "RoRo" application mast is available for up to 4 by 9'6' high for the short Wheelbase: stacking model.
Our top loaders feature the same high-efficiency fast response electro hydraulics as our world-famous reach stackers. The same powerful onboard computer monitors subsystems and safety features as well as optimisation and workflow. Fitted with the ultimate safety feature the load moment indicator and limiter which in real-time considers mast tilt and spreader outreach on the dynamic stability of the machine reducing dangerous maneuvers.
The individual spreader twist-lock status feature displays information and assesses about the twist locks seated and locked positions. New features include stacking hight indicator and the driving configuration optimiser which reduces tyre wear and increases driving stability.
While our competitors still make use of antiquated technology resulting in poor fuel efficiency and hydraulic oil polluting gear pumps with a limited life, our state of the art machines are equipped with variable displacement piston pumps and are by far the most fuel-efficient machines in the class. The CVS Ferrari innovations continue with a pressurised oil tank and separate brake and hydraulic oil circuits and cooling systems.
These exclusive features reduce lower the cost of ownership, reduce downtime and extend service life.
SPECIFICATIONS
Model:
ECH10.6DS
Attachment Type:
20’/40? Side Pick Spreader – Double Stack type
Capacity: on tires
10,000kg
Load Centre: distance
1200mm
Load Centre: to centre of front axle:
2425mm
Lifting height under twist-lock (hook):
850mm
Stacking Ability – containers
2 over 5 = 7 x 8’6”
Wheelbase:
4750mm
Service Weight: – unladen
39,000kg
EU Stage 3a Engine make & model (Rated Power):
CUMMINS QSB6.7 (164): (kw):
EU Stage 4 Engine make & model (Rated Power):
VOLVO TAD 871 VE (185): (kw):
Transmission make & model:
DANA TE17
Service Brakes:
Wet Disk on front wheels
Tires size
14.00-24
Overall Width: – excluding Spreader
4143mm
Overall Width: – including Spreader
6860mm
Overall Height: – Mast lowered
13900mm
Seat height:
3040mm
Mast tilt, forward / backward
3/5 deg
Spreader side-shift
+600 / -600mm
Spreader hydraulic
(3/3): deg
