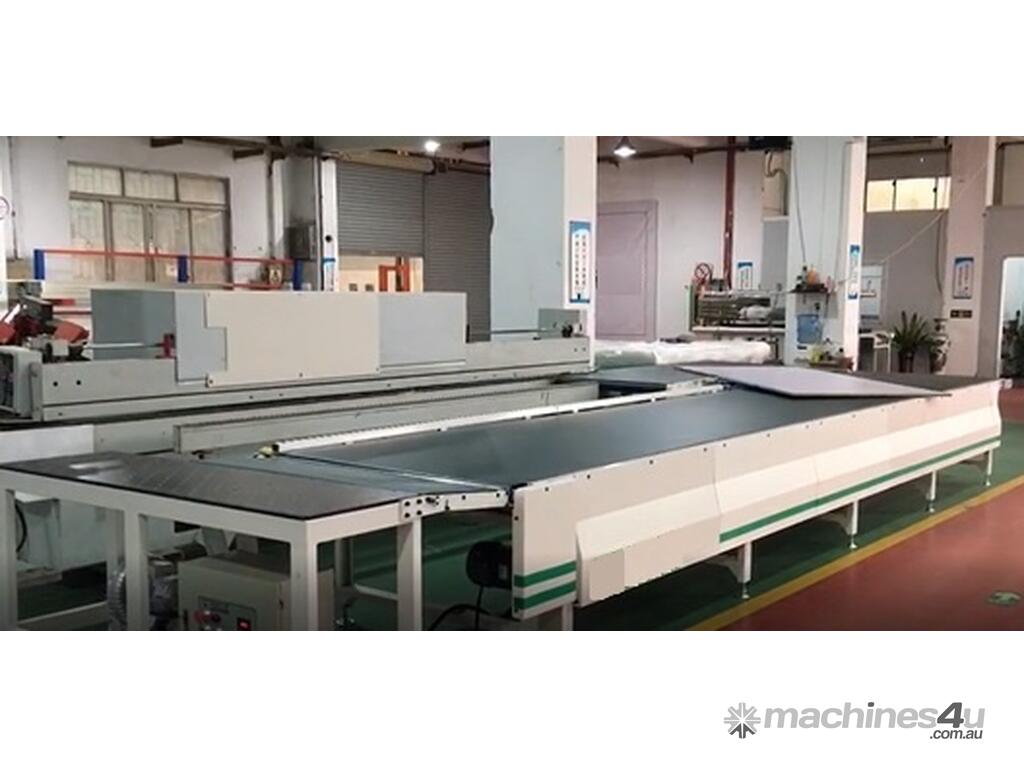

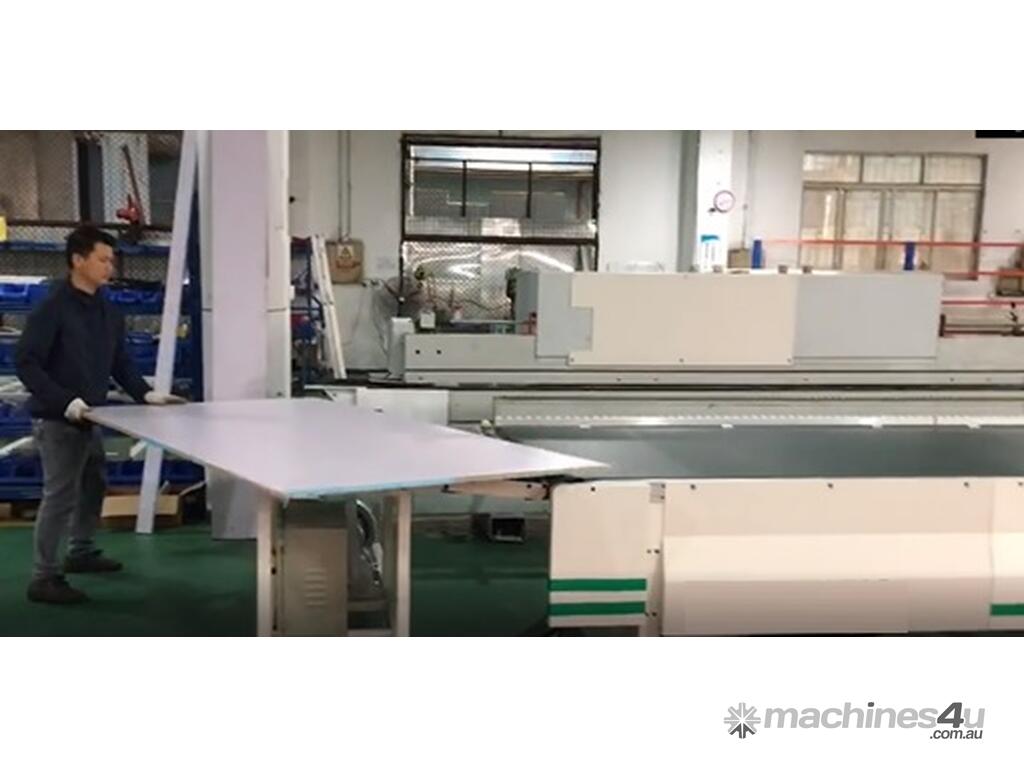

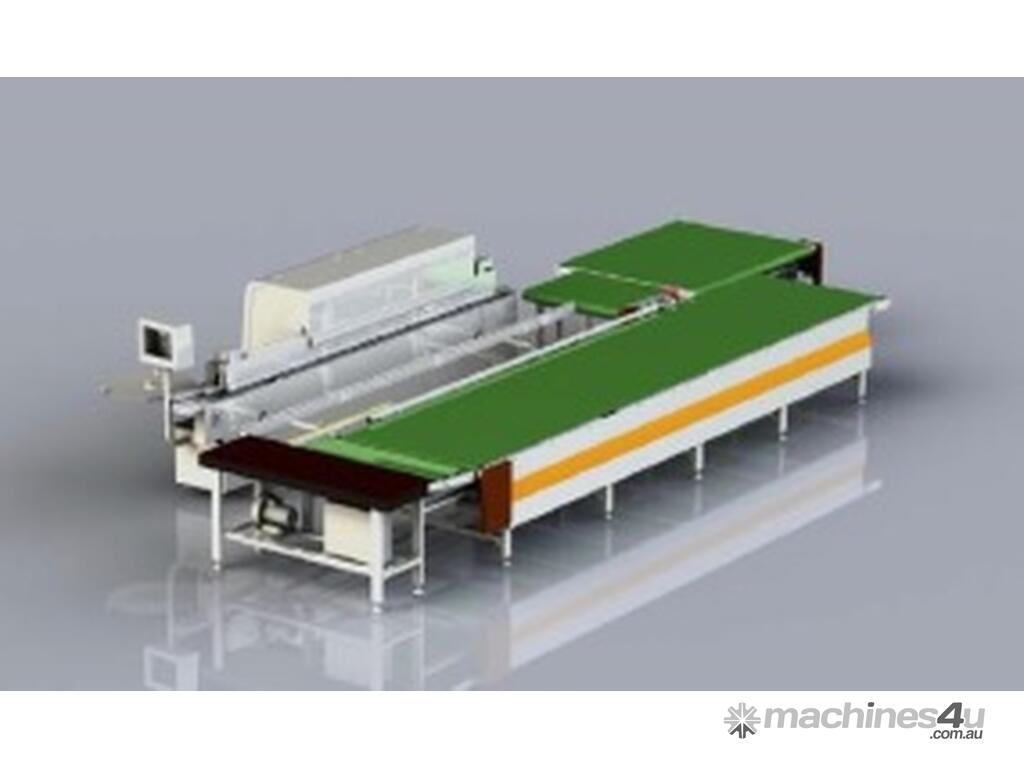

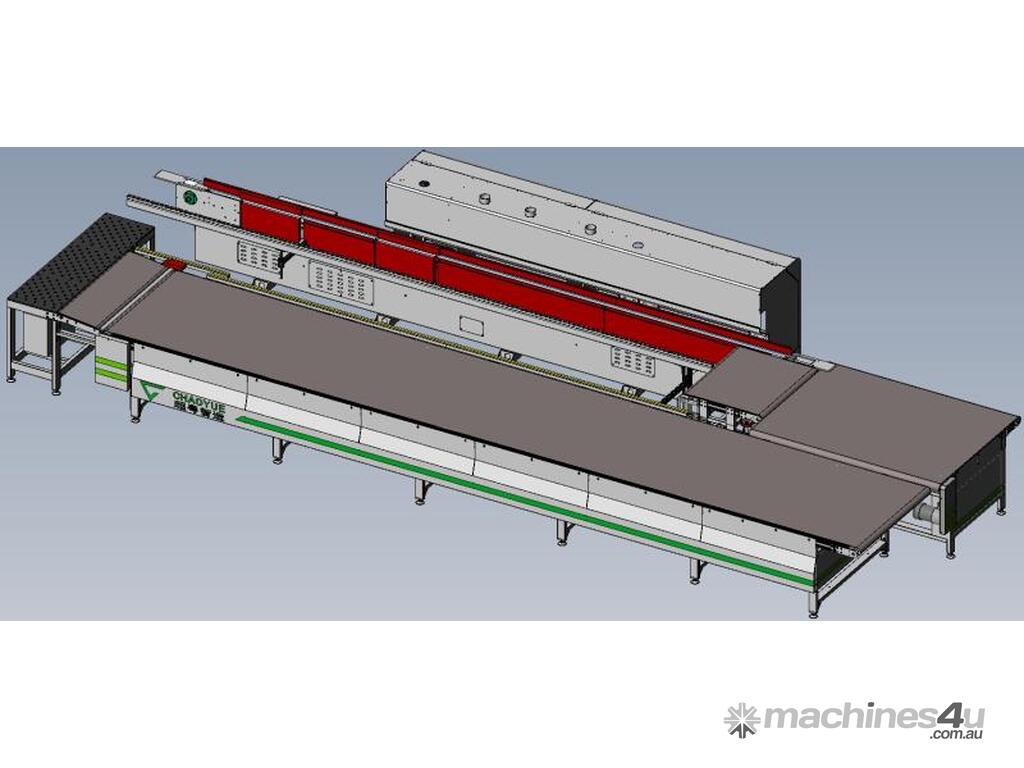

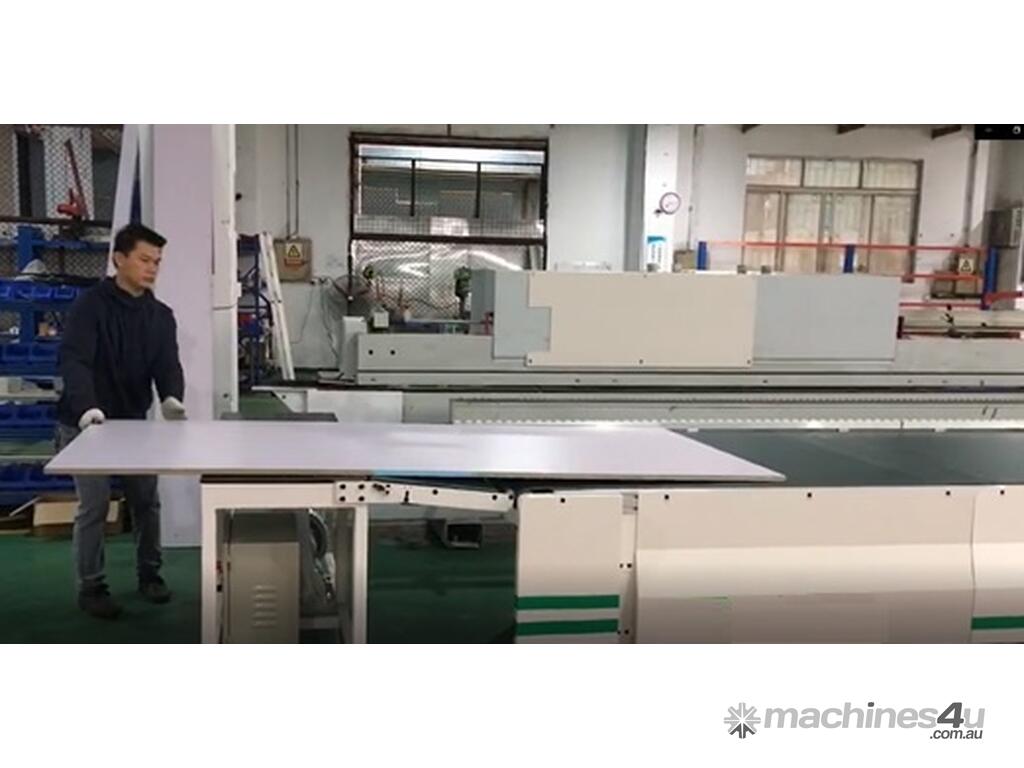

EDGE BANDER RETURN SYSTEMS

INCREASE PRODUCTIVITY AND SAVE ON LABOR COSTS WITH A RHINO AUTOMATIC RETURN SYSTEM

1. Belt conveyor system for edge banding machine -For 5.7 meters
Min panel size : 100*200mm
Max panel size : 1200*2400mm
Panel thickness : 10-60mm
Conveying speed : 0-28 meters/min
Power supply : 3 phase, 380V, 2.8KW
Frequency converter : Taiwan Delta

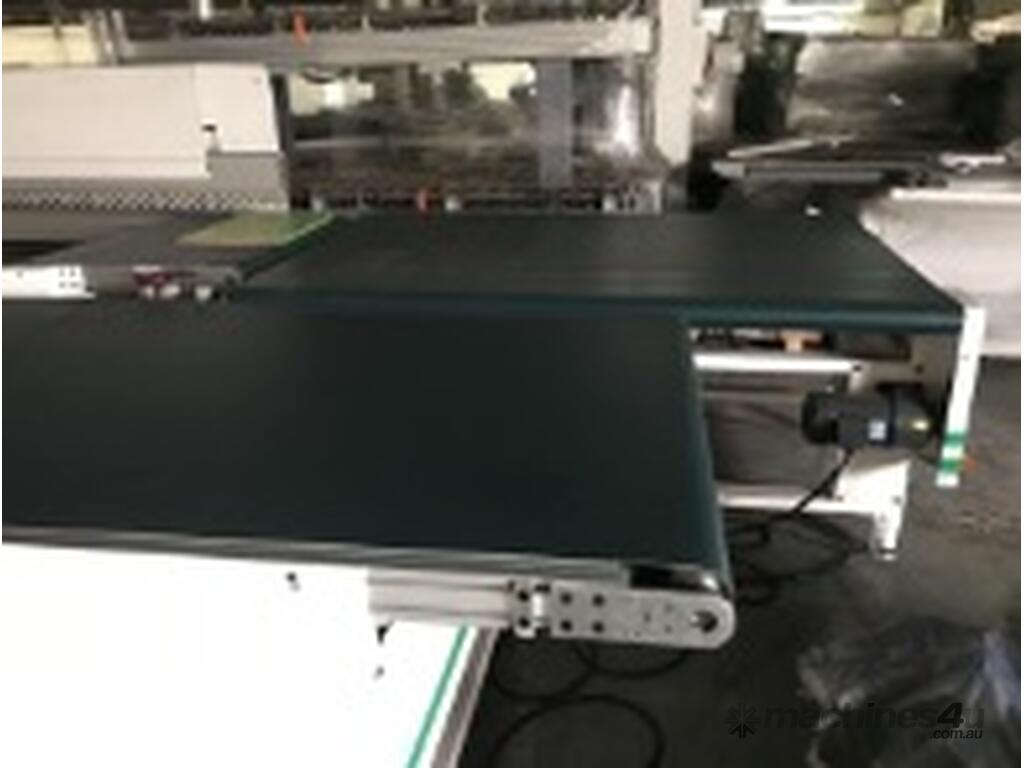

Out-feed belt conveyor:
- Dimensions : L800*W1050*H950 ±30mm
- Belt character : PVC belt
- Belt thickness : 3mm
- Main Beam : 80*40 steel
- Speed : 0-18meters/min
- Motor : Taiwan CPG
Machine head:
- Dimensions : L1415*W2050*H950 ±30mm
- Belt character : PVC belt
- Belt thickness : 3mm
- Main Beam : 80*40 steel
- Speed : 0-18meters/min
- Motor : Taiwan GPG

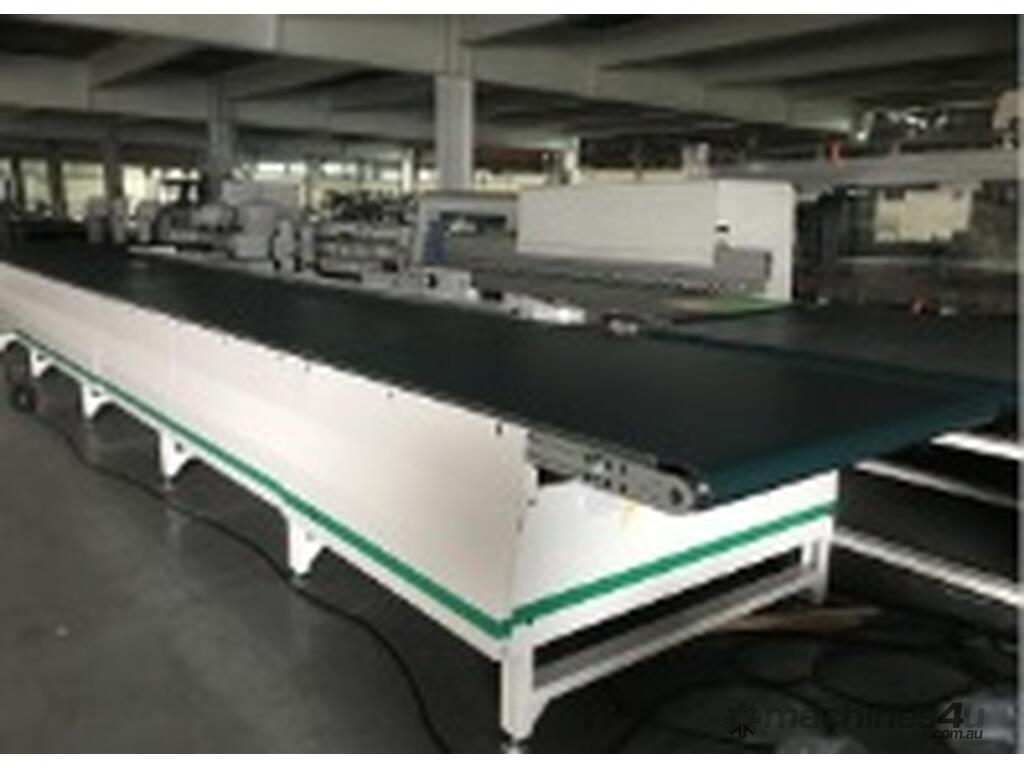

Powered PVC belt conveyor :
- Dimensions : L7700*W1350*H950 ±30mm
- Belt character : PVC belt
- Belt thickness : 3mm
- Main Beam : 80*40 steel
- Speed : 0-18 meters/min
- Motor : Taiwan GPG

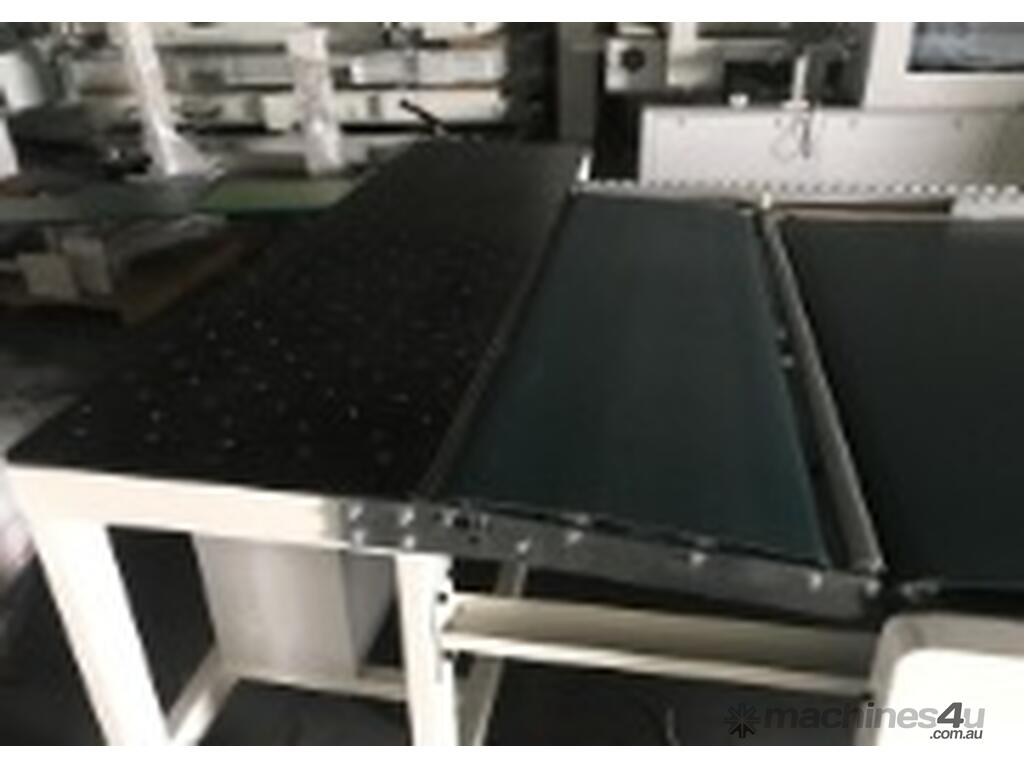

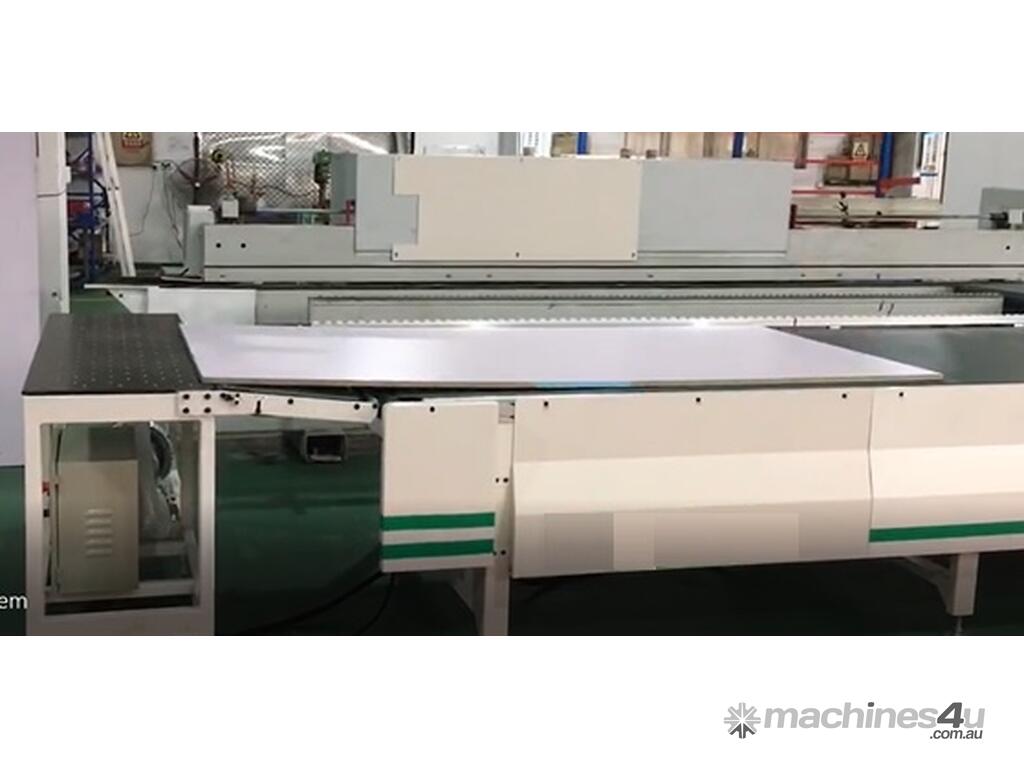

Pneumatic ball-floating table :
- Total Dimension : L1800*W600*H950±50mm
- Material of the table board
: 8#U-steel with Bakelite plate
- Air blower : 1.3 kw, brand: China Liongoal
- Leg : 80*40*3mm rectangular tube
- Main frame : 40*60 steel
- Load : 100kg/m2

Built to order and can suit any Edge Bander make or model, left hand or right hand feed direction.

Phone today with your Edge Bander length and feed height, and panel details including min/max. length, width and thickness, so we can put together an economical solution for you!
