EXCISION EM-50 Portable Magnetic Drill Includes 2 x Drilling Speeds 250 / 450rpm Ø50mm Drill Capacity - Manual Feed
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D854

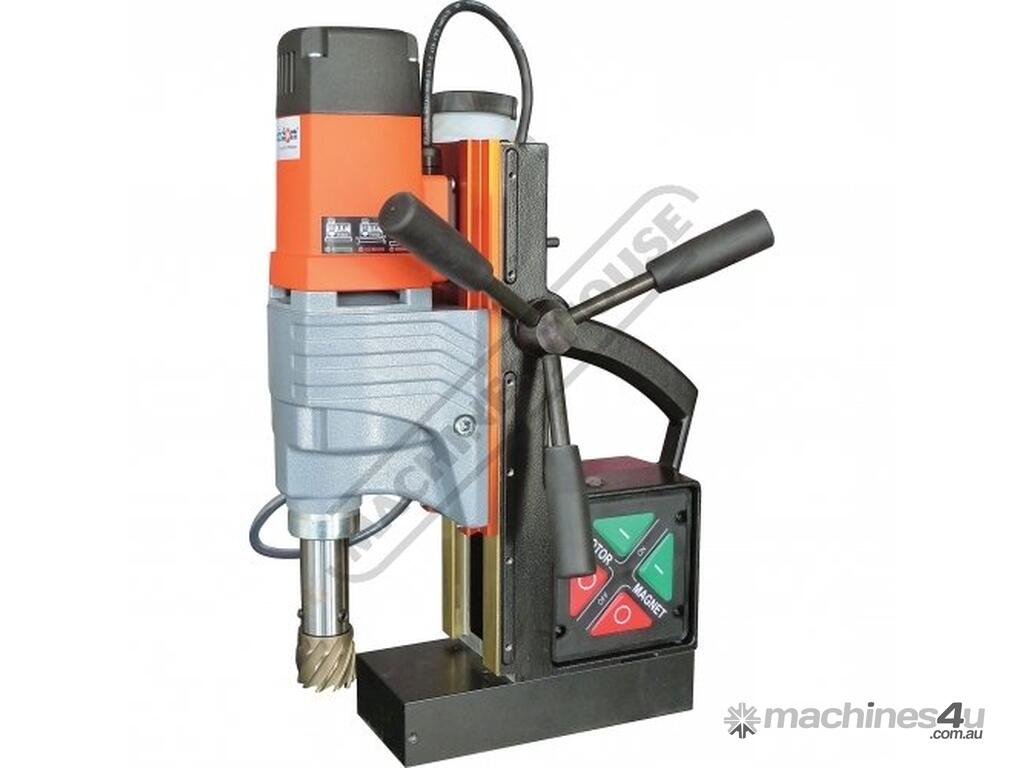

The EM-50 is the 2 speed industrial workhorse magnetic based drill of Excision's range. The EM 50 allows for a large range of application through the double height adjustment, and direct weldon type arbor.

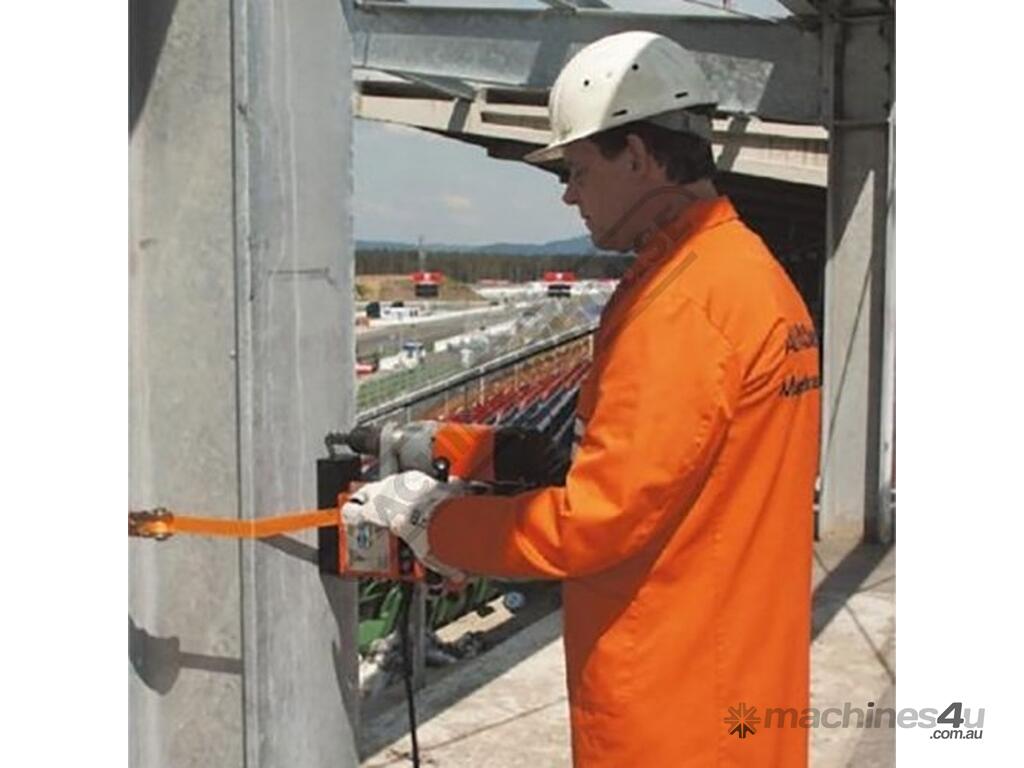

On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.

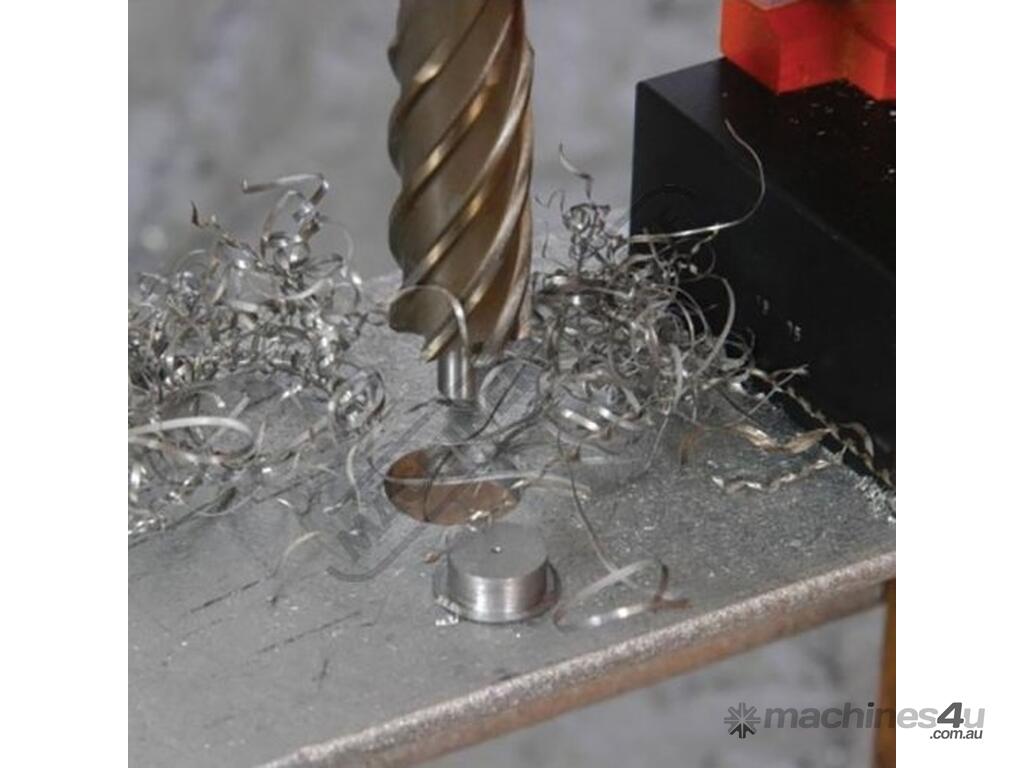

NOTE: Shown with optional broach cutter
Features:
Drills up to 50mm diameter through 50mm plate
3 Coil 12000N Magnetic adhesion for industrial use

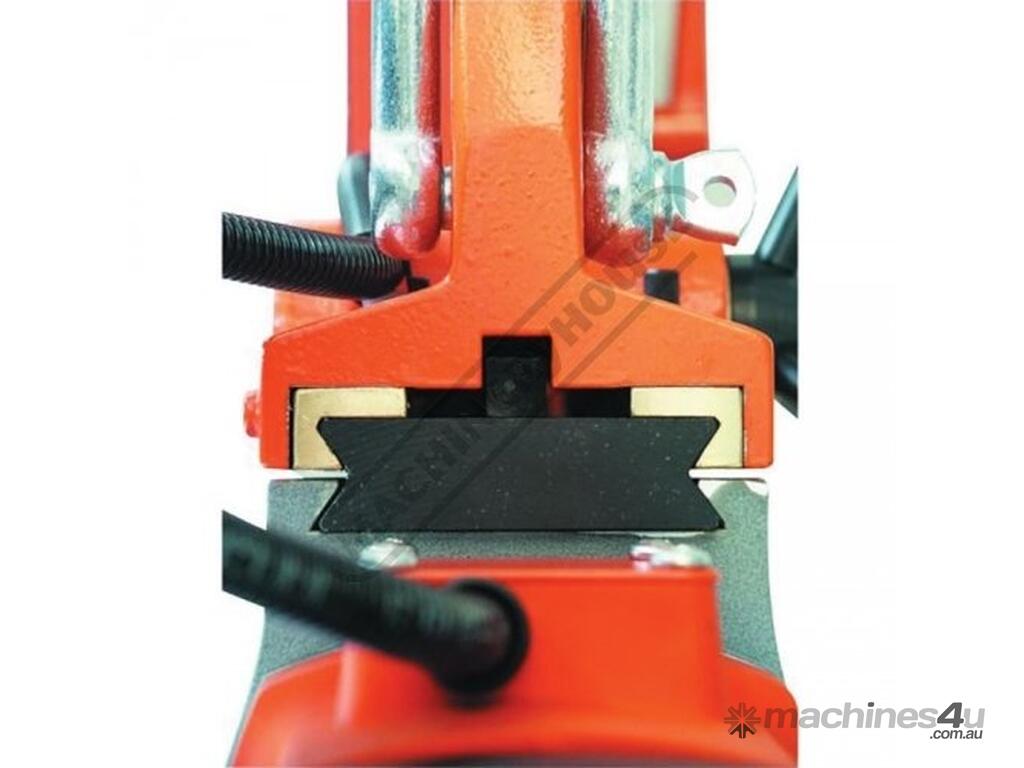

Spring loaded guides for rigid gliding and reduced vibration
Height adjustable slide enables an increased range of applications including standard twist drills
Smart start feature protects the motor to increase longevity
Direct Weldon arbor type spindle for use with all 19mm shank core drills
Durable touch pad for ergonomic use
Hybrid relays to protect circuit board from voltage spikes
Integrated coolant system to increase the life of your core drills
145mm stroke
Height adjustment 117mm
2 speeds 250/450rpm
1200W motor
15kg weight
Includes:

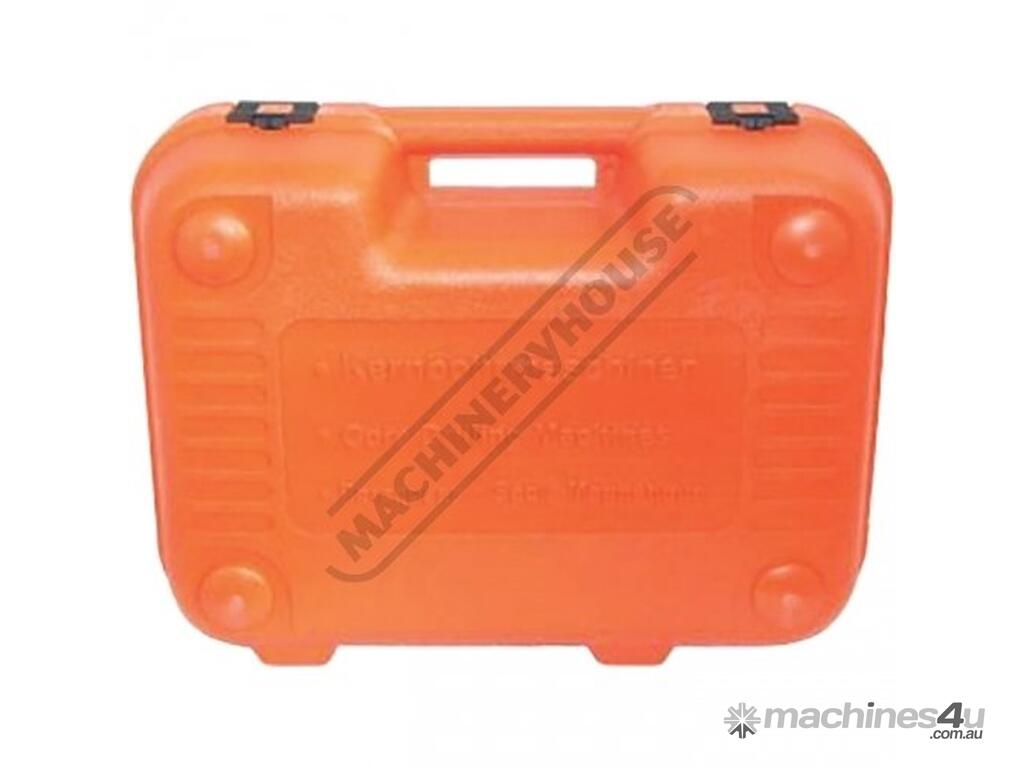

- Transport Case
- Coolant Unit
Specifications:
ORDER CODE: D854
MODEL: EM-50
Feed: Manual
Drilling Capacity Range - Manual (mm): 12 - 50
Drilling Capacity Range - Auto Feed (mm): ~
Height Adjustment (mm): 117
Stroke (mm): 145
Maximum Thickness (mm): 50
Suits Cutter Shank Size (mm): 19
Number of Drilling Speeds (No.): 2
Full Load Drilling Speeds (rpm): ~
No Load Drilling Speeds (rpm): 250 / 450
Magnetic Holding Power (kg/f): 1224
Motor Power (kW / hp): 1.2 / 1.6
Voltage / Amperage (V / amp): 240 / 10
Machine Weight Only (kg): ~
Nett Weight (kg): 29
