EP 1.2T PEDESTRIAN STACKER -Electric 24V 3580 mm high lift

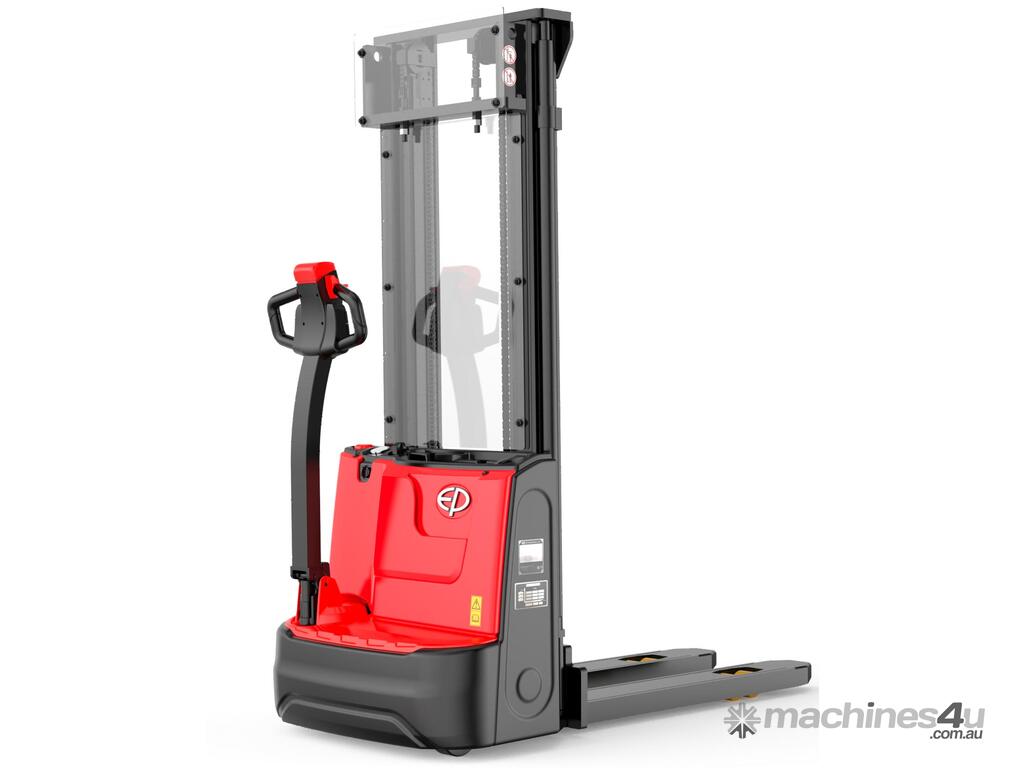

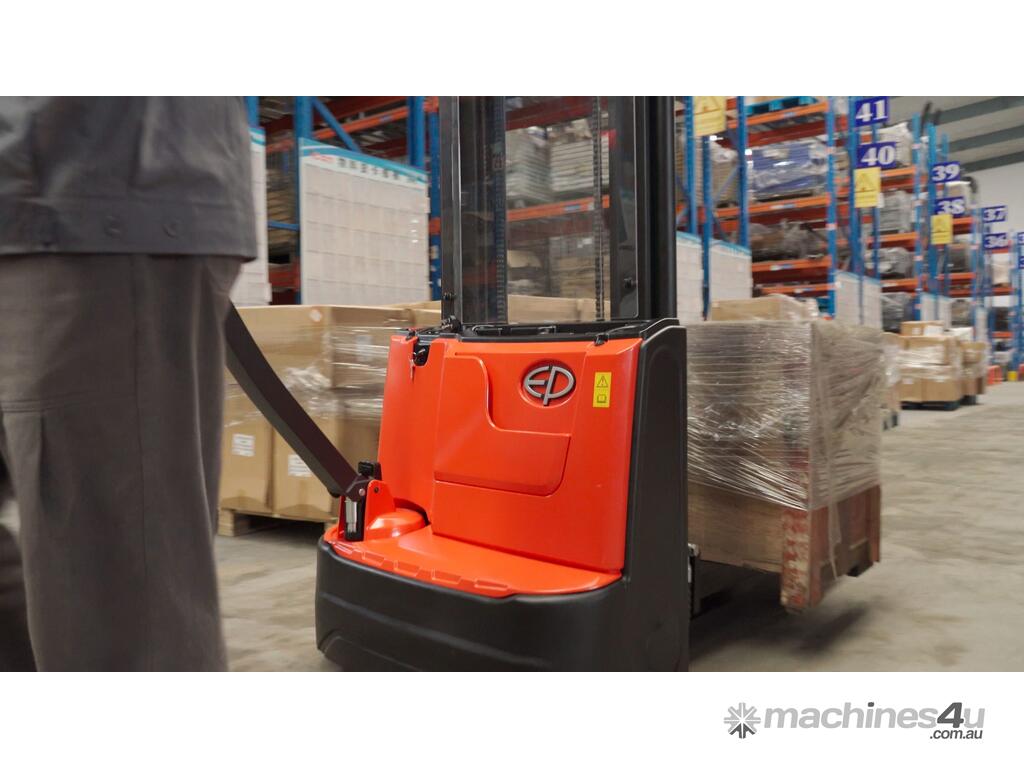

The ESA121 is an advanced electric pedestrian stacker designed to efficiently handle stacking operations up to a height of 4.1 meters. With a load capacity of 1.2 tons, it is versatile and adaptable, offering configurations such as a mono mast, regular duplex mast, and straddle legs to suit various application needs.

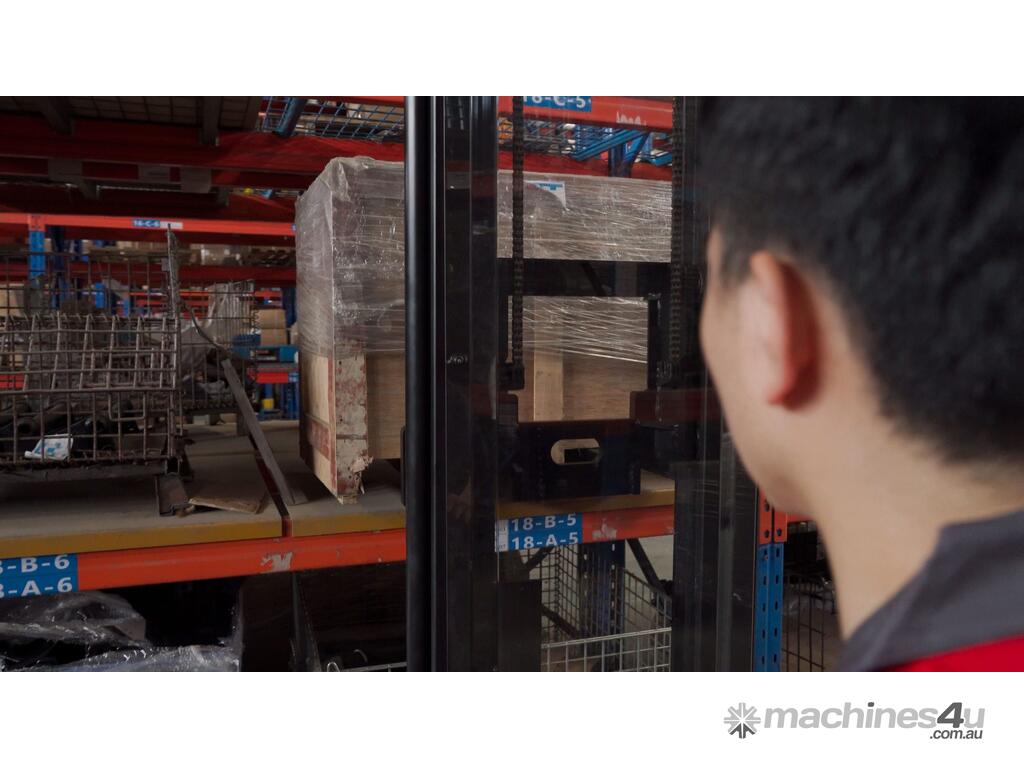

This model represents a significant improvement over the classic ES12-12ES, featuring a robust design with enhanced performance characteristics in safety, speed, and operational visibility.

Application

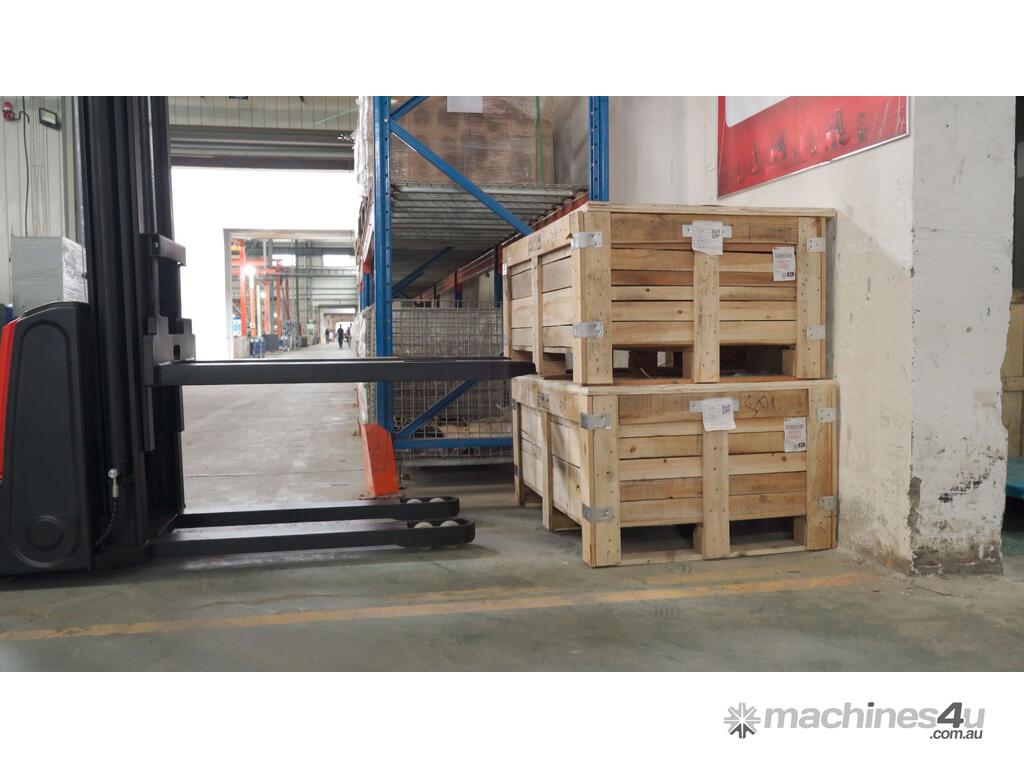

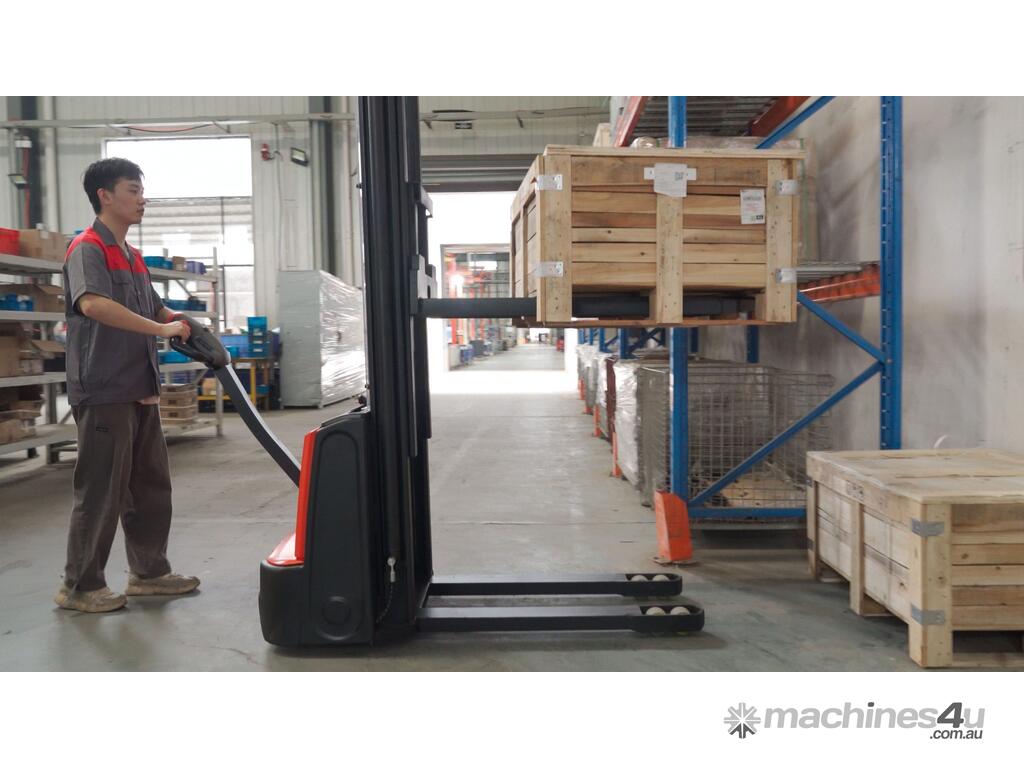

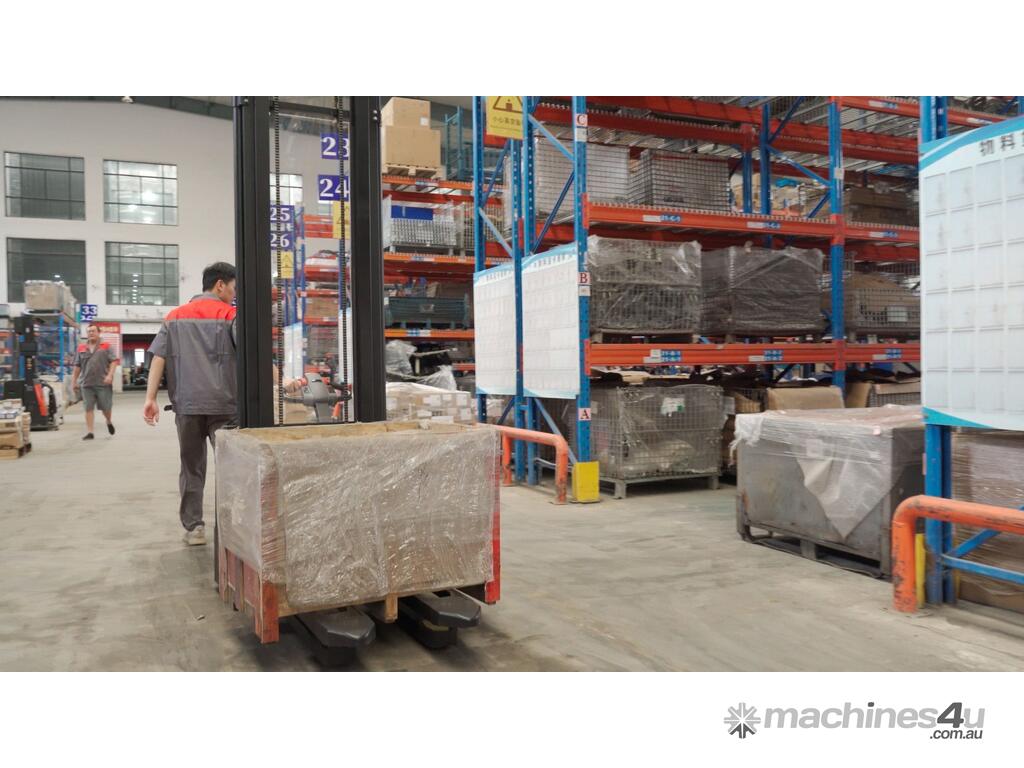

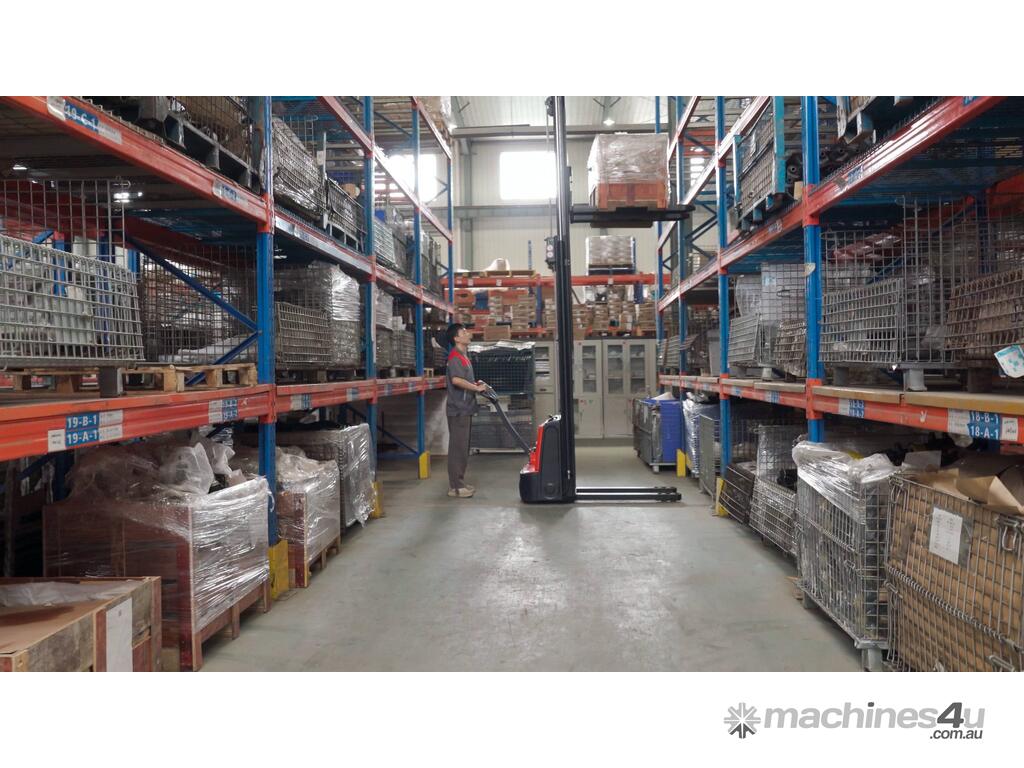

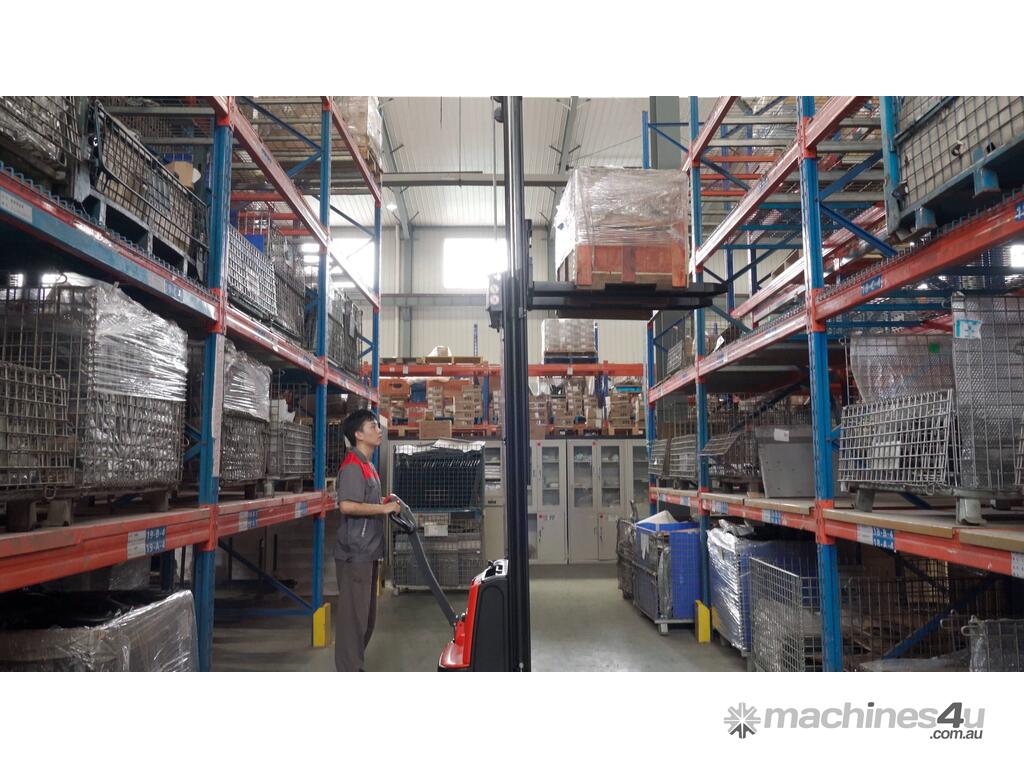

Light Duty Tasks: ESA121 is the perfect pallet stacker in containers, warehouses, distribution centers, and retail environments. Optimized speeds for reduced handling cycle times and improved efficiency.

Key Highlights
Battery Choices and Integrated Charging: This electric pallet stacker is available with both AGM and lithium battery options, accompanied by a standard integrated charger for efficient charging.

Soft Landing Forks: Standard feature for quiet operation and safe handling of fragile loads.

Safety Features: Optional automatic speed reduction when lifting to maximum heights to ensure operational safety.

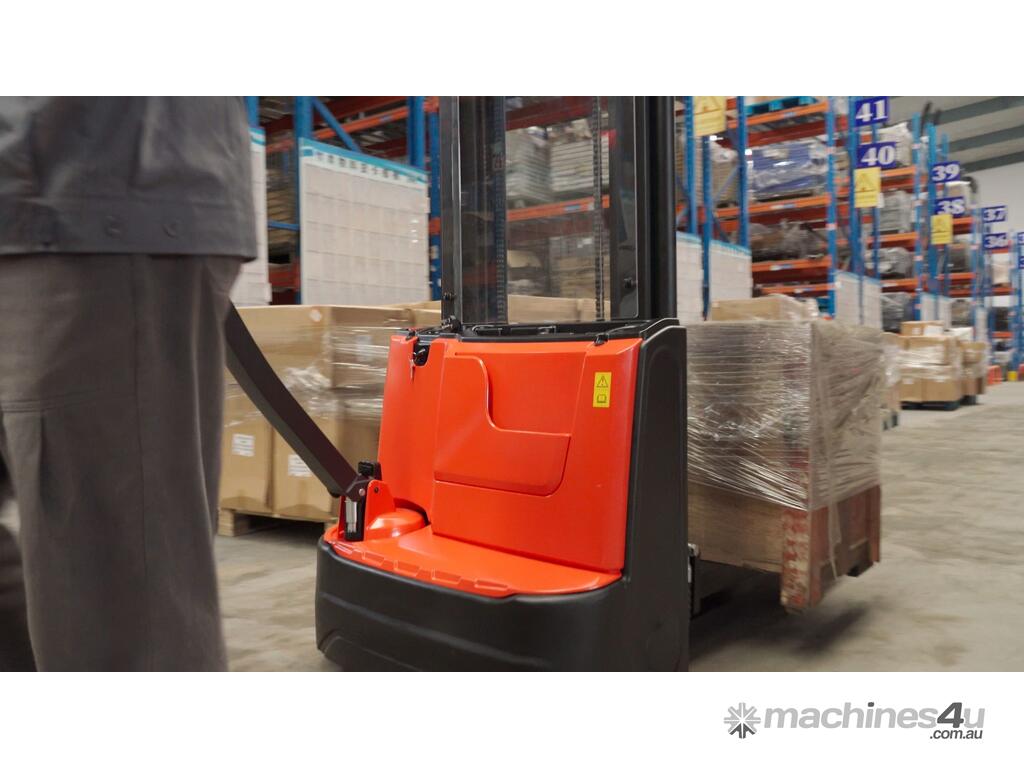

Multi-functional Storage: As a pedestrian stacker, it also offers operators convenience with additional storage for carrying items and documents, plus integrated charging for electronic devices during operation.

Model Designation: ESA121-D

Drive Type: Electric
Operator type:Pedestrian
Load Capacity: 1200 kg

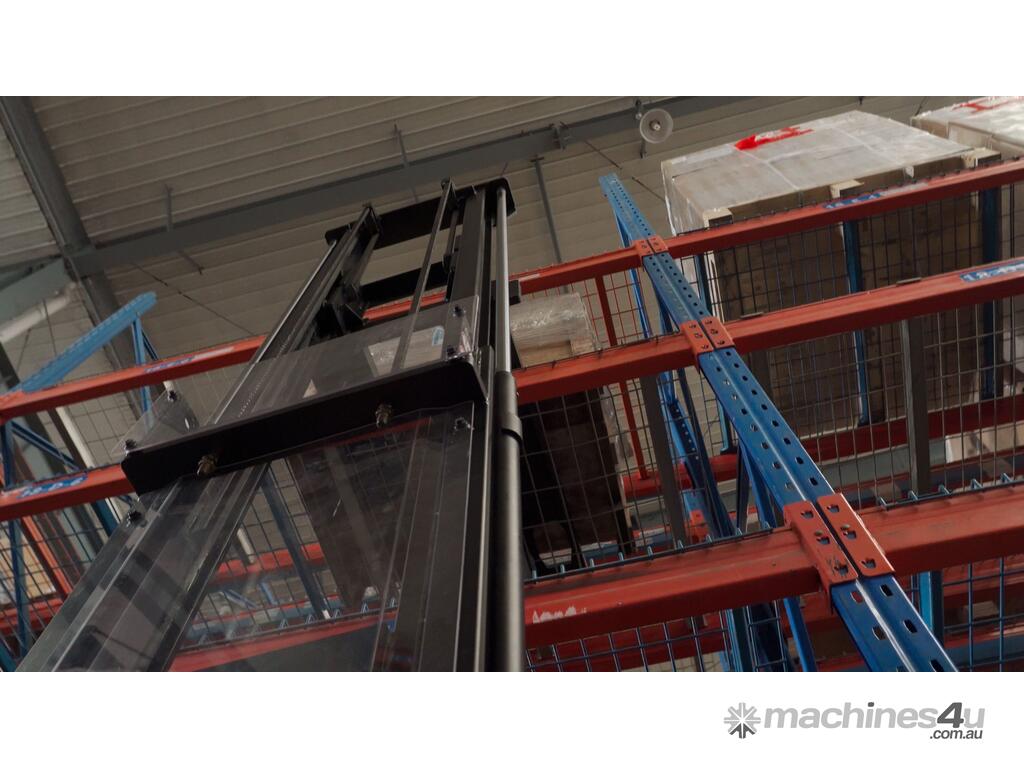

Lift height: 3580 mm ,duplex mast
Load center distance:600 mm
Service weight:820 kg
Fork dimensions: 40/100/1070 mm
Max. gradeability, laden/unladen:3/10 %
Battery :AGM 24V/105ah Battery,
Charger: 15A built-in charger

EP Equipment, founded in 2007, is a leading manufacturer specializing for lithium-powered warehouse equipment from product design, production, to after-sales services for material handling equipment suppliers worldwide.

EP Equipment offers a wide range of products for the needs of every customer - from occasional operations to multi-shift applications in warehouse or distribution centres at high frequency level. At EP Equipment, we are commited to producing the right truck for each application.

Go to the EP Equipment showroom on Machines4u to see the range of equipment that is available for immediate delivery, send us a message about the item that you are interested in or give us a call, we are happy to answer any questions you may have about electric material handling equipment.

* Click on the pdf spec sheet for more detailed information *
