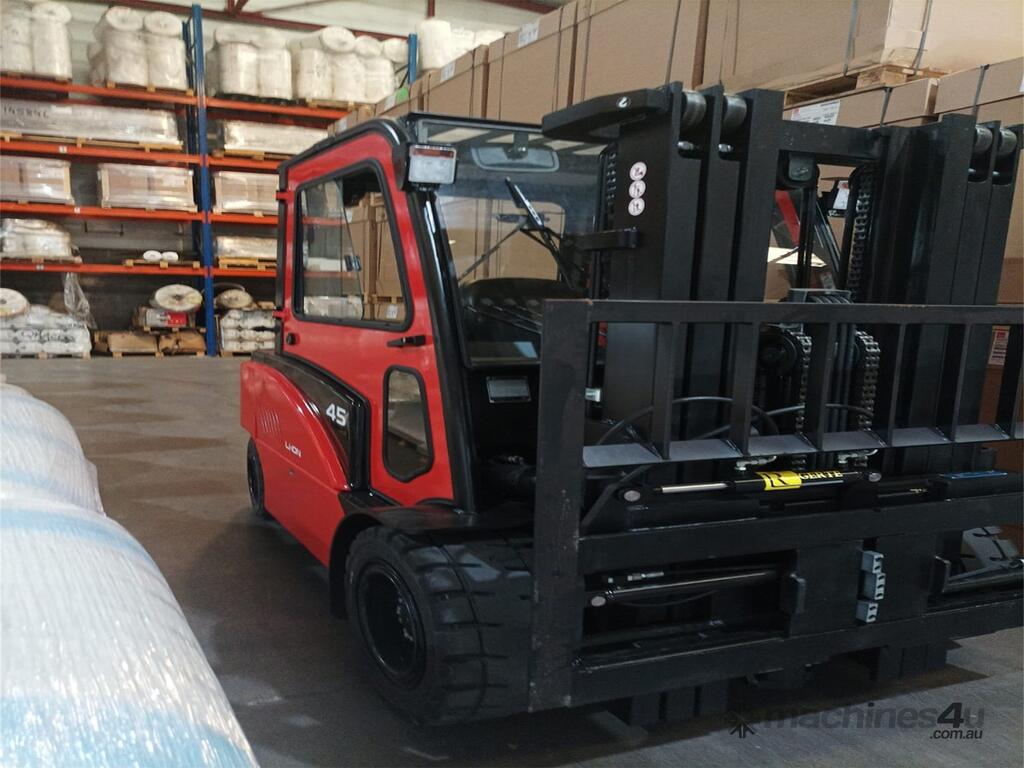

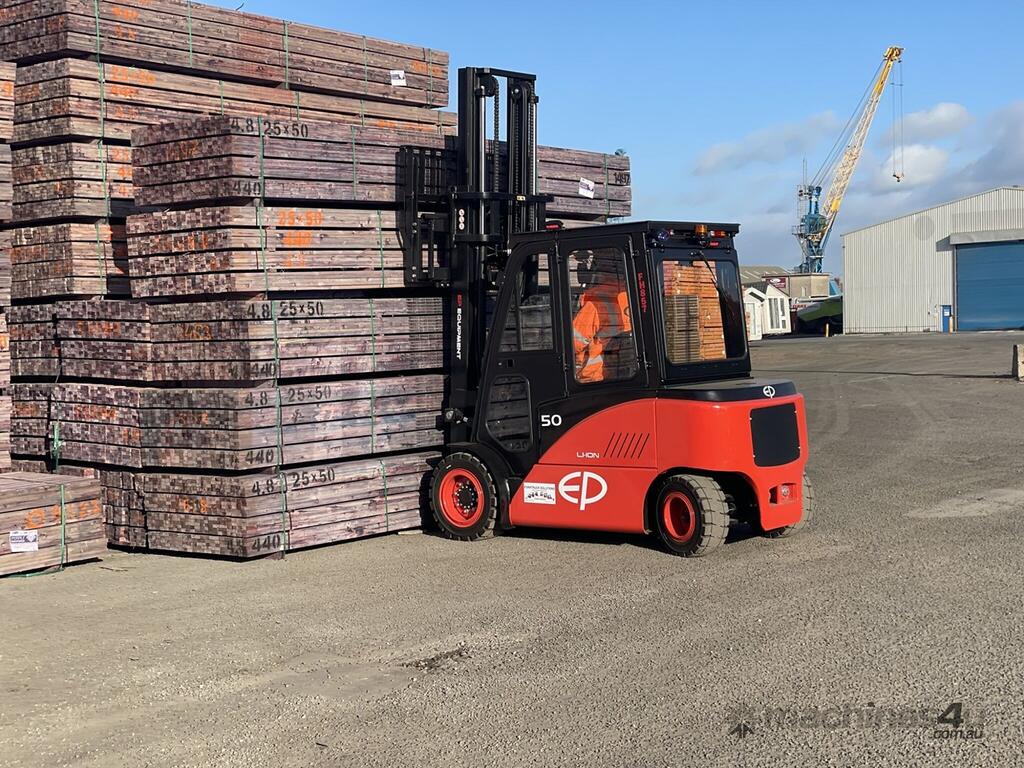

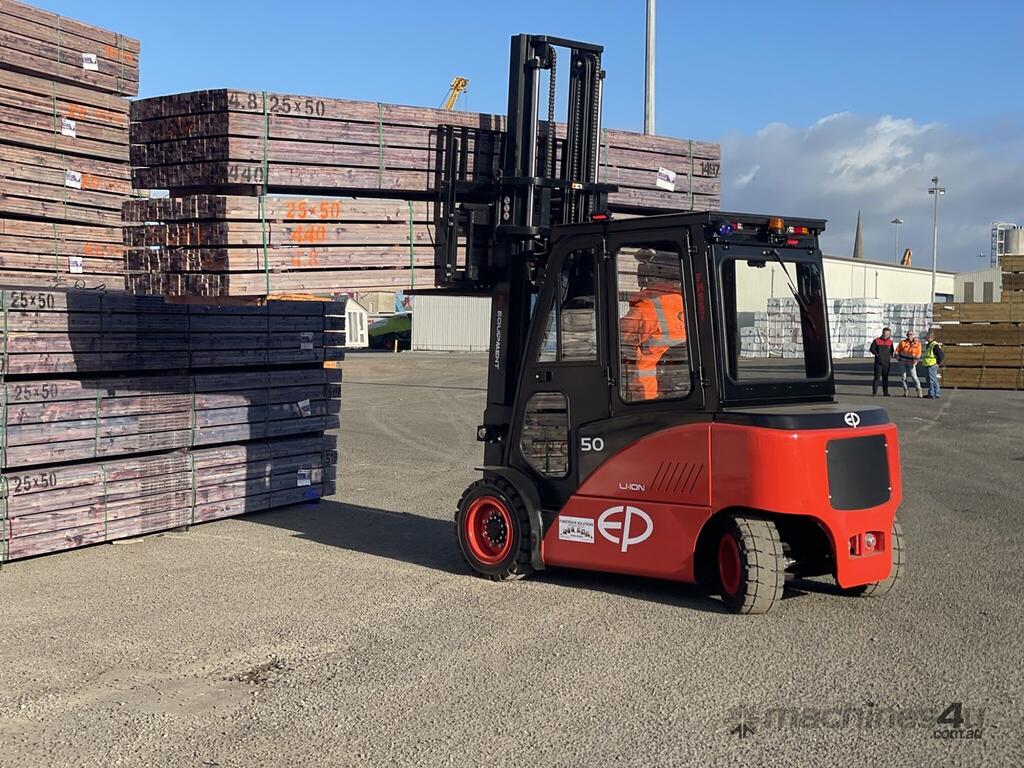

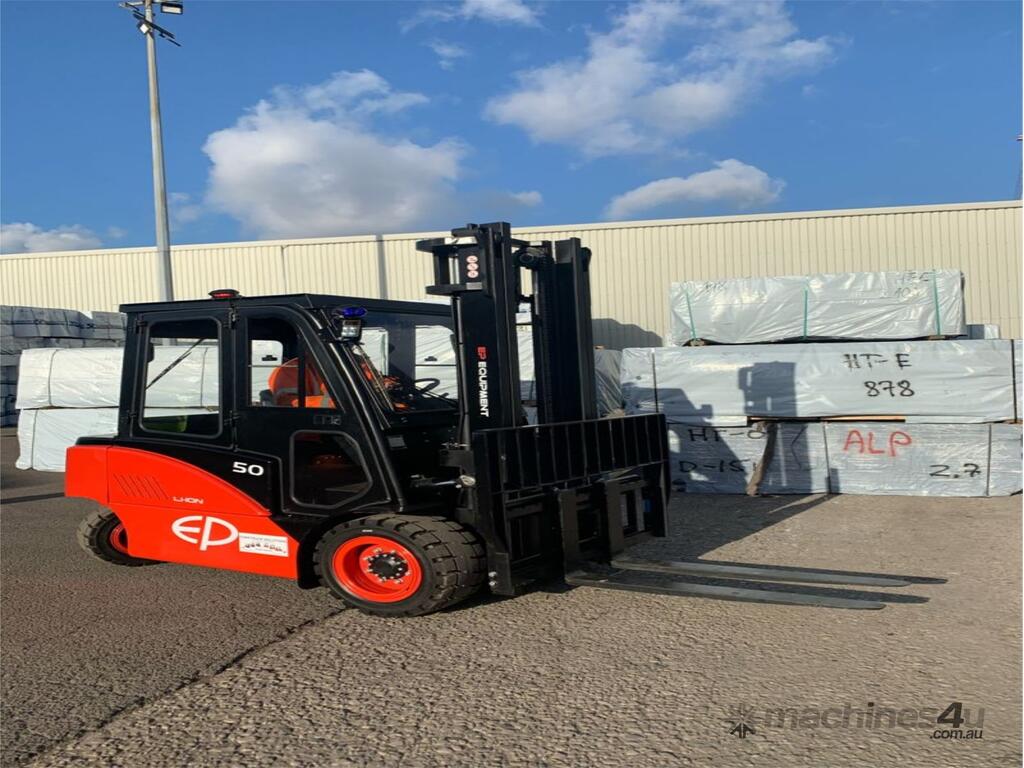

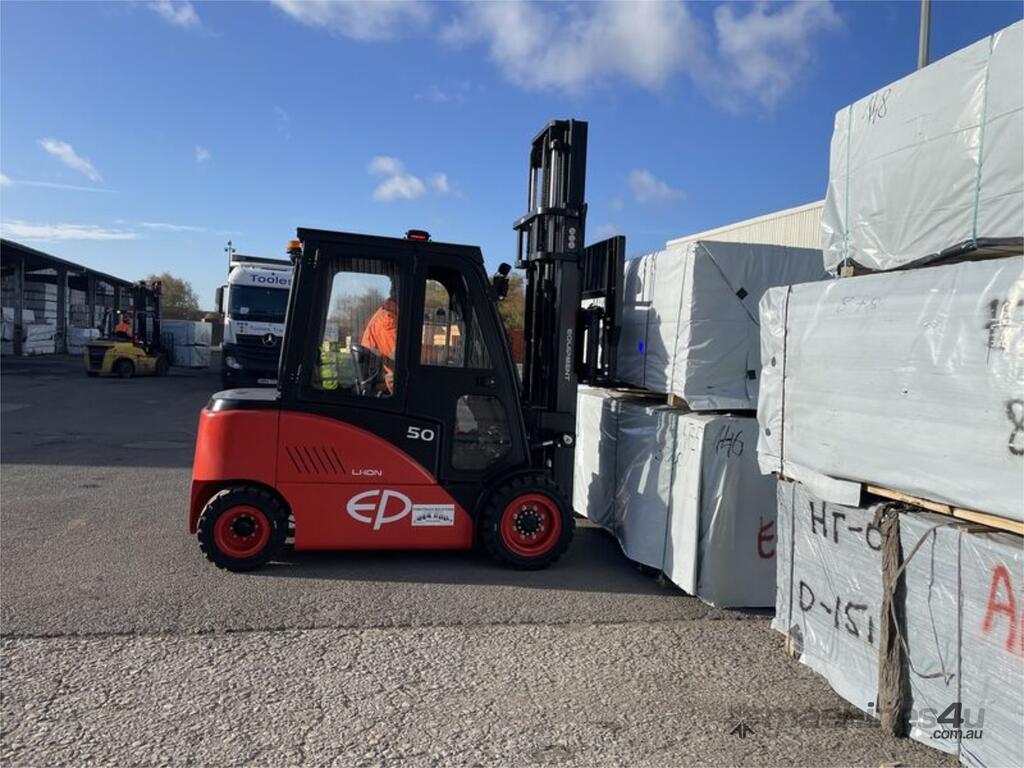

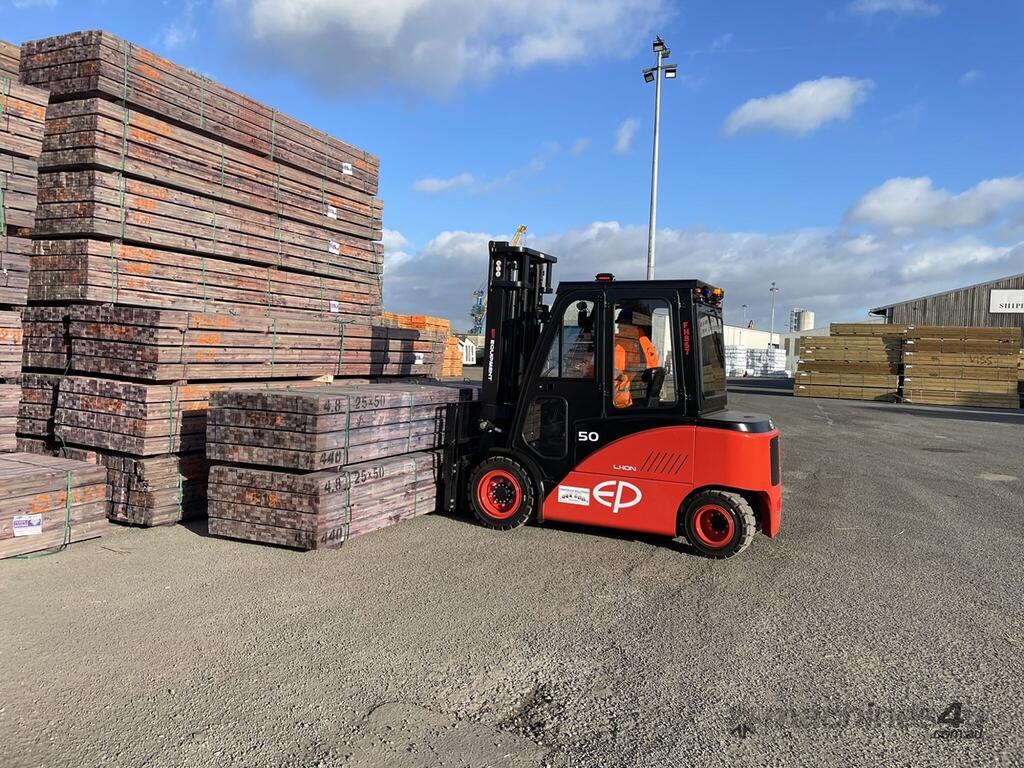

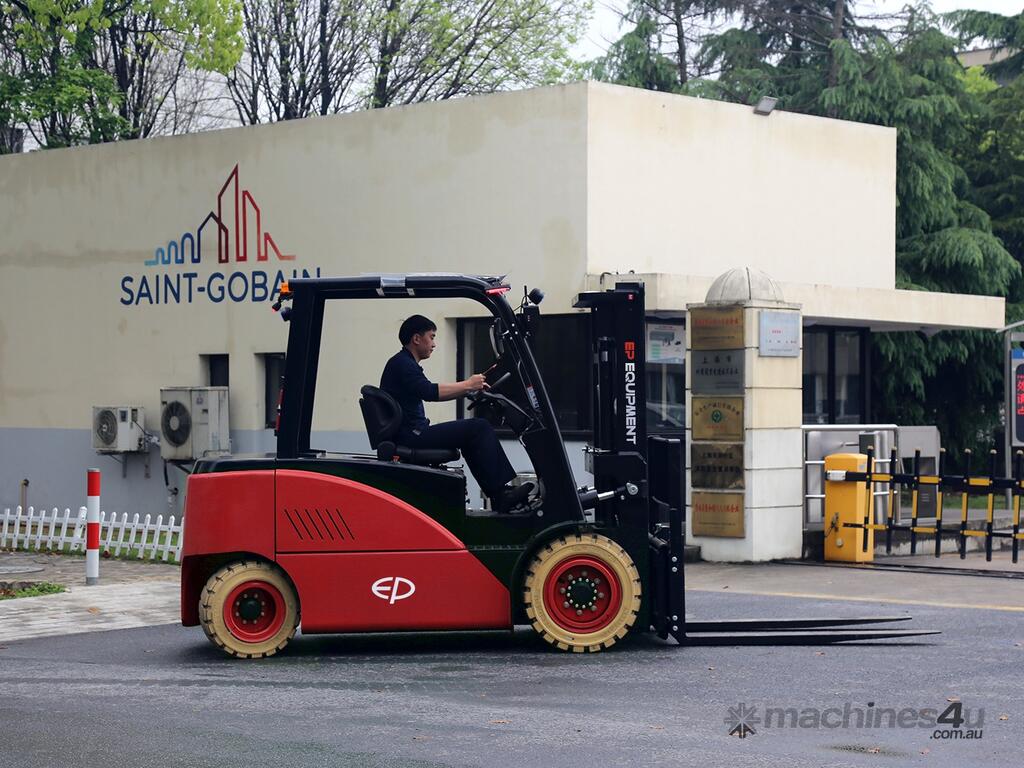

EP 4.5t FORKLIFT CPD45F8 - Compact Heavy Duty Electric 80V 4m reach

The CPD45F8, a state-of-the-art heavy-duty forklift truck designed to handle loads of 4.5t with exceptional efficiency and versatility. Whether you're operating indoors or outdoors, this forklift truck delivers unmatched performance and reliability.

The CPD45 Heavy Duty Truck boasts precision with a mast/fork carriage tilt of 6° forward and 10° backward. Its retracted mast height is 2230mm, with a free lift of 150mm and a lift height of 3000mm. The extended mast height reaches 4175mm, while the overhead guard stands at 2353mm. For operator comfort, the seat height is 1208mm, and the tow coupling height is 375mm. Overall, the truck measures 4030mm in length, making it a compact yet powerful solution for versatile heavy-duty applications.

All Rounder

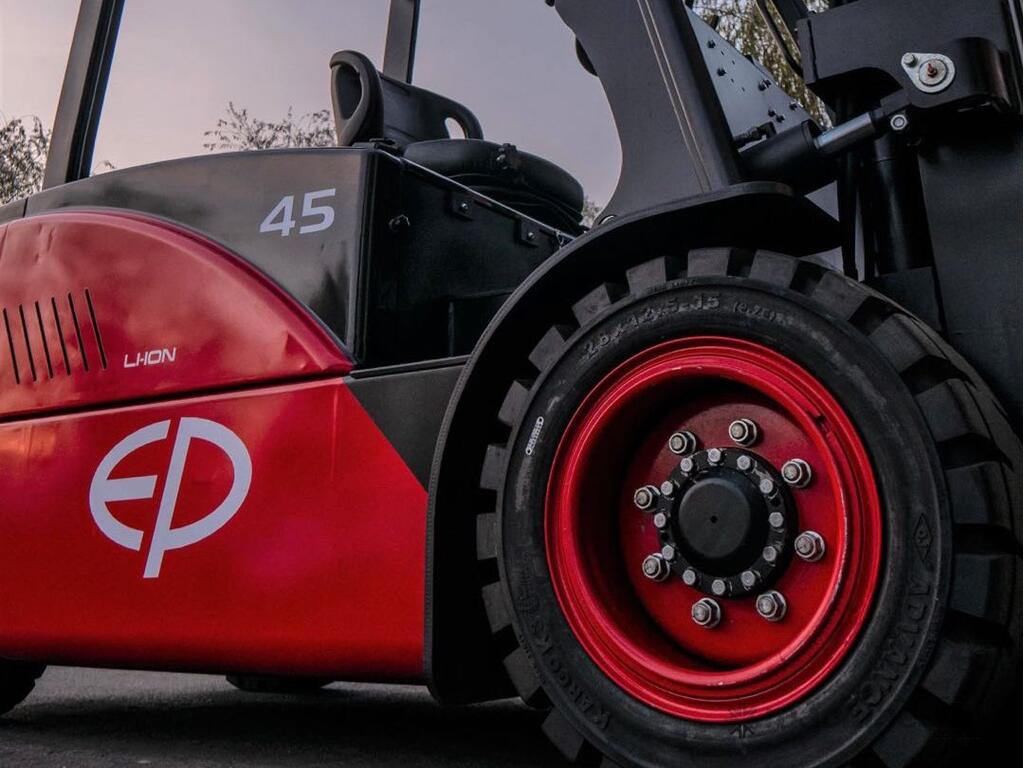

Heavy Duty construction, Big solid rubber tyres, rainproof components, compact dimensions and reduced turning radius

Easy access and exit
The comfortable bucket seat height (h7) is just 1208mm from the ground the lower position of the category, granting an easy access and exit for the operator.

Easy maintenance
Main electronic and hydraulic components are positioned on protected and accessible area making the maintenance fast and easy

Lithium technology
The lithium technology has proven itself as an emission-free and maintenance-free alternative to diesel.
The CPD45 handles loads with consistently high performance due to opportunity charging even for the most demanding applications.


Model Designation: CPD45F8

Drive Type: Electric
Operator Type: Seated
Load Capacity: 4500 kg
Load Center Distance: 500 mm
Load Distance (Centre of Drive Axle to Fork): 548 mm
Wheelbase: 2000 mm
Service Weight: 7200 kg / 7070 kg
Axle Loading (Laden Front/Rear): 10460 kg / 1240 kg
Axle Loading (Unladen Front/Rear): 3590 kg / 3610 kg
Tyre Type: Solid Rubber
Tyre Size (Front): 28x12.5-15
Tyre Size (Rear): 23x10-12
Wheels (Front/Rear): 2x/2
Tread Width (Front): 1112 mm
Tread Width (Rear): 1085 mm
Tilt of Mast/Fork Carriage (Forward/Backward): 6°/10°
Retracted Mast Height: 223 mm

EP Equipment, founded in 2007, is a leading manufacturer specializing for lithium-powered warehouse equipment from product design, production, to after-sales services for material handling equipment suppliers worldwide.

EP Equipment offers a wide range of products for the needs of every customer - from occasional operations to multi-shift applications in warehouse or distribution centres at high frequency level. At EP Equipment, we are committed to producing the right truck for each application.

Go to the EP Equipment showroom on Machines4u to see the range of equipment that is available for immediate delivery, send us a message about the item that you are interested in or give us a call, we are happy to answer any questions you may have about electric material handling equipment.

* Click on the pdf spec sheet for more detailed information *
