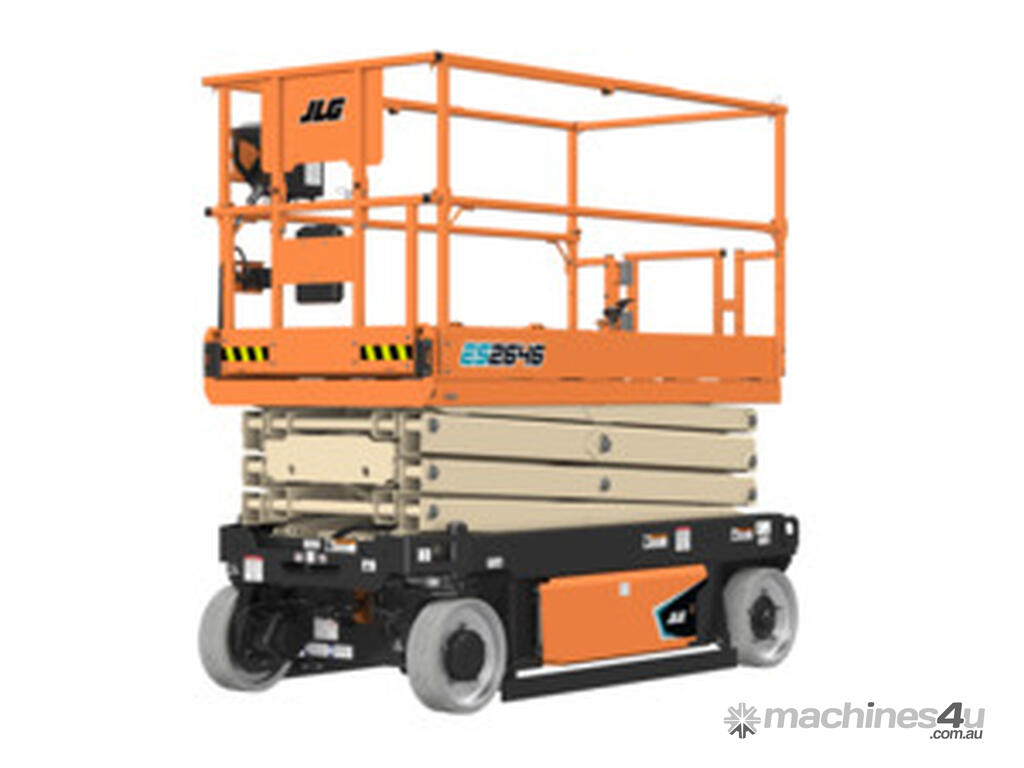

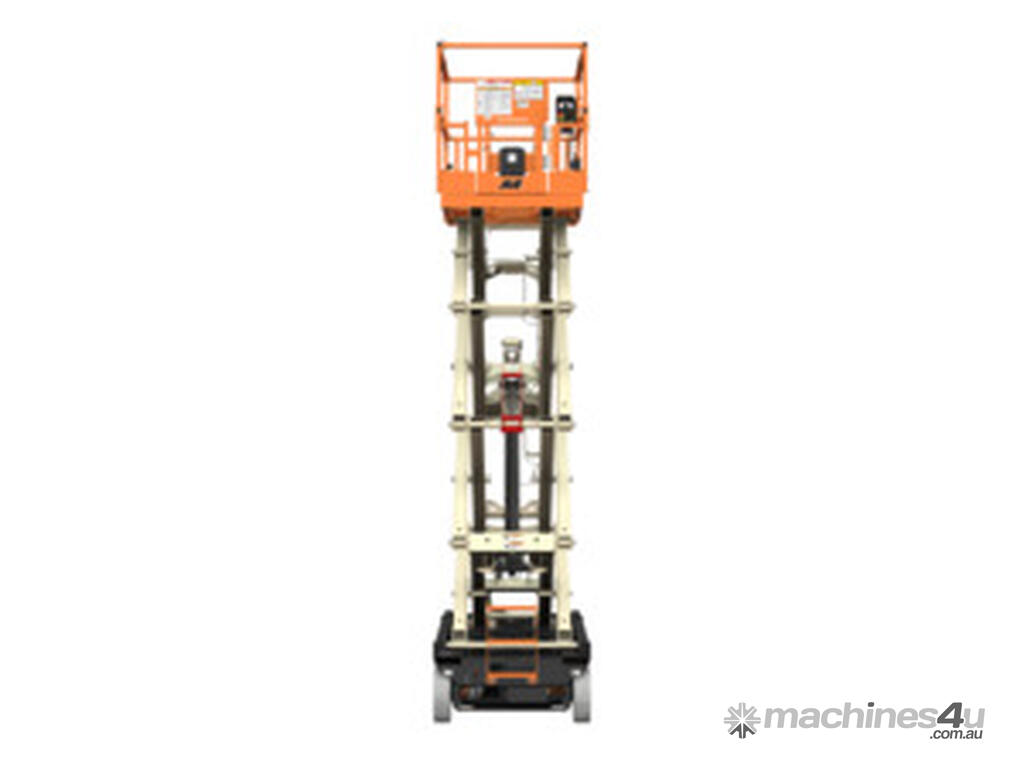

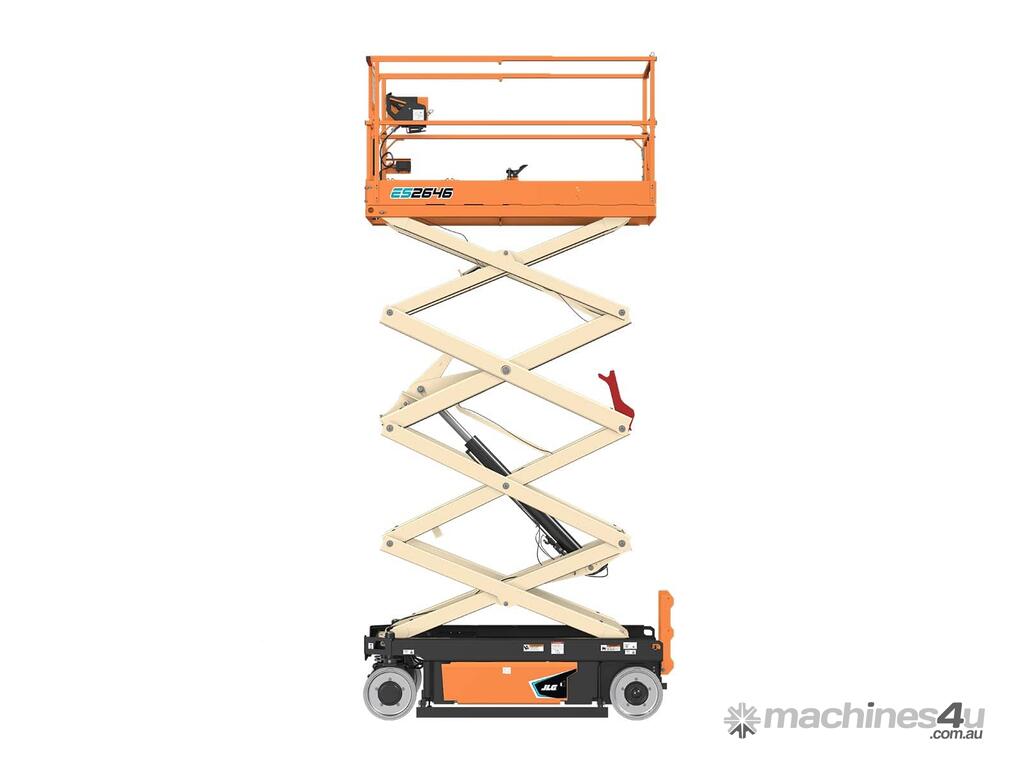

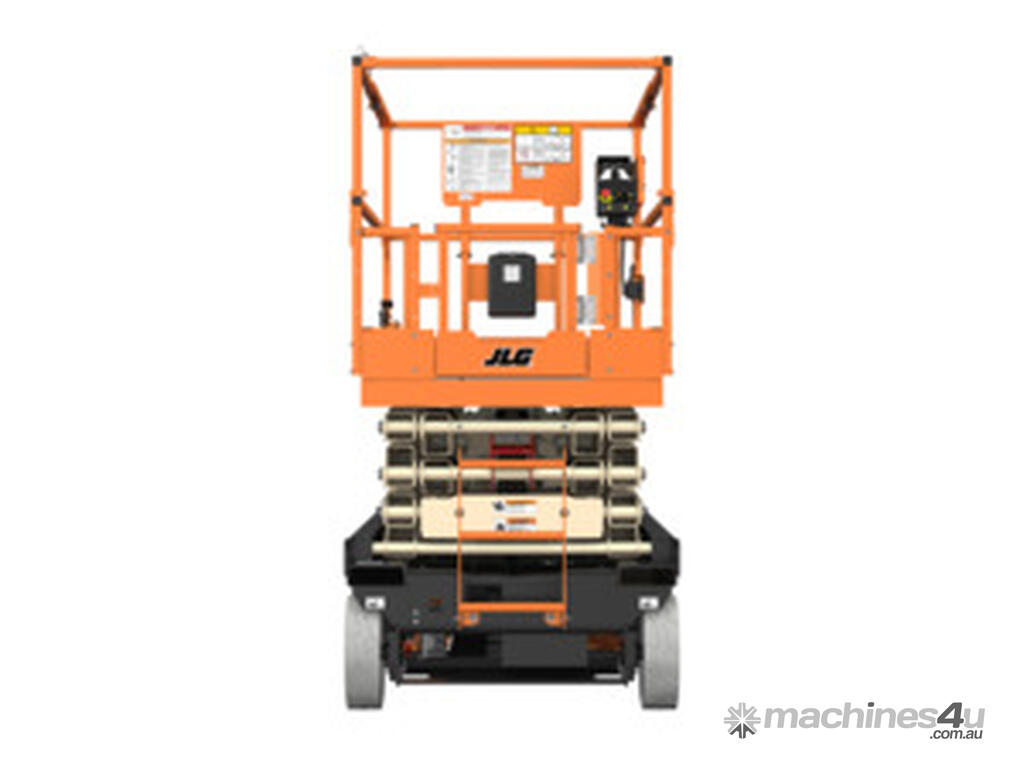

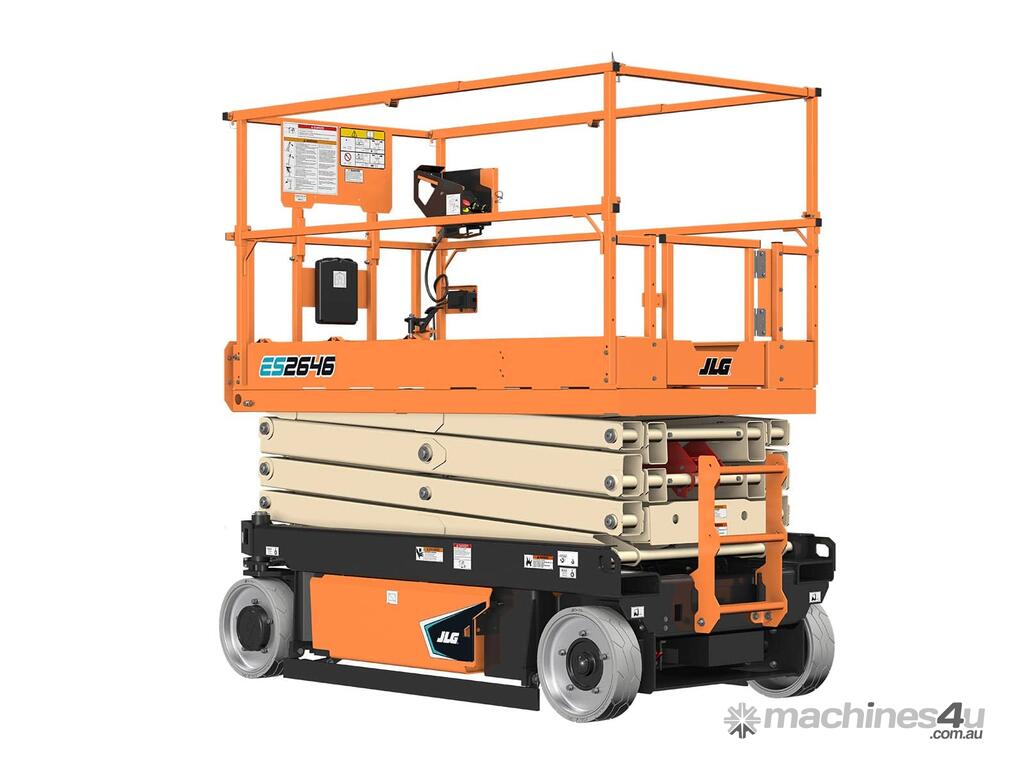

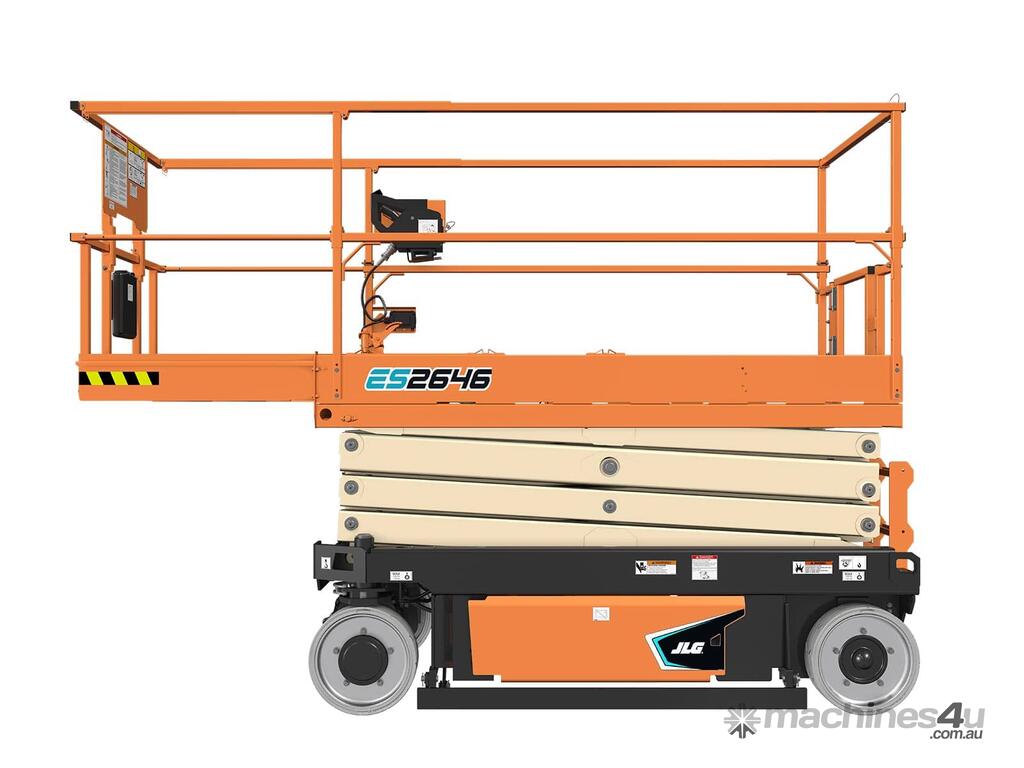

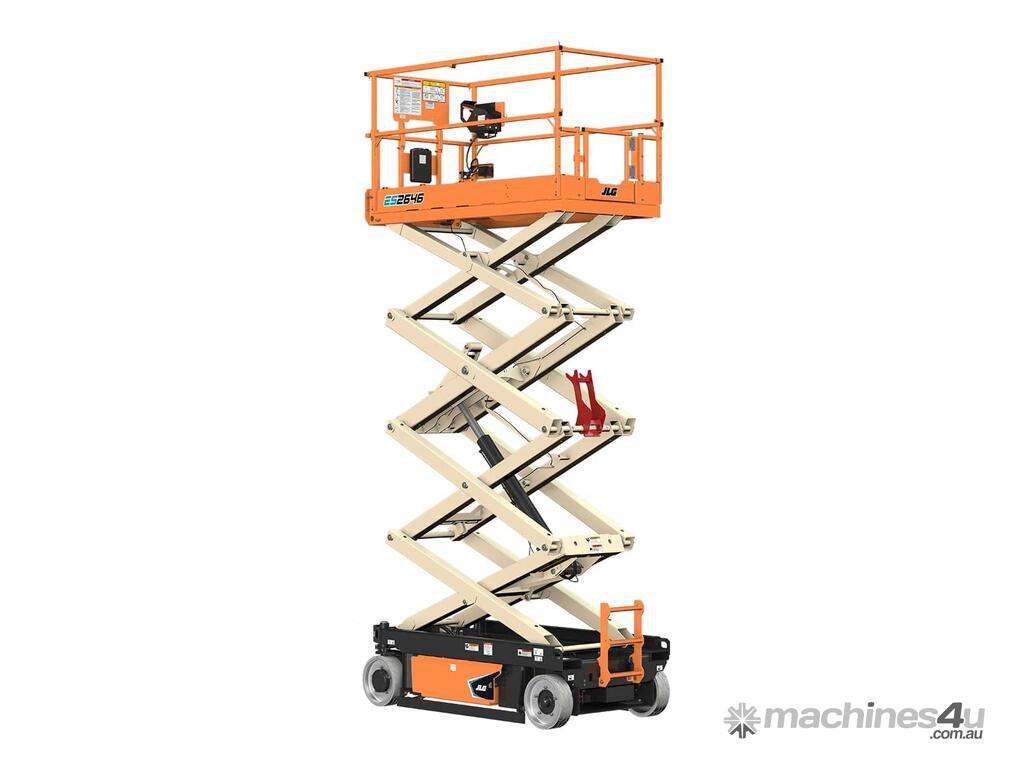

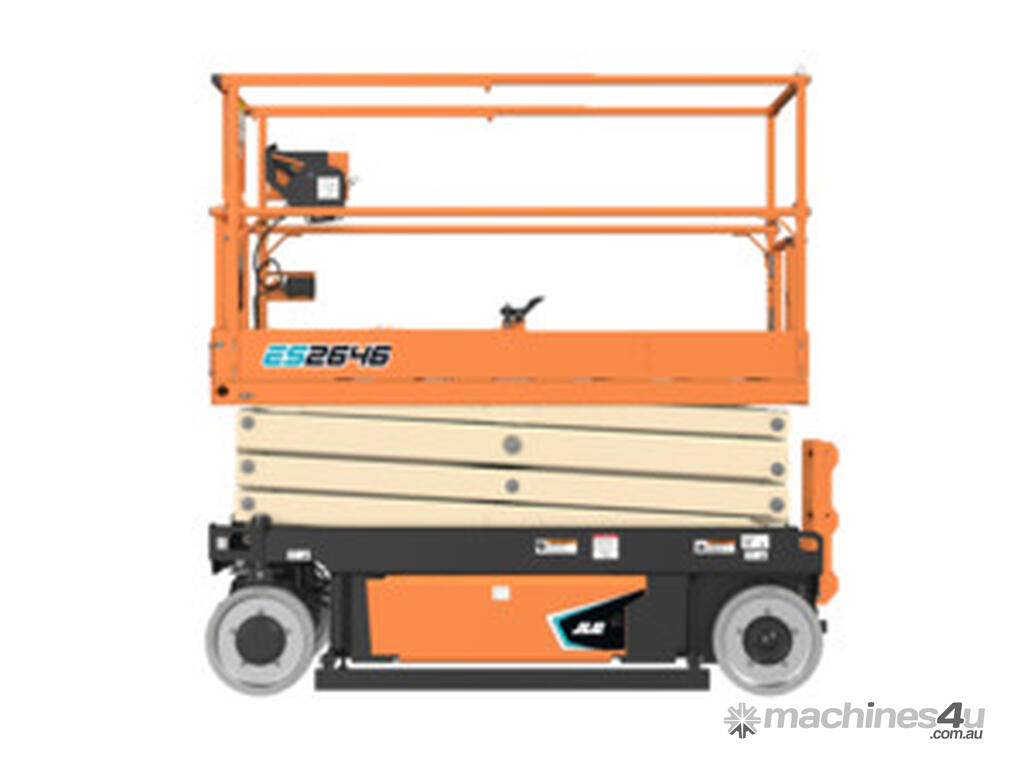

ES2646 Scissor Lift - 26ft Platform Height | Extended Runtime & Quick Charging

Overview
Experience reduced charging time and extended runtime with the JLG ES Series. This scissor lift range offers class-leading capacities with both indoor-only and indoor/outdoor models. Standard full proportional controls ensure smooth operation, while optional accessory packages enhance productivity.

Quick Specs
Platform Height: 26 ft (7.92 m)
Machine Width: 3 ft 10 in. (1.17 m)
Drive Speed (Platform Lowered): 3 mph (4.83 km/h)
Power System
Batteries: 4 x 6V, 220 A-h
Charger: 27 amp automatic

General
Brakes: Electric, Friction
Hydraulic Reservoir Capacity: 1.7 gal. (6.44 L)
Hydraulic Pump: Fixed Displacement Gear
Machine Weight: 5295 lb (2401.77 kg)
Max Ground Bearing Pressure: 137 psi (9.59 kg/cm²)

Performance Data
Drive Speed (Platform Elevated): 0.5 mph (0.80 km/h)
Drive Speed (Platform Lowered): 3 mph (4.83 km/h)
Gradeability: 25%
Lift Time: 62 sec
Lower Time: 37 sec
Max Drive Height: 26 ft (7.92 m)
Platform Capacity: 1200 lb (544.31 kg)
Platform Capacity (Extension): 265 lb (120.20 kg)
Platform Capacity (Unrestricted): 450 kg
Turning Radius (Inside): 0 ft (0 m)
Turning Radius (Outside): 7 ft 4 in. (2.24 m)

Dimensions
Ground Clearance: 4 in. (0.1 m)
Machine Height: 7 ft 6 in. (2.28 m)
Machine Height (Rails Folded): 6 ft (1.82 m)
Machine Length: 7 ft 10 in. (2.4 m)
Machine Width: 3 ft 10 in. (1.17 m)
Platform Extension Length: 3 ft (0.91 m)
Platform Height (Lowered): 3 ft 9 in. (1.14 m)
Platform Railing Height: 3 ft 9 in. (1.13 m)
Tire Size: 16 x 5 in.
Wheelbase: 6 ft 2 in. (1.88 m)

JLG Industries is dedicated to delivering top-tier, innovative, and sustainable access equipment that enhances productivity and guarantees safety on job sites around the world. With decades of expertise, a commitment to continuous improvement, and a focus on customer success, JLG stands as a trusted partner in the industry. Order now and experience unmatched quality and reliability with JLG!
