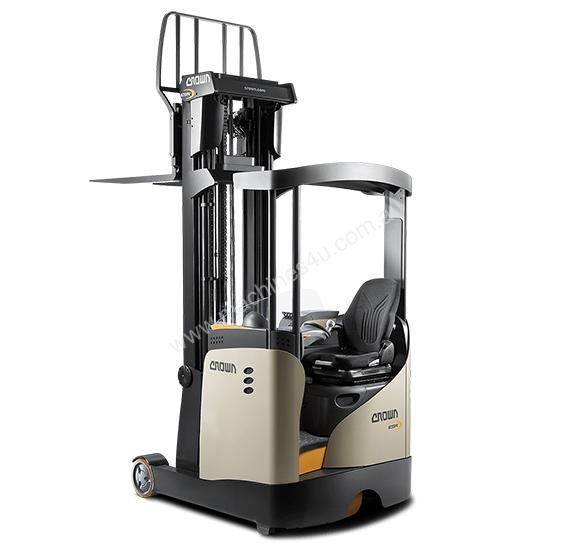

ESR Series-Standard Chassis

Standard Chassis

The ESR reach truck with standard chassis is a value-packed solution that doesn't compromise on durability or operator comfort.

Load Capacity
1400 kg

Max. Lift Height
9450 mm

Power (Electric)
48 volt

Head Length
1186 - 1253 mm

Overall Width
1285 mm

Value All Around
The best reach truck moves products in and out of your facility quickly, easily, safely and economically. That’s where the value of the ESR Series begins.

Focused on Performance
The Crown ESR Series reach truck offers a range of lift heights, capacities, performance levels and operator features aligned with your required duty cycle.

Operators gain confidence and performance with Crown’s intelligent Optimised Cornering Speed (OCS) system that automatically adjusts acceleration and deceleration curves for maximum safety and performance.

The ESR Series provides smooth and precise control of hydraulic functions and a full range of standard and optional features designed to increase operator efficiency.


One Flexible Solution
With four models in three capacities and lift heights to 13 metres, the ESR Series reach truck provides the flexibility to address various rack set-ups, space constraints, environmental extremes and more. A streamlined design helps operators move in and out of drive-in racks with greater ease and efficiency.

From the value-packed ESR 5220 to the best-in-class ESR 5280S, you’ll find a reach truck to match your performance, aisle width and lift height requirements.

Comfort Drives Productivity
Ergonomics play a vital role in many aspects of the ESR Series reach truck. From controls to comfort, the goal is to improve productivity with every move.

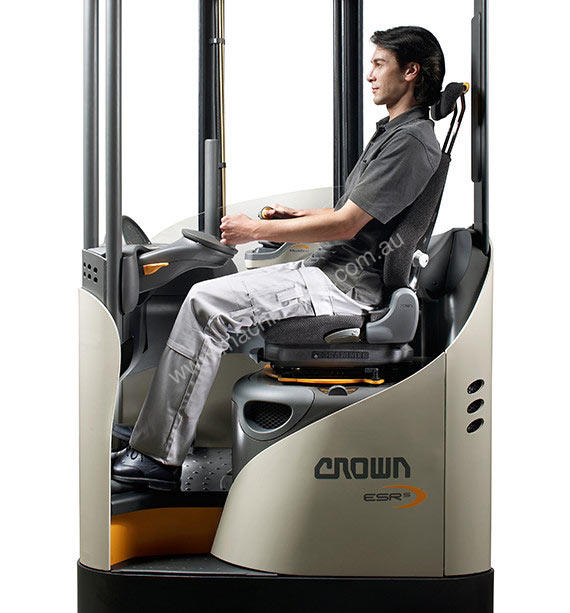

For example, Crown’s exclusive swiveling MoveSeat with integrated headrest, tilts back to comfortably improve visibility while reducing back and neck stresses.

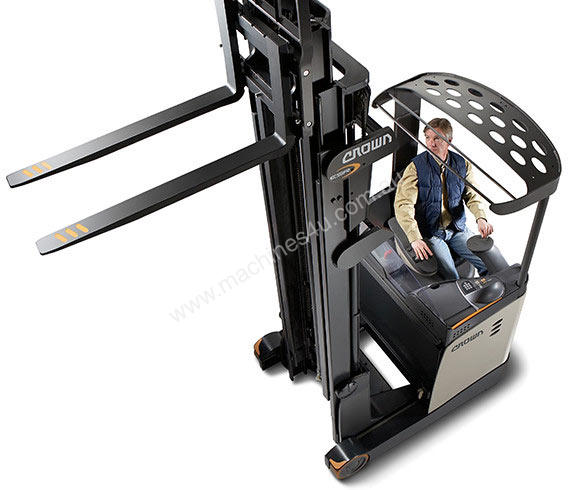

Take the controls and feel the smooth and efficient movements in any direction: driving, manoeuvring, lifting and reaching.

Lasting Value
Crown’s ESR Series reach truck delivers long term value like no other.

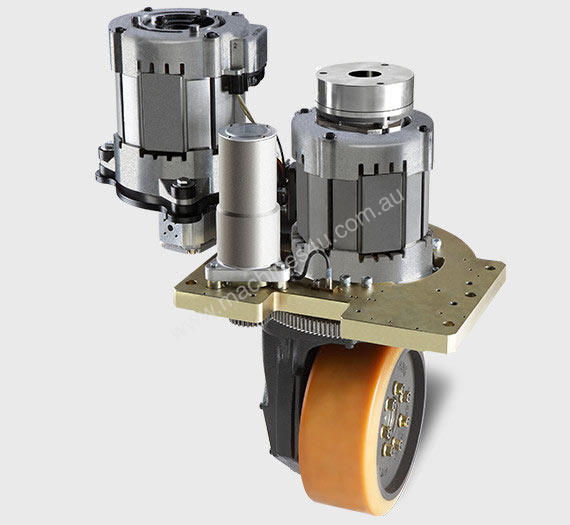

Crown designs and manufactures AC traction and hydraulic pump motors to optimise reach truck performance, energy savings and reduce maintenance. These large and robust motors offer reliable power – running cooler in the most demanding applications.

With Crown’s unique vertically integrated manufacturing and aftermarket services, total cost of ownership can be substantially lower over time.

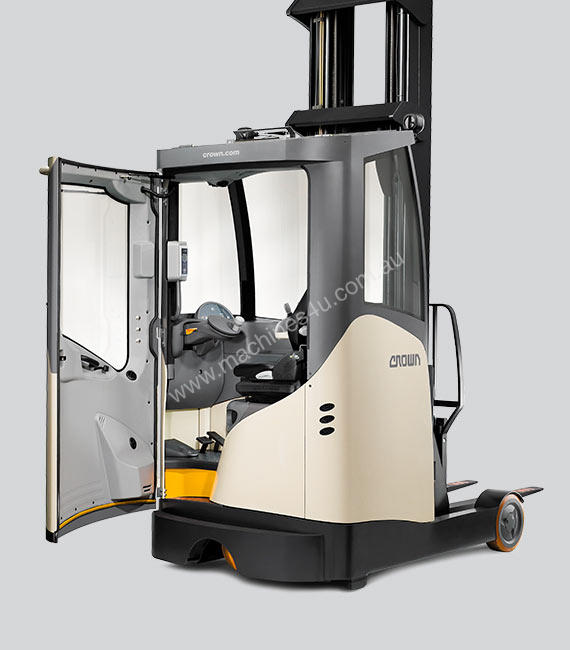

Into the Cold With Optimised Performance
The ESR reach truck with Cold Store Cabin option is designed for the extreme temperatures and corrosive conditions of freezer applications. It does much more than keep the operator warm. Cold conditioning starts with the reach truck itself. For protection in harsh environments, we coat chassis seams and studs with a wax-based corrosion preventative compound. In addition, we apply silicon sealer to all exposed electrical connections, give the motor compartment an additional layer of paint and use clear varnish to protect steel components in the motor compartment.

The rugged cabin structure, featuring profiled steel tubing, protects both the operator and your reach truck.

A fully featured, thermostat-controlled heating system and airtight windows with heaters maintain a temperature-controlled environment.

The cold store cabin option is available only on reach truck model ESR
