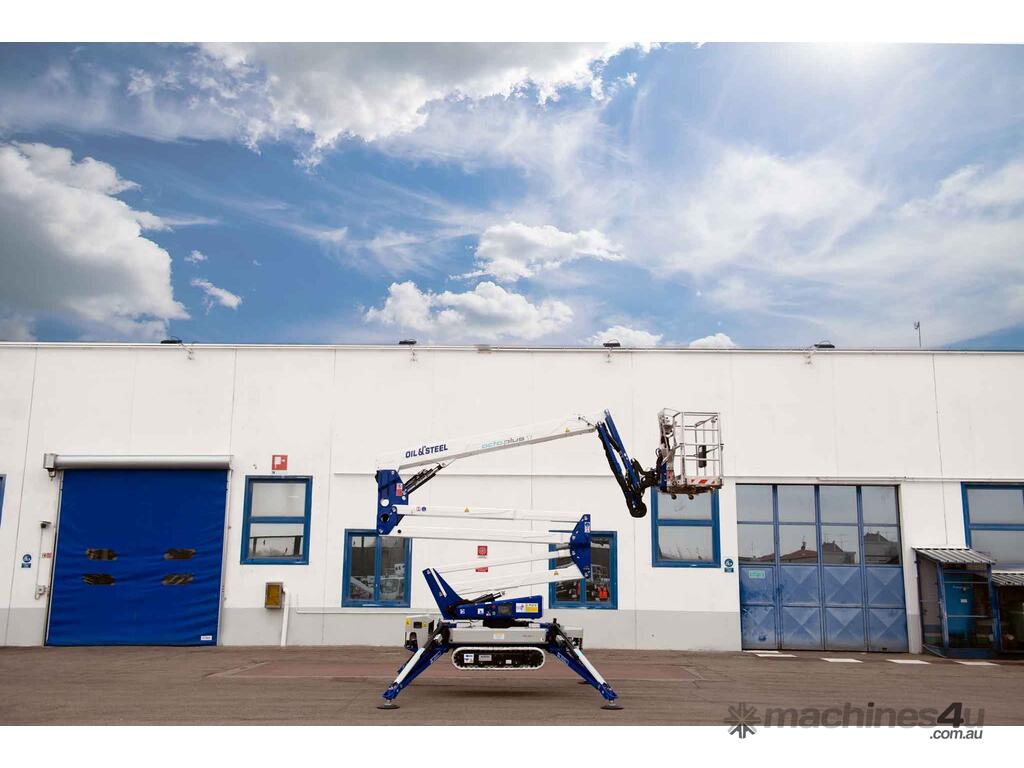

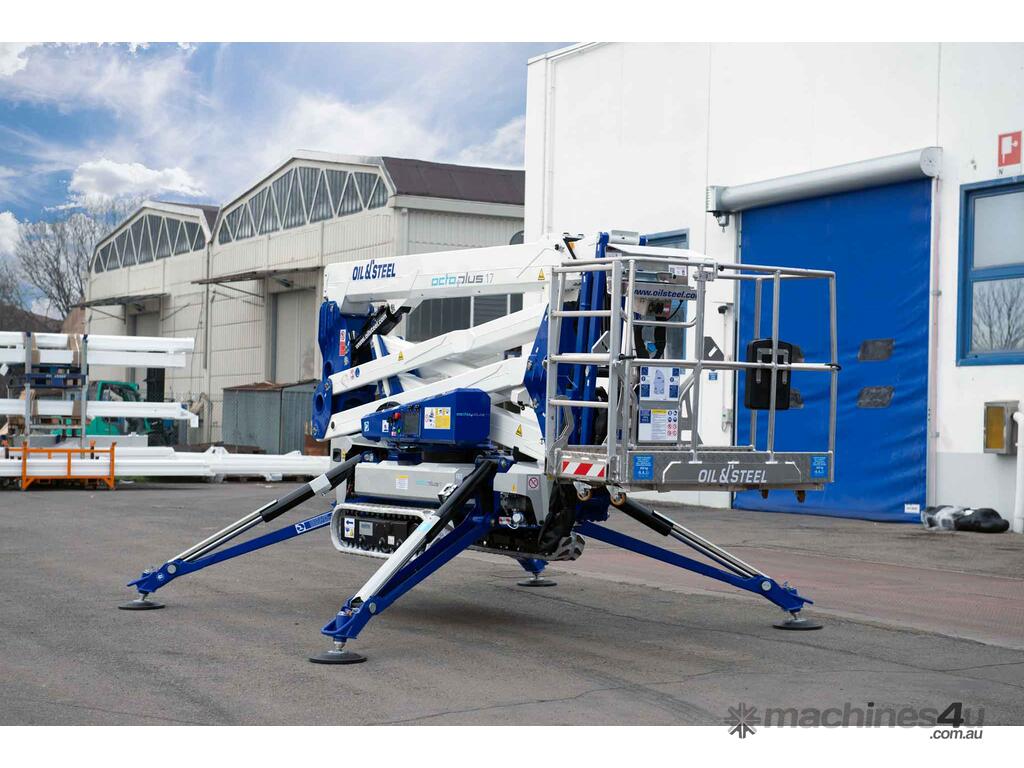

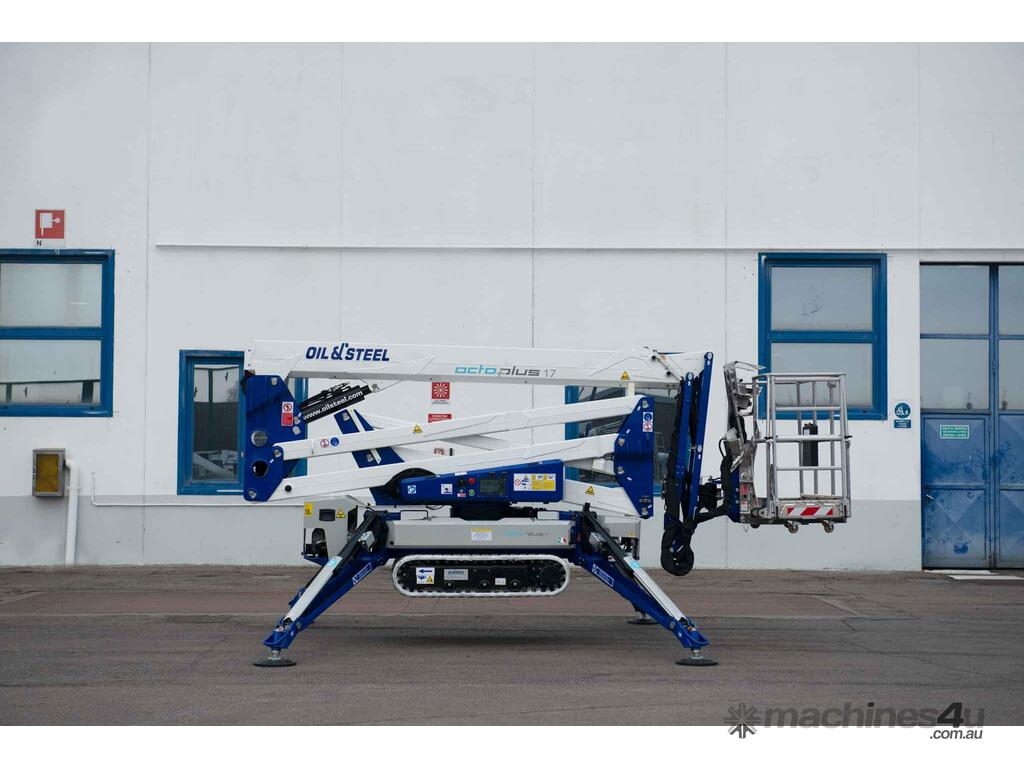

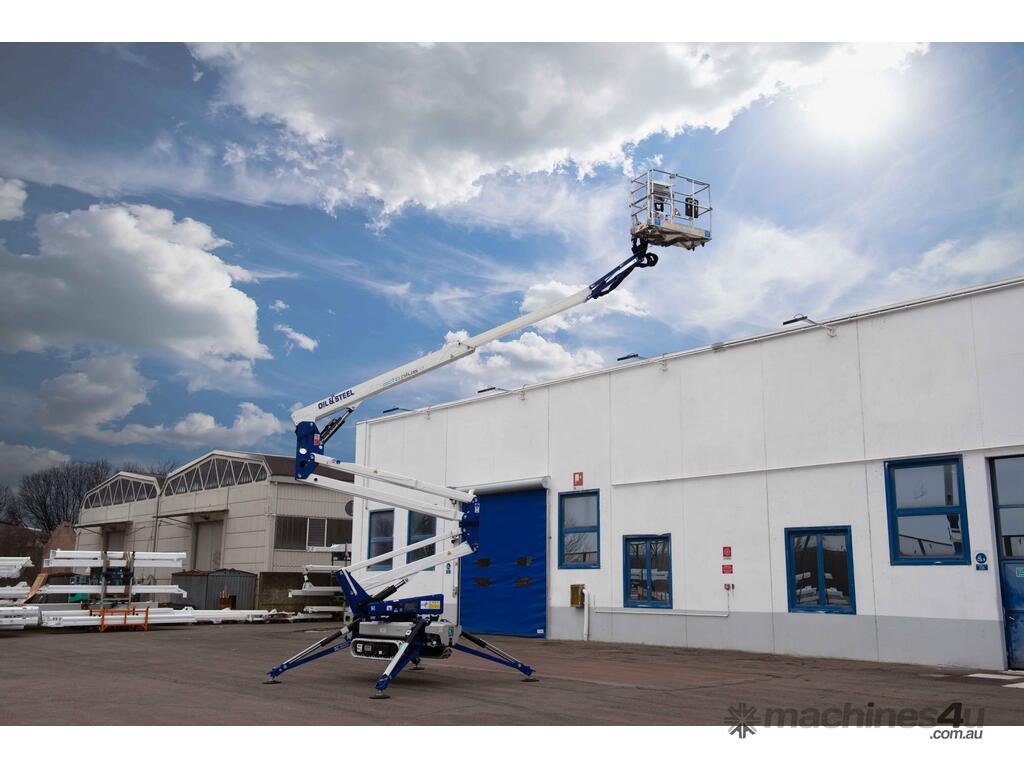

A compact, lightweight spider lift offering exceptional reach and affordability. Its short transport length ensures it can easily navigate tight spaces, making it an ideal choice for confined work areas.

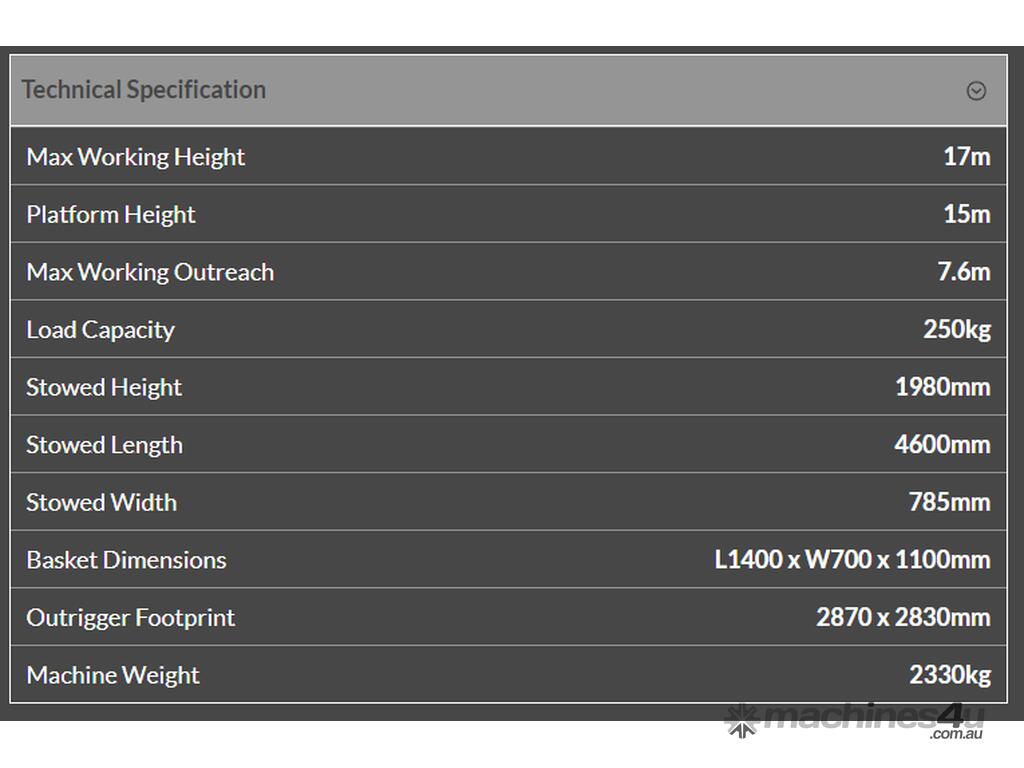

Key Features & Specifications:

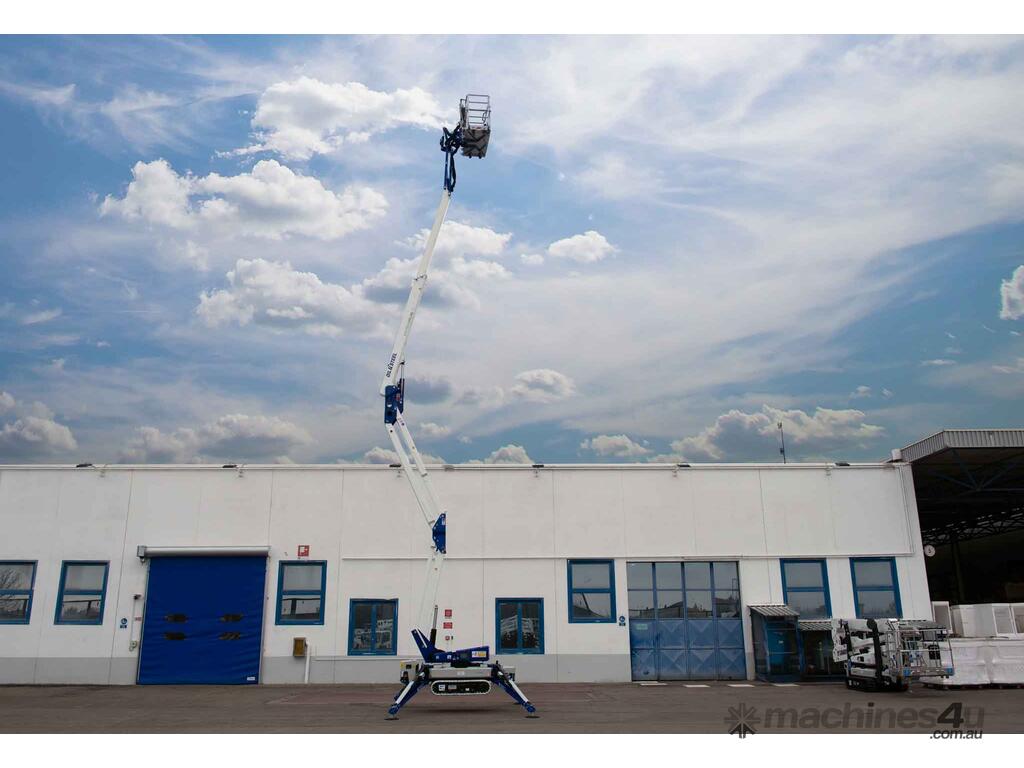

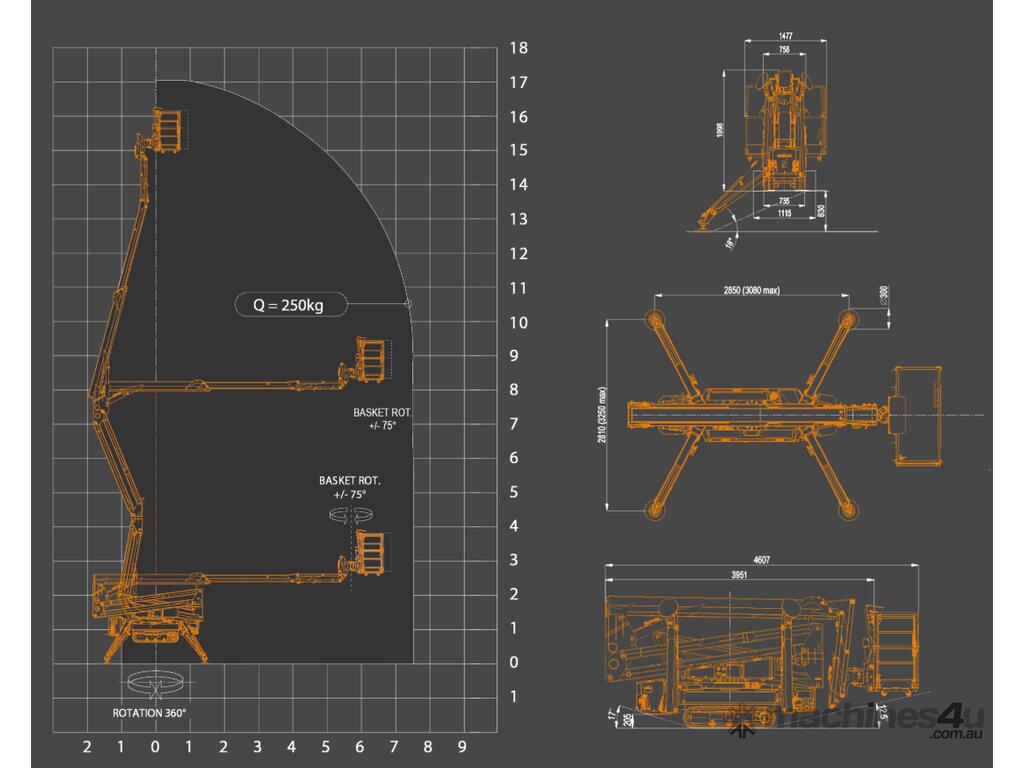

Working Height: 17.0 m
Max Outreach: 7.6 m
Basket Height: 15.0 m
Basket Capacity: 250 kg

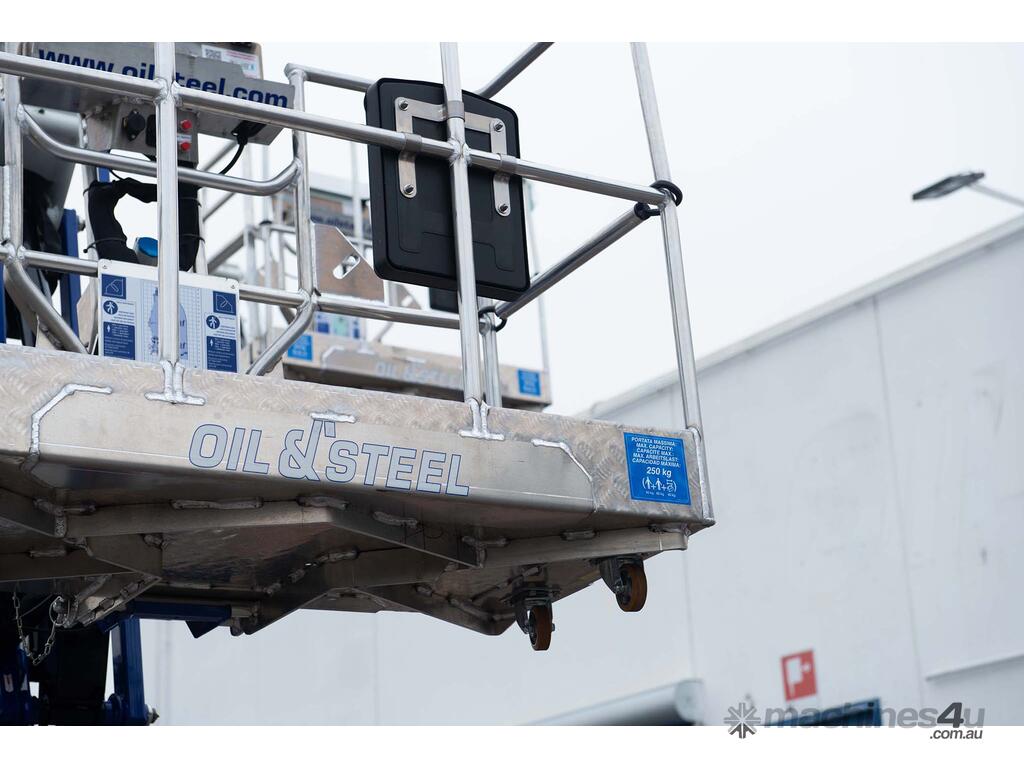

Basket Size: 1400 x 700 x 1100 mm
GVW: 2,330 kg
Transport Dimensions: 785 mm (W) x 3,951 mm (L) x 1,998 mm (H)
Track Width: 735 - 1,115 mm
Turret Rotation: +/- 180°
Basket Rotation: +/- 75°
Slope Capability: 20° with automatic stabilisation
Key Benefits:
Compact Design: Fits through a single door and easily loads on a 3.5 tonne plant trailer.

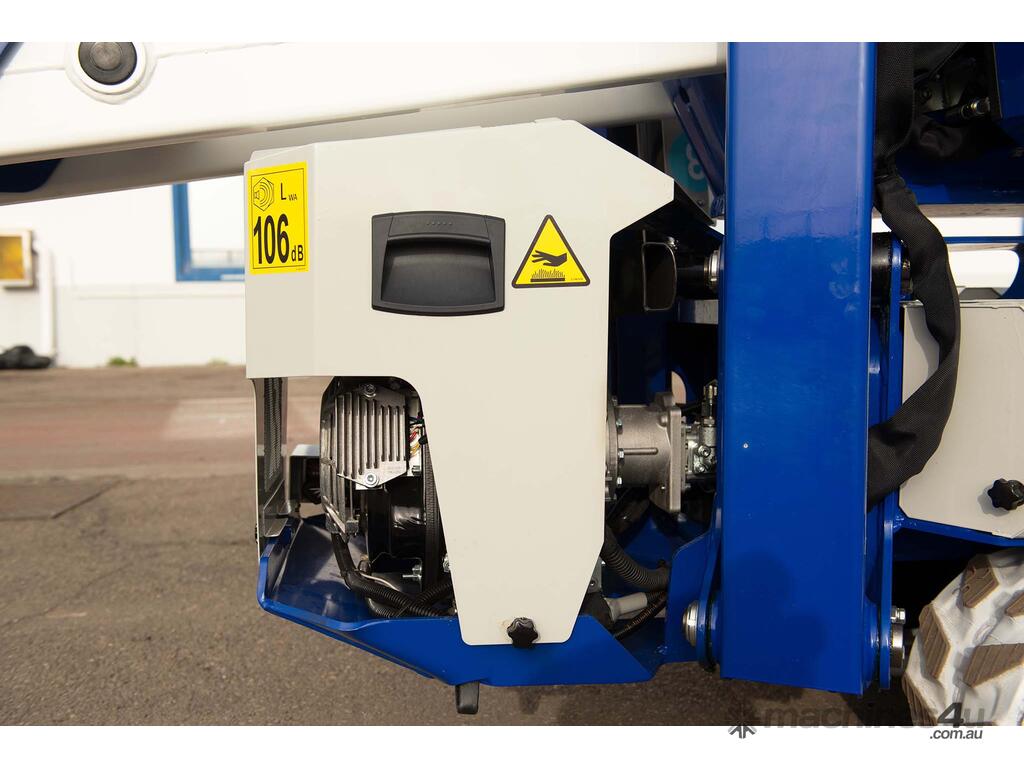

EV Version: Lithium battery (5.5 hrs continuous use) and electric motor for indoor and carbon-neutral operation.
Optional Features: Memory, Vertical Wall, and Homing functions for enhanced control.

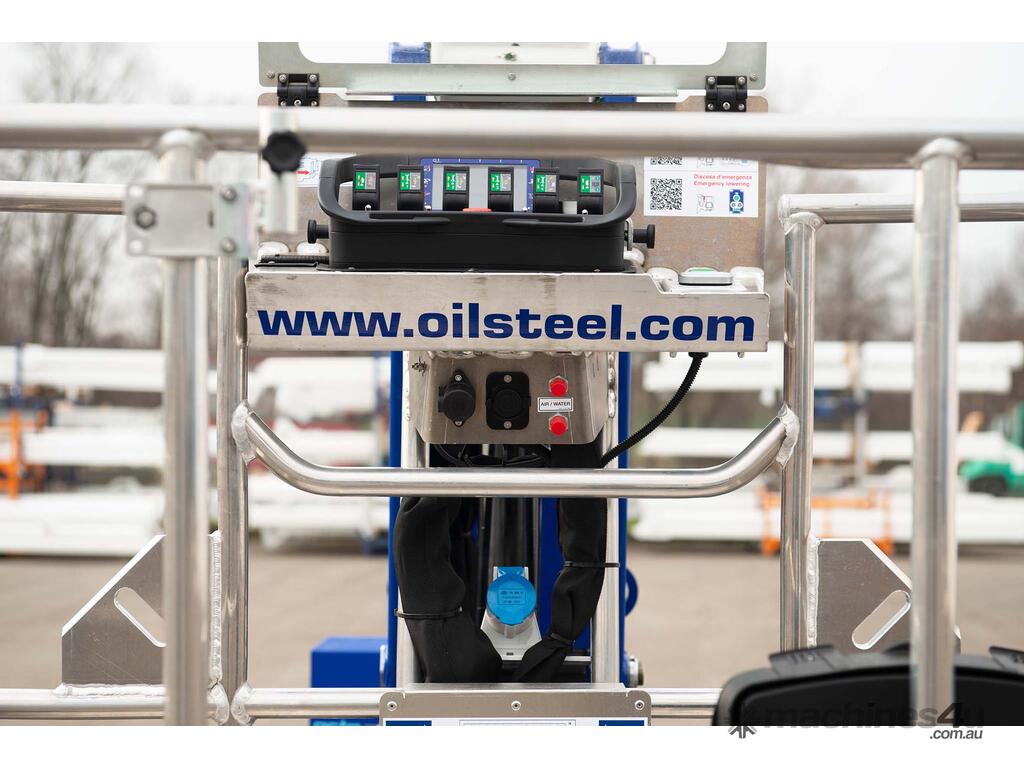

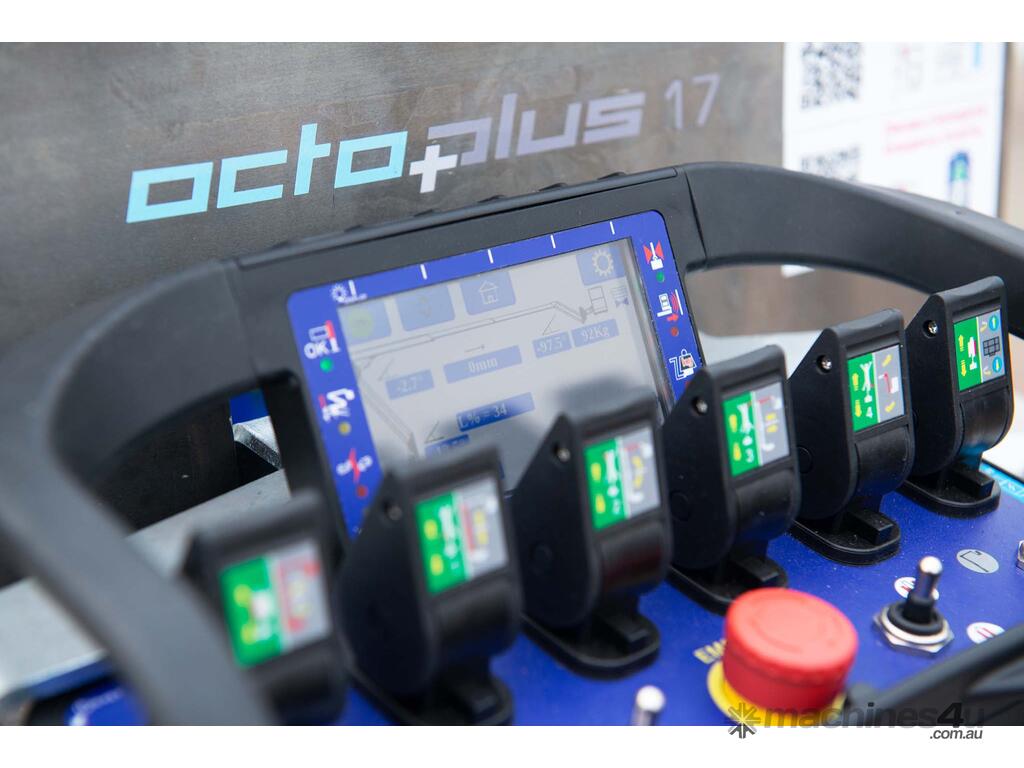

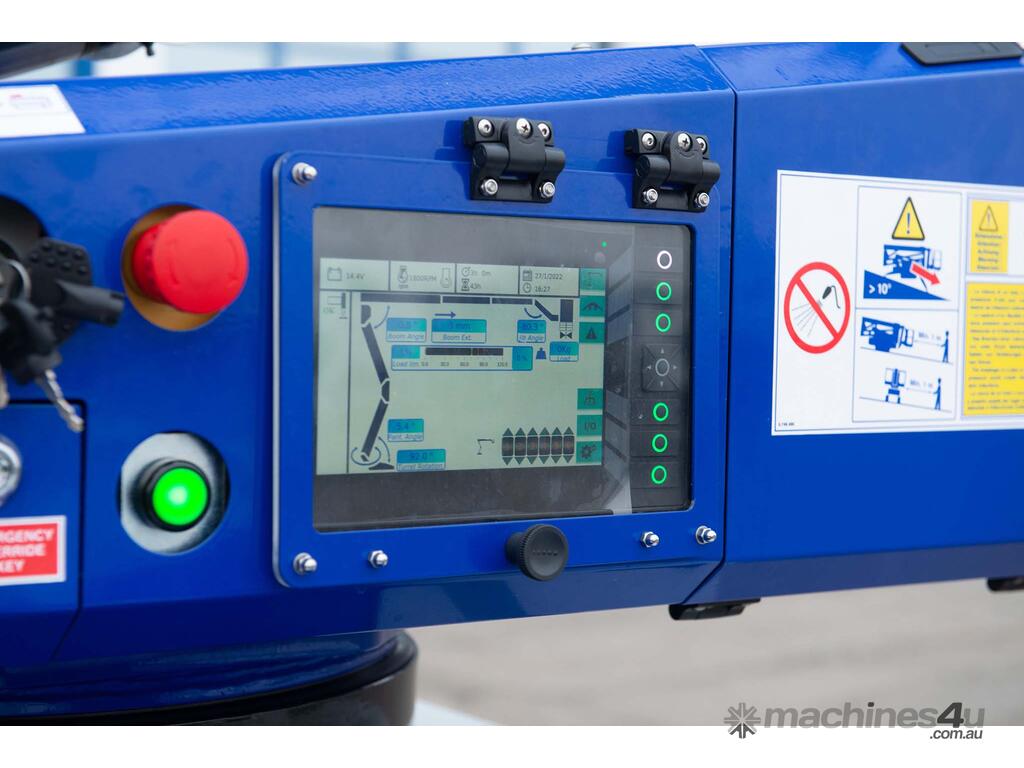

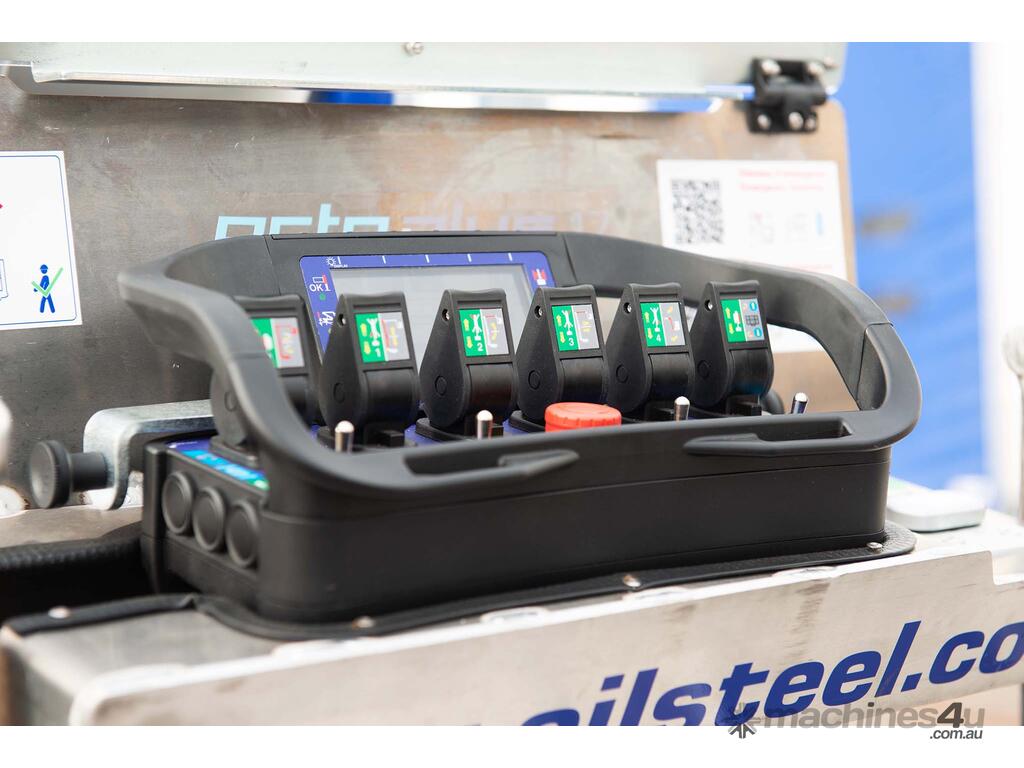

Advanced Control: Electro-hydraulic controls with optional 7” display for machine info.

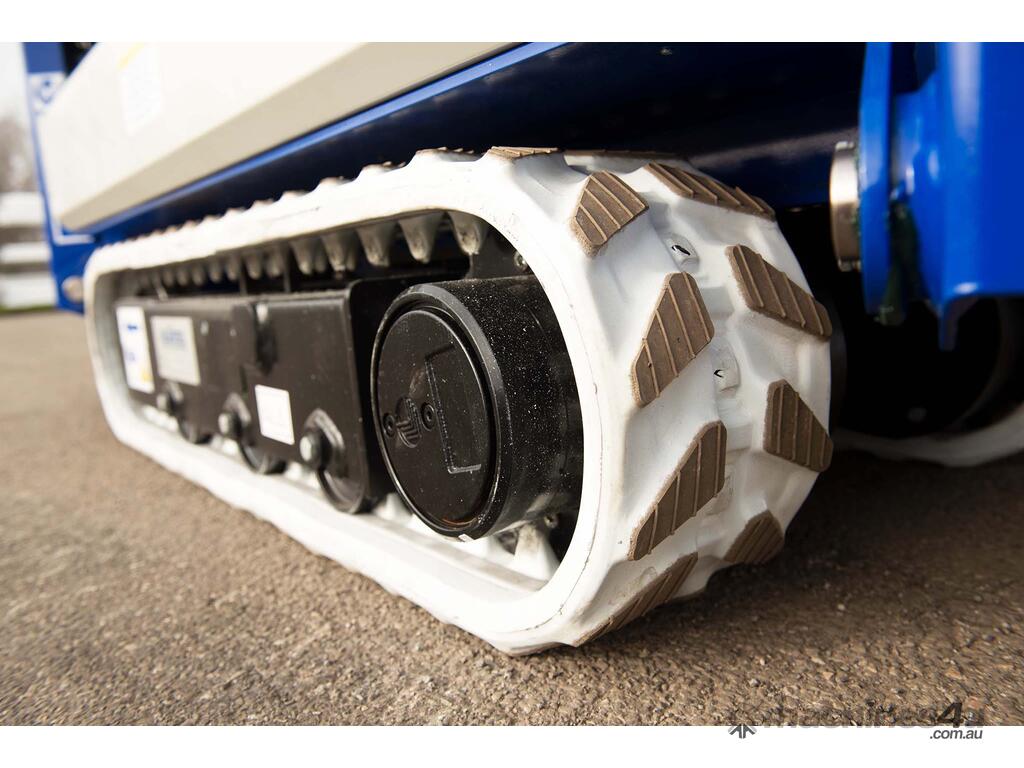

Stability: Expandable tracks for better stability and excellent performance on sloped surfaces.

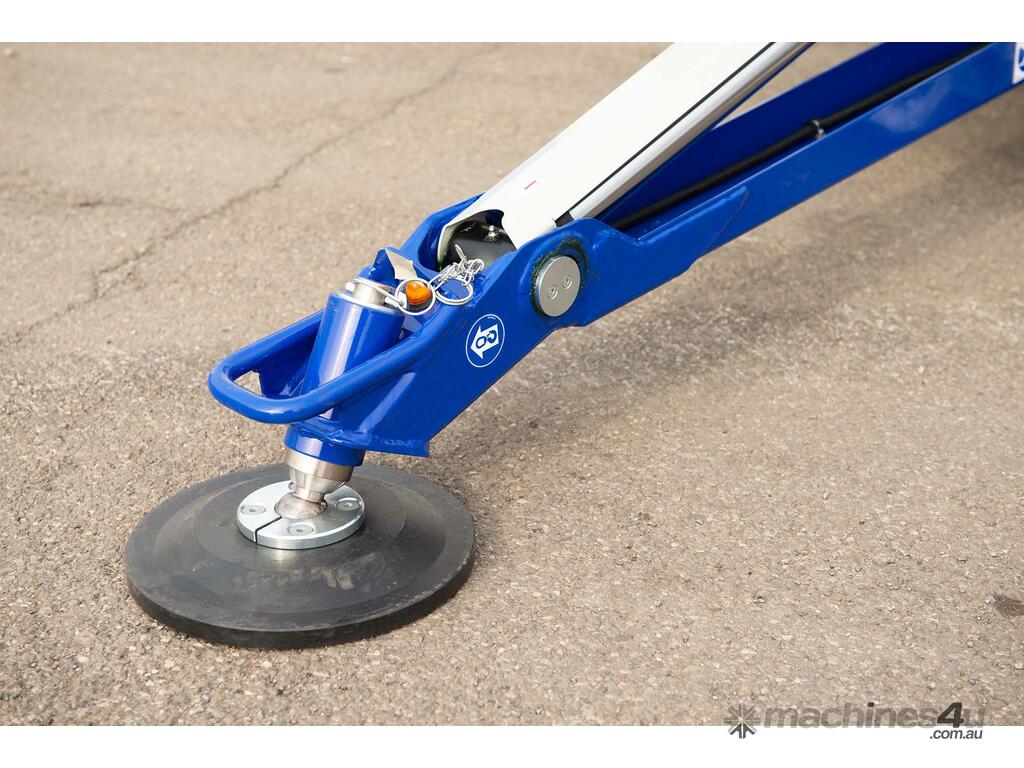

Easy Setup: Automatic stabilisation with slope sensors and an emergency lowering system.
Warranty & Service:
2-year standard warranty with extended options available.
Cost-effective service packages (1-5 years).
Try Before You Buy:
Available for daily or weekly hire. Get a full refund of your hire cost if you decide to purchase!
Need reliable, high-quality access equipment? Atlantic Rentals offers a modern fleet of Spider Lifts, Athena Lifts, and Spider Cranes to suit your project’s requirements. Our experienced team ensures safe, efficient service every time. Call us today to book your access platform!
