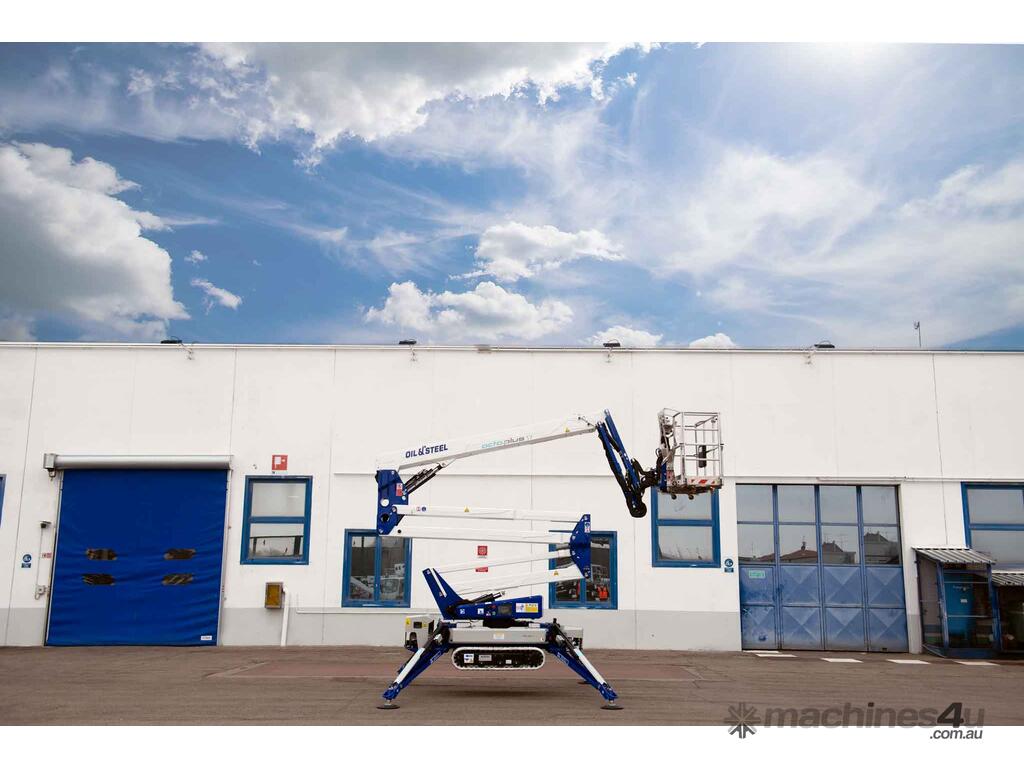

Introducing the OctoPlus 17, a stunning, compact, and lightweight spider lift offering exceptional reach at an unbeatable price. Its short transport length allows for easy navigation in tight spaces, making it a versatile choice for a variety of jobs.
Key Features:

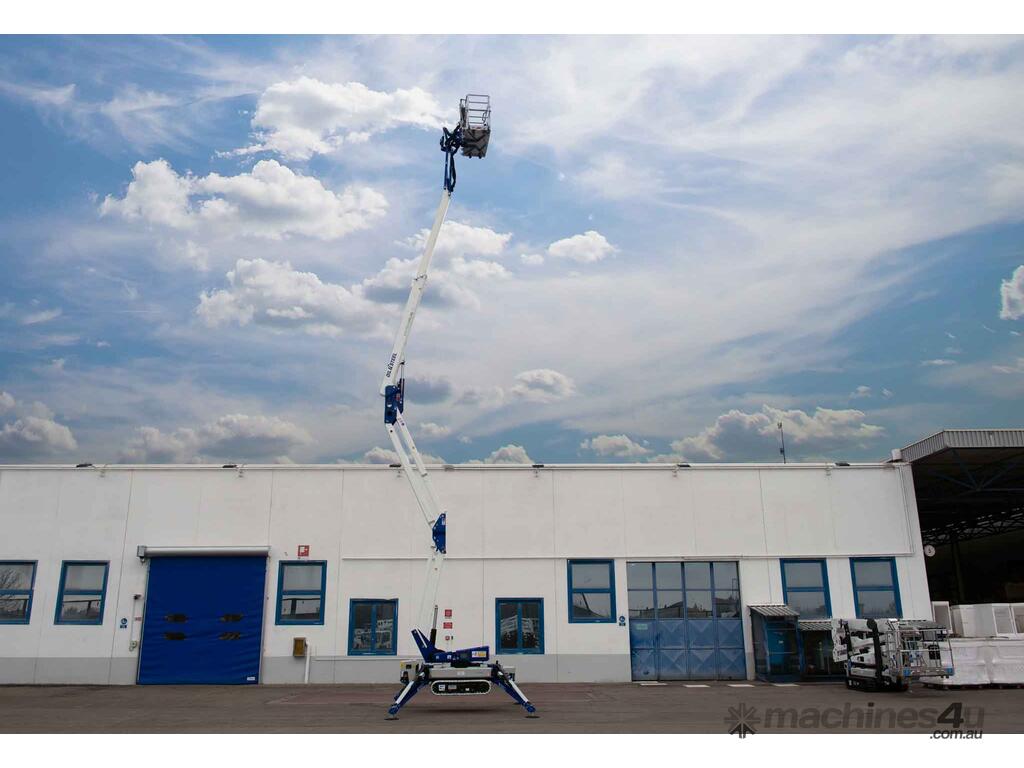

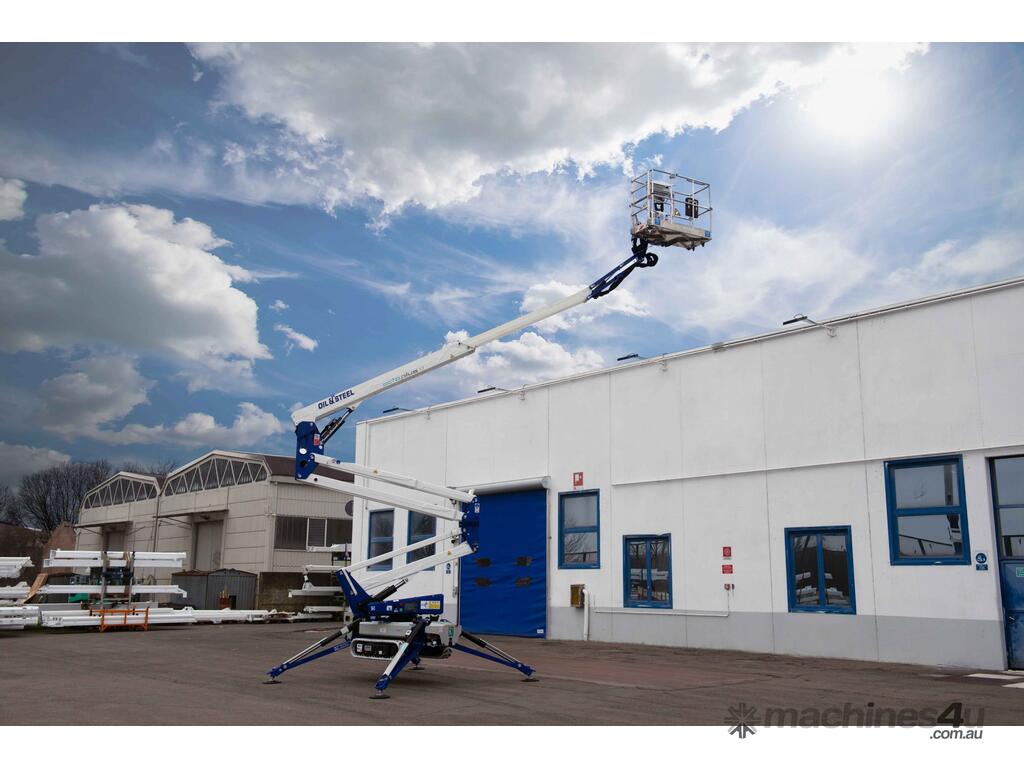

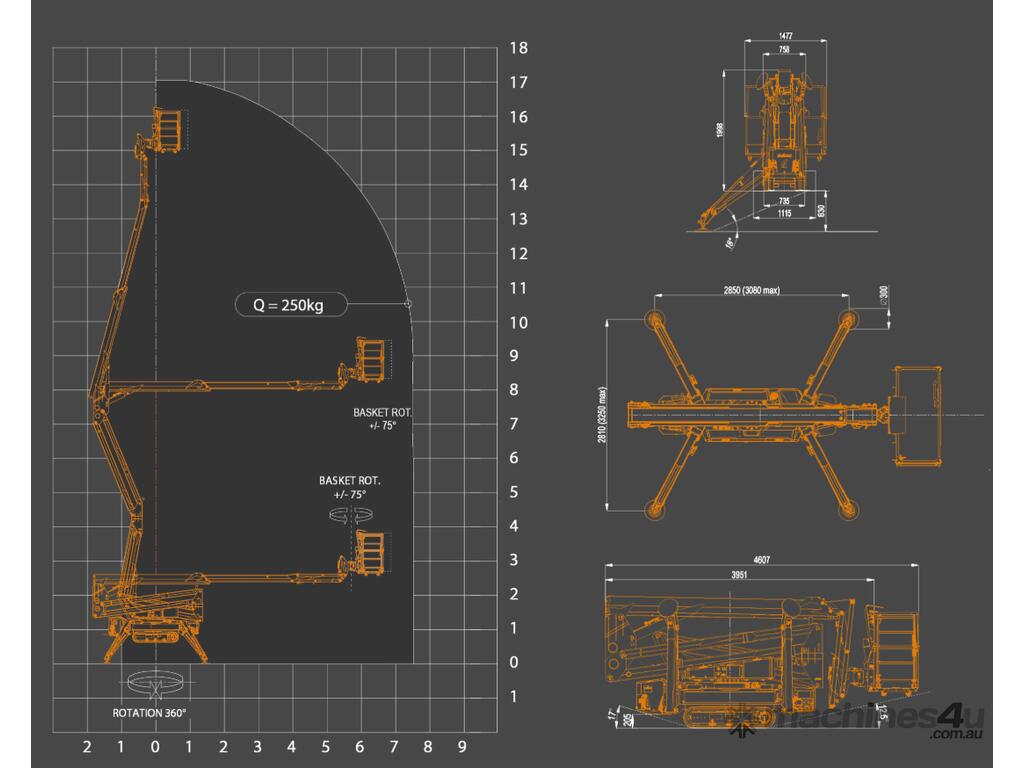

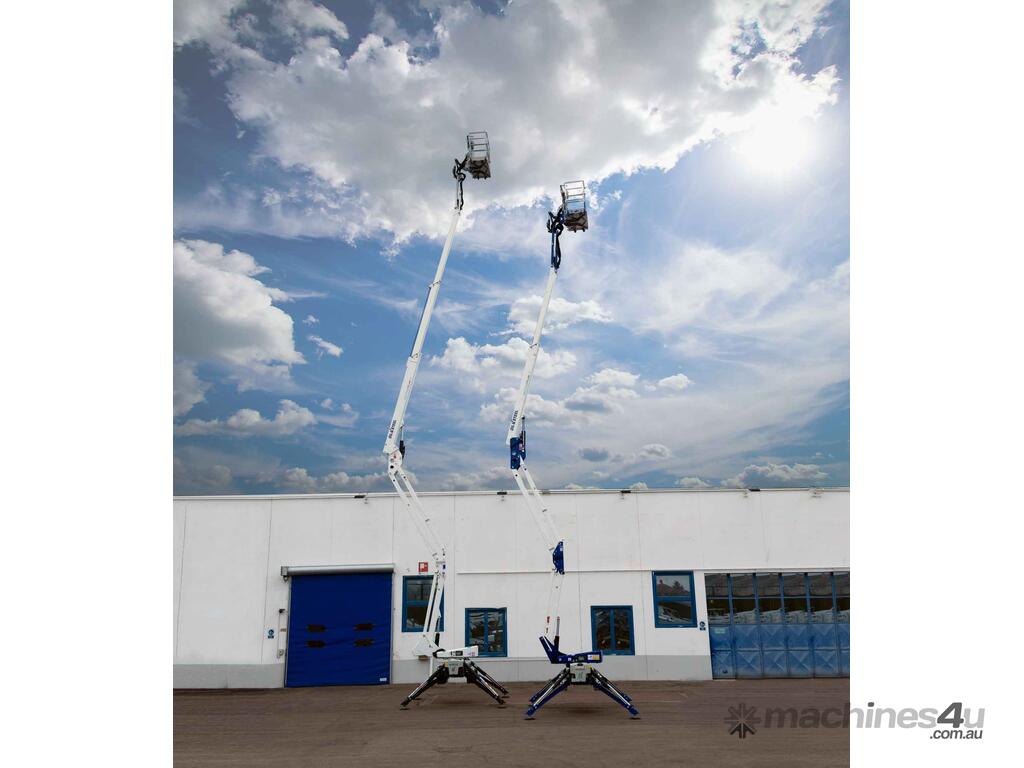

Unrestricted Reach: 56 ft (17 m) vertically, 26 ft (8 m) horizontally
Compact Design: 785 mm wide, 3,951 mm long, and 1,998 mm high for easy access through doors
Impressive Basket Capacity: 250 kg load capacity for enhanced productivity

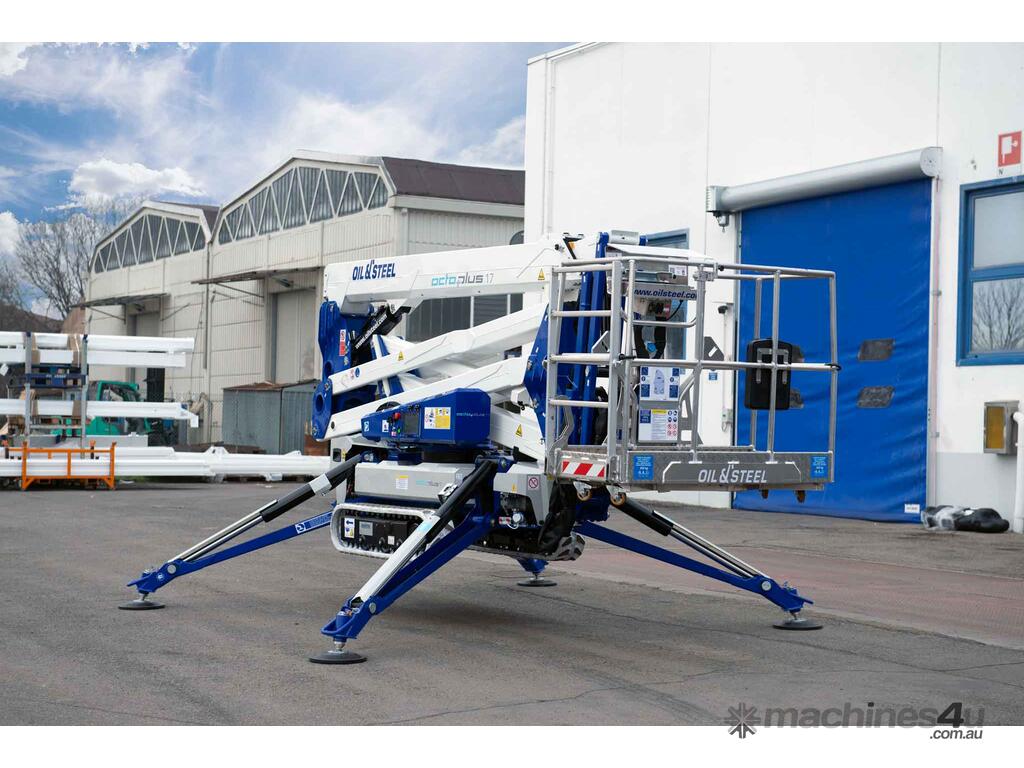

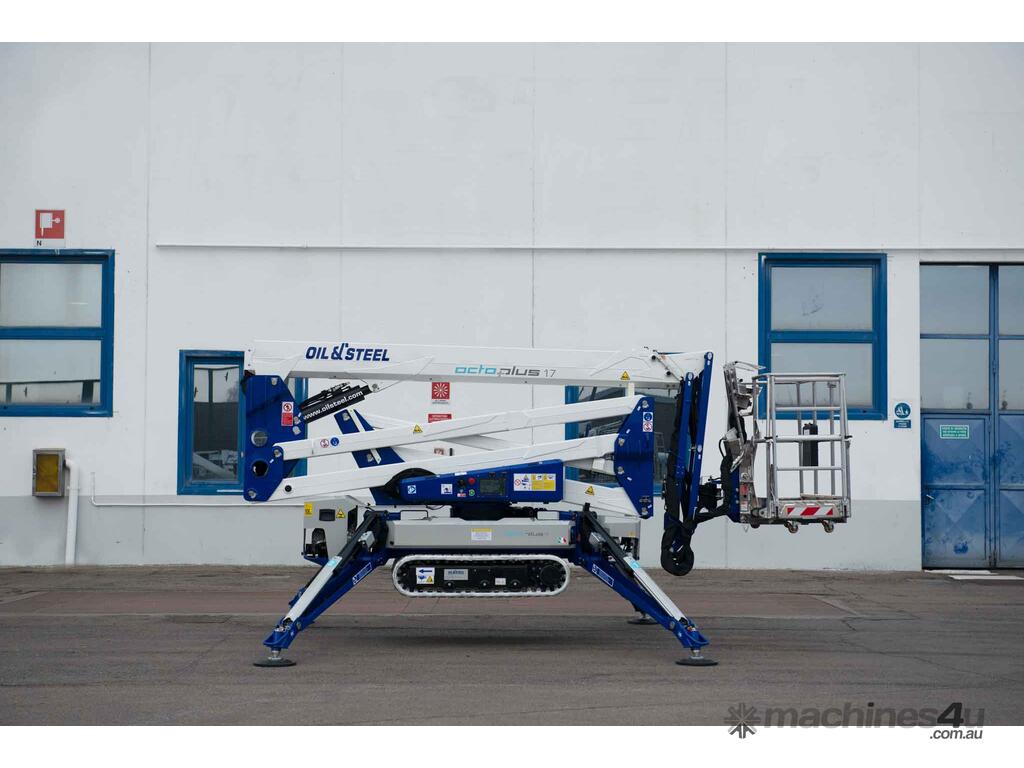

Stability & Flexibility: Can level up 20° slopes, with extendable tracks and 630 mm stabilisation height

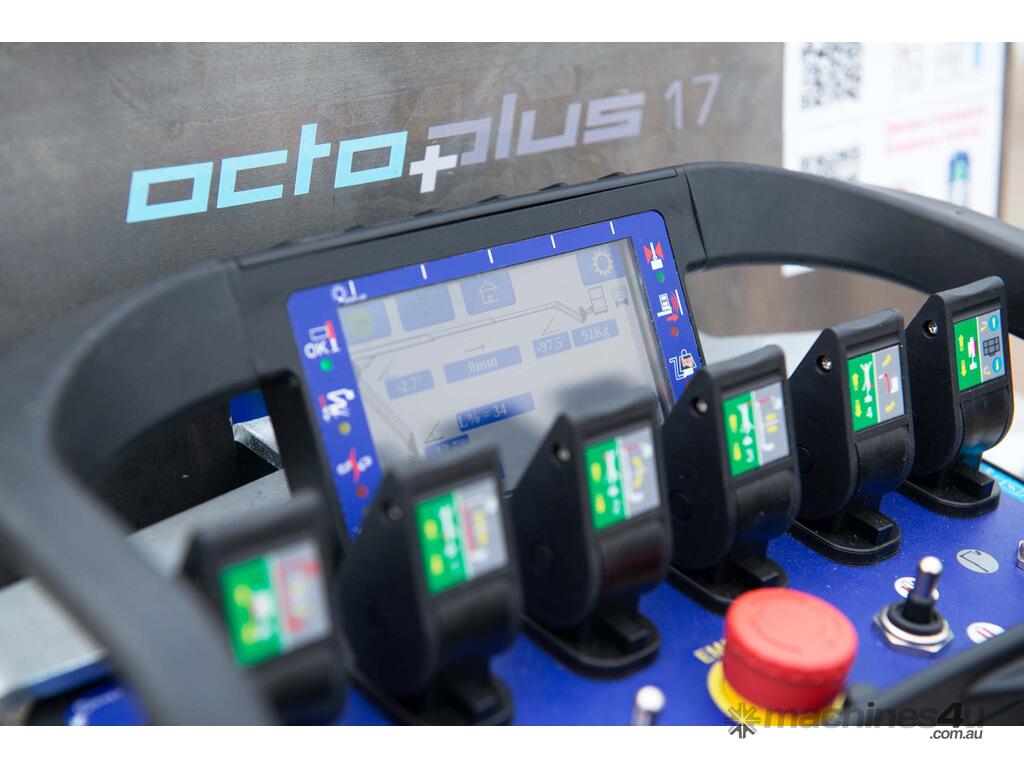

User-Friendly Controls: Proportional functions via Radio Remote Control and optional 7-inch display
Lithium Battery & Electric Motor: 5.5 hours of continuous use and a 230V plug-in for indoor, carbon-neutral work

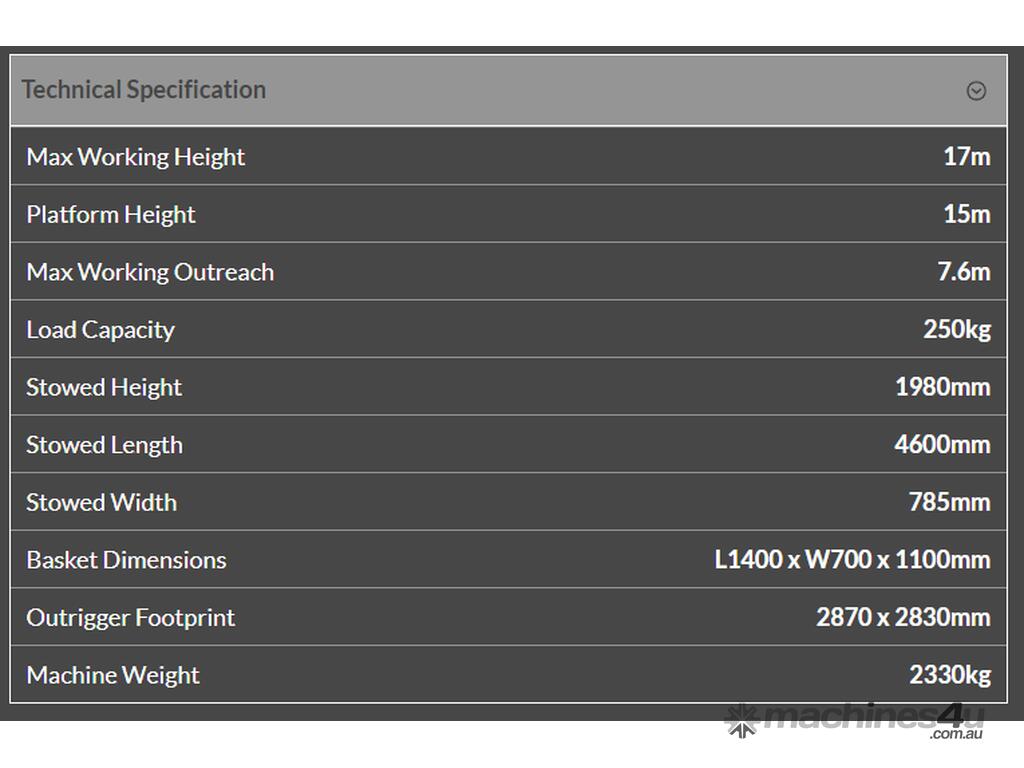

Specifications:
Working Height: 17.0 m
Max Outreach: 7.6 m
Basket Height: 15.0 m

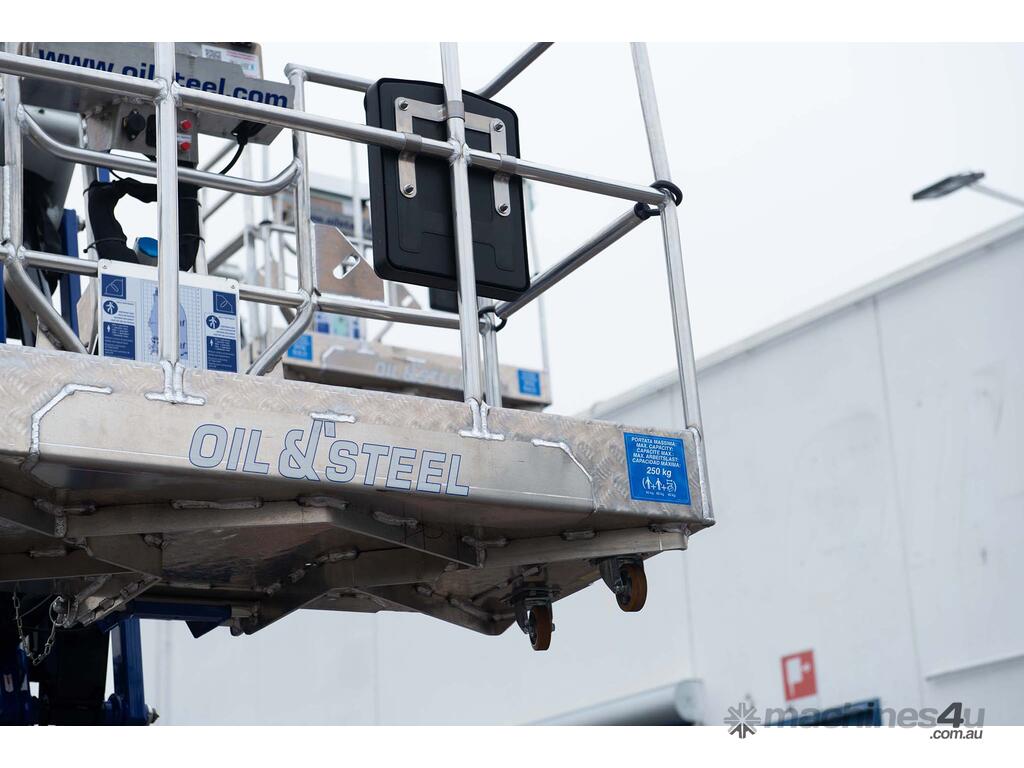

Basket Size: 1400 x 700 x 1100 mm
Basket Load Capacity: 250 kg
GVW: 2,330 kg
Track Width: 735 – 1,115 mm
Transport Dimensions: 785 mm (W) x 3,951 mm (L) x 1,998 mm (H)
Outrigger Footprint: 2,870 mm x 2,830 mm
Turret Rotation: +/- 180°
Basket Rotation: +/- 75°
Standard Features:

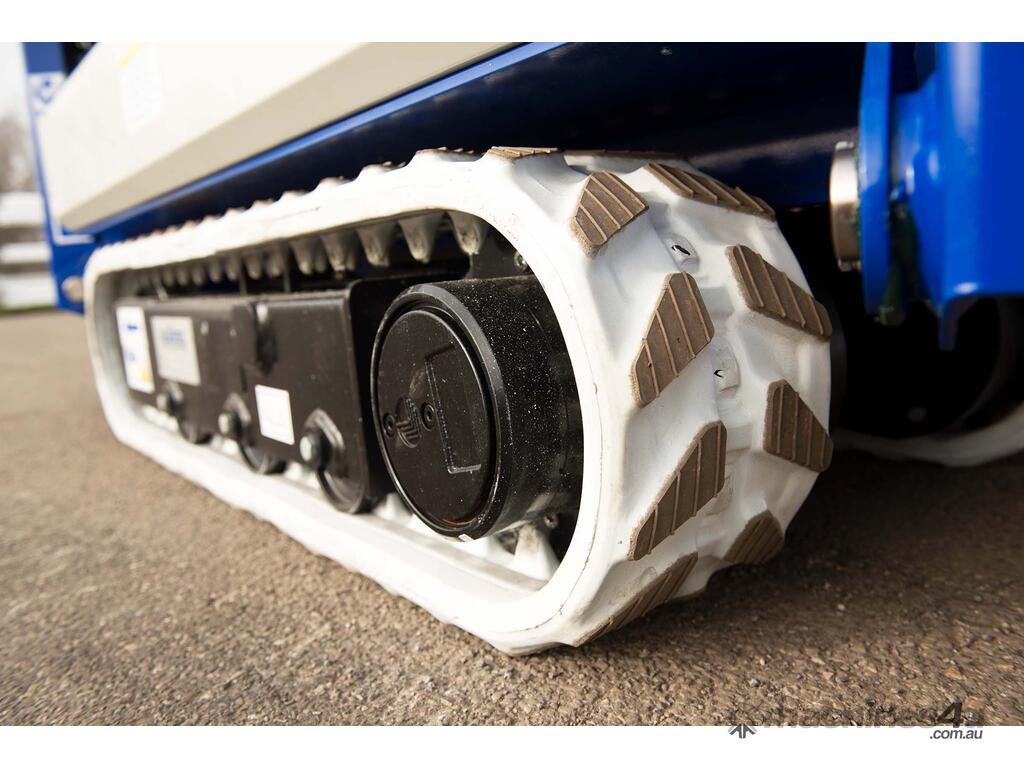

Hydraulically expandable undercarriage
Manual hand pump & emergency lowering system
230V electric socket in the basket
Multifunction remote control
Auxiliary electric pump (230V-50Hz)
Load/unload system & automatic stabilisation
Optional Features:
Homing, memory, and vertical wall functions

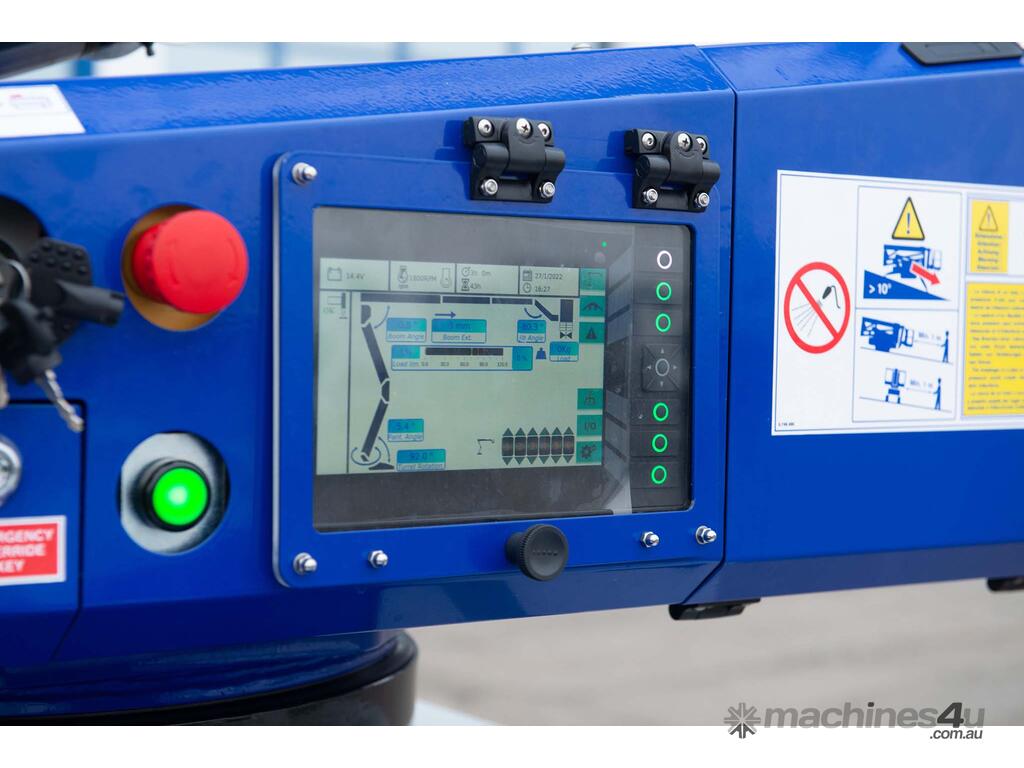

7-inch display on the column
Outrigger plates
Additional Information:
Warranty: 2 years standard, with extended options
Service Packages: Cost-effective 1-5 year plans
Try Before You Buy: Available for hire, with 100% refund on hire fees when purchasing
Need reliable, high-quality access equipment? Atlantic Rentals offers a modern fleet of Spider Lifts, Athena Lifts, and Spider Cranes to suit your project’s requirements. Our experienced team ensures safe, efficient service every time. Call us today to book your access platform!
