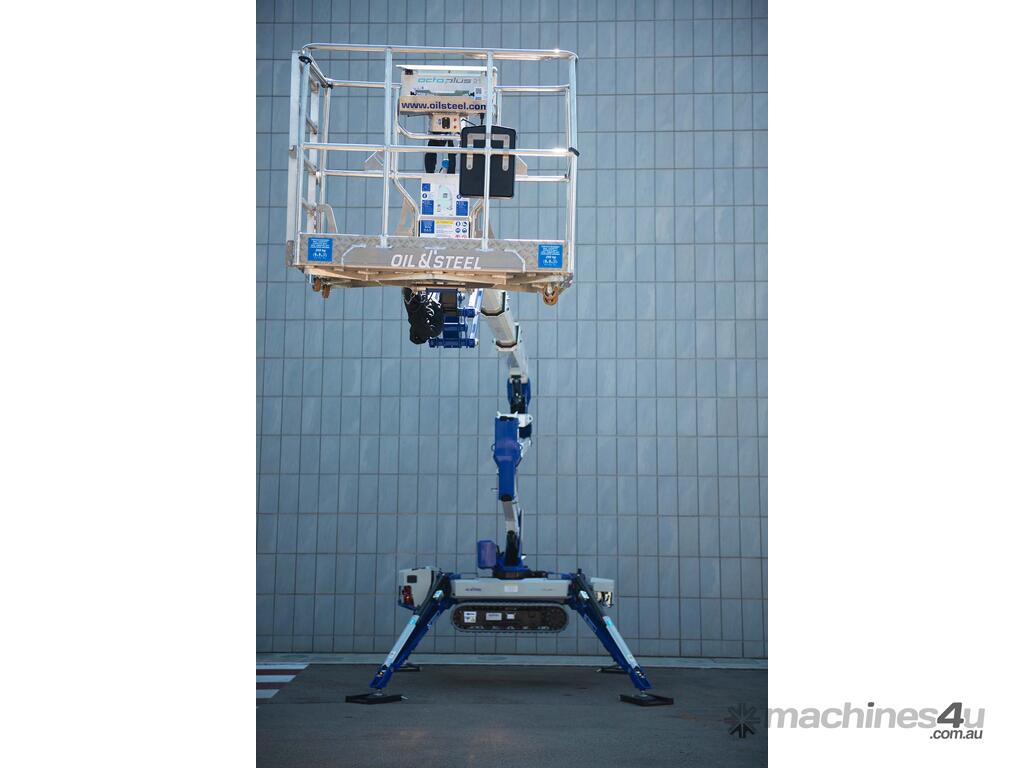

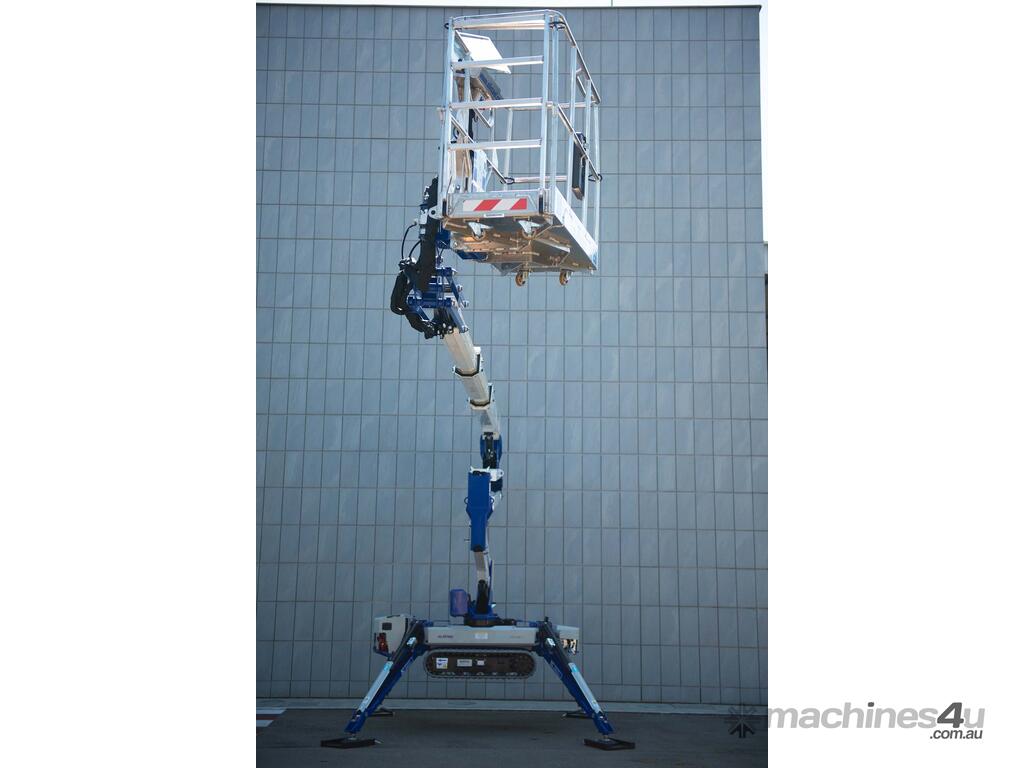

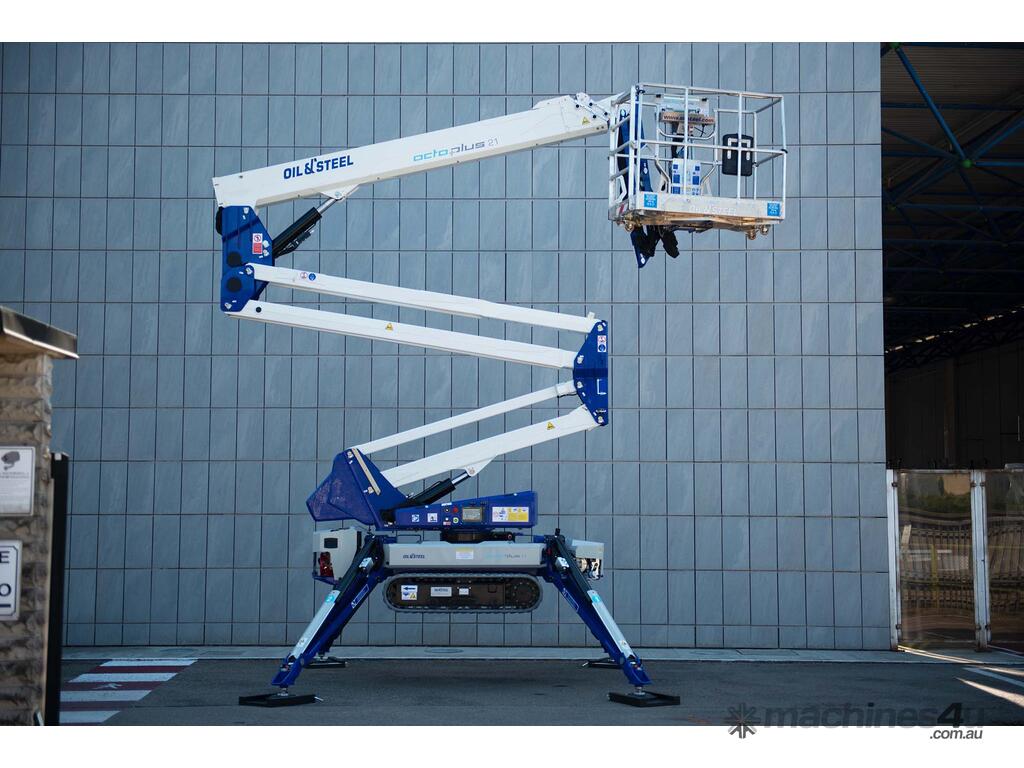

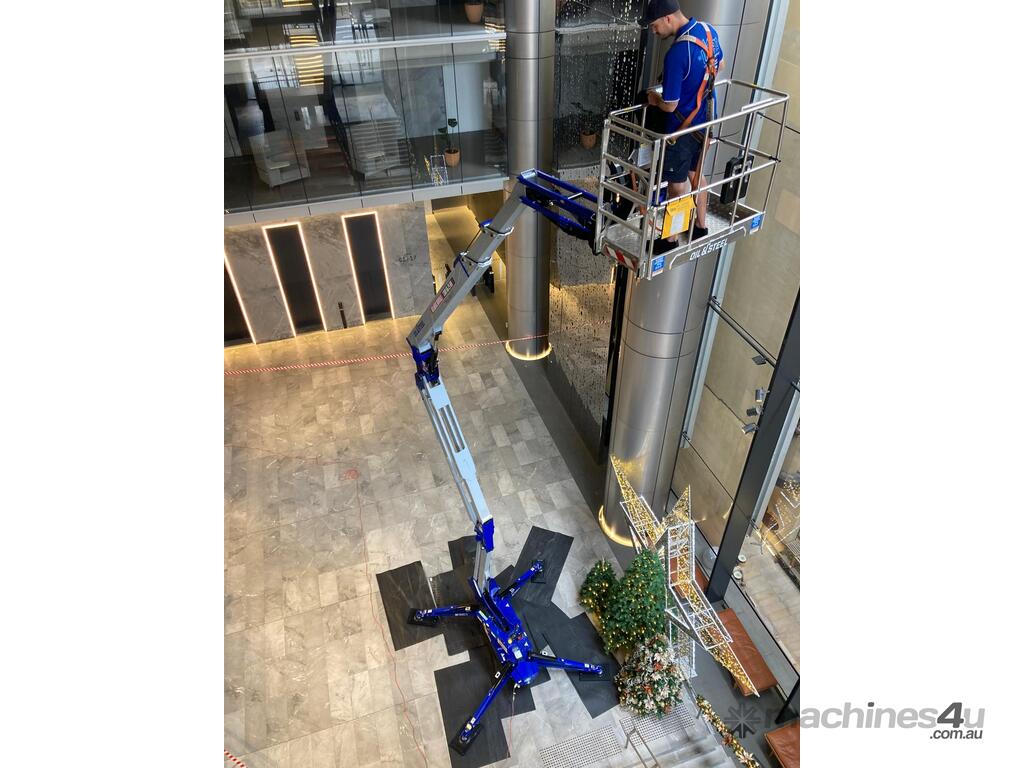

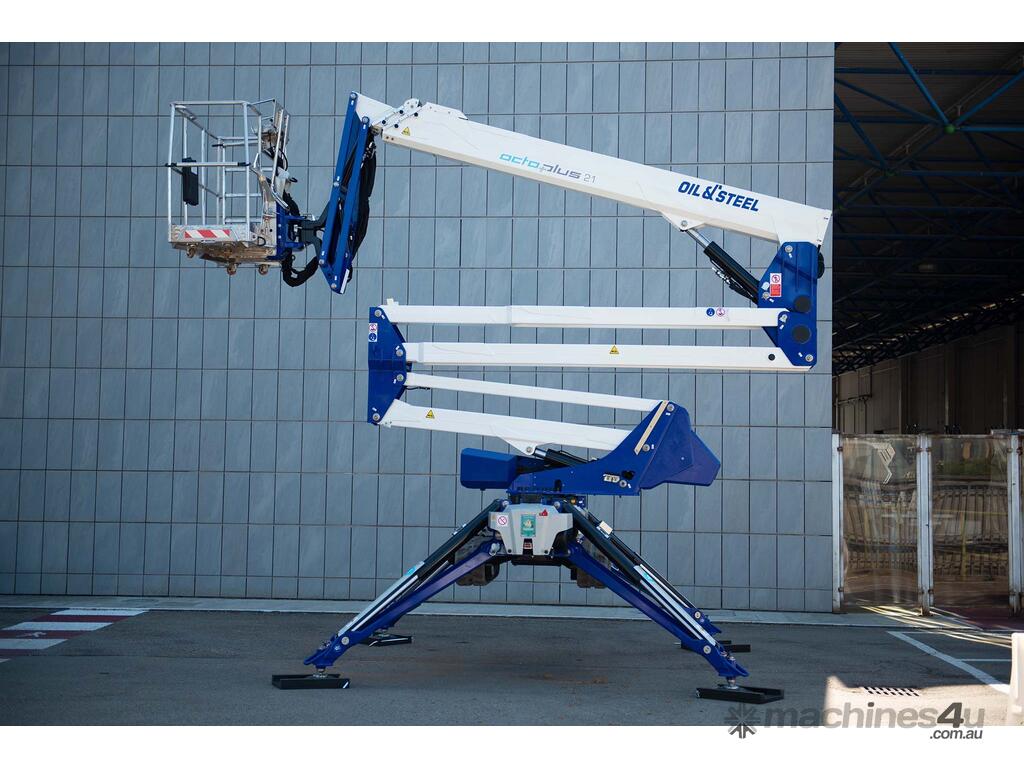

The OctoPlus 21 sets the standard for Spider Lifts, offering unrivaled performance in its class. With a compact design and impressive reach, it's the perfect solution for accessing tight spaces while maintaining superior stability and power.
Key Features:
Best performing Spider Lift under 3 tons
250 kg basket capacity

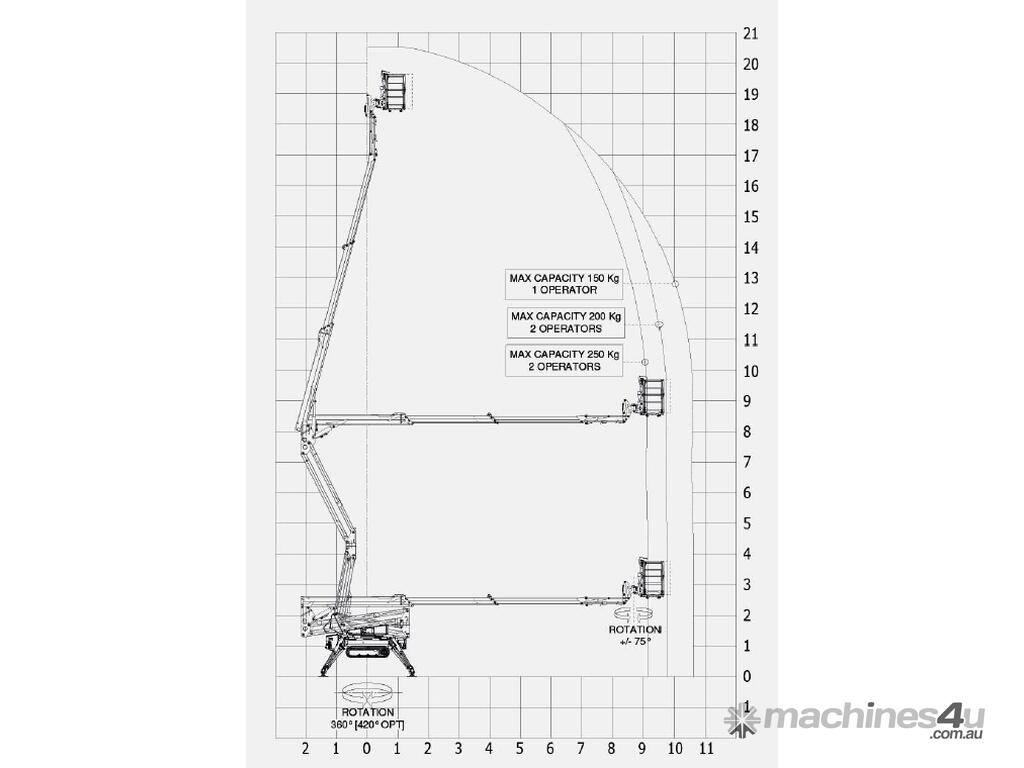

Exceptional vertical reach of 21m and horizontal reach of 11m
Narrow width of 785 mm, fits through a single door
Auto Level function for stable positioning on slopes up to 20°

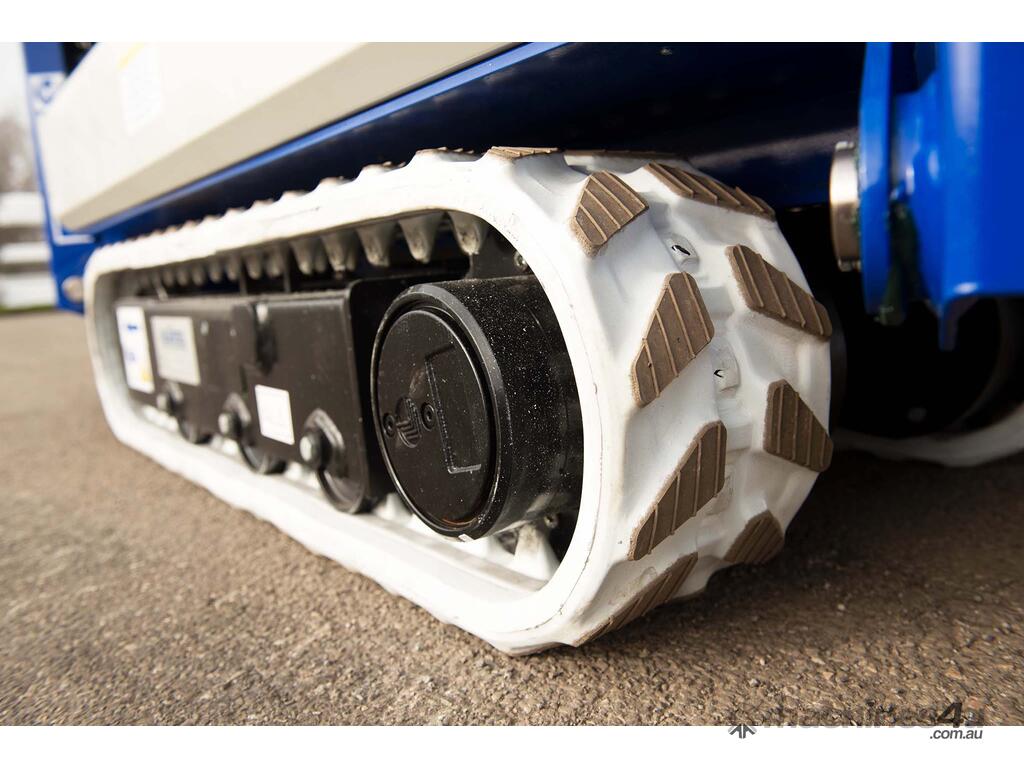

Expandable tracks for enhanced stability

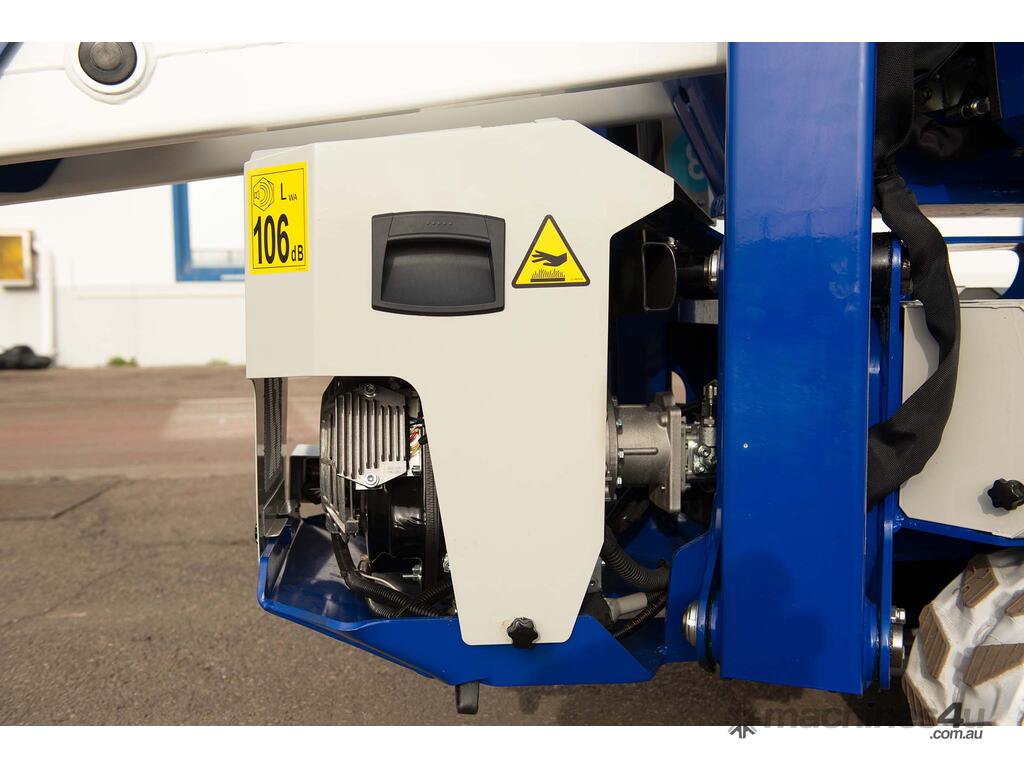

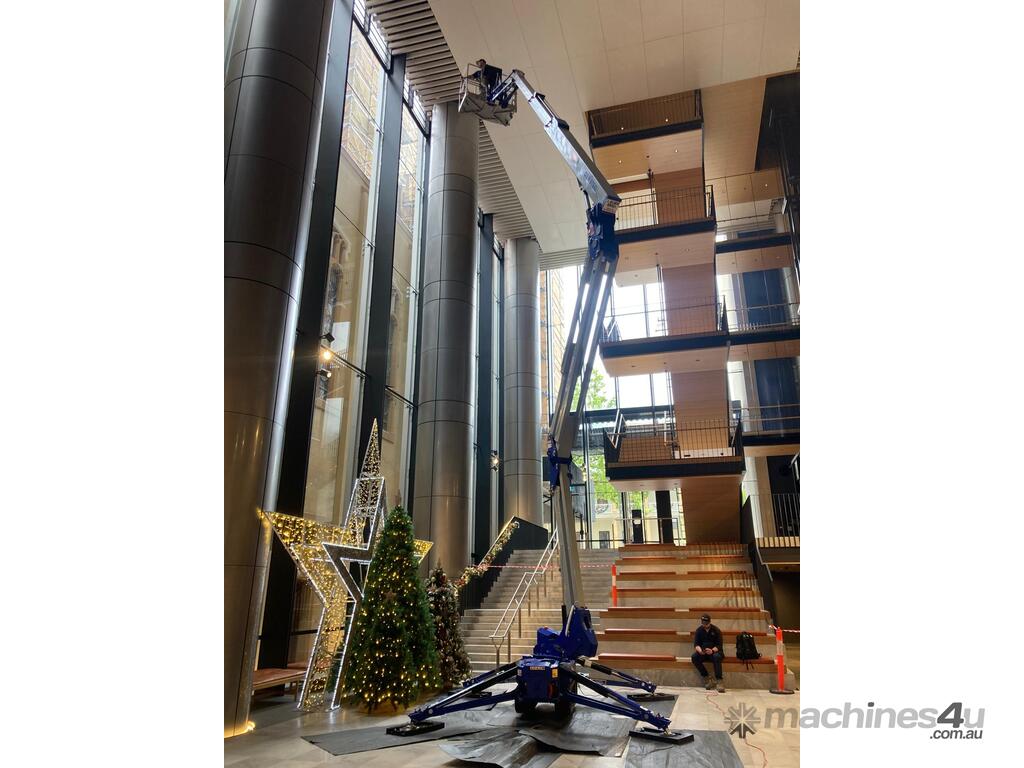

Lithium battery with 230V plug-in electric motor for indoor use
Remote control with smooth proportional functions
Optional memory, vertical wall, and homing functions
Specifications:

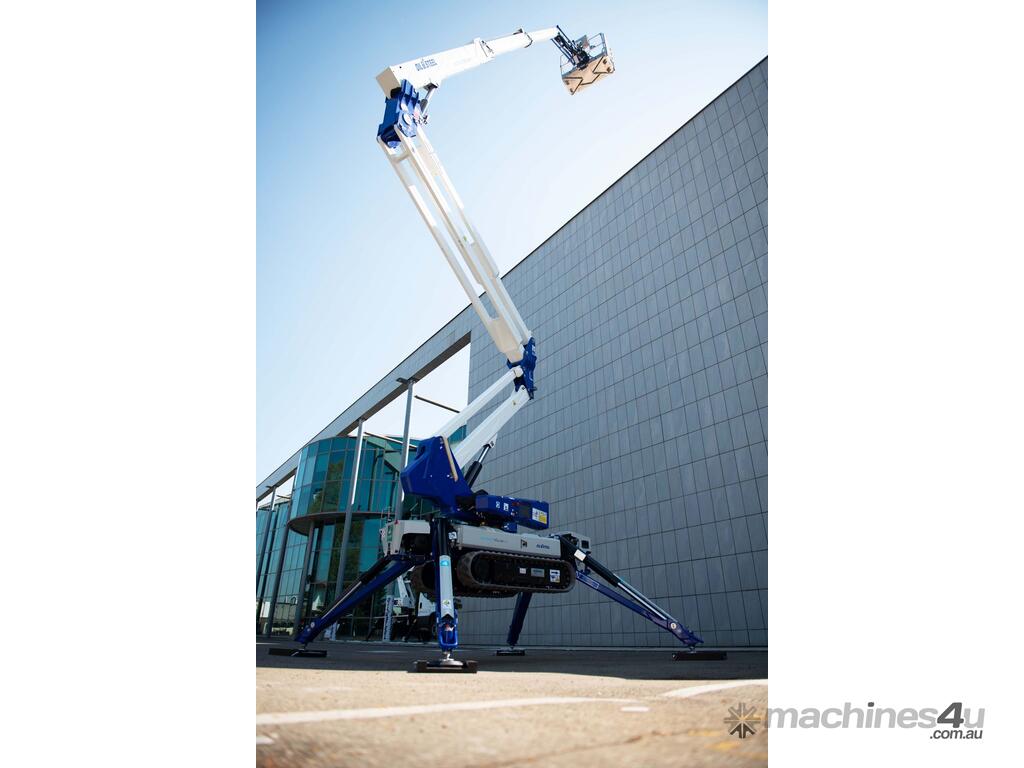

Working Height: 20.70 m

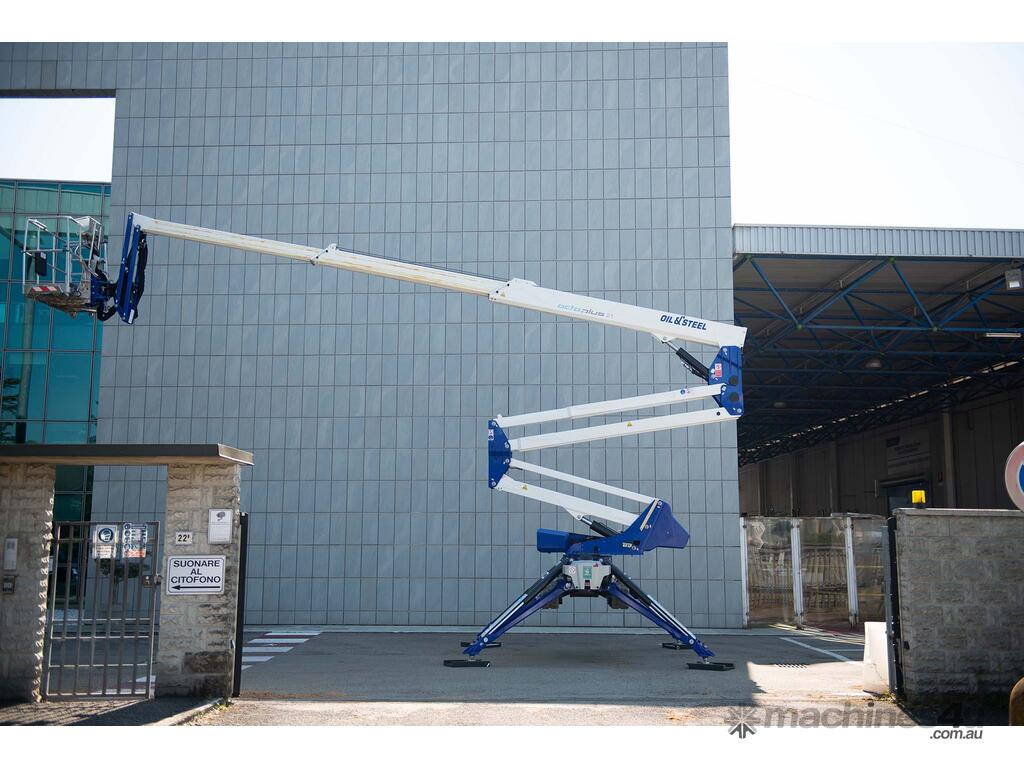

Max Outreach: 10.60 m
Basket Height: 18.70 m
Basket Load Capacity: 250 kg

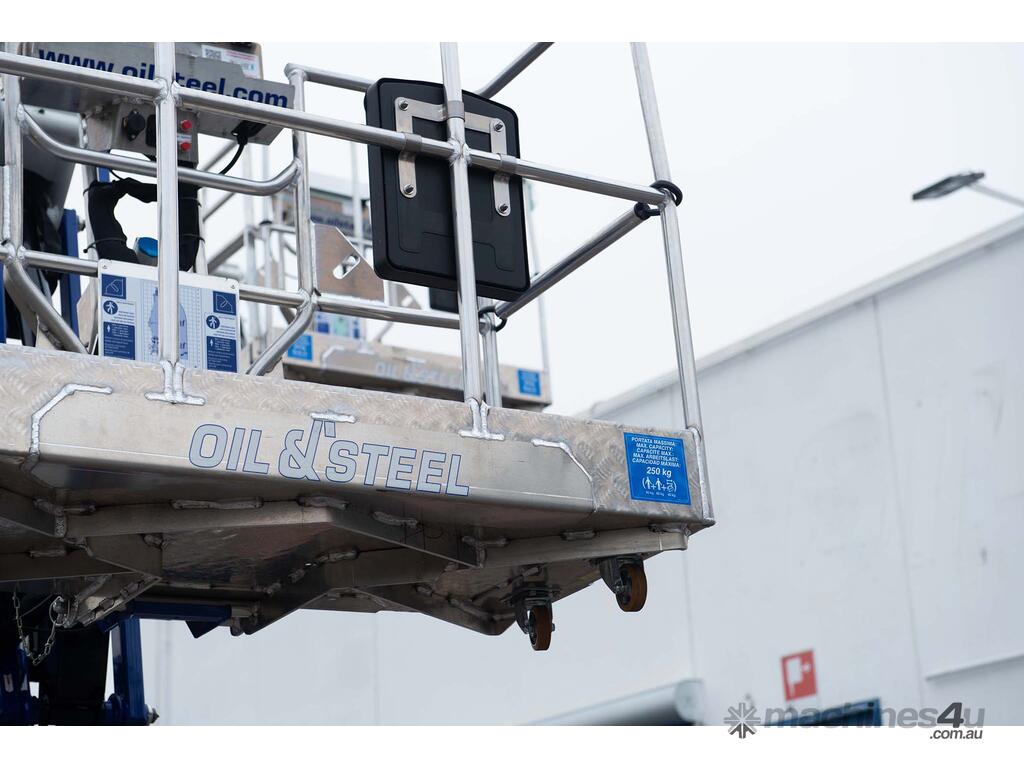

Basket Size: 1400 x 700 x 1100 mm
Controls: Electro-Hydraulic
Turret Rotation: +/- 180°
Basket Rotation: +/- 75°
GVW: 2,850 kg
Track Width: 785 - 1,165 mm

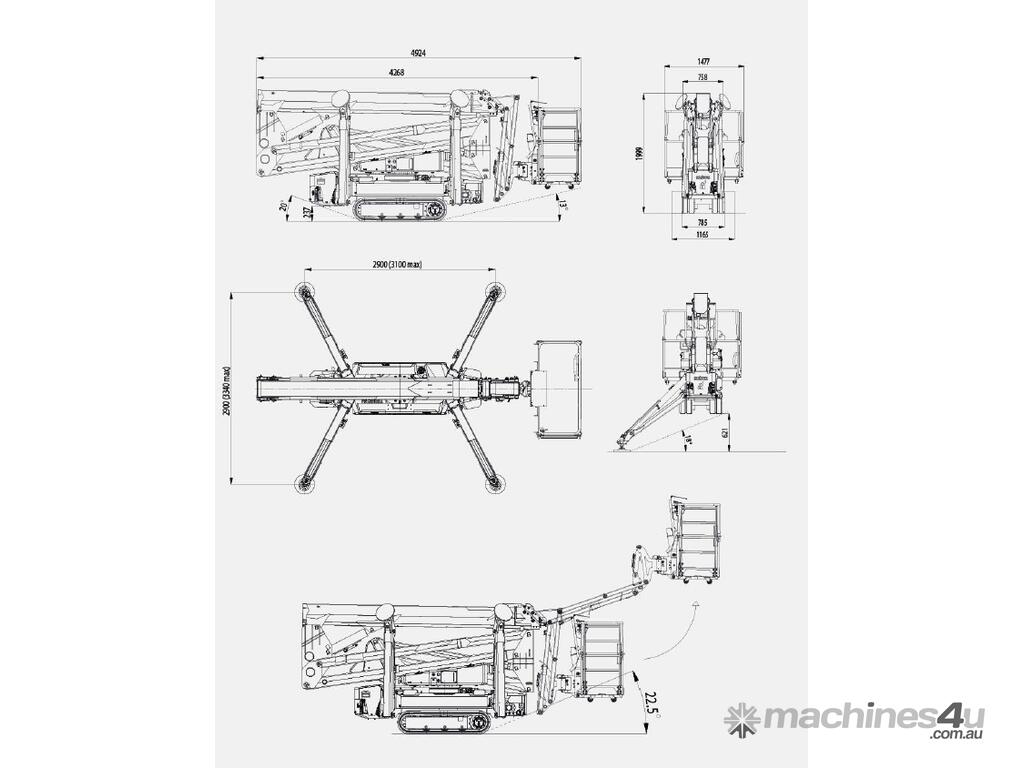

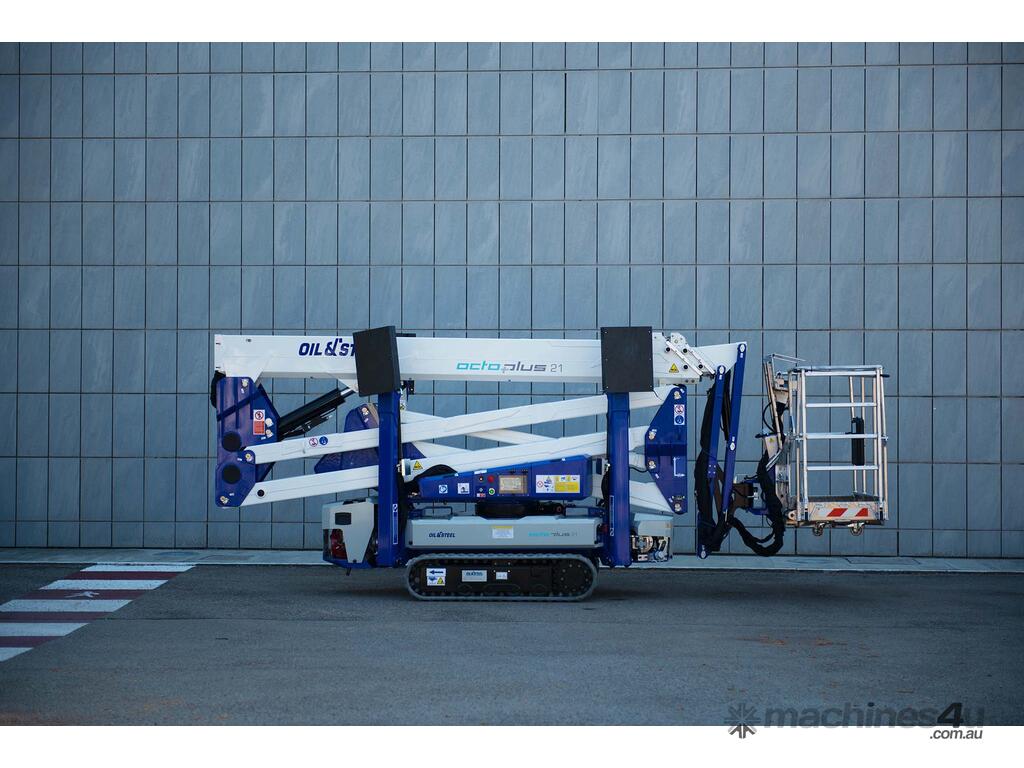

Minimum Transport Dimensions: 785 mm (W) x 4,270 mm (L) x 1,999 mm (H)

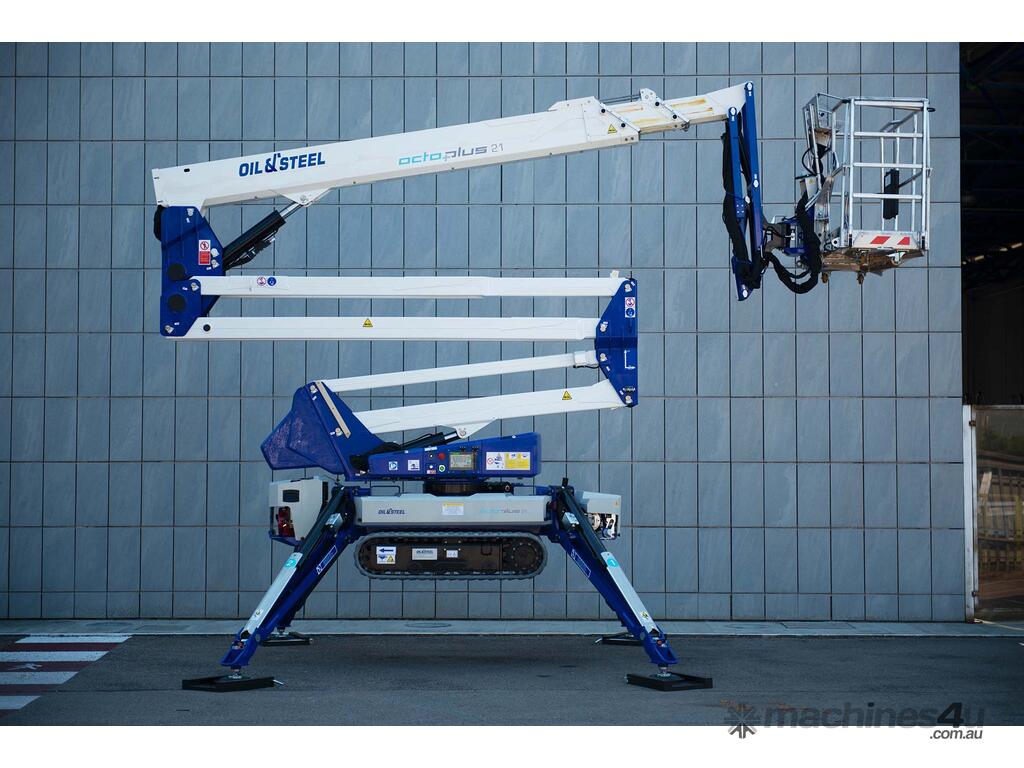

Open Outrigger Footprint: 2,900 mm x 2,900 mm
Standard Features:
Hydraulically expandable undercarriage
Manual hand pump and emergency lowering system

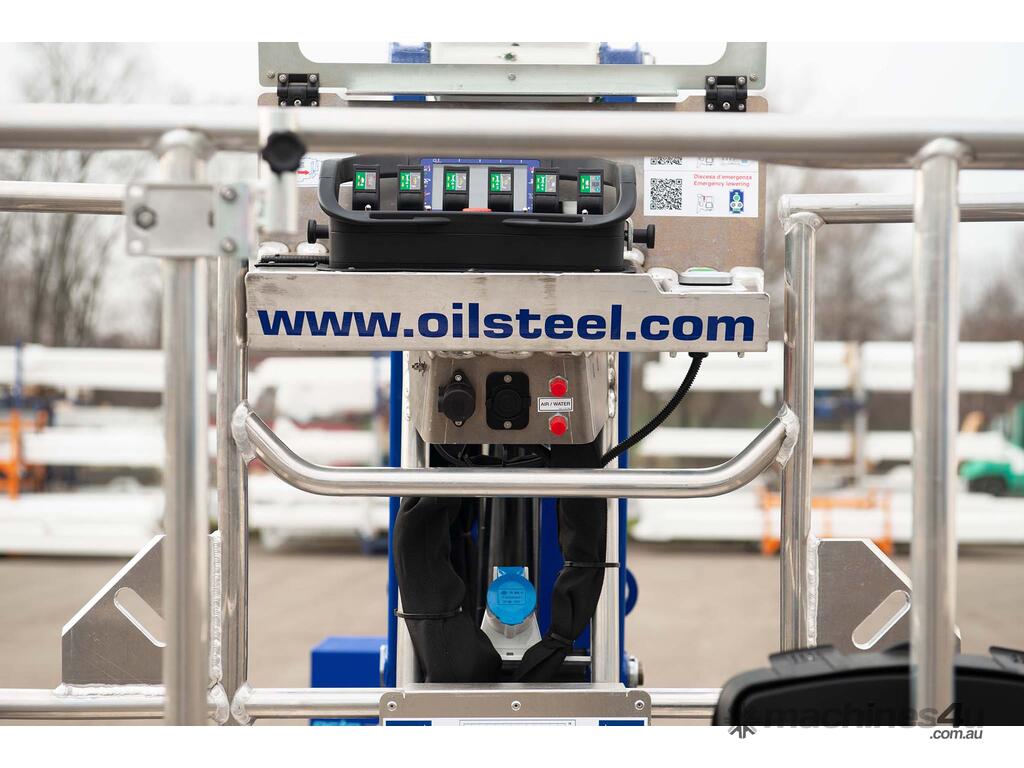

230V electric socket in the basket

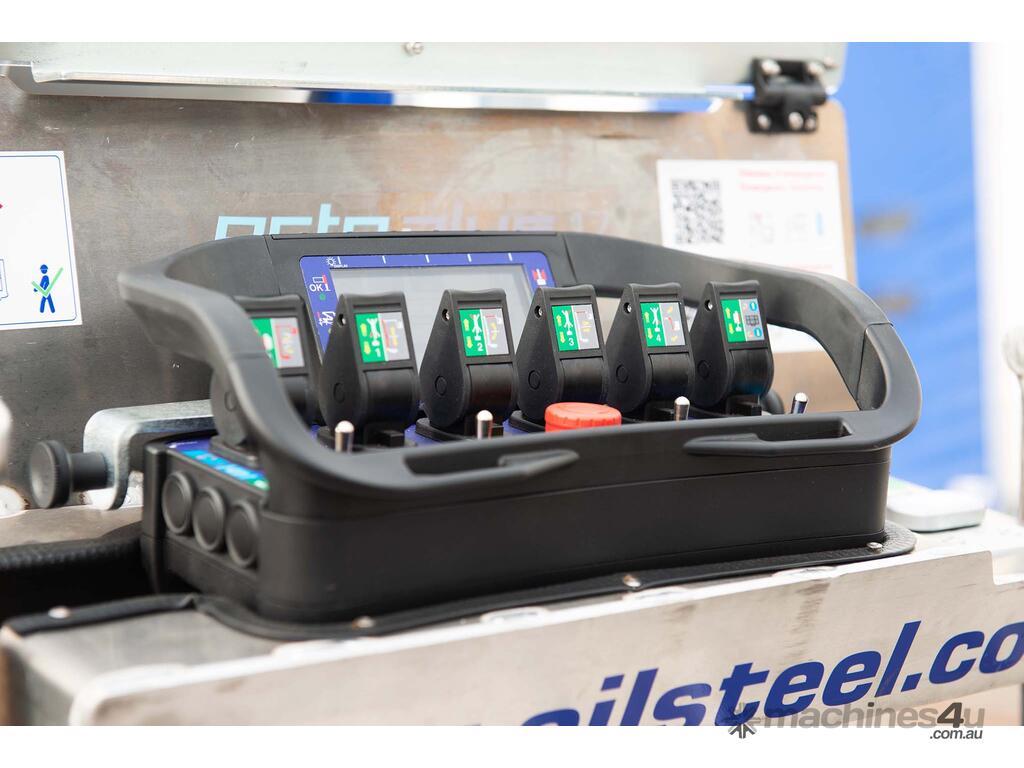

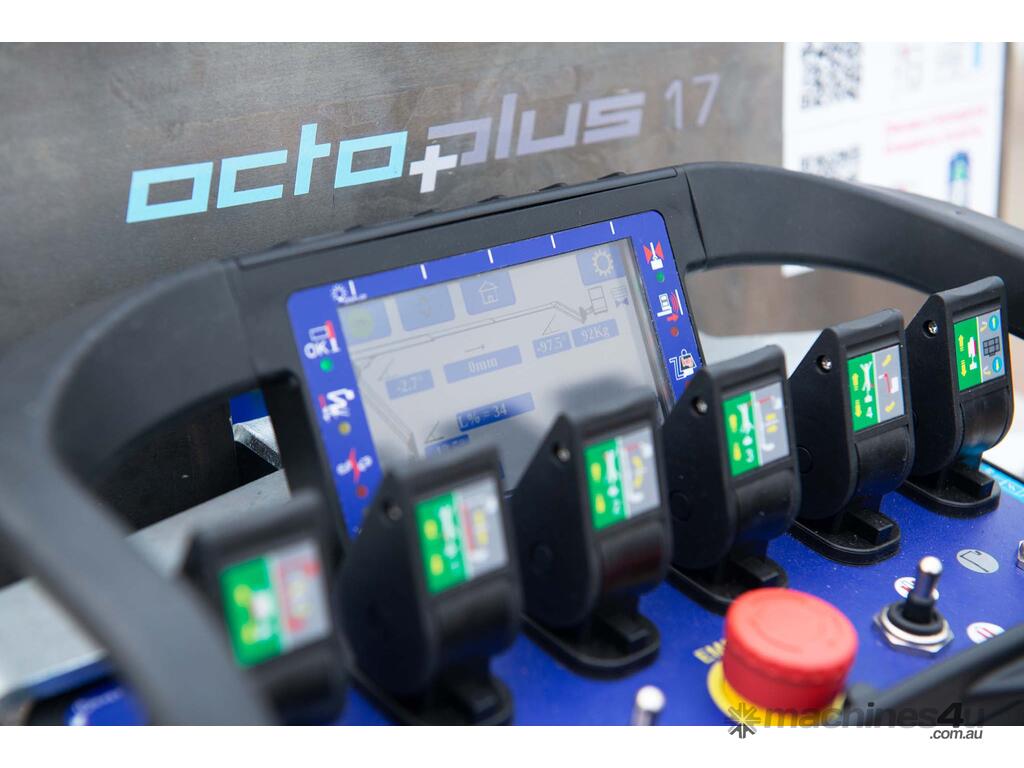

Multifunction remote control with 4" display
Auxiliary electric pump
Automatic stabilization and slope sensors
Optional Features:
Homing, memory, and vertical wall functions

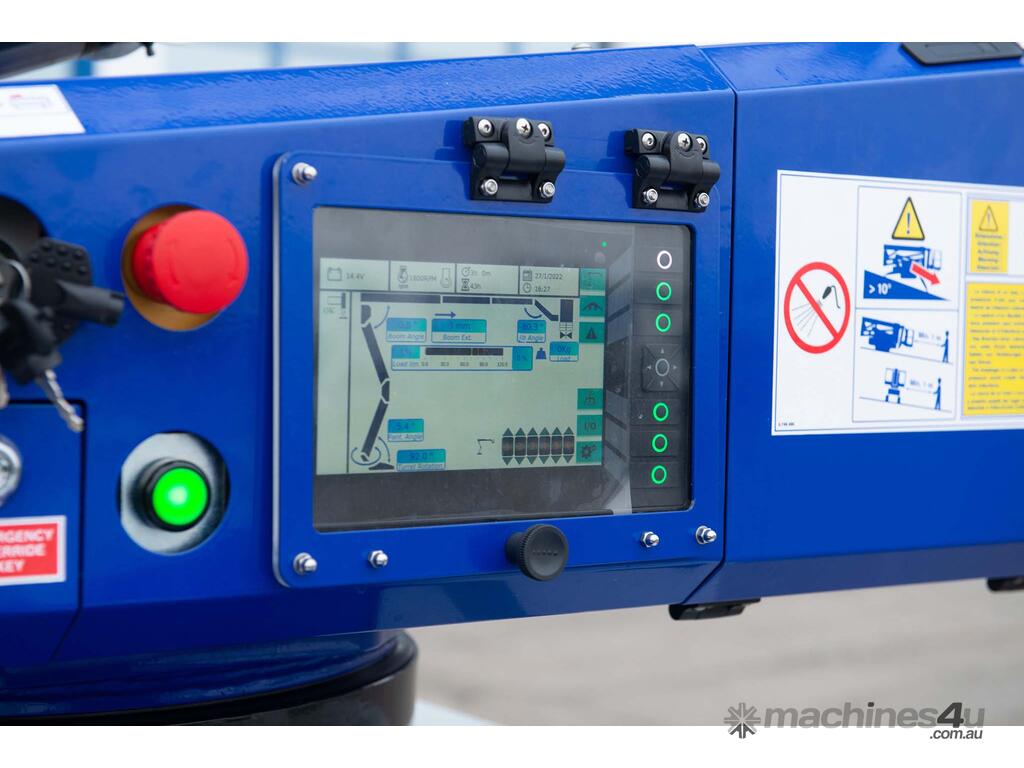

7" display on column

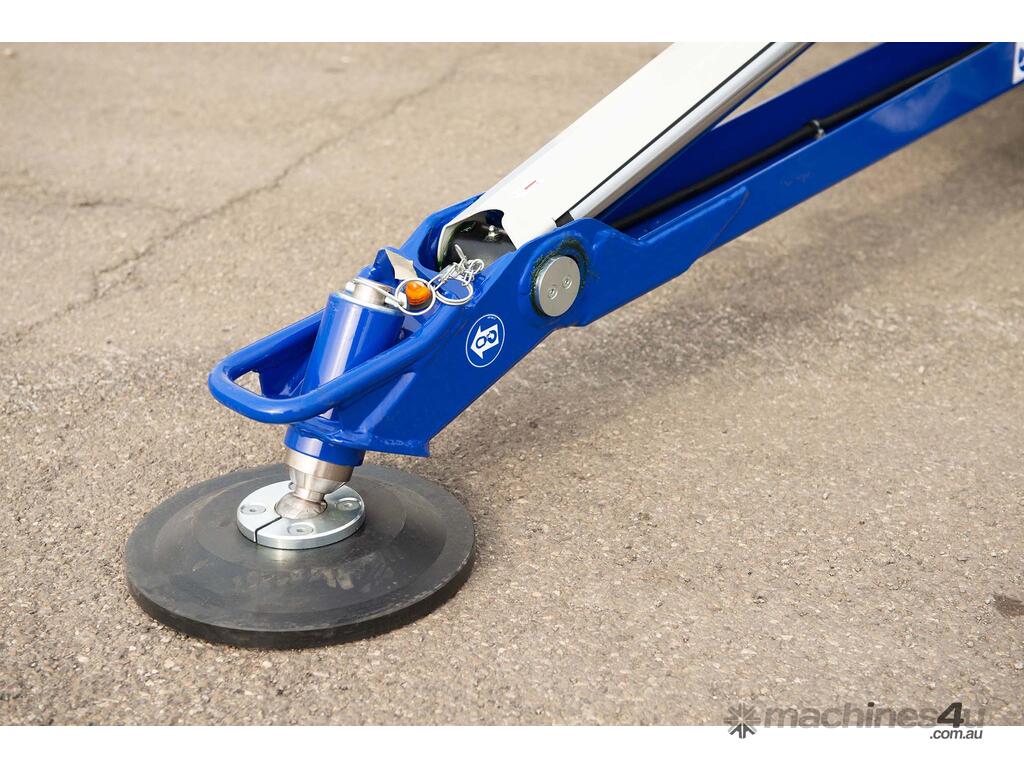

Outrigger plates
Warranty & Service:
2-year standard warranty, with extended options
Cost-effective service packages (1–5 years)

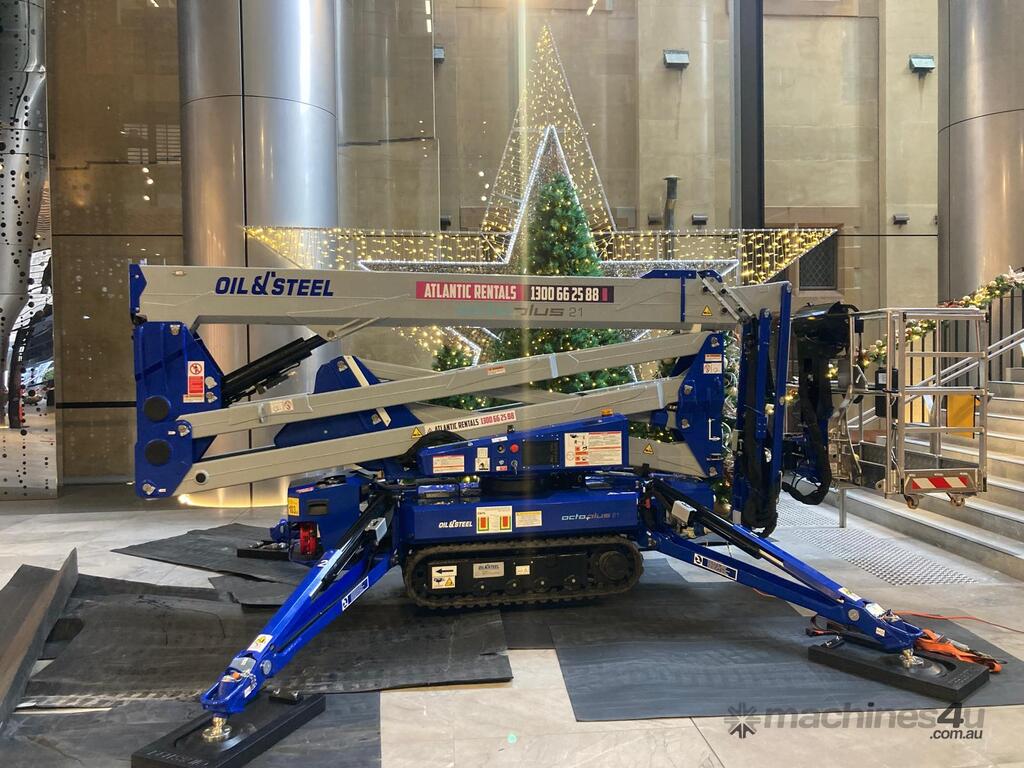

Need reliable, high-quality access equipment? Atlantic Rentals offers a modern fleet of Spider Lifts, Athena Lifts, and Spider Cranes to suit your project’s requirements. Our experienced team ensures safe, efficient service every time. Call us today to book your access platform!
