EVERISING H-260HB BAND SAW | FULLY AUTOMATIC | NC CONTROL | 260MM DIA CAPACITY

Everising is synonymous in Australia and world wide for being reliable, great value for money, feature packed and the leader in its market segment.

For over 20 years Complete Machine Tools have been the proud Aussie agents for Everising band saws and circular saws and have forged a very large loyal customer base with numerous customer having multiple Everising machines and 1 customer boasting over 100 Everising saws operating Australia wide.

Having a great deal of knowledge in sawing and its applications Complete Machine Tools and Everising are the perfect choice when looking for a new band saw whether its a fully auto or semi auto band saw.

A large product range is available that can suit the most demanding of applications regardless of size or complexity.
Everising sits within the top 3 globally in bandsaw production which is an impressive feat. Complete Machine Tools keeps alot of spares parts because of the sheer amount of machines that have been sold in the Aussie market over the last 20+ years so when your saw has an the odd hiccup you can feel confident that Complete Machine Tools will have the part.

SPECIFICATIONS
Capacity: 260 mm
Hydraulic Pump Motor : 1 HP
Square Capacity: 260 x 310 mm
Floor Space W/L: 2170 X 2100 mm
Bundle Cutting Width: 145 - 230 mm
Vice Travel: 400 mm
Bundle Cutting Height: 40 – 130 mm
Multiple Vice Travel: 400 mm x 9
Blade Drive Motor : 5HP
Blade Size : 3920 x 34 x 1.1 mm
Coolant Pump Motor: 1/8 HP
Blade Speed: 20 – 80 m/min

FEATURES:

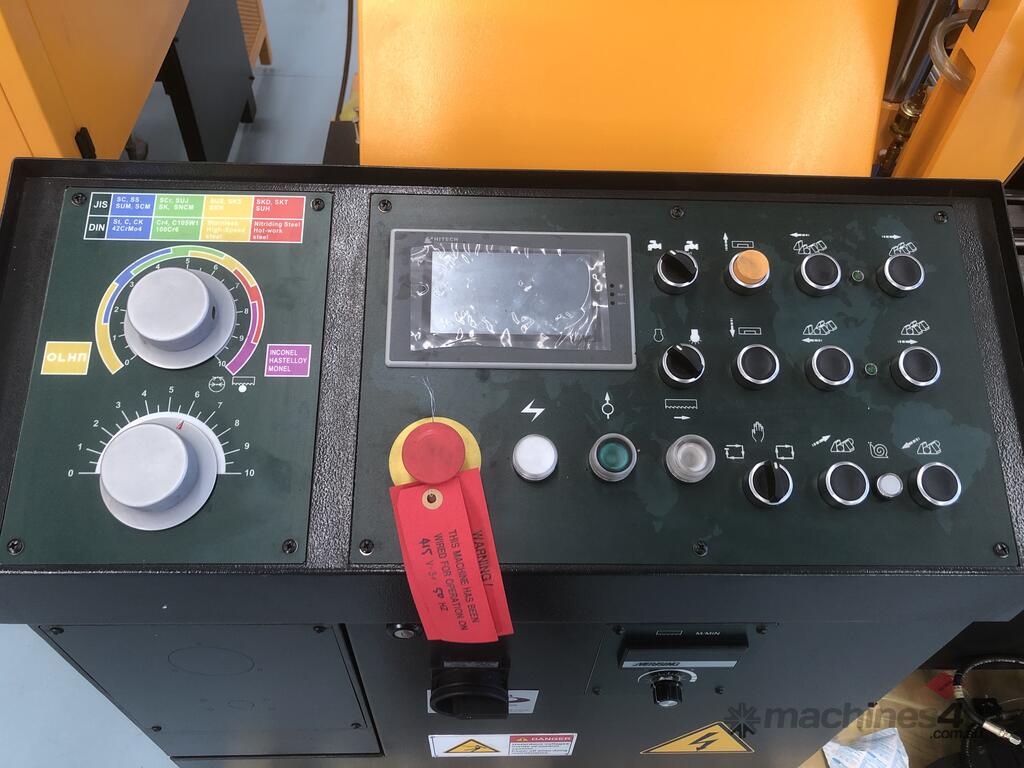

1. NC Touch screen control

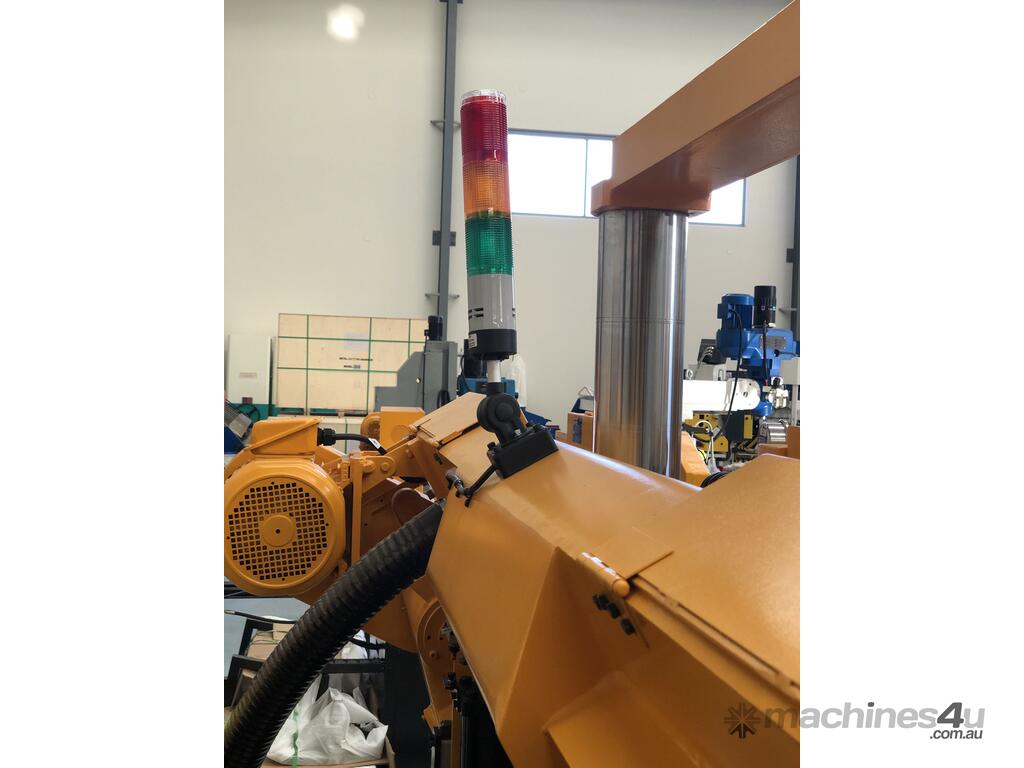

2. 3 x status LED light
3. Automatic chip conveyor
4. Full stroke vice clamping system
5. Laser light

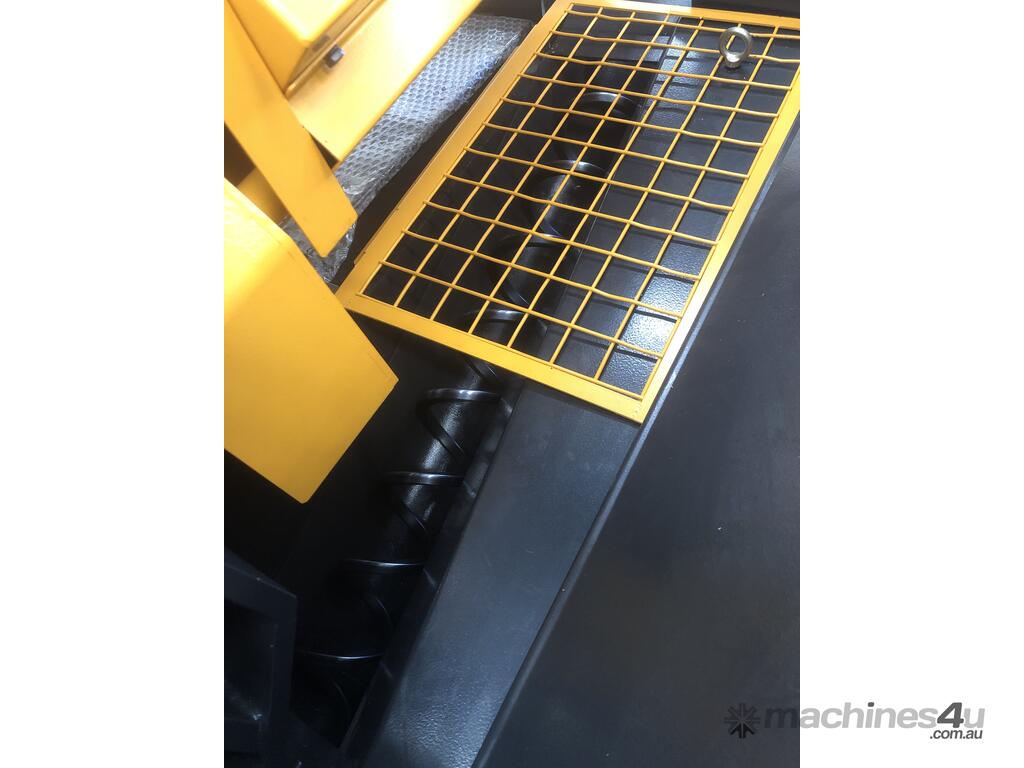

6. Wire mesh cover over chip conveyor
7. Shuttle type automatic feed
8. P.L.C. control for all electric and hydraulic function
9. Hydraulically controlled dual vice clamping system

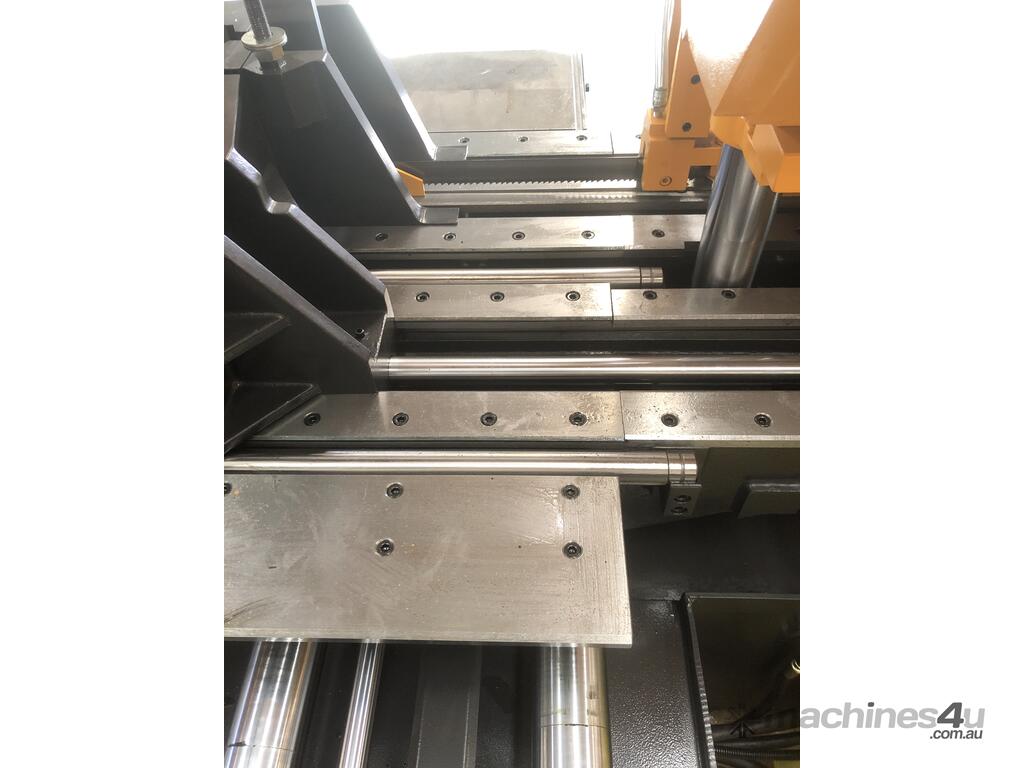

10. Floating shuttle vice system
11. Split front vice
12. Infinitely variable speed control by inverter

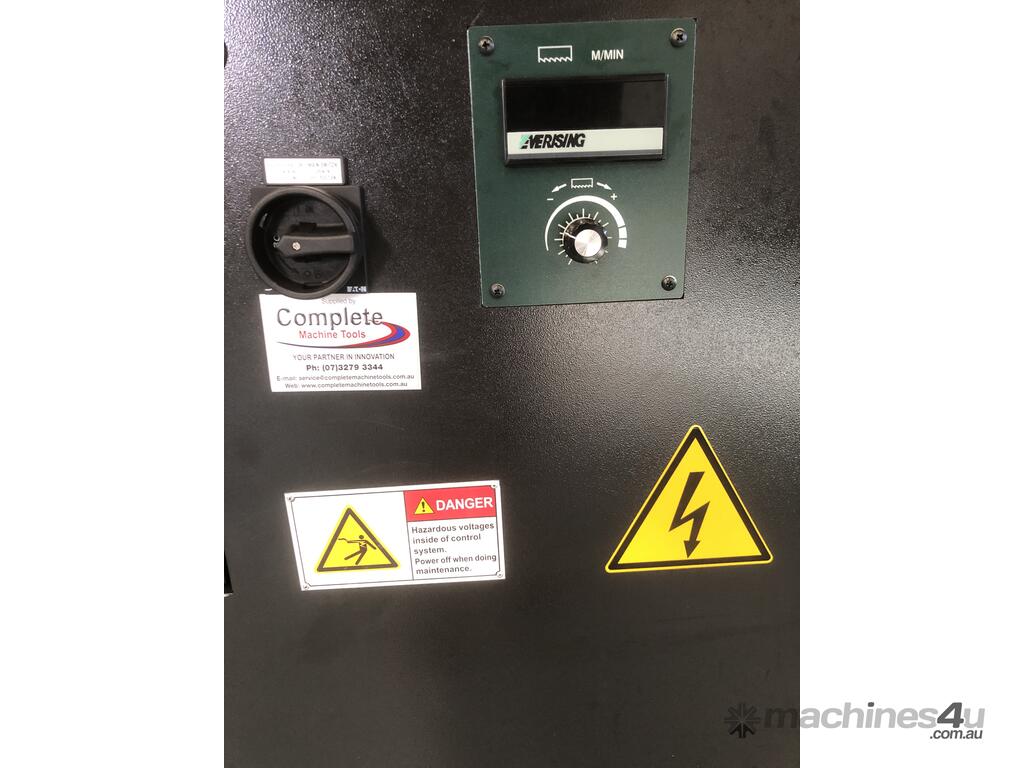

13. Blade speed tachometer

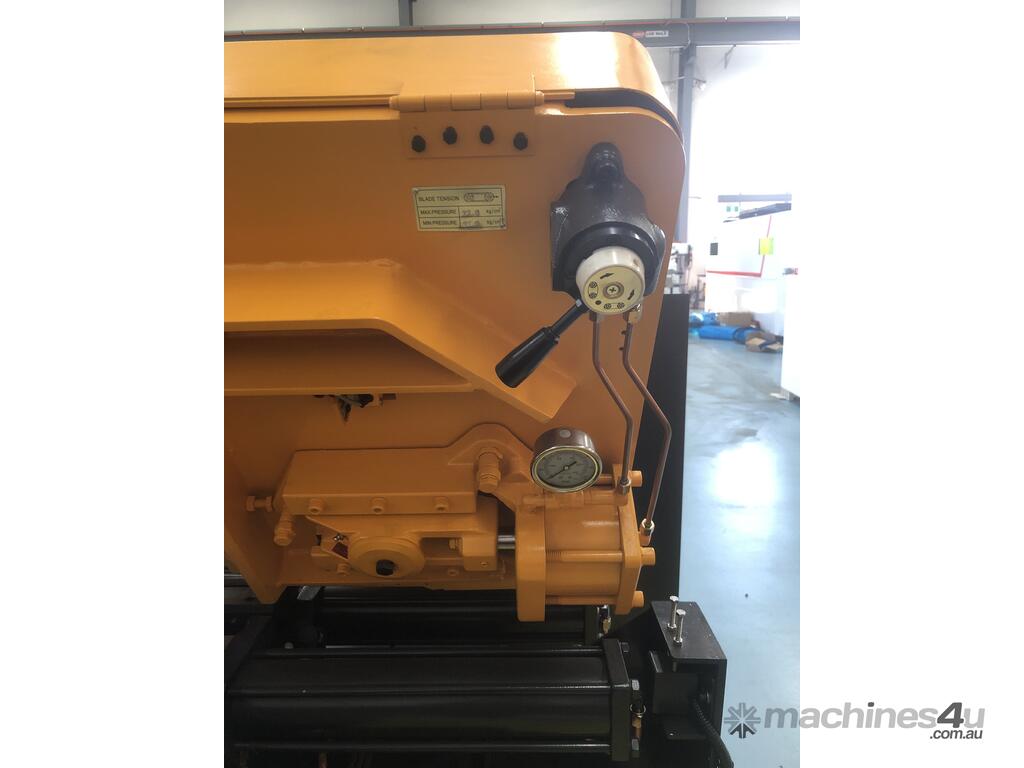

14. Hydraulic blade tension
15. Automatic work height control by fast approach bar sensor
16. Preset cut counter with shut off
17. Out-of-stock shut off
18. Multiple indexing (9 times maximum)
19. Nesting fixture for bundle cutting
20. Power driven blade cleaning brush
21. Idler wheel motion detector with blade stalling and breakage shut off
22. Flushing hose for machine cleaning
23. Work light
24. Roller stock table 2M long
25. One M42 bi-metal saw blade
26. One set of tools and tool box

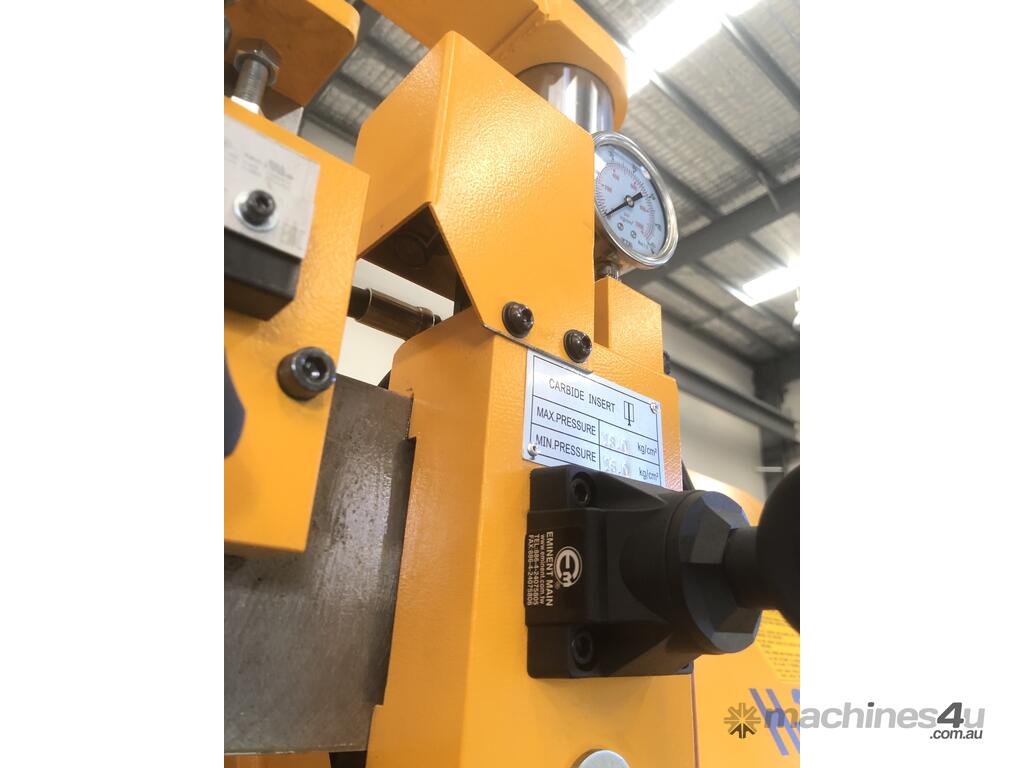

27. Hydraulically controlled roller bearing carbide blade guide system
28. Automatic trim cut detection of the material
29. Automatic Retracting of rear vice after cutting to protect the saw blade teeth

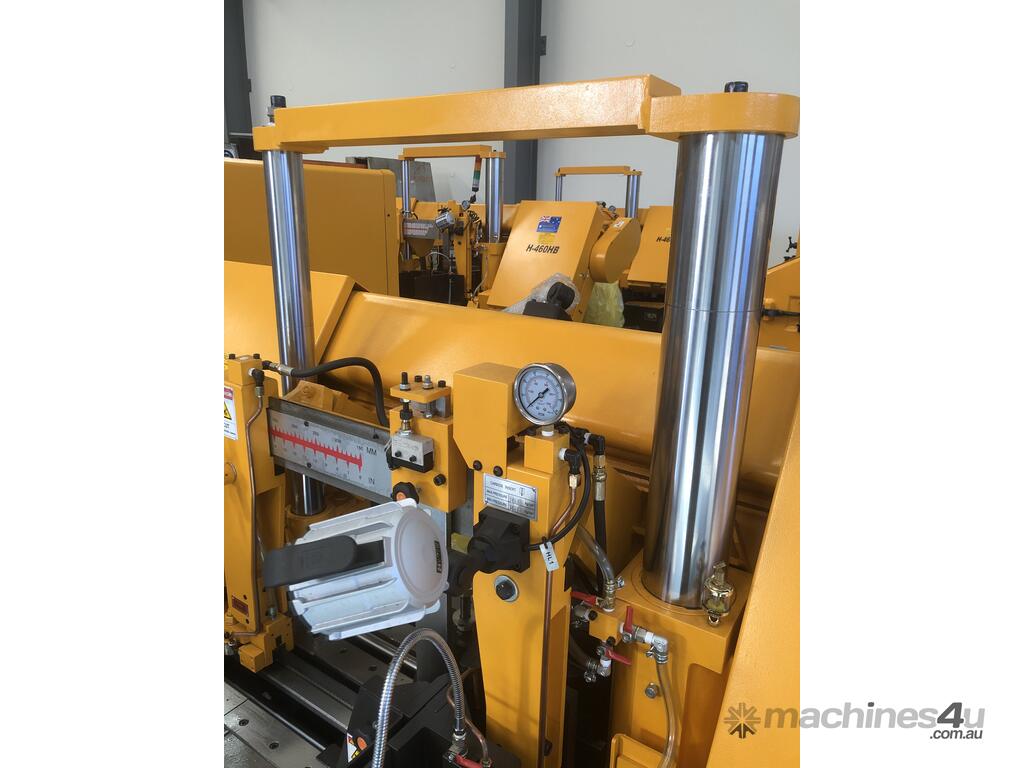

30. Rigid double column design
