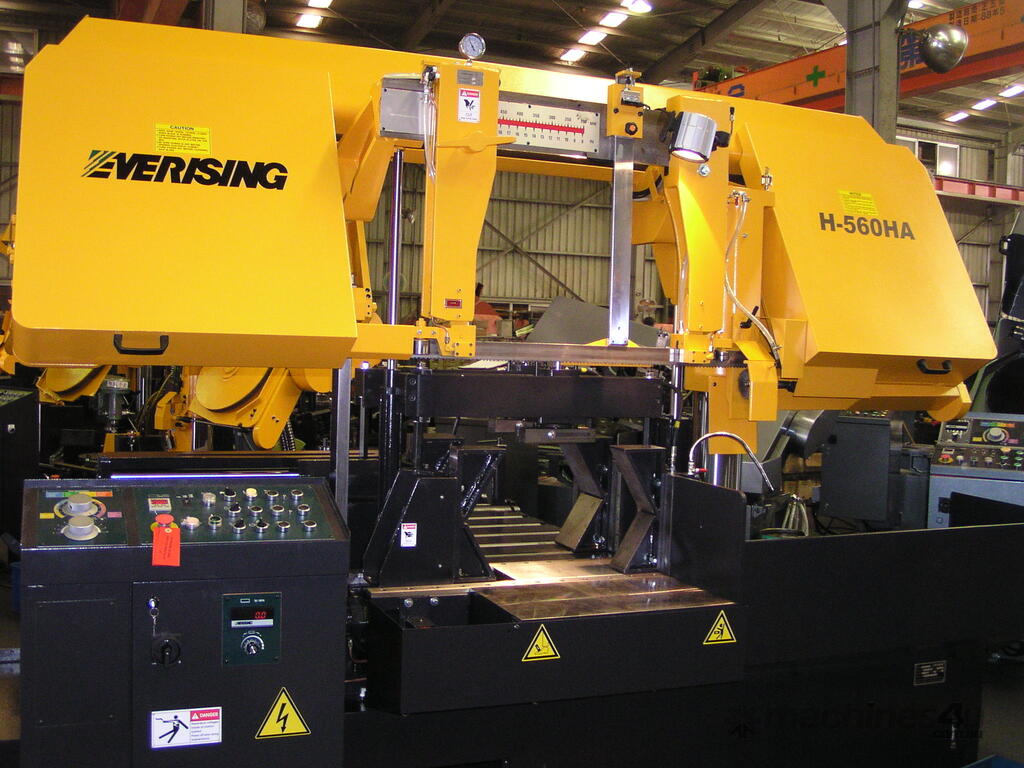

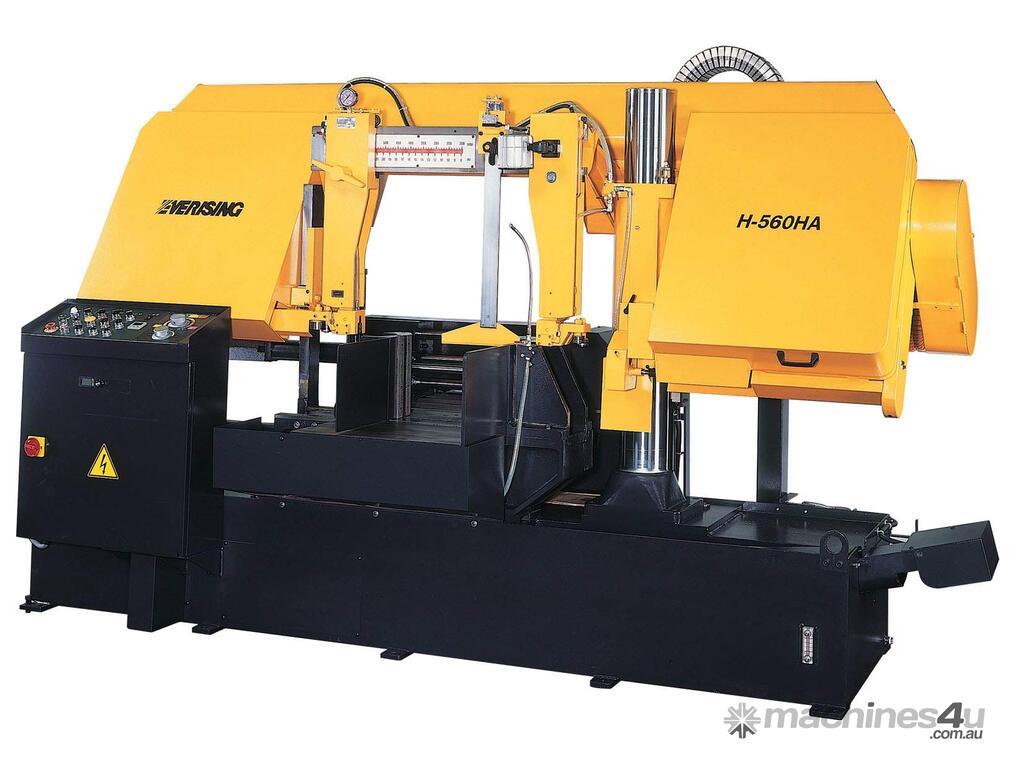

EVERISING H-560HANC BANDSAW | 560MM DIA CAPACITY | FULLY AUTO | COLUMN TYPE | NC CONTROL |

Everising is synonymous in Australia and world wide for being reliable, great value for money, feature packed and the leader in its market segment.

For over 20 years Complete Machine Tools have been the proud Aussie agents for Everising band saws and circular saws and have forged a very large loyal customer base with numerous customer having multiple Everising machines and 1 customer boasting over 100 Everising saws operating Australia wide.

Everising sits within the top 3 globally in bandsaw production which is an impressive feat. Complete Machine Tools keeps alot of spares parts because of the sheer amount of machines that have been sold in the Aussie market over the last 20+ years so when your saw has an the odd hiccup you can feel confident that Complete Machine Tools will have the part.

Having a great deal of knowledge in sawing and its applications Complete Machine Tools and Everising are the perfect choice when looking for a new band saw whether its a fully auto or semi auto band saw.

A large product range is available that can suit the most demanding of applications regardless of size or complexity.

MODEL H-560HANC

SPECIFICATIONS:
Shuttle bar feed 400 mm x 9 times

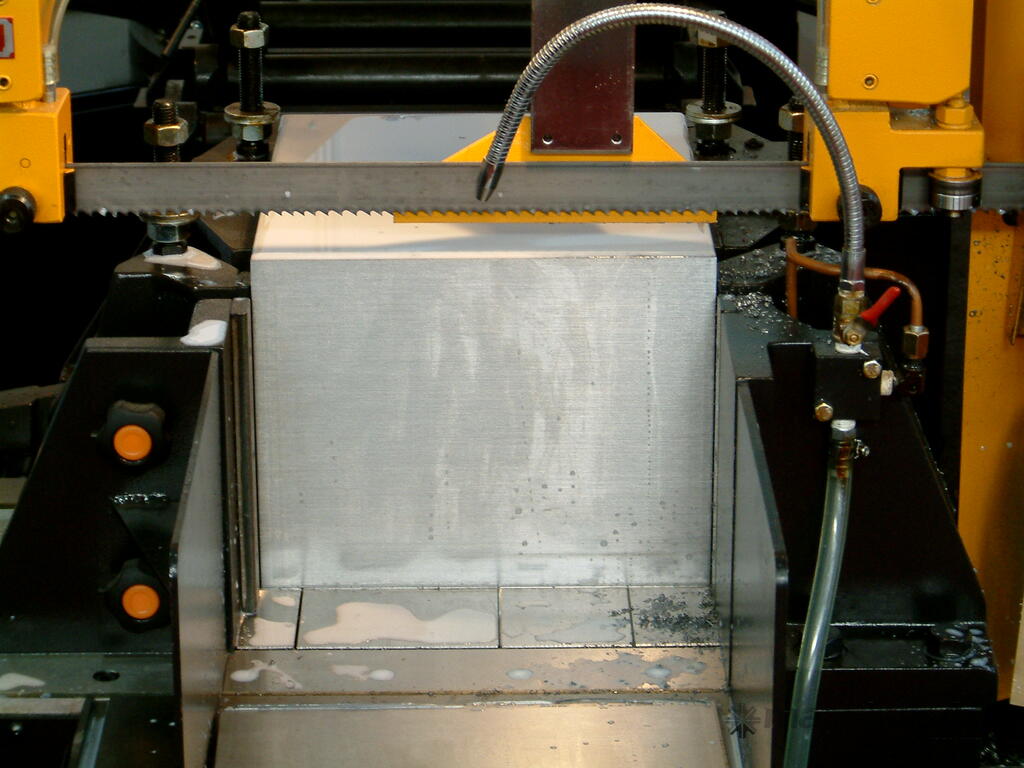

Square Capacity 615H x 560W

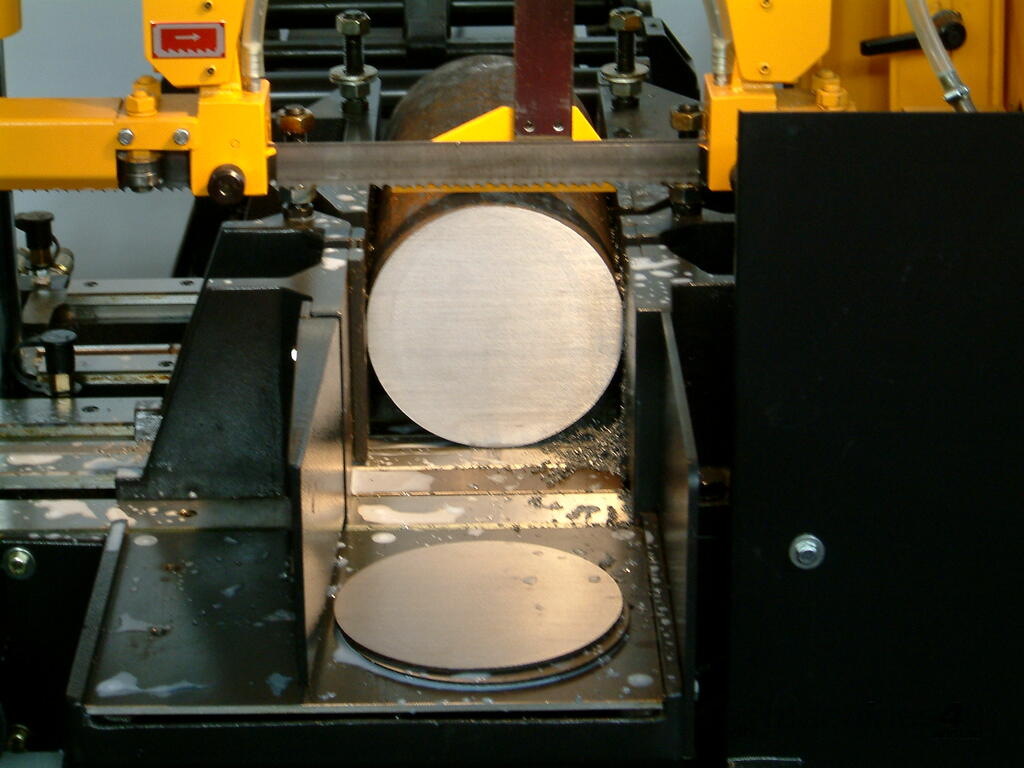

Dia. round bar capacity 560 mm
Blade size 6600L X 50W X 1.6 mm
Coolant pump motor ¼ HP
Hydraulic pump motor 3 HP
Blade drive motor 10 HP
Machine weight 4500 kg
Floor space 3400 mm x 2190 mm

FEATURES:
1. NC Control Touch Screen Control
2. Automatic chip conveyor

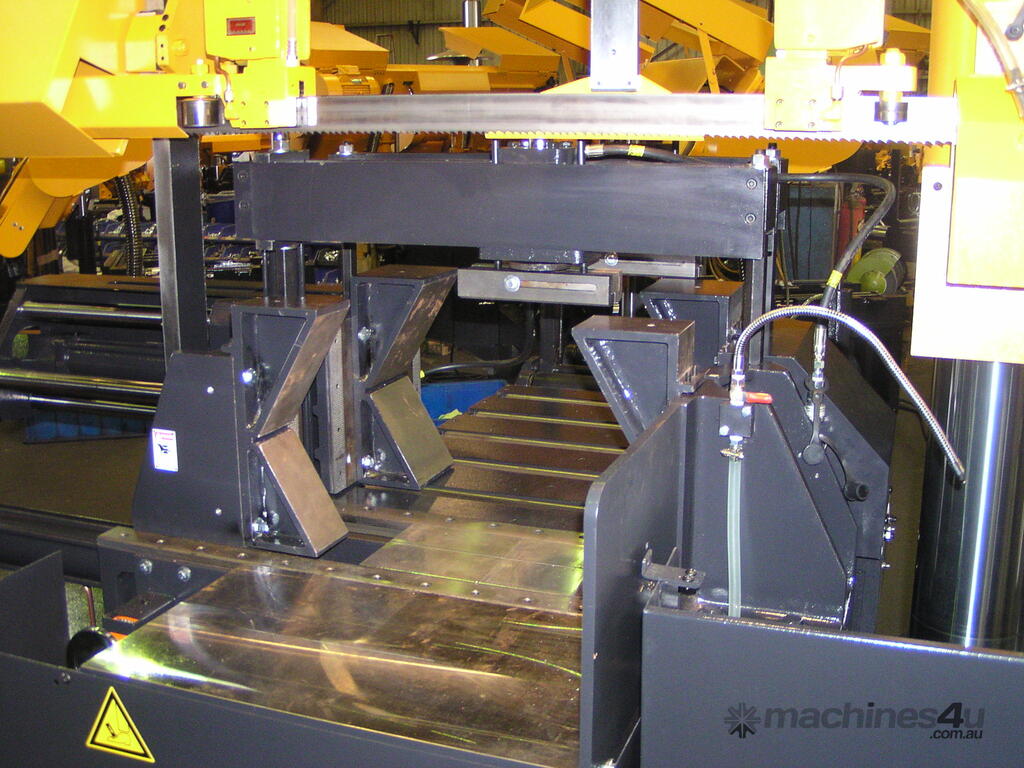

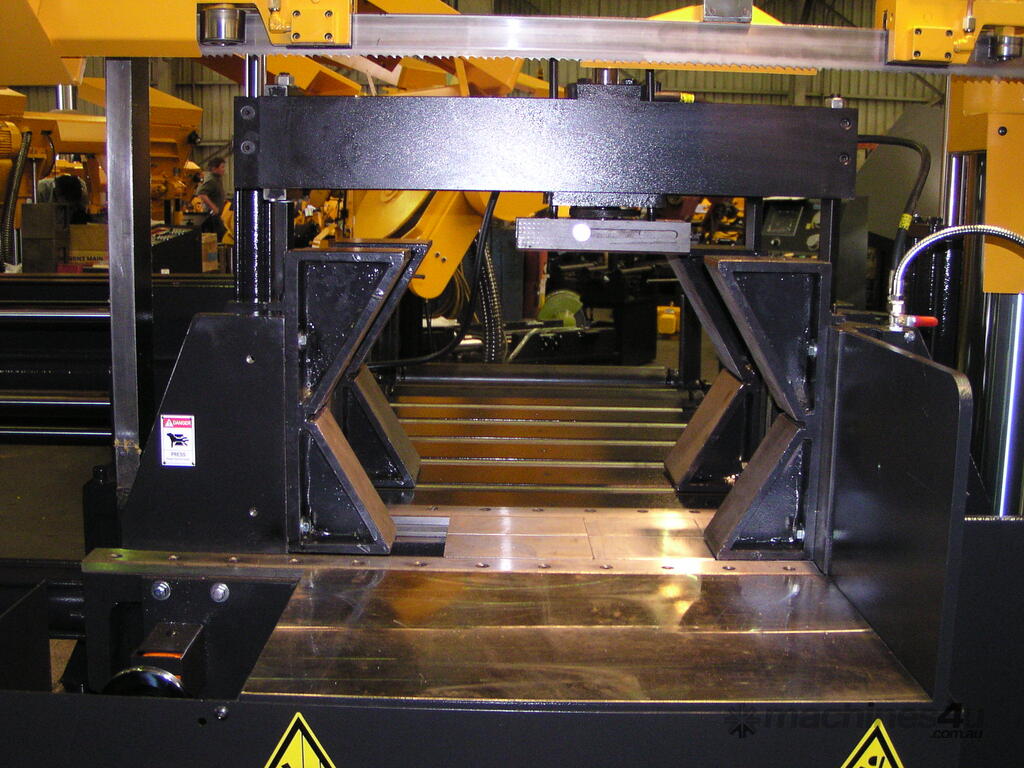

3. Full stroke vice clamping system
4. Laser light for easy sighting of cut line
5. Shuttle type automatic feed
6. P.L.C. control for all electric and hydraulic function

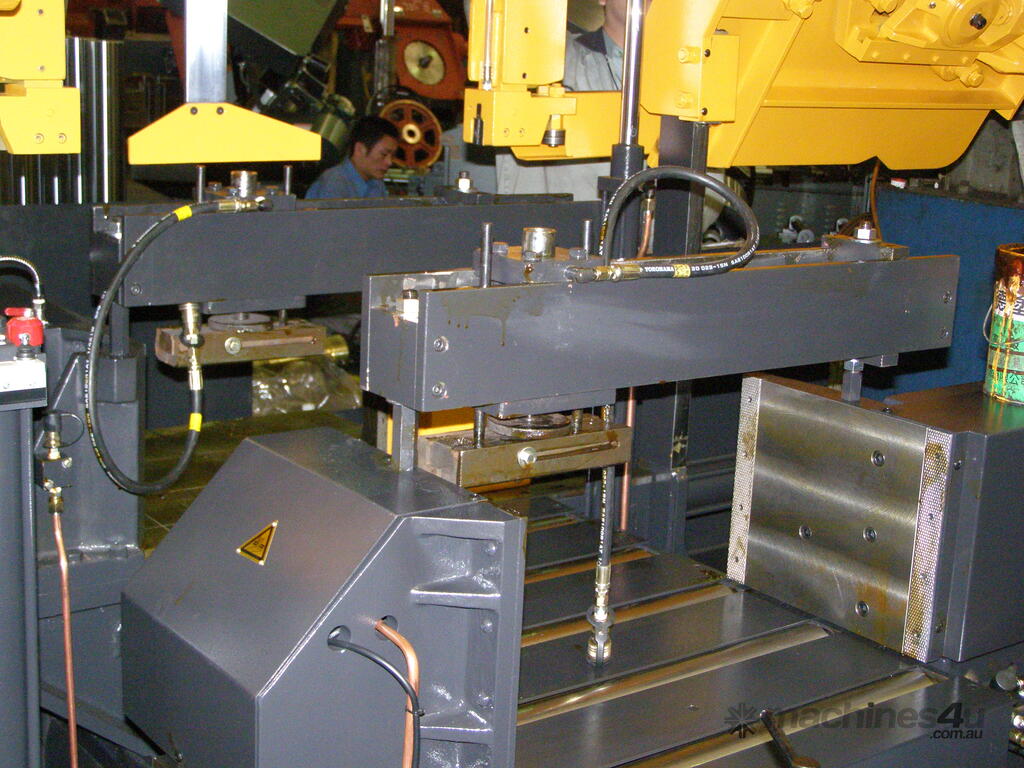

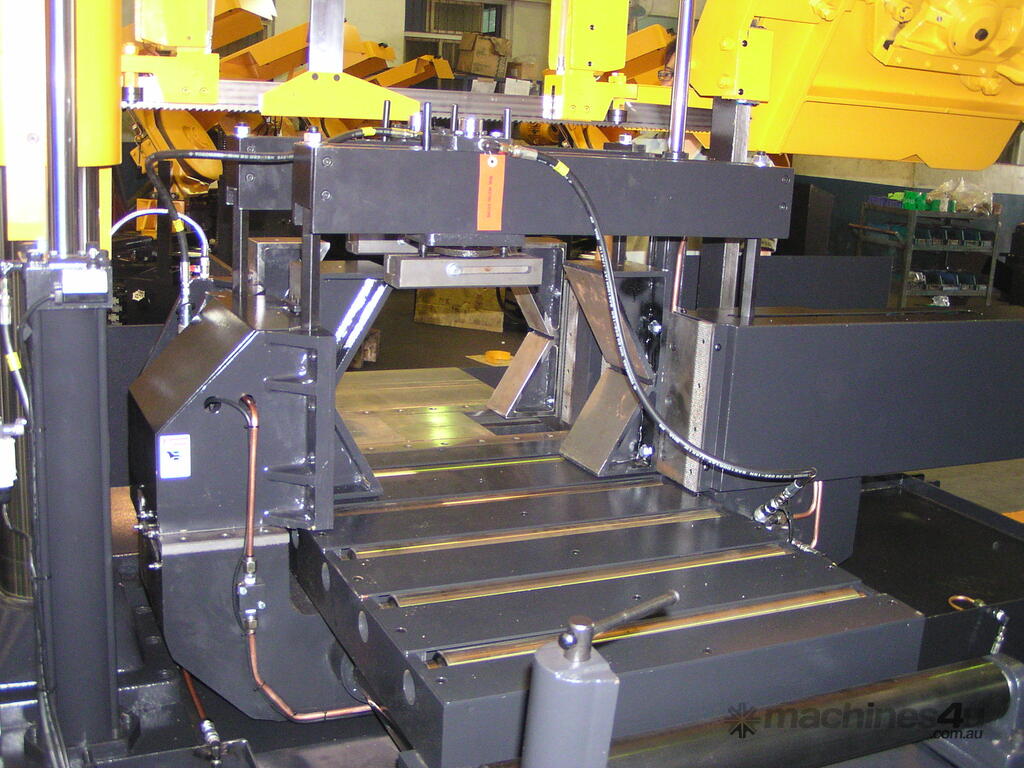

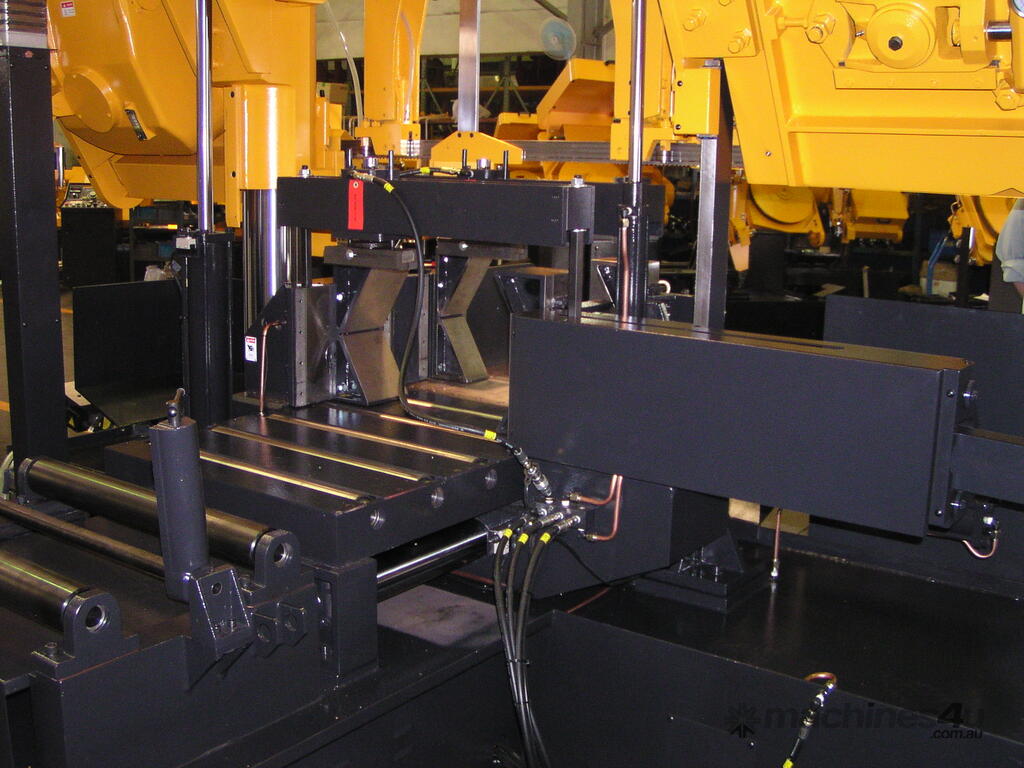

7. Hydraulically controlled dual vice clamping system

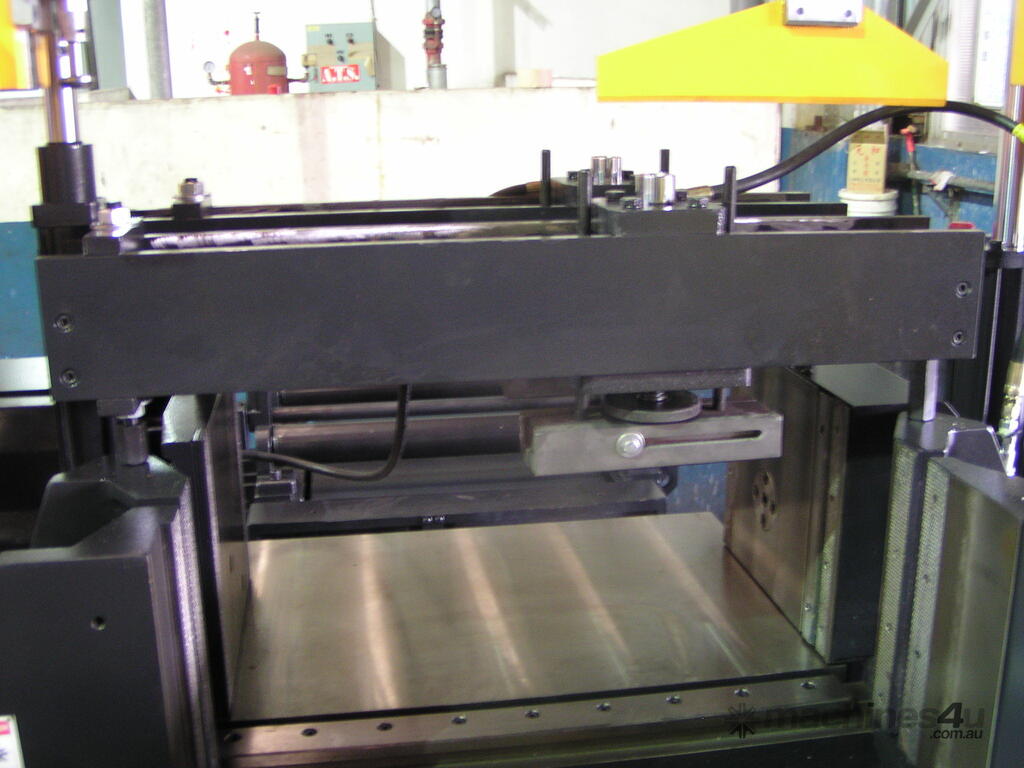

8. Floating shuttle vice system
9. Split front vice
10. Infinitely variable speed control by inverter
11. Blade speed tachometer
12. Hydraulic blade tensioning
13. Automatic work height control by fast approach bar sensor
14. Pre-set cut counter with shut off
15. Out-of-stock shut off
16. Multiple indexing (9 times maximum)
17. Power driven blade cleaning brush
18. Idler wheel motion detector with blade stalling and breakage shut off
19. Flushing hose for machine cleaning
20. Work light
21. Roller stock table 2M long
22. One M42 bi-metal saw blade
23. One set of tools and tool box
24. Hydraulically controlled roller bearing carbide blade guide system
25. Automatic trim cut detection of the material
26. Automatic Retracting of rear vice after cutting to protect the saw blade teeth
