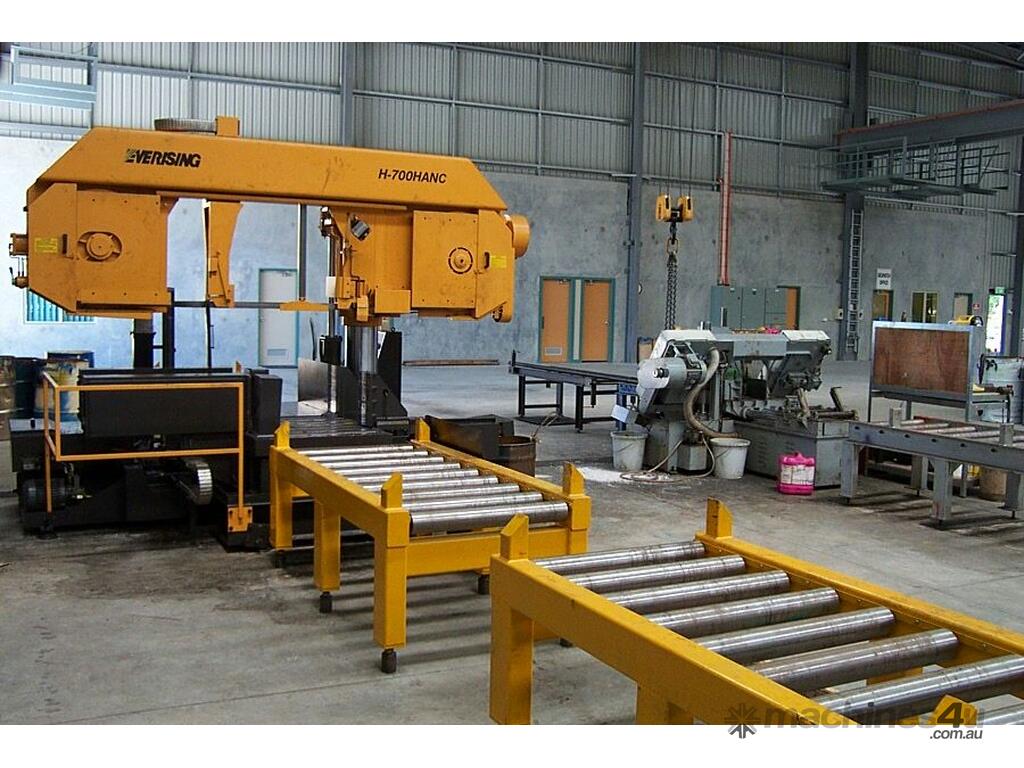

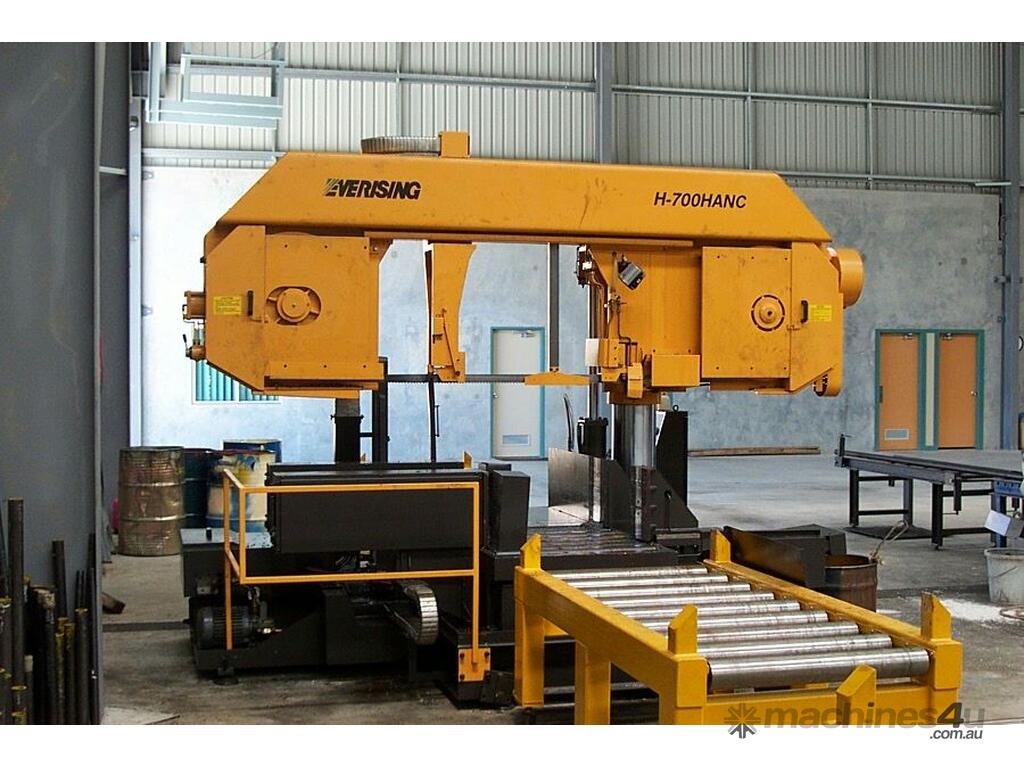

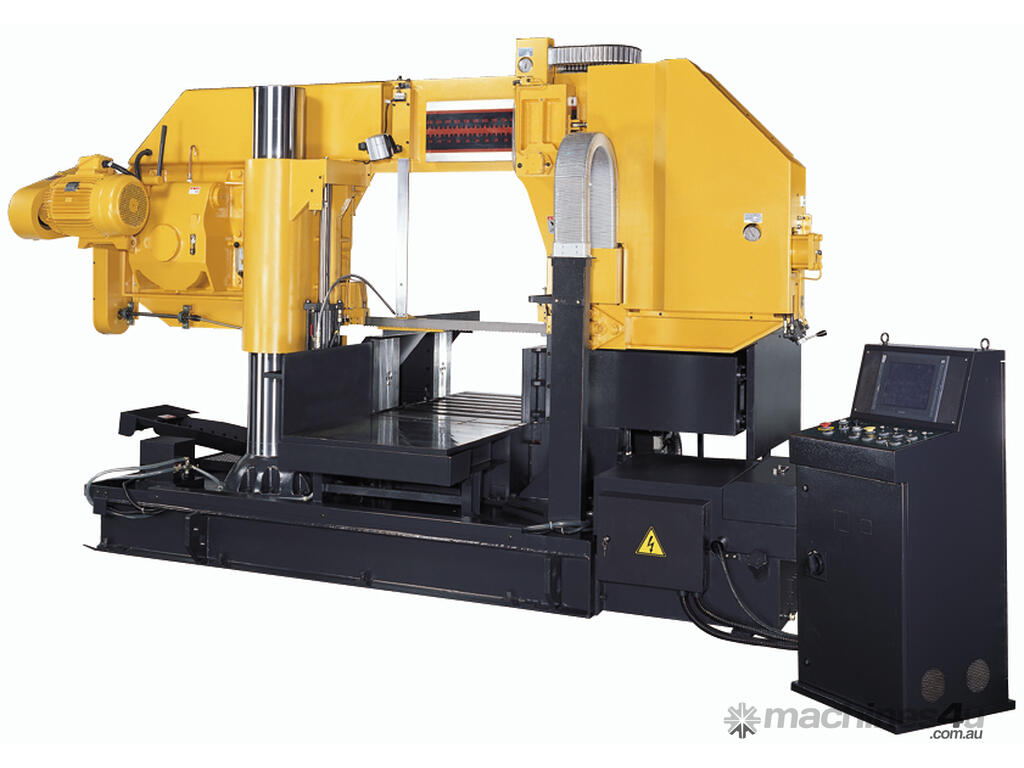

EVERISING H-700HANC | FULLY AUTOMATIC| NC CONTROL | COLUMN TYPE BANDSAW | 700MM DIAMETER CAPACITY

Everising is synonymous in Australia and world wide for being reliable, great value for money, feature packed and the leader in its market segment.

For over 20 years Complete Machine Tools have been the proud Aussie agents for Everising band saws and circular saws and have forged a very large loyal customer base with numerous customer having multiple Everising machines and 1 customer boasting over 100 Everising saws operating Australia wide.

Everising sits within the top 3 globally in bandsaw production which is an impressive feat. Complete Machine Tools keeps alot of spares parts because of the sheer amount of machines that have been sold in the Aussie market over the last 20+ years so when your saw has an the odd hiccup you can feel confident that Complete Machine Tools will have the part.

Having a great deal of knowledge in sawing and its applications Complete Machine Tools and Everising are the perfect choice when looking for a new band saw whether its a fully auto or semi auto band saw.

A large product range is available that can suit the most demanding of applications regardless of size or complexity.

H-700HANC

STANDARD SPECIFICATIONS:

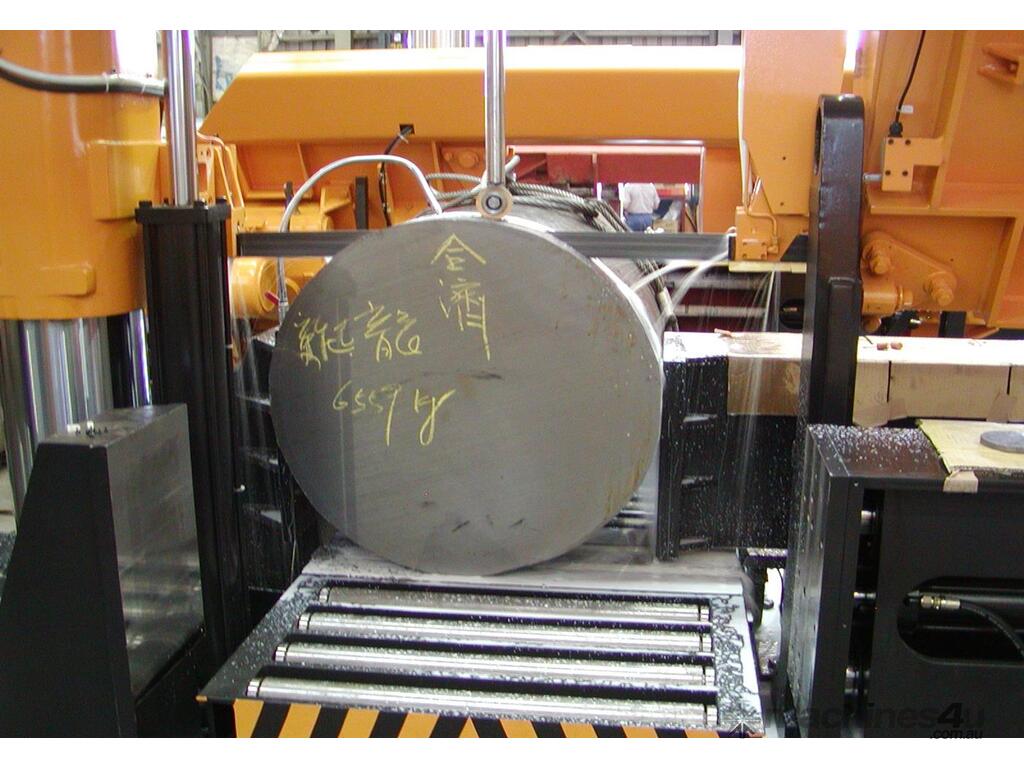

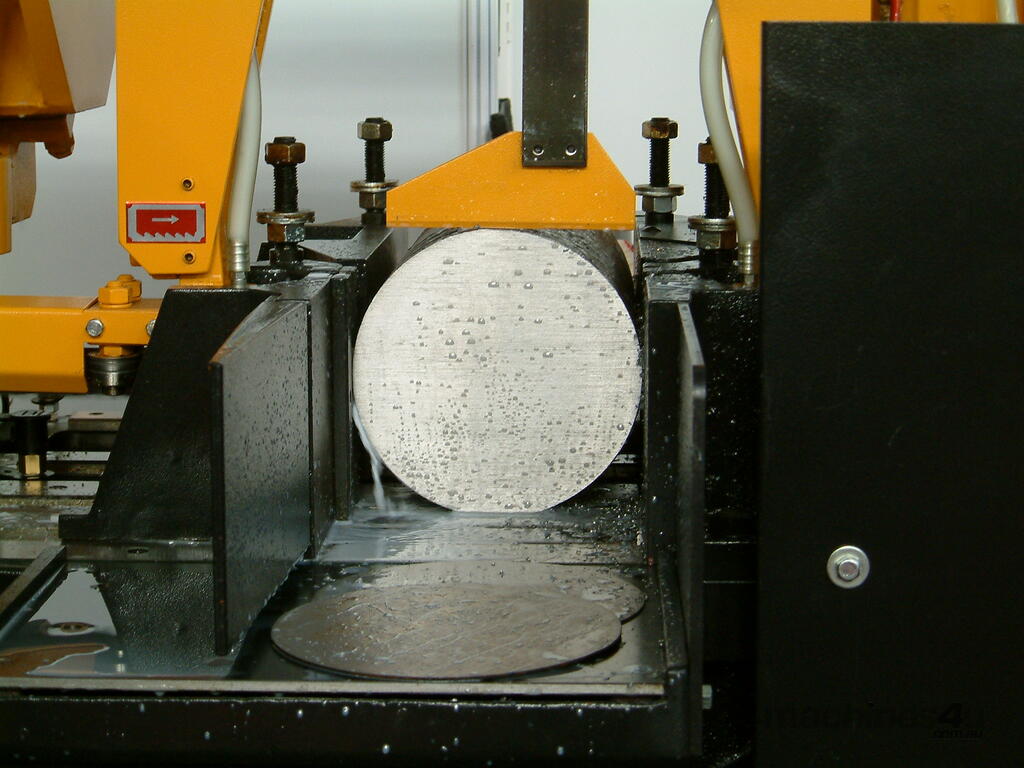

Round bar capacity :700 mm
Coolant pump motor: 1/4 HP

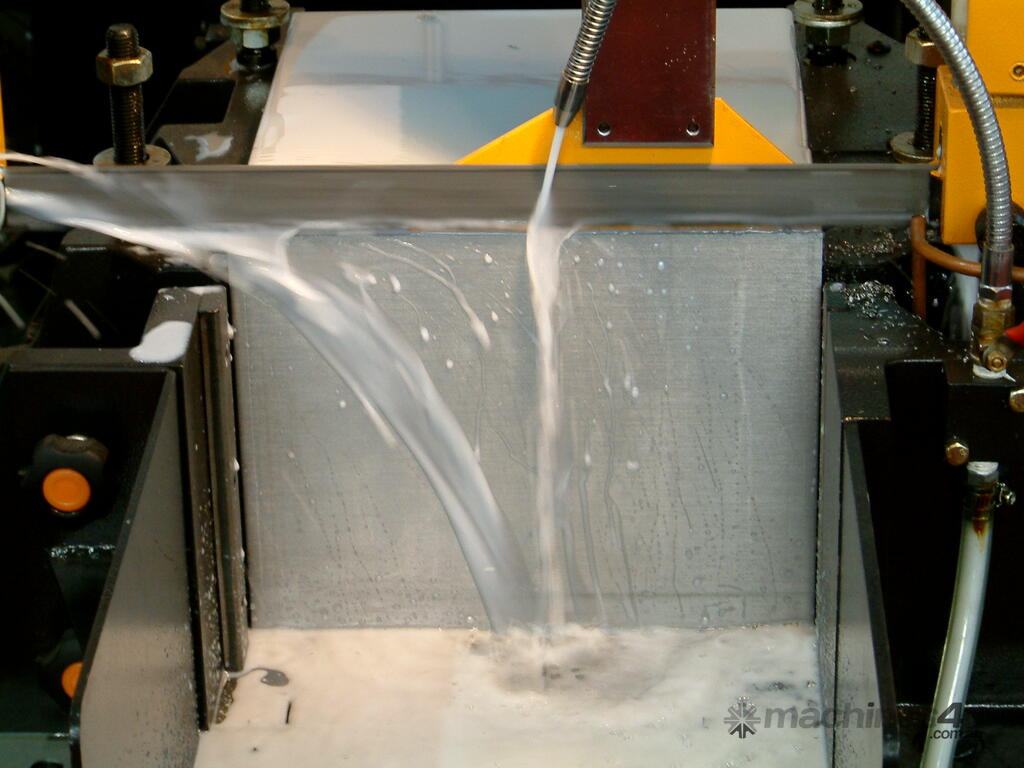

Square capacity: 800 (W) x 700 (H)mm
Hydraulic pump motor: 3 HP
Min clamp width: 285 mm
Blade drive motor: 10 HP
Blade size:8000L x 54W x 1.6 mm
Blade Tensioning: Hydraulic
Blade speed: 15-75 m/min
Machine weight: 7000kg
Index length: 500 mm
Floor Space: 3900 x 2300mm
There are two options for front support table:

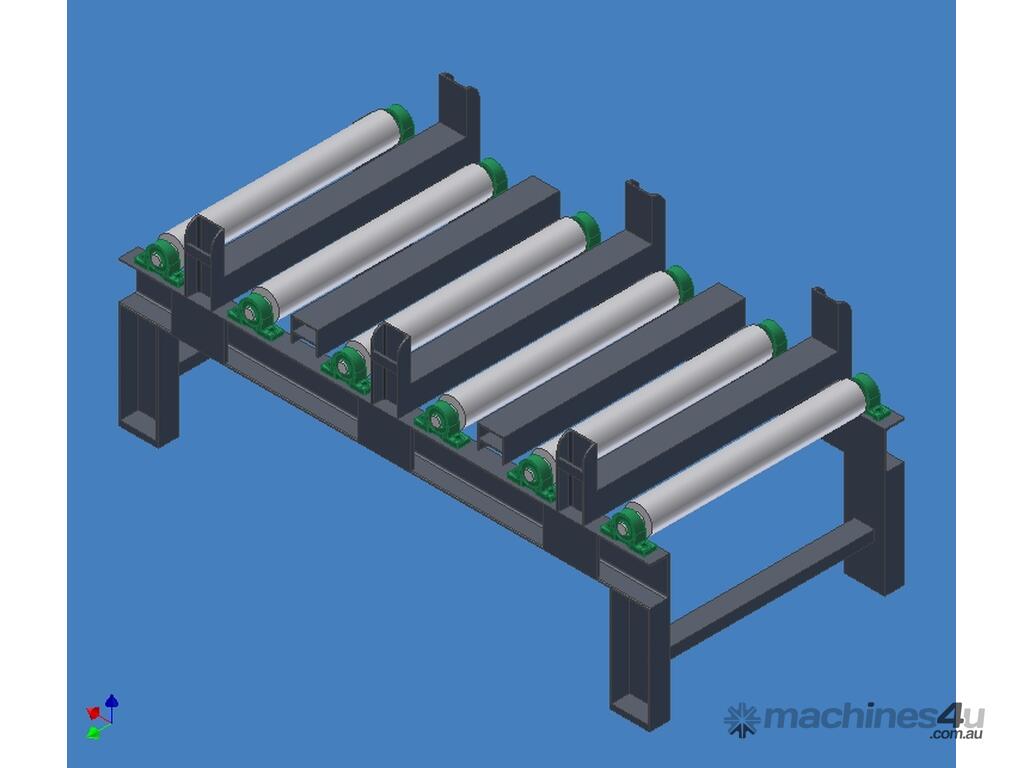

- Roller type: Suitable for long bar cutting
- Flat type: Suitable for thin piece cutting

STANDARD FEATURES
1. Hydraulic full stroke dual-vice clamping system with floating vices.
2. PLC control, for all electric and hydraulic functions.
3. Shuttle type automatic feed
4. Variable blade speed controlled by inverter.
5. Hydraulic actuated carbide blade guides.
6. HMI/PLC User Friendly Touch Screen with self-diagnosis system.
7. NC control with 9 working jobs.
8. Adjustable hydraulic pressure & feed control on control panel.
9. Power driven blade cleaning brush.
10. Automatic work height control by fast approach bar sensor.
11. Out of stock shutoff.
12. Preset cut counter with shut off.
13. Hydraulic blade tensioning.
14. Idler wheel motion detector with blade staling and breakage shutoff.

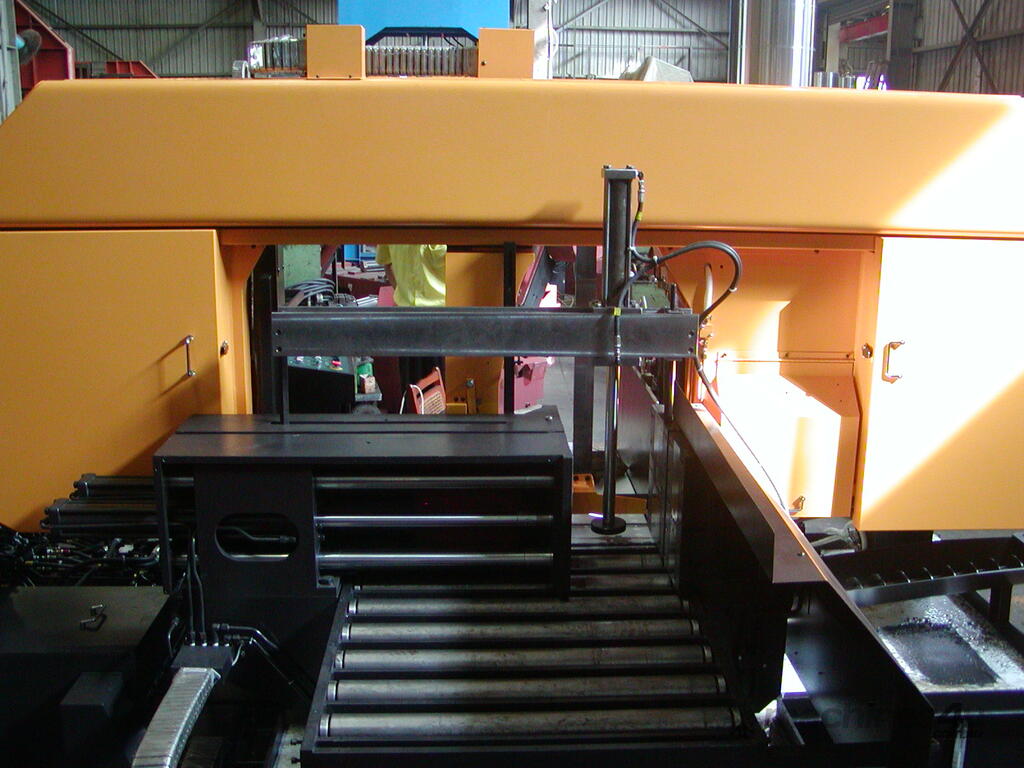

15. Roller type work table.
16. Independent electric cabinet and control panel.
17. Automatic chip conveyor.
18. Flushing hose for machine cleaning.
19. Work light.
20. One M42 bi-metal saw blade ready to use.
21. One set of tools.
22. Laser light
23. Powered movable guide arm with hydraulic lock
24. Hour counter
