EVERISING HW 450 /650II SEMI AUTO MITRE BANDSAW | 450MM X 650MM CAP | DOUBLE MITRE | HEAVY DUTY

Everising is synonymous in Australia and world wide for being reliable, great value for money, feature packed and the leader in its market segment.

For over 20 years Complete Machine Tools have been the proud Aussie agents for Everising band saws and circular saws and have forged a very large loyal customer base with numerous customer having multiple Everising machines and 1 customer boasting over 100 Everising saws operating Australia wide.

Everising sits within the top 3 globally in bandsaw production which is an impressive feat. Complete Machine Tools keeps alot of spares parts because of the sheer amount of machines that have been sold in the Aussie market over the last 20+ years so when your saw has an the odd hiccup you can feel confident that Complete Machine Tools will have the part.

Having a great deal of knowledge in sawing and its applications Complete Machine Tools and Everising are the perfect choice when looking for a new band saw whether its a fully auto or semi auto band saw.

A large product range is available that can suit the most demanding of applications regardless of size or complexity.

Used by many fabrication shops, machine shops and steel processing companies around Australia. Everising saws will give you the speed, accuracy and reliability you are looking for.

Mitre work is generally slow and labour intensive but with an Everising saw your labour cost input will be minimised and your operators happy to use a machine with such ease and simplicity.

The HW series offer extremely heavy duty construction ensuring less vibration, better frame stability and as a result better cut quality and cut speeds.

STANDARD FEATURES

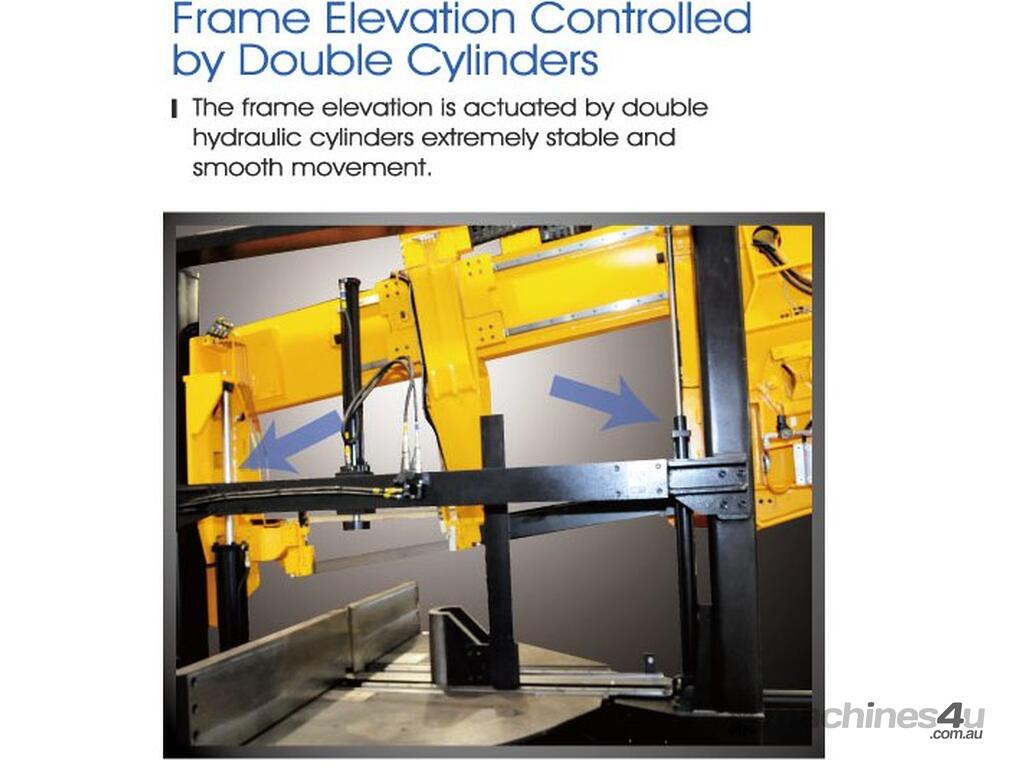

Double Column downfeed

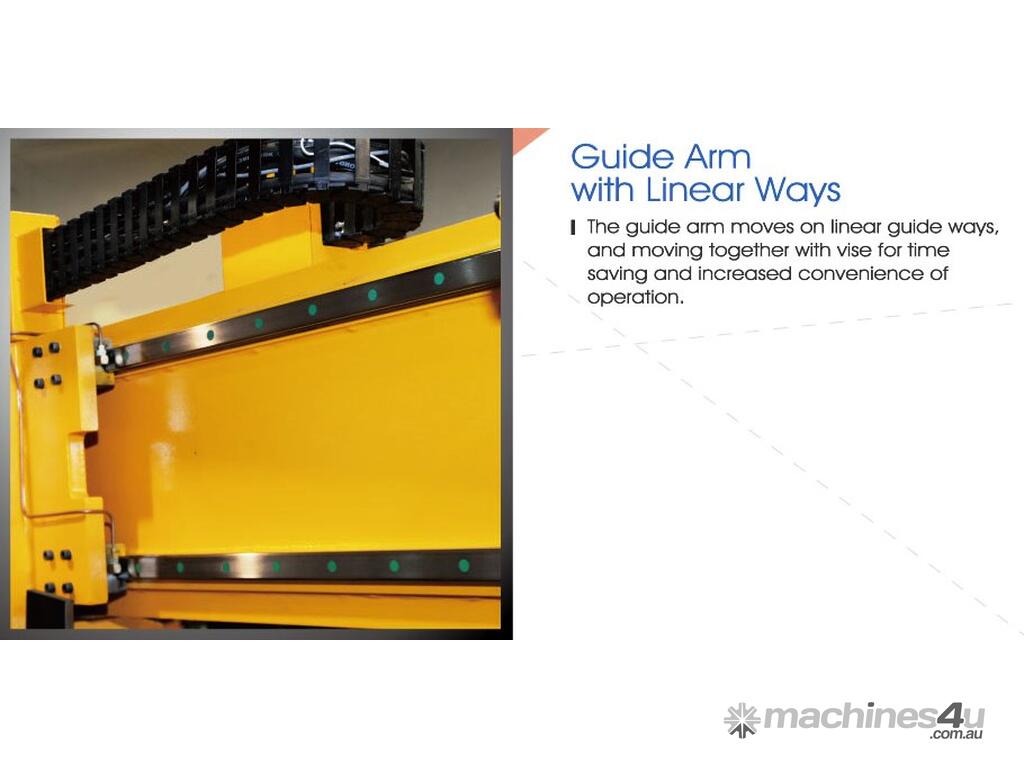

Guide arm moves on linear guideway, moving with vice
Power table swivelling with bi-direction mitre +45deg~0~-60deg
Hold down device for anti vibration
Fast approach device by photo electric detecting
Spray oil mist coolant system
Automatic Chip Conveyor
Compensating valve for controlling cutting feed

OPTIONAL EQUIPMENT

Power loading conveyor with single index length of 1 metre, 1.5 metre or 3 metre
NC controller with input for cutting data such as cutting length, working jobs and angle setting
.
SPECIFICATIONS/CAPACITY

HW450/650
RND:490 90 deg
RECT: 650 X 450 90 deg
RND: 390 45 deg
RECT: 390 X 420 45 deg
RND: 260 60 deg
RECT: 260 X 420 60 deg
BLADE SPEED: 20~100 m/min
BLADE SIZE: 7200 X 41 X 1.3
BLADE HEIGHT SENSING: PHOTO ELECTRIC.
BLADE PRESSURE: AUTOMATIC SENSING
MOTOR BLADE: 3.7 Kw (5HP)
MOTOR HYDRAULIC PUMP: 1.5 Kw (2HP)
MOTOR OIL MIST: 180W (1/4HP)
MOTOR BLADE BRUSH: 90W (1/8HP)
BLADE TENSION: HYDRAULIC
ANGLE SWIVEL: POWERFUL WITH LED DISPLAY
TABLE HEIGHT: 890mm

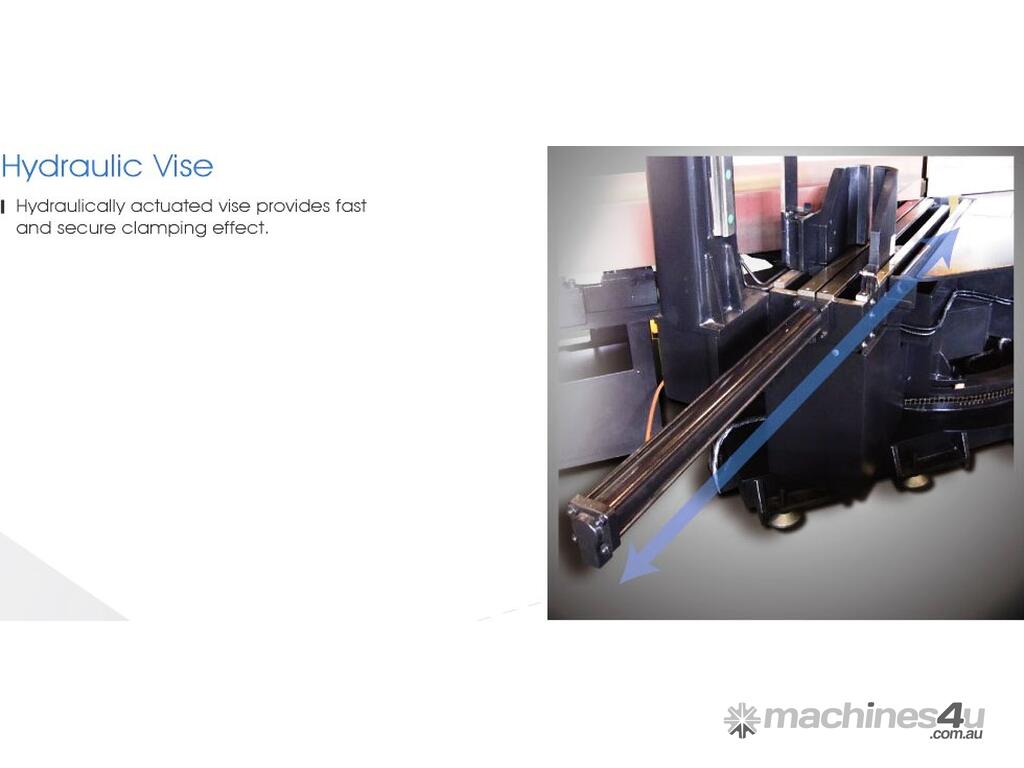

VICE CLAMPING: HYDRAULIC FULL STROKE
MACHINE WEIGHT: 4500 KGS
(without loading conveyor)
FLOOR SPACE: 3500 X 3200
(without loading conveyor)
